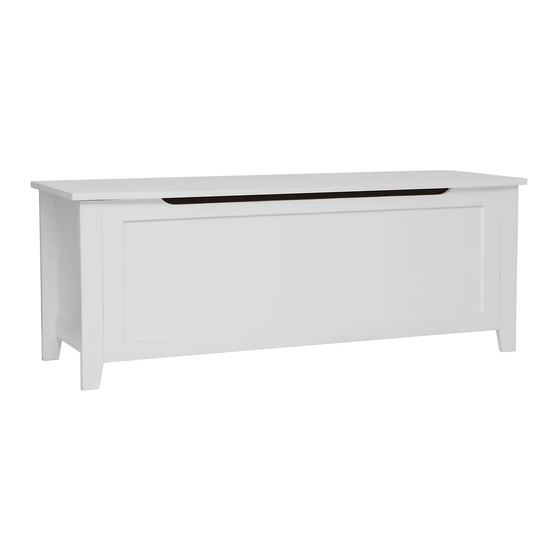

- Page 1 Marston II Multipurpose Storage Box FLOOR AREA 60min 2M x 2M APPROXIMATE ASSEMBLY TIME 2 PERSON ASSEMBLY REQUIRED ASSEMBLY SPACE REQUIRED ASSEMBLY TOOLS PHILLIPS SCREWDRIVER Flat Head screwdriver DO NOT USE POWER DRILL 1 / 10...
- Page 2 Marston II Multipurpose Storage Box Important Please read these instructions carefully before use and keep for future reference. • This product is intended for domestic use only and is not designed for commercial use. • Do not assemble/use this item if any components are missing or damaged.
-
Page 3: Assembly Tips
Marston II Multipurpose Storage Box Assembly Tips For larger items, please ensure that you have sufficient space and people (as indicated on page 1) to assemble your product safely. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled. - Page 4 Marston II Multipurpose Storage Box Tips before you start: QUICKFIT Tighten quickfit until shoulder is flush with panel. Do not overtighten or undertighten. CAM LOCK When fitting cam lock, ensure starting position is correct before you insert connecting quickfit. Quickfit head should be in the centre of the cam lock when the two panels are joined.
-
Page 5: Hardware List
Marston II Multipurpose Storage Box HARDWARE LIST Cam Bolt Cam Lock Hinge Screw Ax10 Bx10 Dx17 Wooden Dowel Screw Screw Allen Key PARTS LIST 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 5 / 10... - Page 6 Basic Kitchen Cart Marston II Multipurpose Storage Box STEP 1 10 x A STEP 2 STEP 2 2 x B This is how a cam nut works ..2 x G The head of the cam bolt goes into the open mouth of the cam nut.
- Page 7 Basic Kitchen Cart Marston II Multipurpose Storage Box STEP 3 1 x B Ensure the 2nd person is holding the panel 7 to support them until this step is completed, this will avoid damage to your item. STEP 2 STEP 4 This is how a cam nut works ..
- Page 8 Basic Kitchen Cart Marston II Multipurpose Storage Box STEP 5 Ensure the 2nd person is holding the panel 5 to support them until this step is completed, this will avoid damage to your item. STEP 2 STEP 6 This is how a cam nut works ..
- Page 9 Basic Kitchen Cart Marston II Multipurpose Storage Box STEP 7 3 x C 6 x H 6 x I STEP 2 STEP 8 9 x D 9 / 10...
- Page 10 Basic Kitchen Cart Marston II Multipurpose Storage Box STEP 9 8 x D 1 x E Ensure the 2nd person is holding the panel 6 1 x F to support them until this step is completed, this will avoid damage to your item.
-
Page 11: Warranty Certificate
You have made an excellent choice of this quality product. Our commitment to quality also includes our service. Should you, contrary to expecta ns, experience defects due to manufacturing faults, Meubilair Direct Imports will provide you with a warranty against defects as follows: Warranty The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. - Page 12 PRODUCT NAME: Marston II Multipurpose Storage Box BRAND NAME: PRODUCT CODE: 702018 NAME ADDRESS EMAIL DAYTIME TEL NO DATE OF PURCHASE SERIAL NUMBER We recommend that you a ach a photocopy of your receipt, showing the date of purchase, to this Warranty cate and kee In the event of a product fault, please email the Customer Service team.
