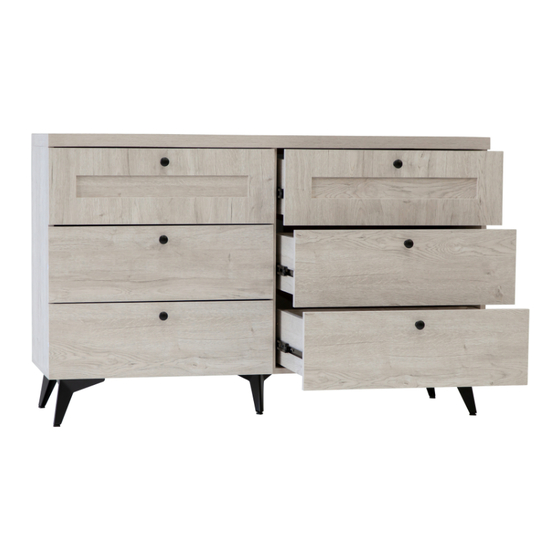

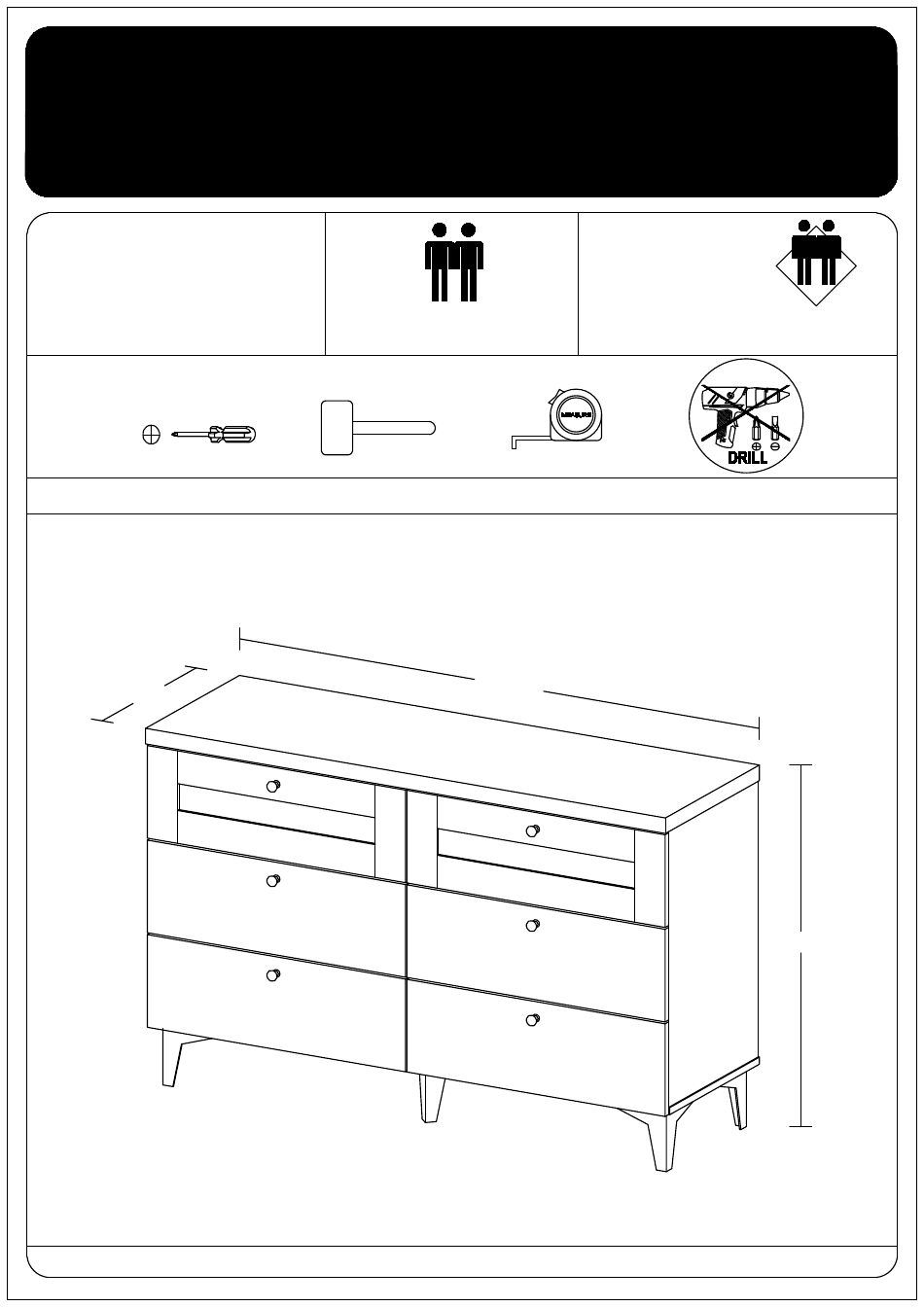

- Page 1 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 FLOOR AREA 2.5M X 2.0M 2.0 HR 2 PERSON APPROXIMATE ASSEMBLY TIME REQUIRED ASSEMBLY SPACE ASSEMBLY REQUIRED ASSEMBLY TOOLS POZI SCREWDRIVER HAMMER MEASURING TAPE ASSEMBLED DIMENSIONS 1200MM 392MM 766MM 1/18...
- Page 2 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 Important : Please read these instructions carefully before use and keep for future reference. ● This product is intended for domestic use only and is not designed for commercial use. ● DO NOT assembly / use this item if any components are missing or damaged. Please contact the retailer straight away.
- Page 3 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 Assembly Tips : 1. Please check that all parts are present before you start the assembly of your furniture. 2. For ease and speed of assembly, we recommend that before you commence each step of the assembly, that you Identify all the parts required for that step.
- Page 4 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 Tips before you start : QUICKFIT Shoulder Tighten quickfit until shoulder is flush with panel . Do not overtighten or undertighten. CAM LOCK CORRECT WRONG When fitting cam lock , ensure starting position is correct before you insert connecting quickfit. Quickfit head should be in the center of the cam lock when the two panels are joined .
- Page 5 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 DRAWER INSTALLATION GUIDE • Before you insert the drawers into the frame, please ensure that the ball bearing sliders (on the assembled unit) have been placed to the front of the main unit. If the bearings are in the middle of the slider it will be difficult to install the drawers correctly. •...
- Page 6 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 NOTE: CAUTION When removing the drawer,be careful to tip up the safety release tab on the left side,and tip it down on the right side to remove the drawer from the body as shown. 6/18...
- Page 7 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 PART LIST: (5B) (5A) (5B) (5A) (10) (10) (15) (11) (12) (14) (13) PART NAME DRAWER (FRONT RIGHT) SIDE PANEL (LEFT) DRAWER (FRONT LEFT) MIDDLE BOARD DRAWER (FRONT RIGHT) SIDE PANEL (RIGHT) DRAWER SIDE PANEL (LEFT) BOTTOM PANEL DRAWER SIDE PANEL (RIGHT)
- Page 8 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 HARDAWRE LIST C/B SCREW M3.5 x 12mm C/B SCREW M3.5 x 16mm C/B SCREW M3.5 x 20mm C/B SCREW M3.5 x 38mm CAM BOLT C/B SCREW M4 x 45mm SCREW M10 x 12mm DOWEL Ø6 x 25mm x6 PAIR K2 x6 PAIR...
- Page 9 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 STEP 1 Insert the Dowel (G) into the designated hole as shown. (12)=6 PCS (11)=6 PCS G x36 9/18...
- Page 10 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 STEP 2 Pull out the (K) as in the illustration, then push the button to lever and remove the first component. Push the lever FRONT BACK FRONT BACK Pull out Align the designated holes of the slide rail with the holes in the panel and secure with screws (A). Note: First pull out the second section of the slide rail for a short distance, so that you can see the hole to be fixed in the third section, which is convenient for fixing FRONT...
- Page 11 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 STEP 3 Align the designated holes of the slide rail with the holes in the panel and secure with screws (A). Note: First pull out the second section of the slide rail for a short distance, so that you can see the hole to be fixed in the third section, which is convenient for fixing IMPORTANT: Please check the screw placement for the runners carefully as they are different on each side of the panel to avoid the screws hitting each other as they are attached...
- Page 12 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 STEP 5 As shown in the picture, the bottom of No. 4 board faces upwards. Align the LEG (L) and screw (F) with the marked holes on the base plate and tighten. F x20 L x5 STEP 6...
- Page 13 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 STEP 7 Slot the drawer bottom (14) into the drawer body. (14) (14) STEP 8 As shown in the picture No. 11,12 & 15 panels are fixed and tightened with screws (D). Align panel No. 15 with the designated hole on No.
- Page 14 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 STEP 9 As shown in the picture, fix the HANDLE(J) on the 7,8,9,10 panel with screws . (7)&(8) (9) = 2PCS (10) = 2PCS J x6 STEP 10 Secure the first part of the full extension rail (K2) to the panels 11 and 12 with screws (A) as shown. BACK FRONT BACK...
- Page 15 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 STEP 11 As shown in the figure, align the positioning pins at the bottom of No. 1, No. 2, and No. 3 boards with the designated holes on the top of No. 4 board, and then fix the screws (E). 2 PERSON E x6 ASSEMBLY...
- Page 16 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 STEP 13 Align the holes at the bottom of panel No.6 with the positioning pins of No. 1,2 and 3 panels, then place CAM NUT (I) into the designated hole and tighten 180°. 2 PERSON ASSEMBLY Note: Always use atleast 2...
- Page 17 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 STEP 15 As shown in the picture, pull out the fully extension slide to align with the first section on the drawer, and push it in. (10) (10) • PUSH THE ROLLER OF K1 TO THE FRONT SIDE OF THE BODY.
- Page 18 BAYVILLE 6 DRAWER DRESSER ITEM CODE : TVS 205 STEP 16 Insert the back panel connector (M) into the slot on the edge of the back panel and fix it with screw (C). Note: It is important to correctly attach the back ply stoppers as this will help support and stabilise your item C x16 M x16 18/18...
- Page 19 retaining wall.
-
Page 20: After Sales Support
You have made an excellent choice of this quality product. Our commitment to quality also includes our service. Should you, contrary to expectations, experience defects due to manufacturing faults, Meubilair Direct Imports will provide you with a warranty against defects as follows: Warranty The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. -
Page 21: Brand Name
In the event of a product fault, please email the Customer Service team. Please ensure that you include the product details (as shown on the card) at hand so that we are able to respond as quickly and efficiently as possible. MEUBILAIR DIRECT IMPORTS PTY LTD Customer Service Email: cs@meubilair.com.au...
