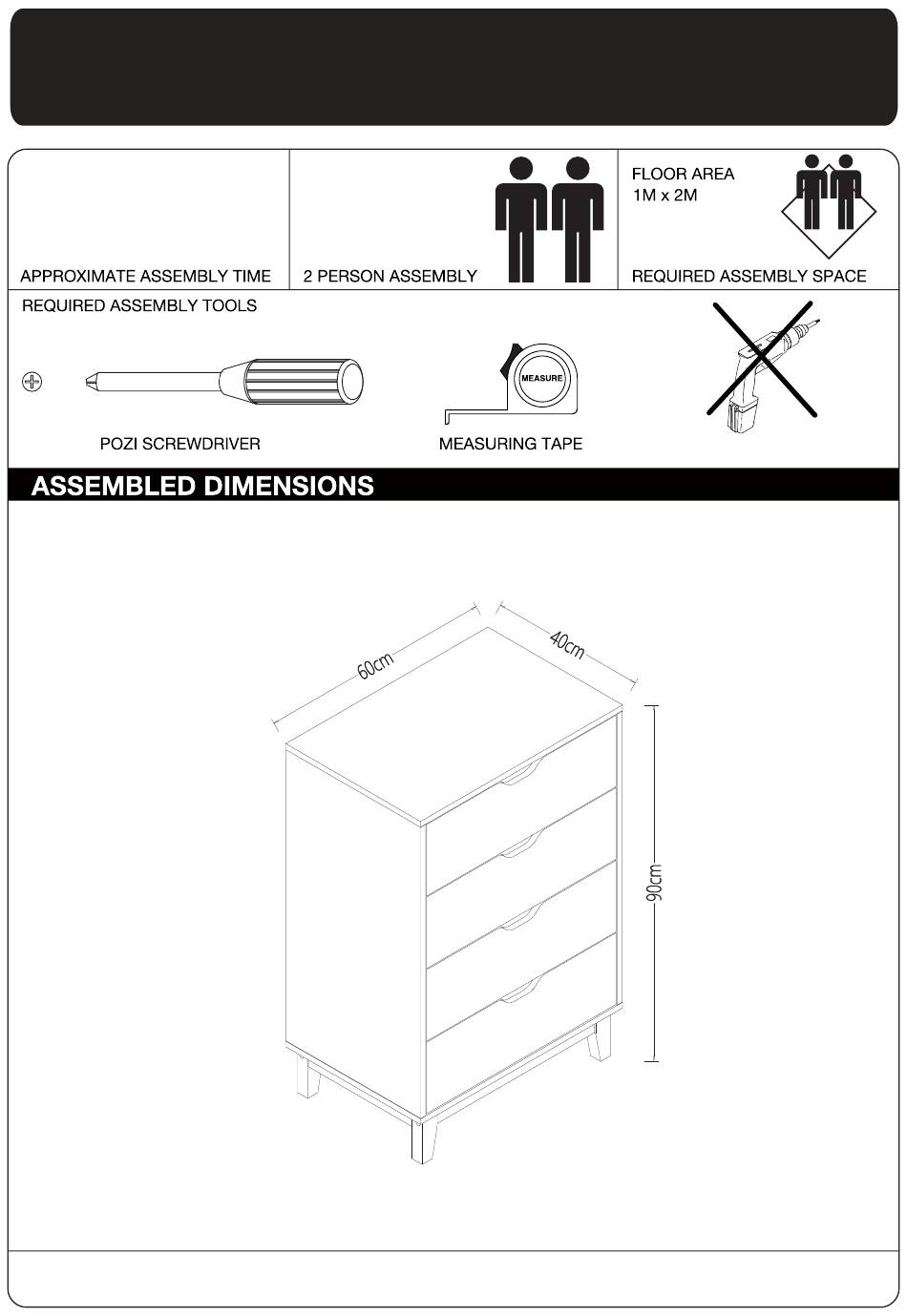

- Page 1 Alma Scandi 4 Drawer Chest 1.5hr DO NOT USE POWER DRILL 1 / 11...
- Page 2 Alma Scandi 4 Drawer Chest Important Please read these ins carefully before use and keep for future reference. • This product is intended for dome c use only and is not designed for commercial use. • Do not assemble/use this item if any components are missing or damaged. Please contact the retailer straight away.
- Page 3 Alma Scandi 4 Drawer Chest 3 / 11...
- Page 4 Alma Scandi 4 Drawer Chest 4 / 11...
- Page 5 Alma Scandi 4 Drawer Chest 32xA 32xB female camlock shelf supports male camlock 24xD 10xE machine screw screw screw 32xI screw barrel nut hex key wall bracket back fastener screw wall bracket screw feetpad 4xDL 4xCL 4xCR left drawer slide left cabinet slide right cabinet slide 4xDR...
- Page 6 Alma Scandi 4 Drawer Chest 1PCS 1PCS 1PCS 1PCS 1PCS 1PCS 1PCS 1PCS 2PCS 2PCS 4PCS 4PCS 4PCS 4PCS 4PCS 4PCS 6 / 11...
- Page 7 Alma Scandi 4 Drawer Chest ST E P 1 Front Front Back Back Base Base ST E P 2 Ensure the 2nd person is holding the panels to support them until this step is completed, this will avoid damage to your item. 7 / 11...
- Page 8 Alma Scandi 4 Drawer Chest ST E P 3 Ensure the 2nd person is holding the panels to support them until this step is completed, this will avoid damage to your item. ST E P 4 8 / 11...
- Page 9 Alma Scandi 4 Drawer Chest ST E P 5 ST E P 6 9 / 9...
- Page 10 Alma Scandi 4 Drawer Chest ST E P 7 x 4 Note: Its important not to over-tighten screws on the drawer sides until all sides are aligned and the drawer base is inserted. Tighten screws fully once base is inserted correctly. Always keep drawer flat in this step so the groove for base will align correctly.
- Page 11 Alma Scandi 4 Drawer Chest ST E P 9 ST E P 10 11 / 11...
- Page 13 UNIT 4, 16 Hickeys Lane, Penrith NSW 2750 MEU3380...
- Page 14 Alma Scandi 4 Drawer Chest Meubilair Direct lmports MEU3380 UNIT 4, 16 Hickeys Lane, Penrith NSW 2750 MEU3380...
