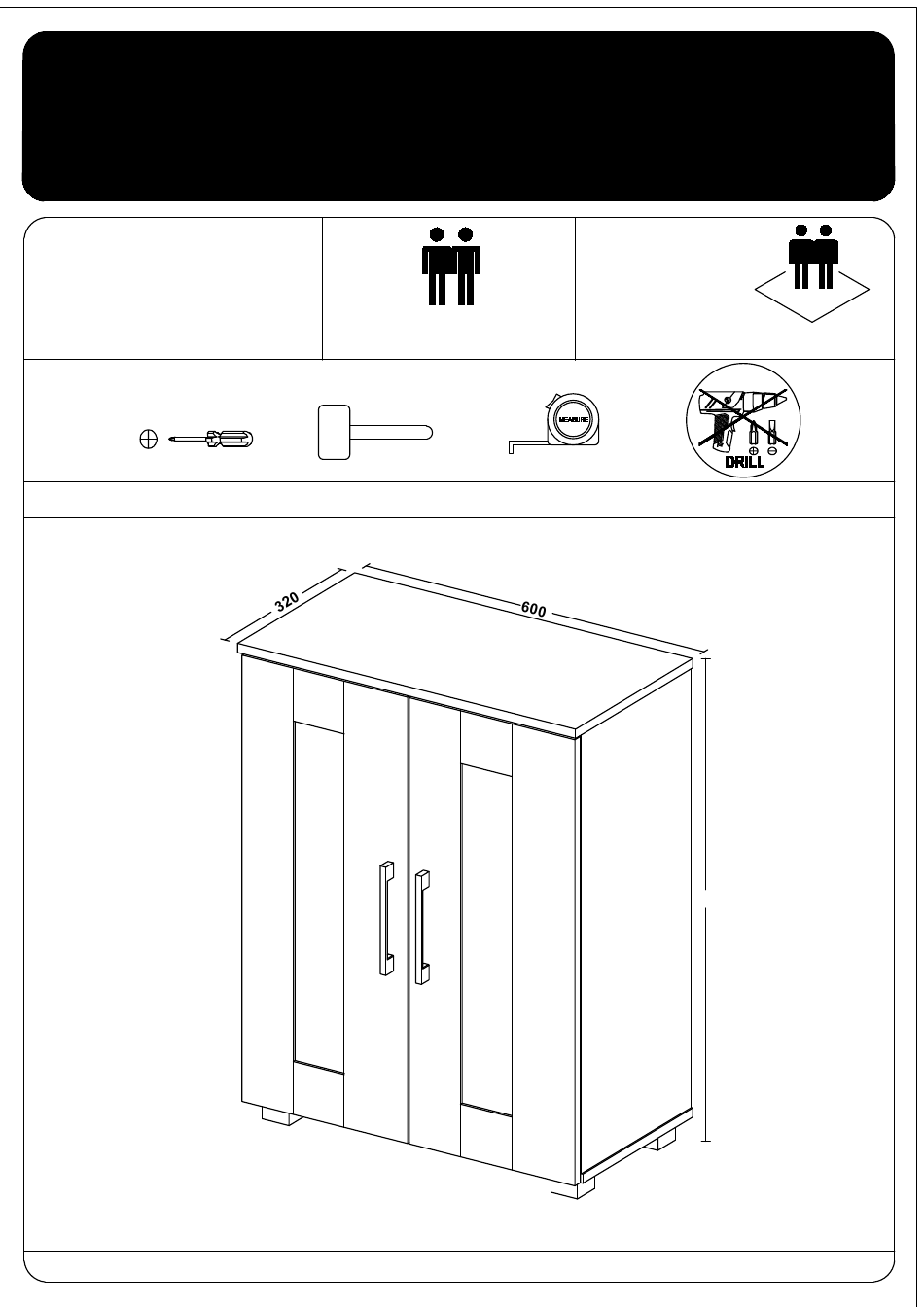

- Page 1 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 FLOOR AREA 1.0M X 2.0M 1.0 HR 2 PERSON APPROXIMATE ASSEMBLY TIME REQUIRED ASSEMBLY SPACE ASSEMBLY REQUIRED ASSEMBLY TOOLS POZI SCREWDRIVER HAMMER MEASURING TAPE ASSEMBLED DIMENSIONS 1/18...
- Page 2 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 Important : Please read these instructions carefully before use and keep for future reference. ● This product is intended for domestic use only and is not designed for commercial use. ● DO NOT assembly / use this item if any components are missing or damaged. Please contact the retailer straight away.
- Page 3 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 Assembly Tips: 1. For larger items, please ensure that you have sufficient space and people (as indicated on page 1) to assembly your product safely. 2. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
- Page 4 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 Tips before you start : QUICKFIT Shoulder Tighten quickfit until shoulder is flush with panel . Do not overtighten or undertighten. CAM LOCK CORRECT WRONG When fitting cam lock , ensure starting position is correct before you insert connecting quickfit. Quickfit head should be in the center of the cam lock when the two panels are joined .
- Page 5 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 PART LIST: (7A) PART NAME PART NAME SIDE PANEL (LEFT) SHELF PANEL SIDE PANEL (RIGHT) DOOR TOP PANEL BACK PANEL BOTTOM PANEL BACK PANEL SLATS 5/18...
- Page 6 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 HARDAWRE LIST SCREW COVER DOWEL Ø6 CAM BOLT CAM NUT 25mm C/B SCREW C/B SCREW M4 x 45mm PVC SQ.LEG PVC HANDLE M3.5 x 16mm C/B SCREW C/B SCREW M4 x 30mm NAIL HINGE (5/8) W/SPRING M3.5 x 20mm...
- Page 7 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 STEP 1 Insert the Dowel (B) into the designated hole as shown. B x18 8/18...
- Page 8 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 STEP 2 Align the CAM Bolt (C) with the specified hole and tighten as shown C x4 8/18...
- Page 9 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 STEP 3 As shown in diagram, remove the foot cover to expose the screw holes so that you can position the holes correctly over the guide holes on Panel 4 as shown. Once in position tighten the screws and replace the foot cover by pressing firmly onto the casing, ensure they are well secured.
- Page 10 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 STEP 4 Attach Hinges (J) to the door panel (6) using screws (G) as shown in the diagram below. Ensure the hinges are nice and straight. TIP : To ensure the hinge plates are straight you could use the straight edge of another panel and place on top and position the edge against the hinge G x8 J x4...
- Page 11 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 STEP 5 Align panels (5) and (8) with holes in (1) as shown and secure with screws (E). Add screw cover (A) to complete steps. 2 PERSON ASSEMBLY A x4 E x4 Note: Its easier to have the help of a 2nd person to hold panels during this step and avoid damage to your item.
- Page 12 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 STEP 7 Align base panel (4) with holes shown on (1) (2) and secure using screws (E) as shown. TIP : Please make sure you attach the base of the unit correctly so that unit is assembled the right way.
- Page 13 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 STEP 9 Place the back panel onto the cabinet and ensure the cut outs for the wall brackets are facing to the top, and that the laminated side of the panel is facing inwards. Mark the location of the nails (L) with a pencil then carefully secure nails with a hammer.
- Page 14 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 STEP 10 To attach your doors to the cabinet, align the door panel and hinge with the screw guide holes on the side panels. A 2nd person must help during this step.Attach the hinge plate with screws (G) as shown.The screws should be positioned into the middle of the oval holes on the hinge plate, if required they can be adjusted in the final steps if you need to adjust door heights.
- Page 15 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 HOW TO ADJUST YOUR HINGES AND ALIGN THE DOORS This adjustment is used if your doors are overlapping in the middle OR there is a large gap through the middle that you want to even out. Before you begin always ensure your cupboard is on a flat even surface, as rugs and carpet / uneven tiles can affect the position of the doors.
- Page 16 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 This adjustment is used if your doors have a big gap at the top or the bottom, or if one door sits straight but is lower than the other door. This adjustment is used if your doors are TOO CLOSE to the main cavity.
- Page 17 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 STEP 11 Secure the L-Bracket (M) to the bottom of the panel (3) with screws (N) as shown.Then fasten the screw (K) to the designated hole. IMPORTANT: Weight Capacity per shelf is 6kg distributed evenly across the shelf (36) IMPORTANT:...
- Page 18 MONTREAL CABINET 2 DOOR ITEM CODE : 61494 ASSEMBLY IS COMPLETE WARNING wall Serous or fatal crushing can occur from furnlture tip over, To help prevent tlp over : • Install all tip over restraints provlded with your product. • Place heavlest Item Ins|de the lower doors. •...
- Page 20 You have made an excellent choice of this quality product. Our commitment to quality also includes our service. Should you, contrary to expectations, experience defects due to manufacturing faults, Meubilair Direct Imports will provide you with a warranty against defects as follows: Warranty The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase.
- Page 21 In the event of a product fault, please email the Customer Service team. Please ensure that you include the product details (as shown on the card) at hand so that we are able to respond as quickly and efficiently as possible. MEUBILAIR DIRECT IMPORTS PTY LTD Customer Service Email: cs@meubilair.com.au...
