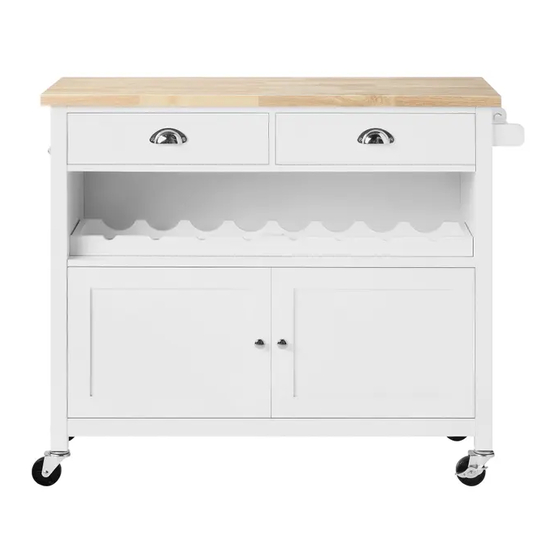

- Page 1 Hampshire 2 Drawer 2 Door Kitchen Storage Trolley FLOOR AREA 2.0hr 2M x 2M APPROXIMATE ASSEMBLY TIME 2 PERSON ASSEMBLY REQUIRED ASSEMBLY SPACE REQUIRED ASSEMBLY TOOLS PHILLIPS SCREWDRIVER Flat Head screwdriver DO NOT USE POWER DRILL 1 / 31...
- Page 2 Hampshire 2 Drawer 2 Door Kitchen Storage Trolley Important Please read these instructions carefully before use and keep for future reference. • This product is intended for domestic use only and is not designed for commercial use. • Do not assemble/use this item if any components are missing or damaged.
-
Page 3: Assembly Tips
Hampshire 2 Drawer 2 Door Kitchen Storage Trolley Assembly Tips For larger items, please ensure that you have sufficient space and people (as indicated on page 1) to assemble your product safely. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled. - Page 4 Hampshire 2 Drawer 2 Door Kitchen Storage Trolley Tips before you start: QUICKFIT Tighten quickfit until shoulder is flush with panel. Do not overtighten or undertighten. CAM LOCK When fitting cam lock, ensure starting position is correct before you insert connecting quickfit. Quickfit head should be in the centre of the cam lock when the two panels are joined.
-
Page 5: Hardware List
Hampshire 2 Drawer 2 Door Kitchen Storage Trolley HARDWARE LIST A x 40 B x 40 C x 26 D x 4 E x 50 F x 10 G x 1 H x 2 Cam lock Magnet Cam bolt Wood Dowel Screw Screw Screw... -
Page 6: Parts List
Hampshire 2 Drawer 2 Door Kitchen Storage Trolley PARTS LIST 2PCS 2PCS 2PCS 2PCS 2PCS 2PCS 2PCS 2PCS 2PCS 2PCS 6 / 31... - Page 7 Hampshire 2 Drawer 2 Door Kitchen Storage Trolley 7 / 31...
- Page 8 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 1 4 x D STEP 2 STEP 2 SAFETY RELEASE TAB Y and Z are shipped together to maintain the oil for the ball bearings. Note that you need to tip up the safety release tab to take out the Slider Z part prior to assembly.
- Page 9 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 3 2 x E 1 x Y Back Front Front Back STEP 2 STEP 4 8 x A 4 x C 9 / 31...
- Page 10 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 5 2 x E 1 x Y Back Front Back Front STEP 2 STEP 6 8 x A 10 / 31...
- Page 11 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 7 Back Back Front Front 4 x E Back Front 2 x Y STEP 2 STEP 8 2 x C 2 x F Ensure the 2nd person is holding the panels 6 to support them until this step is completed, this will avoid damage to your item.
- Page 12 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 9 4 x A 4 x C STEP 2 STEP 10 4 x B Ensure the 2nd person is holding the panels 10 to support them until this step is completed, this will avoid damage to your item.
- Page 13 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 11 1 x G 2 x H STEP 2 STEP 12 4 x B Ensure the 2nd person is holding the panels 6 to support them until this step is completed, this will avoid damage to your item.
- Page 14 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 13 2 x B Ensure the 2nd person is holding the panel 7 to support them until this step is completed, this will avoid damage to your item. STEP 2 STEP 14 2 x B...
- Page 15 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 15 4 x C Ensure the 2nd person is holding the panel 11 to support them until this step is completed, this will avoid damage to your item. 15 / 31...
- Page 16 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 16 This is how a cam nut works ..8 x B The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 17 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 17 2 x I 2 x J STEP 2 STEP 18 2 x I 2 x J 17 / 31...
- Page 18 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 19 2 x K 2 x L STEP 2 STEP 20 6 x A 18 / 31...
- Page 19 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 21 2 x N STEP 2 STEP 22 6 x C Ensure the 2nd person is holding the panel 11 to support them until this step is completed, this will avoid damage to your item.
- Page 20 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 23 This is how a cam nut works ..The head of the cam bolt 6 x B goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 21 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 25 5 x E 2 x P 1 x Q STEP 2 STEP 26 5 x E 2 x P 1 x Q 21 / 31...
- Page 22 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 27 8 x E 27-1 2 x R 2 x S NOTE:Please refer to the next page for hinge adjustment. 27-2 8 x E Note: Only add the E screws into the round holes once your doors are hung in the correct position by making the small adjustments with the oval shaped holes in the previous step.
- Page 23 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley 23 / 31...
- Page 24 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 28 8 x A 8x B Note: Its important not to over-tighten screws on the drawer sides until all sides are aligned and the drawer base is inserted. Tighten screws fully once base is inserted correctly.
- Page 25 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 30 8 x E 4 x Z Back Front Back Front STEP 2 STEP 31 4 x E 2 x T 25 / 31...
- Page 26 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 32 6 x A 3 x C STEP 2 STEP 33 3 x B 3 x C 26 / 31...
- Page 27 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 34 3 x B STEP 2 STEP 35 NOTE: If you do not wish to use the wine rack in your trolley then you do not need to complete this step and you can use it as a normal shelf.
- Page 28 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 36 2 x V STEP 2 STEP 37 8 x W 8 x X 28 / 31...
- Page 29 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley STEP 38 NOTE: Refer to next page for drawer installation guidelines. 29 / 31...
- Page 30 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley Drawer Installation Guide Before you insert the drawers into the frame, please ensure that the ball bearing sliders (on the assembled unit) have been placed to the front of the main unit. If the bearings are in the middle of the slider it will be difficult to install the drawers correctly.
- Page 31 Basic Kitchen Cart Hampshire 2 Drawer 2 Door Kitchen Storage Trolley NOTE: CAUTION When removing the drawer,be careful to tip up the safety release tab on the left side,and tip it down on the right side to remove the drawer from the body as shown.
-
Page 32: Warranty Certificate
You have made an excellent choice of this quality product. Our commitment to quality also includes our service. Should you, contrary to expecta ns, experience defects due to manufacturing faults, Meubilair Direct Imports will provide you with a warranty against defects as follows: Warranty The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. - Page 33 In the event of a product fault, please email the Customer Service team. Please ensure that you include the product details (as shown on the card) at hand so that we are able to respond as quickly and efficiently as possible. Meubilair Direct Imports PTY LTD Customer Service Email: cs@meubilair.com.au...
