Summary of Contents for Fieldmann FZG 3025

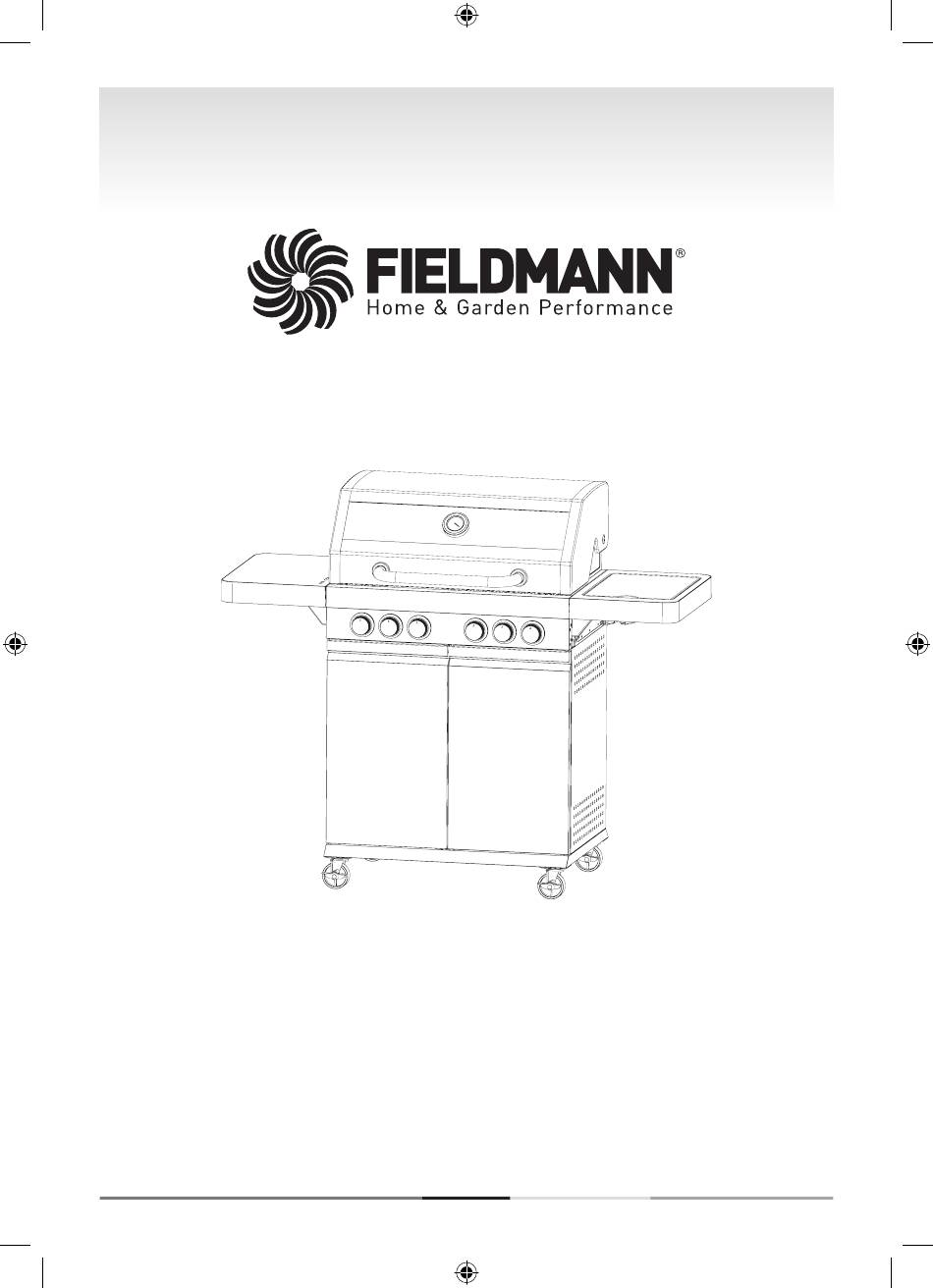

  • Page 1 FZG 3025...
  • Page 2 English ....................................3–24 Čeština .....................................25–46 Slovenčina ..................................47–68 Magyarul ..................................69–90 Polski ....................................91–112 FZG 3025...
  • Page 3: Table Of Contents

    Things to consider when barbecuing......................11 Cleaning and maitenance ..........................11 Storage .................................... 11 SERVICING ..................................12 TROUBLE SHOOTING..............................12 Specifications ................................12 3. PARTS DIAGRAM FOR FZG 3025 .........................13 4. ASSEMBLY ..................................15 5. PROTECTION OF THE ENVIRONMENT ......................23 6. DISPOSAL ..................................23 7. TECHNICAL DATA ...............................24 GAS GRILL...
  • Page 4: General Safety Instructions

    5. Do not use grill until any and all leaks are corrected. If you are unable to stop a leak, disconnect the propane supply. Call a gas appliance serviceman or your local propane gas supplier. WARNING 1. This grill is for outside use only, and shall not be used in a building, garage, or any other enclosed area. FZG 3025...
  • Page 5 General safety instruCtions 2. This grill is for use with propane gas only (propane gas cylinder not included). 3. Never attempt to attach this grill to the self-contained propane system of a camper trailer, motor home or house 4. Never use charcoal or lighter fluid. 5.
  • Page 6: General Information

    If outdoor cooking gas appliance is not in use the gas MUST be turned off at the supply cylinder. The pressure regulator and hose assembly supplied with the gas grill MUST be used. Replacement regulators and hose assemblies must be supplied by the manufacturer. Please see parts page replacement part #16. FZG 3025...
  • Page 7: User's Manual

    user’s manual 2. USER’S MANUAL Grill and gas cylinder positioning Place the BBQ on a firm, flat and fire-proof surface. Make sure to maintain a safety clearance of at least 60 cm from nearby combustible surfaces. Never move the BBQ when it is lit or still hot from grilling. Gas cylinder Position the gas cylinder in such a way that it is not exposed to continuous sunlight or other sources of heat.
  • Page 8 1. Make sure that the regulator is set to OFF. Lift up the spring-loaded locking collar and push the regulator down onto the gas cylinder. 2. Push the locking collar down to lock the regulator onto the gas cylinder. FZG 3025...
  • Page 9: Gas Leak Testing

    user’s manual 2. Connect the gas hose to the BBQ and tighten the hose clamp. The picture shows the connection of a gas hose in accordance with Swedish standards. In some countries the gas hose is of a larger diameter and is pushed all the way onto the connector.
  • Page 10: Lighting Instructions For Barbecue

    WARNING: Accessible parts may be very hot. Keep young children away from the hot appliance at all times (even while cooling down!). It is recommended that protective gloves (eg oven gloves) be used when handling particularly hot components. FZG 3025...
  • Page 11: Things To Consider When Barbecuing

    user’s manual Things to consider when barbecuing Burn hazard - wear protective gloves. Ensure that the BBQ is placed in an open area. Never use it in an enclosed space or under a roof. Keep children and pets at a safe distance from the BBQ. Never leave the BBQ unattended during use.
  • Page 12: Servicing

    The regulator that is used must be CE approved Gas hose The gas hose that is used must be CE approved (max length 1.5 m) Ignition Integrated ignition Grill size 60 x 42 cm Dimensions 133 x 57 x 112 cm FZG 3025...
  • Page 13: Parts Diagram For Fzg 3025

    Parts DiaGram for fZG 3025 3. PARTS DIAGRAM FOR FZG 3025 GAS GRILL USER'S MANUAL...
  • Page 14 Parts DiaGram for fZG 3025 4 * 1(R) * 1(L) * 1(R) * 1(L) * 1(L) * 1(R) 17 * 2(F) * 2(B) 31 *1 32 *1 33 *1 A M5- 10*47 CM5- 16*10 D M5-1 2*10 E *1 M6- 15*6...
  • Page 15: Assembly

    assembly 4. ASSEMBLY 16PCS 4PCS 2PCS GAS GRILL USER'S MANUAL...
  • Page 16 8PCS 7PCS 2PCS 6PCS 4PCS FZG 3025...
  • Page 17 assembly 4PCS 4PCS 2PCS 4PCS GAS GRILL USER'S MANUAL...
  • Page 18 2PCS 8PCS 8PCS 8PCS FZG 3025...
  • Page 19 assembly 4PCS 4PCS 2PCS GAS GRILL USER'S MANUAL...
  • Page 20 2PCS FZG 3025...
  • Page 21 assembly 3PCS GAS GRILL USER'S MANUAL...
  • Page 22 4PCS FZG 3025...
  • Page 23: Protection Of The Environment

    ProteCtion of the environment 5. PROTECTION OF THE ENVIRONMENT Warning! Do not dispose of electrical and electronic waste with standard unsorted waste, rather use containers for sorted waste. You will receive further information regarding the recycling of this power tool from an authorised vendor or at a waste collection facility.
  • Page 24: Technical Data

    Data FZG 3025...
