Summary of Contents for Fieldmann FZG 3002

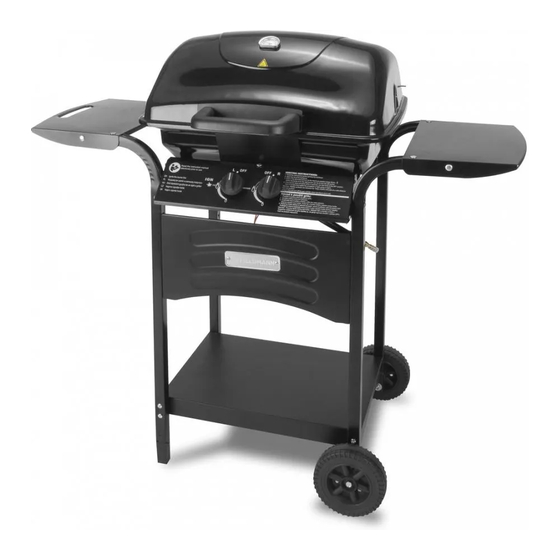

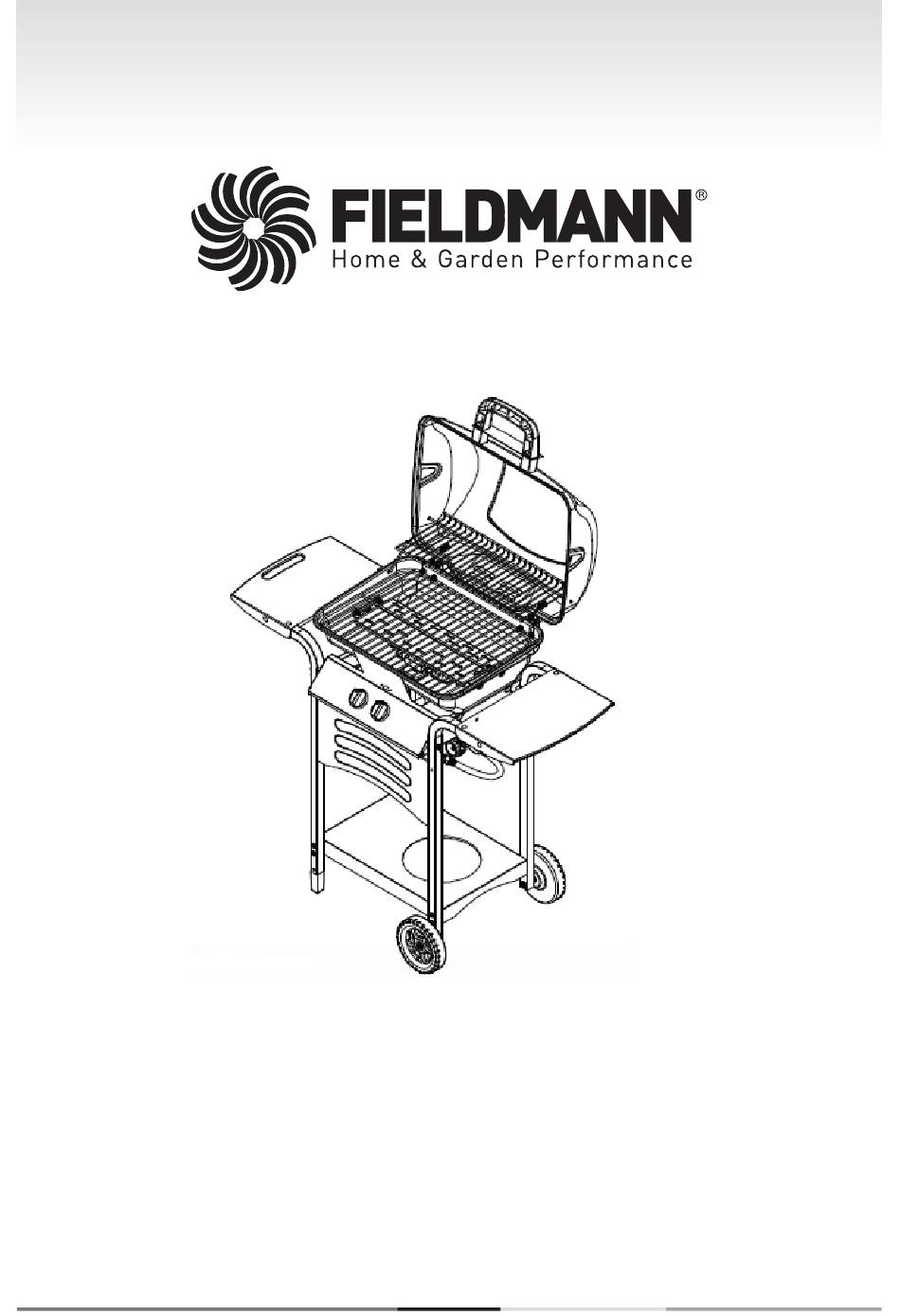

  • Page 1 FZG 3002...

  • Page 2: Table Of Contents

    Things to consider when barbecuing......................10 Cleaning and maitenance ..........................11 Storage ....................................12 Specifications ................................12 3. PARTS DIAGRAM FOR FZG 3002 .........................13 4. PARTS DIAGRAM FOR FZG 3002 .........................14 5. QUANTITIES OF FASTENERS ............................15 6. ASSEMBLY ..................................16 7. PROTECTION OF THE ENVIRONMENT ......................27 8.

  • Page 3: General Safety Instructions

    General safety instructions 1. GENERAL SAFETY INSTRUCTIONS DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. Open Lid. 4. If odour continues, immediately call your gas supplier or fire department. WARNING! Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
  • Page 4 General safety instructions 3. Never attempt to attach this grill to the self-contained propane system of a camper trailer, motor home or house 4. Never use charcoal or lighter fluid. 5. The use of alcohol, or prescription or non-prescription drugs may impair the consumer’s ability to properly assemble or safely operate the appliance.

  • Page 5: General Information

    General safety instructions CAUTION Liquid propane (LP) gas is flammable and hazardous if handed improperly. Become aware of the characteristics before using any LP product. LP Characteristics: Flammable, explosive under pressure, heavier than air, and settles and pools in low areas.

  • Page 6: User's Manual

    User’s manual 2. USER’S MANUAL Grill and gas cylinder positioning Place the BBQ on a firm, flat and fire-proof surface. Make sure to maintain a safety clearance of at least 60 cm from nearby combustible surfaces. Never move the BBQ when it is lit or still hot from grilling. Gas cylinder Position the gas cylinder in such a way that it is not exposed to continuous sunlight or other sources of heat.
  • Page 7 User’s manual 1. Make sure that the regulator is set to OFF. Lift up the spring-loaded locking collar and fit the regulator onto the top of the gas cylinder. 2. Push the locking collar down until you hear a click. Connect the regulator to the gas cylinder by turning the lock nut clockwise.

  • Page 8: Gas Leak Testing

    User’s manual 2. Connect the gas hose to the BBQ and tighten the hose clamp. The picture shows the connection of a gas hose in accordance with Swedish standards. In some countries the gas hose is of a larger diameter and is pushed all the way onto the connector.

  • Page 9: Igniting The Grill

    User’s manual Igniting the grill 1. Lubricate the cooking grate with oil before barbecuing. 2. Press in and turn the left-hand control knob to IGN. As soon as the igniter sparks, release the knob. The flame symbols next to the knobs indicate the minimum and maximum settings for the burners.

  • Page 10: Cleaning And Maitenance

    User’s manual Cleaning and maitenance Let the BBQ cool completely and clean the exterior using a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals. Check the integrity of the gas hose on a regular basis by flexing it. If you detect any cracks, replace the hose before using the BBQ again.

  • Page 11: Storage

    User’s manual Storage During the barbecuing season, the BBQ should be placed in a sheltered area outdoors, sheltered from the wind, when not in use. When taking the BBQ in for the winter, clean it according to the Care and Maintenance section. Remove the gas cylinder and make sure that the gas hose is not bent or damaged by other objects.

  • Page 12: Parts Diagram For Fzg 3002

    Parts diagram for FZG 3002 3. PARTS DIAGRAM FOR FZG 3002 GAS GRILL USER'S MANUAL...

  • Page 13: Parts Diagram For Fzg 3002

    Parts diagram for FZG 3002 4. PARTS DIAGRAM FOR FZG 3002 × 4 × 1 × 1 × 1 × 1 × 1 × 2 × 1 × 2 × 1 × 1 × 2 × 1 × 2 × 2 ×...

  • Page 14: Quantities Of Fasteners

    Quantities of fasteners 5. QUANTITIES OF FASTENERS Washer / Ø6 × 18 Nut / M6 × 24 Screw / M6 × 12 × 12 Coach bolt / M6 × 35 × 8 Steel washer / Ø8 × 6 Nut / M8 ×...

  • Page 15: Assembly

    Assembly 6. ASSEMBLY Step 1 FZG3002...
  • Page 16 Assembly Step 2 GAS GRILL USER'S MANUAL...
  • Page 17 Assembly Step 3 FZG3002...
  • Page 18 Assembly Step 4 Step 5 GAS GRILL USER'S MANUAL...
  • Page 19 Assembly Step 6 FZG3002...
  • Page 20 Assembly Step 7 GAS GRILL USER'S MANUAL...
  • Page 21 Assembly Step 8 FZG3002...
  • Page 22 Assembly Step 9 GAS GRILL USER'S MANUAL...
  • Page 23 Assembly Step 10 FZG3002...
  • Page 24 Assembly Step 11 GAS GRILL USER'S MANUAL...
  • Page 25 Assembly Step 12 FZG3002...

  • Page 26: Protection Of The Environment

    Protection of the environment/ Disposal 7. PROTECTION OF THE ENVIRONMENT Warning! Do not dispose of electrical and electronic waste with standard unsorted waste, rather use containers for sorted waste. You will receive further information regarding the recycling of this power tool from an authorised vendor or at a waste collection facility.

  • Page 27: Technical Data

    Manufacturer 251 01 Říčany,Czech Republic 1008CT3205 www.fieldmann.eu Product name Gas grill Model number FZG 3002 Gas grill duo Gas category I3+(28-30/37) Type of gas and G30 butane at 28-30 mbar and G31 propane at 37 mbar pressure Country UK, CZ, SK, PL, HU...
