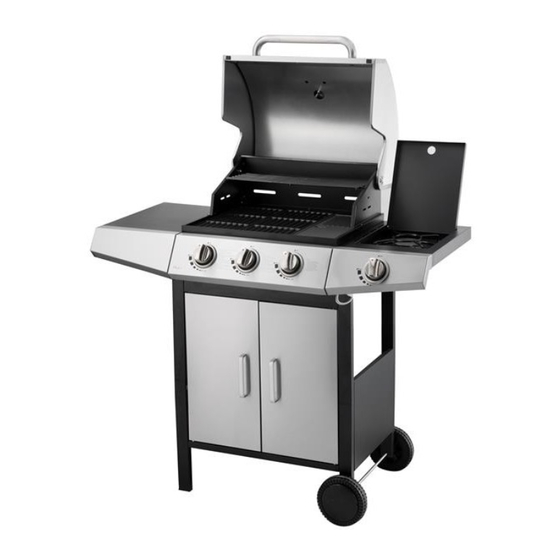

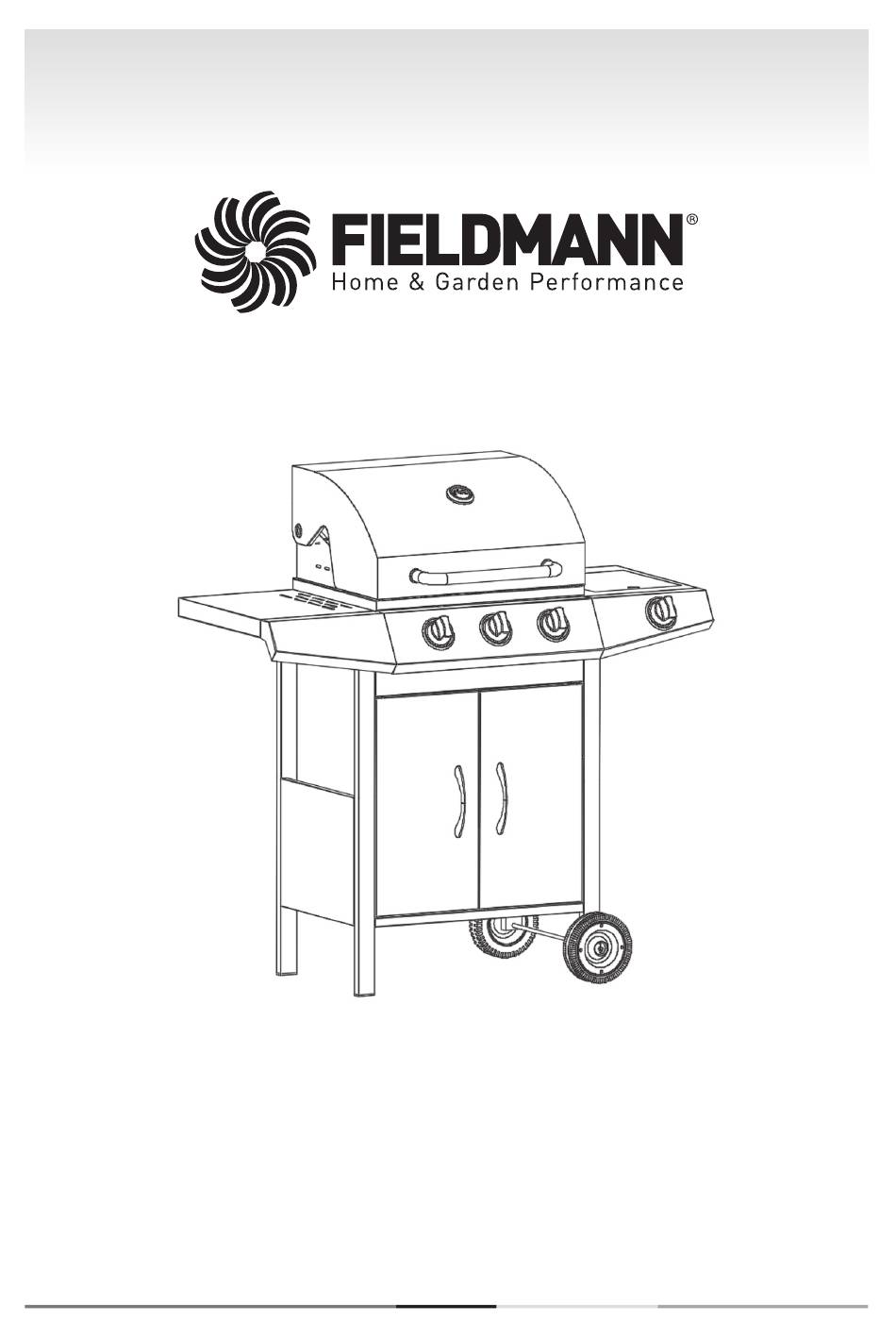

  • Page 1 FZG 3010...

  • Page 2: Table Of Contents

    Cleaning and maitenance ..........................11 Storage .................................... 11 SERVICING ..................................12 TROUBLE SHOOTING..............................12 Specifi cations ................................12 3. PARTS DIAGRAM FOR FZG 3010 .........................13 4. ASSEMBLY ..................................15 5. PROTECTION OF THE ENVIRONMENT ......................21 6. DISPOSAL ..................................21 7. TECHNICAL DATA ...............................22 GAS GRILL...

  • Page 3: General Safety Instructions

    5. Do not use grill until any and all leaks are corrected. If you are unable to stop a leak, disconnect the propane supply. Call a gas appliance serviceman or your local propane gas supplier. WARNING 1. This grill is for outside use only, and shall not be used in a building, garage, or any other enclosed area. FZG 3010...
  • Page 4 General safety instructions 2. This grill is for use with propane gas only (propane gas cylinder not included). 3. Never attempt to attach this grill to the self-contained propane system of a camper trailer, motor home or house 4. Never use charcoal or lighter fl uid. 5.

  • Page 5: General Information

    If outdoor cooking gas appliance is not in use the gas MUST be turned off at the supply cylinder. The pressure regulator and hose assembly supplied with the gas grill MUST be used. Replacement regulators and hose assemblies must be supplied by the manufacturer. Please see parts page replacement part #16. FZG 3010...

  • Page 6: User's Manual

    User’s manual 2. USER’S MANUAL Grill and gas cylinder positioning Place the BBQ on a fi rm, fl at and fi re-proof surface. Make sure to maintain a safety clearance of at least 60 cm from nearby combustible surfaces. Never move the BBQ when it is lit or still hot from grilling. Gas cylinder Position the gas cylinder in such a way that it is not exposed to continuous sunlight or other sources of heat.
  • Page 7 1. Make sure that the regulator is set to OFF. Lift up the spring-loaded locking collar and push the regulator down onto the gas cylinder. 2. Push the locking collar down to lock the regulator onto the gas cylinder. FZG 3010...

  • Page 8: Gas Leak Testing

    User’s manual 2. Connect the gas hose to the BBQ and tighten the hose clamp. The picture shows the connection of a gas hose in accordance with Swedish standards. In some countries the gas hose is of a larger diameter and is pushed all the way onto the connector.

  • Page 9: Lighting Instructions For Barbecue

    WARNING: Accessible parts may be very hot. Keep young children away from the hot appliance at all times (even while cooling down!). It is recommended that protective gloves (eg oven gloves) be used when handling particularly hot components. FZG 3010...

  • Page 10: Things To Consider When Barbecuing

    User’s manual Things to consider when barbecuing Burn hazard - wear protective gloves. Ensure that the BBQ is placed in an open area. Never use it in an enclosed space or under a roof. Keep children and pets at a safe distance from the BBQ. Never leave the BBQ unattended during use.

  • Page 11: Servicing

    The regulator that is used must be CE approved Gas hose The gas hose that is used must be CE approved (max length 1.5 m) Ignition Integrated ignition Grill size 50.5 × 39 cm Dimensions 107 × 53 × 103 cm FZG 3010...

  • Page 12: Parts Diagram For Fzg 3010

    Parts diagram for FZG 3010 3. PARTS DIAGRAM FOR FZG 3010 GAS GRILL USER'S MANUAL...
  • Page 13 Parts diagram for FZG 3010 Part Part × 2 × 2 × 2 × 1 × 2 × 3 × 1 × 2 × 2 × 2 × 2 × 8 × 1 × 20 × 1 × 4 × 1 ×...

  • Page 14: Assembly

    Assembly 4. ASSEMBLY Step 1 M6×10 Step 2 M6×10 ×8 GAS GRILL USER'S MANUAL...
  • Page 15 Assembly Step 3 M6×10 ×4 Step 4 FZG 3010...
  • Page 16 Assembly Step 5 ×2 ×2 Step 6 M6×55 ×8 GAS GRILL USER'S MANUAL...
  • Page 17 Assembly Step 7 M6×10 ×4 M4×8 ×4 Step 8 M4×8 ×10 FZG 3010...
  • Page 18 Assembly Step 9 Step 10 GAS GRILL USER'S MANUAL...
  • Page 19 Assembly Step 11 FZG 3010...

  • Page 20: Protection Of The Environment

    Protection of the environment | Disposal 5. PROTECTION OF THE ENVIRONMENT Warning! Do not dispose of electrical and electronic waste with standard unsorted waste, rather use containers for sorted waste. You will receive further information regarding the recycling of this power tool from an authorised vendor or at a waste collection facility.

  • Page 21: Technical Data

    Technical data FZG 3010...
  • Page 24 A FAST Hungary Kft. (2310, Szigetszentmiklós, Kántor u. 10) mint a termék magyarországi im- portőrea jótállási jegyen feltüntetett típusú és gyár- tási számú készülékre jótállást biztosít a fogyasztók számára az alábbi feltételek szerint: 2310, Szigetszentmiklós Kántor u. 10...
