Summary of Contents for Fieldmann FZG 3001

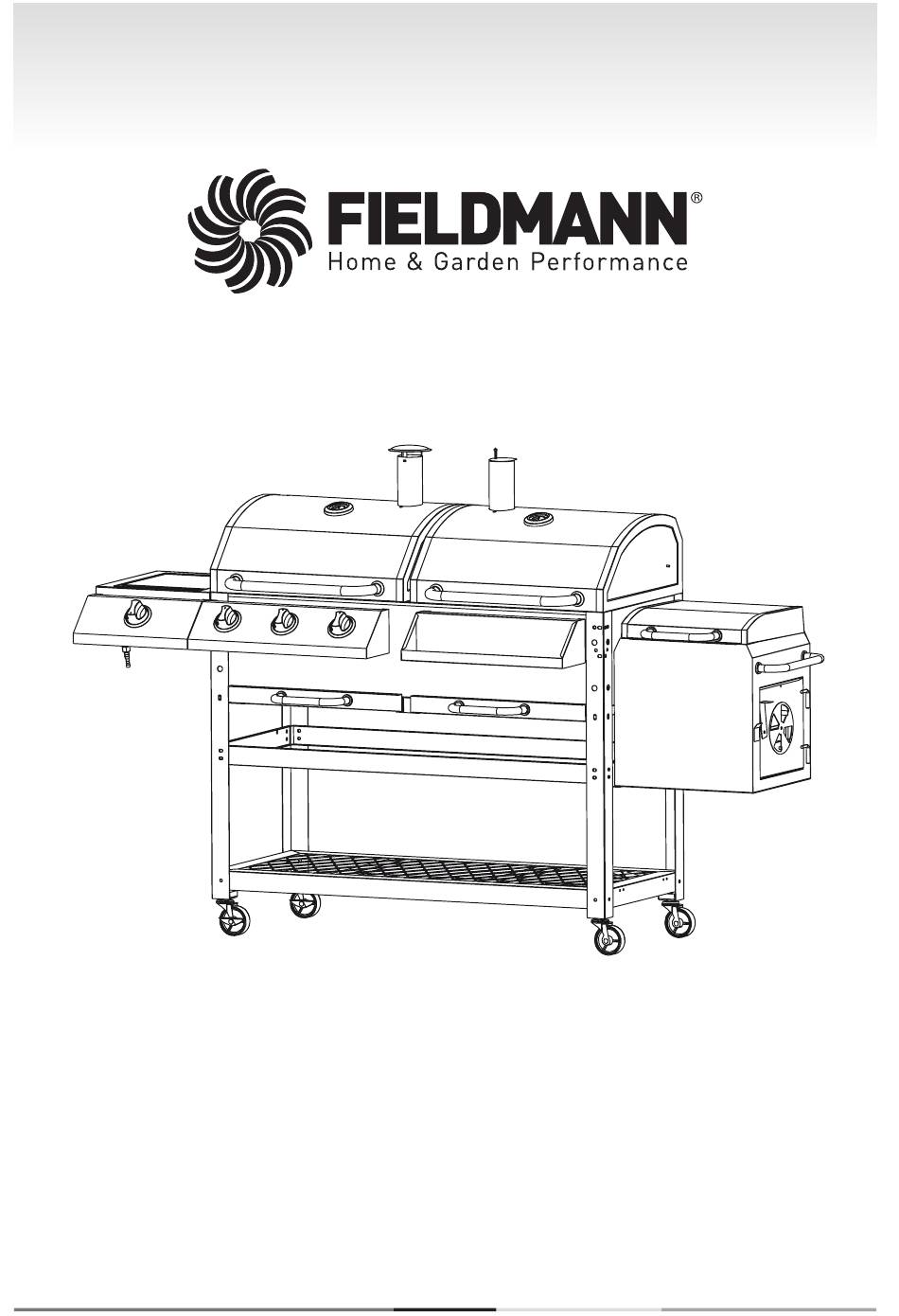

  • Page 1 FZG 3001...

  • Page 2: Table Of Contents

    Table of Contents COMBO GRILL 3 in 1 USER’S MANUAL Thank you for purchasing this Combo Grill 3 in 1. Before you start using it, please carefully read this user’s manual and save it for possible future use. CONTENTS 1. GENERAL SAFETY INSTRUCTIONS ........................4 2.

  • Page 3: General Safety Instructions

    General safety instructions 1. GENERAL SAFETY INSTRUCTIONS WARNING (Charcoal) Read this information carefully before installation or use of this product The use of this barbecue requires a minimum amount of supervision and precaution (see recommendations below). Be careful of the environment, a day out in the open air should not be a cause of destruction or pollution. When used for the first time, heat your barbecue for 30 minutes.
  • Page 4 General safety instructions Please read carefully before assembling and using the BBQ WARNING (Gas) For your safety, PLEASE NOTE: 1. Use outdoors only. 2. Read the instructions before using the appliance. 3. WARNING: Accessible parts may be very hot. Keep young children away. Use protective glove when handling particularly hot components.

  • Page 5: Parts List

    Part list 2. PARTS LIST × 2 M6 × 12mm × 72 M6 Nut × 6 FZG3001...

  • Page 6: Mounting Steps

    Mounting steps/Assembly 3. MOUNTING STEPS Make sure your grill is assembled properly. Detailed assembly instructions are packed with each grill giving specific assembly procedures for each model. Follow these instructions carefully to ensure the correct and safe assembly of the grill. CAUTION: Although we take every effort to ensure that the assembly process is as easy as possible, it is inherent with fabricated steel parts that corners and edged can cause cuts if improperly handled during assembly procedures.
  • Page 7 Assembly FZG3001...
  • Page 8 Assembly COMBO GRILL 3 IN 1 USER'S MANUAL...
  • Page 9 Assembly FZG3001...
  • Page 10 Assembly COMBO GRILL 3 IN 1 USER'S MANUAL...

  • Page 11: Operation

    Assembly/Operation 5. OPERATION 1. PREPARATION You will need gas cylinder and proper regulators under the gas pressure to operate this gas grill. The regulators should be comply with EN16129 with current version and national regulation. ENERGY SAVING TIPS: a) Reduce the opening time of the lid. b) Turn the grill off as soon as cooking is completed.
  • Page 12 Operation For assembly you will need a suitable screwdriver and spanner. Only use tools that are intact and suitable for the job at hand. Select a suitable place to set up the appliance. The appliance is positioned firmly on a flat, sufficiently large surface area.

  • Page 13: Safety Precautions

    Assembly/Maintenance 3. SAFETY PRECAUTIONS a) Always test gas line for leaks at connector with soapy water after making connections. b) The top lid must always be open when lighting the burner. c) Use oven gloves and sturdy long handled gas grill tools when cooking on the grill. d) Be prepared if an accident or fire should occur.

  • Page 14: Storage

    Maintenance/Storage/Cleaning 7. STORAGE Your gas cylinder must be stored outdoors in a well ventilated area and must be disconnected from your gas grill when not in use. Ensure that you are outdoors and away from any sources of ignition before attempting to disconnect your gas cylinder from your gas grill.

  • Page 15: Trouble Shooting

    Trouble shooting/Warranty 9. TROUBLE SHOOTING Problem Possible Cause Solution Gas leaking from cracked/cut/ Damaged hose. Turn off gas at gas cylinder, if hoes burned hose. is cut or cracked, replace hose. Gas leaking from gas cylinder. Mechanical failure due to resting or Turn off gas cylinder valve.

  • Page 16: Protection Of The Environment

    Warranty/ Protection of the environment/ Disposal Exclusions This warranty does not cover: a. wear, corrosion, discoloration and deterioration due to normal use and storage, b. damage due to incorrect and / or improper maintenance, c. damage caused to the product external causes such as fire, water (vapor, liquid, ice), misapplication, fall, ne glect, misuse (including but not limited to use in violation of the Maxeda DIY Ltd instructions) or abuse, d.

  • Page 17: Technical Data

    251 01 Říčany,Czech Republic 1008CT3205 www.fieldmann.eu Product name Gas grill Model number FZG 3001 Combo Grill 3 in 1 Gas category I3+(28-30/37) I3B/P(30) Type of gas and G30 butane at 28-30 mbar and G31 propane G30 butane and G31 propane at...
