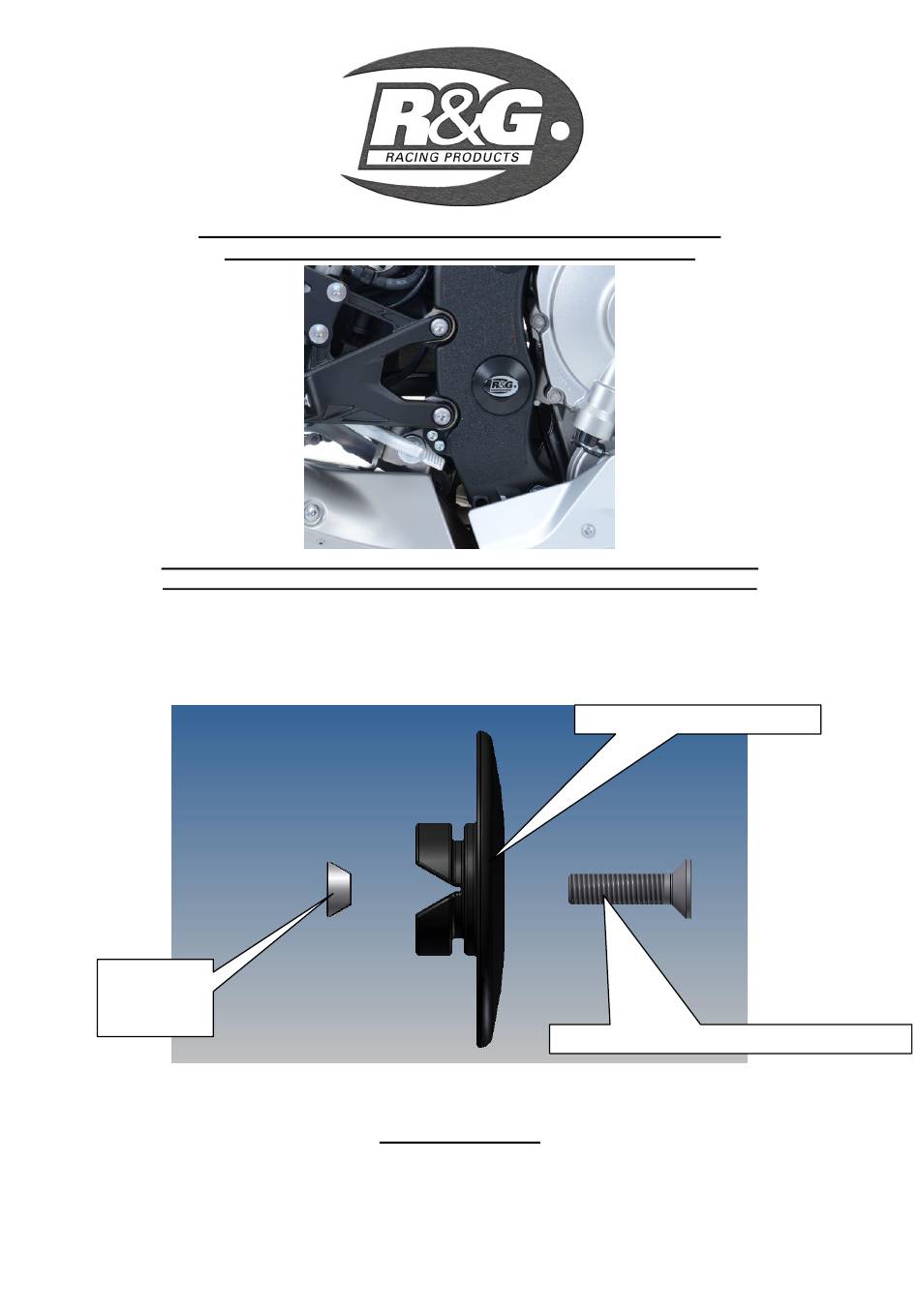

FITTING INSTRUCTIONS FOR FI0102BK FRAME INSERT

YAMAHA YZF R1 2015- LOWER RIGHT HAND SIDE

THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.

DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.

Please note that the way the kit is packed does not necessarily represent the way of

mounting to the bike

(

)

HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY

FOR CLARITY OF INSTRUCTIONS ONLY

FRAME INSERT (FI0102) (x1)

SPECIAL

NUT

(H0035) (x1)

M5x20mm LONG COUNTER SUNK BOLT (x1)

Please note that in cases where kits are packed with rubber washers holding the components onto the

bolt – the rubber washers should be thrown away!

TOOLS REQUIRED



3mm metric Allen key.

R&G Racing

Unit 1, Shelleys Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0) 1420 89007 | Fax : +44 (0) 1420 87301 | Email: info@rg-racing.com

Need help?

Do you have a question about the FI0102BK and is the answer not in the manual?

Page 1 FITTING INSTRUCTIONS FOR FI0102BK FRAME INSERT YAMAHA YZF R1 2015- LOWER RIGHT HAND SIDE THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT. Please note that the way the kit is packed does not necessarily represent the way of...
Page 2 Right-hand side (as you sit on bike)  Fit the counter sunk headed bolt through frame insert so head sits in counter-sink.  Place special nut on exposed end of bolt so tapered face goes into tapered recess.  Tighten bolt until tapered portion of nut just contacts tapered face of plastic frame insert. ...
Page 3 INSTRUCTIONS DE MONTAGE FI0102BK INSERT CADRE YAMAHA YZF R1 2015- COTE DROIT INFERIEUR E KIT CONTIENT LES ARTICLES EXPOSES CI DESSOUS VERIFIER QUE TOUTES LES PIECES SOIENT PRESENTES AVANT DE PROCEDER AU MONTAGE A FAÇON DONT LE KIT EST EMBALLE NE CORRESPOND PAS FORCEMENT A LA FAÇON DE MONTER LES PIECES...
Page 4 Outils requis  Clé Allen 3mm. Coté droit (assis sur la moto)  Passer le boulon à travers l’insert de cadre de façon à ce que la tête se place dans le contre alésage.  Placer l’écrou spécial sur l’extrémité exposée du boulon pour que la face conique aille dans le creux conique.
