R&G FI0112BK Fitting Instructions

Frame insert ducati multistrada 1200 2015 left or right hand side

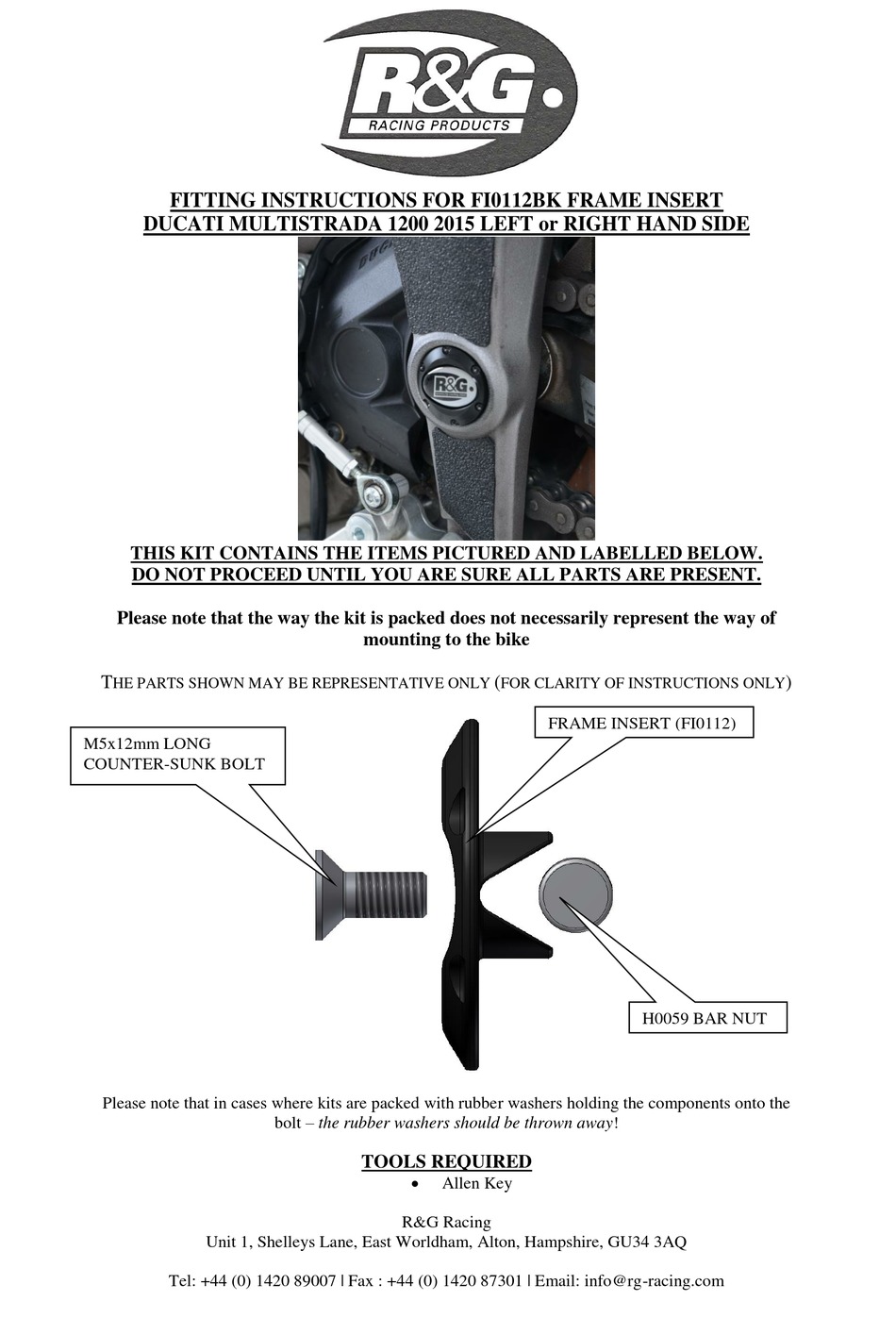

FITTING INSTRUCTIONS FOR FI0112BK FRAME INSERT

DUCATI MULTISTRADA 1200 2015 LEFT or RIGHT HAND SIDE

THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.

DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.

Please note that the way the kit is packed does not necessarily represent the way of

mounting to the bike

(

)

HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY

FOR CLARITY OF INSTRUCTIONS ONLY

FRAME INSERT (FI0112)

M5x12mm LONG

COUNTER-SUNK BOLT

H0059 BAR NUT

Please note that in cases where kits are packed with rubber washers holding the components onto the

bolt – the rubber washers should be thrown away!

TOOLS REQUIRED



Allen Key

R&G Racing

Unit 1, Shelleys Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0) 1420 89007 | Fax : +44 (0) 1420 87301 | Email: info@rg-racing.com

Table of Contents

Do you have a question about the FI0112BK and is the answer not in the manual?

Page 1 FITTING INSTRUCTIONS FOR FI0112BK FRAME INSERT DUCATI MULTISTRADA 1200 2015 LEFT or RIGHT HAND SIDE THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT. Please note that the way the kit is packed does not necessarily represent the way of...
Page 2 Left or right-hand side (as you sit on bike)  Fit the counter sunk headed bolt through frame insert so head sits into the counter-sink.  Place the special nut on exposed end of bolt so it sits into the tapered recess. ...
Page 3 INSTRUCTIONS DE MONTAGE POUR FI0112BK INSERT CADRE DUCATI MULTISTRADA 1200 2015 COTE GAUCHE ou DROIT Le kit contient les articles exposés ci-dessous, vérifier que toutes les pièces soient présentes avant de procéder au montage. A FAÇON DONT LE KIT EST EMBALLE NE CORRESPOND PAS FORCEMENT A LA FAÇON DE...
Page 4 OUTILS REQUIS  PETIT MAILLET Coté Gauche ou Droit (lorsqu’on est assis sur la moto)  Insérer le boulon dans l’insert cadre de façon à ce que la tête se place dans le contre alésage.  Placer l’écrou spécial sur l’extrémité exposée du boulon pour que la face conique aille dans le creux conique.
