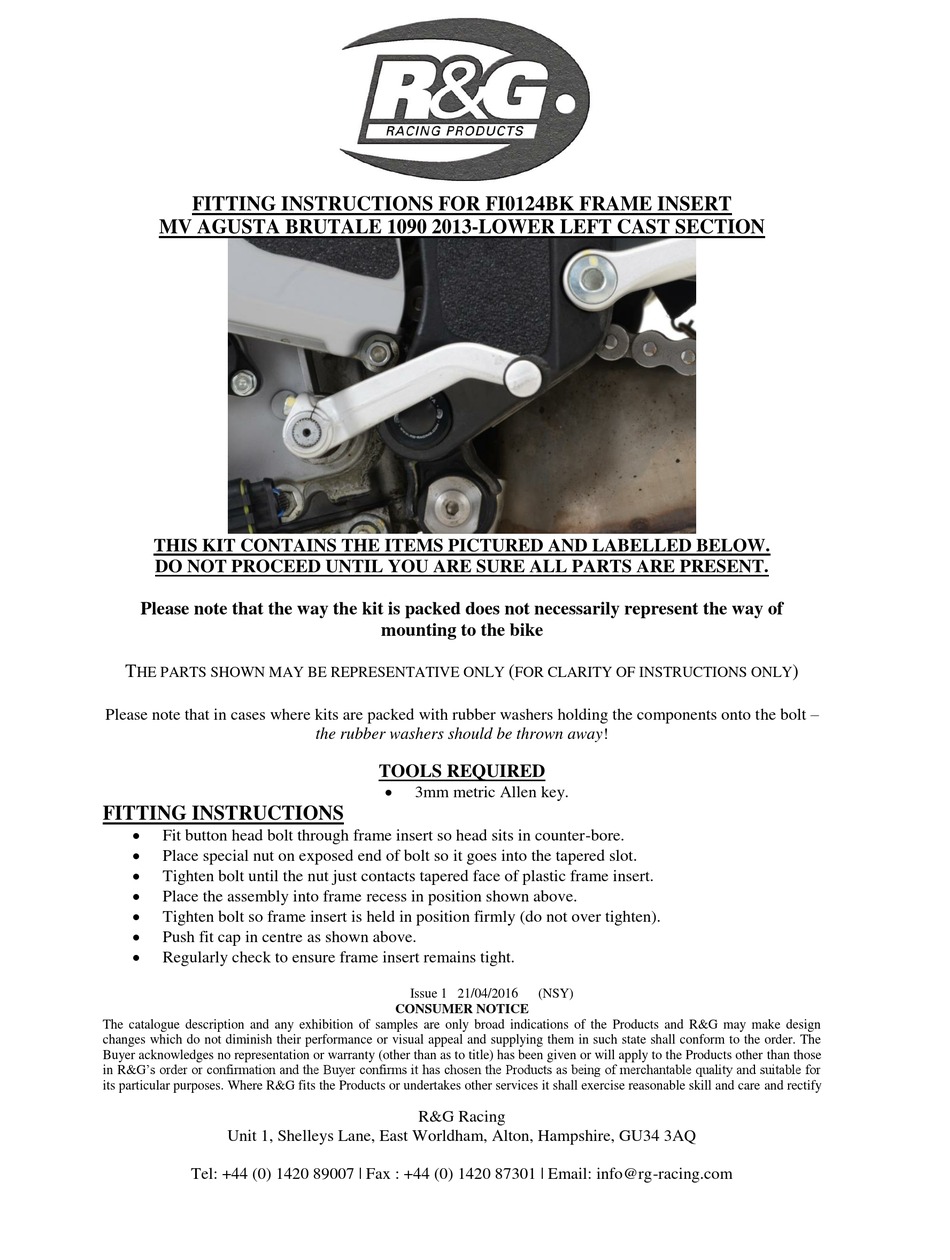

FITTING INSTRUCTIONS FOR FI0124BK FRAME INSERT
MV AGUSTA BRUTALE 1090 2013-LOWER LEFT CAST SECTION
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
Please note that in cases where kits are packed with rubber washers holding the components onto the bolt –
FITTING INSTRUCTIONS
Fit button head bolt through frame insert so head sits in counter-bore.
Place special nut on exposed end of bolt so it goes into the tapered slot.
Tighten bolt until the nut just contacts tapered face of plastic frame insert.
Place the assembly into frame recess in position shown above.
Tighten bolt so frame insert is held in position firmly (do not over tighten).
Push fit cap in centre as shown above.
Regularly check to ensure frame insert remains tight.
The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design
changes which do not diminish their performance or visual appeal and supplying them in such state shall conform to the order. The
Buyer acknowledges no representation or warranty (other than as to title) has been given or will apply to the Products other than those
in R&G's order or confirmation and the Buyer confirms it has chosen the Products as being of merchantable quality and suitable for
its particular purposes. Where R&G fits the Products or undertakes other services it shall exercise reasonable skill and care and rectify
Unit 1, Shelleys Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0) 1420 89007 | Fax : +44 (0) 1420 87301 | Email: info@rg-racing.com
mounting to the bike
the rubber washers should be thrown away!
TOOLS REQUIRED
3mm metric Allen key.
Issue 1 21/04/2016
CONSUMER NOTICE
R&G Racing
(
FOR CLARITY OF INSTRUCTIONS ONLY
(NSY)
)
