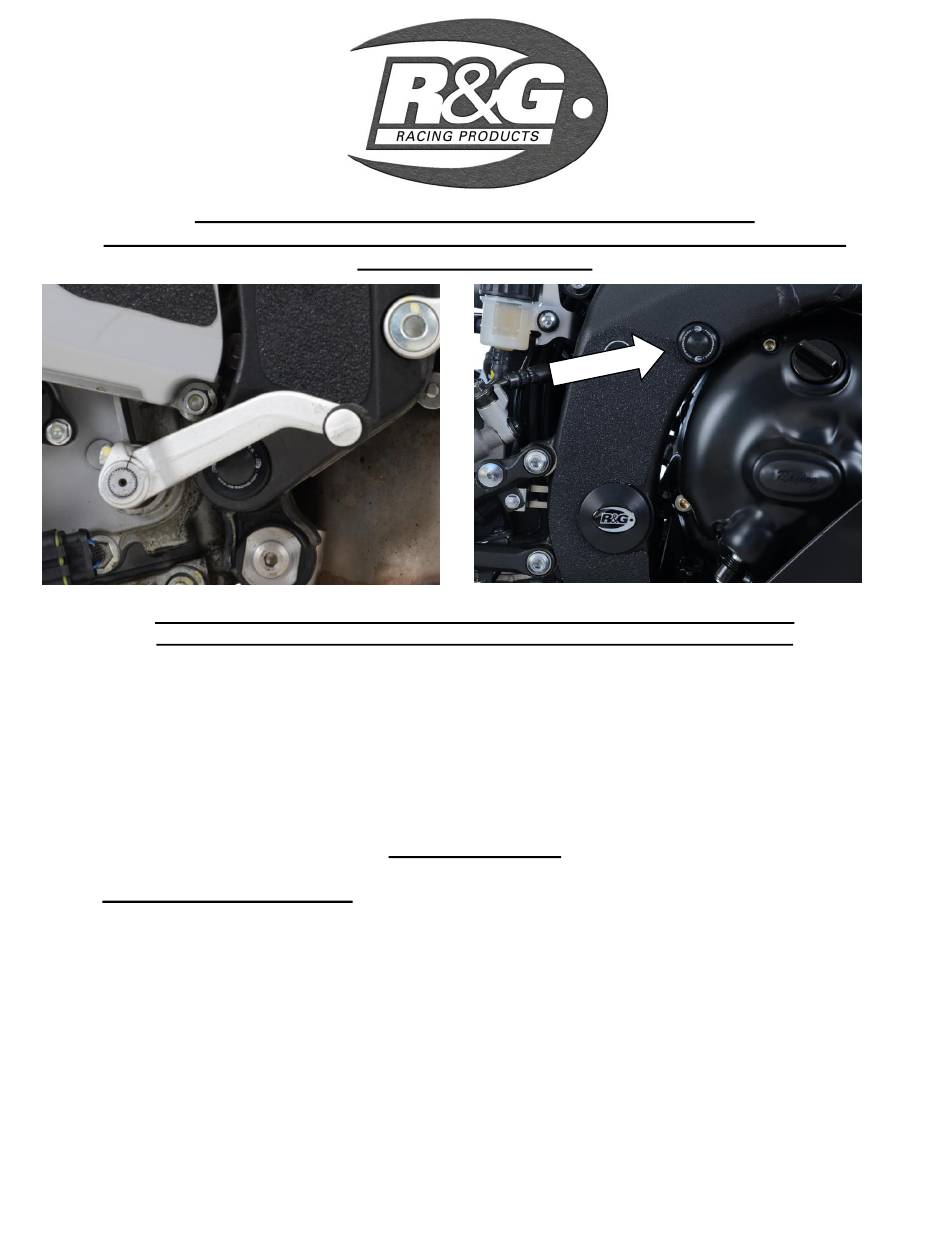

FITTING INSTRUCTIONS FOR FI0135BK FRAME INSERT
MV AGUSTA BRUTALE 1090 '13- LOWER LEFT CAST SECTION & YAMAHA
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
Please note that in cases where kits are packed with rubber washers holding the components onto the bolt –
FITTING INSTRUCTIONS
•
Fit button head bolt through frame insert so head sits in counter-bore.
•
Place special nut on exposed end of bolt so it goes into the tapered slot.
•
Tighten bolt until the nut just contacts tapered face of plastic frame insert.
•
Place the assembly into frame recess in position shown above.
•
Tighten bolt so frame insert is held in position firmly (do not over tighten).
•
Push fit cap in centre as shown above.
•
Regularly check to ensure frame insert remains tight.
Unit 1, Shelleys Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0) 1420 89007 | Fax : +44 (0) 1420 87301 | Email: info@rg-racing.com
YZF-R6 '17- RHS UPPER
mounting to the bike
the rubber washers should be thrown away!
TOOLS REQUIRED
•
3mm metric Allen key.
Issue 1 28/06/2017
R&G Racing
(
FOR CLARITY OF INSTRUCTIONS ONLY
(AR)
)
