R&G FI0121BK Fitting Instructions

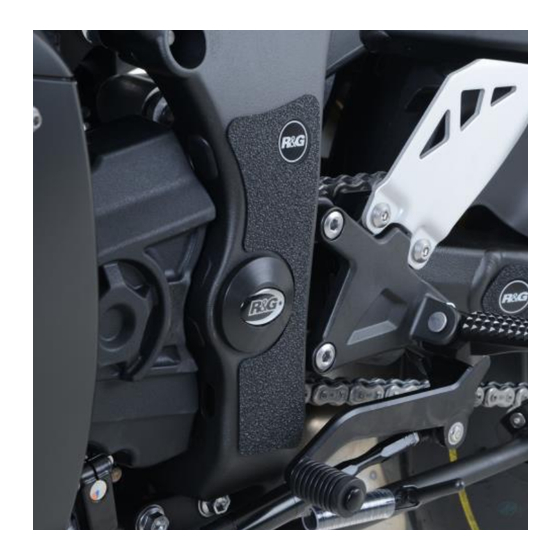

Frame insert kawasaki zx10-r 2016- lower left hand side

FI0121

FITTING INSTRUCTIONS FOR FI0121BK FRAME INSERT

KAWASAKI ZX10-R 2016- LOWER LEFT HAND SIDE

Page | 1

THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.

DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.

Please note that the way the kit is packed does not necessarily represent the way of

mounting to the bike

(

)

HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY

FOR CLARITY OF INSTRUCTIONS ONLY

M5x25mm LONG BUTTON HEAD BOLT (x1)

FRAME INSERT (FI0121) (x1)

SPECIAL NUT

(H0035) (x1)

Please note that in cases where kits are packed with rubber washers holding the components onto the

bolt – the rubber washers should be thrown away!

R&G Racing

Unit 1, Shelleys Lane, East Worldham, Alton, Hampshire, GU34 3AQ

Tel: +44 (0) 1420 89007 | Fax : +44 (0) 1420 87301 | Email: info@rg-racing.com

Table of Contents

Do you have a question about the FI0121BK and is the answer not in the manual?

Page 1 FI0121 FITTING INSTRUCTIONS FOR FI0121BK FRAME INSERT KAWASAKI ZX10-R 2016- LOWER LEFT HAND SIDE Page | 1 THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT. Please note that the way the kit is packed does not necessarily represent the way of...
Page 2 FI0121 TOOLS REQUIRED  3mm metric Allen key. Page | 2 Left or right-hand side (as you sit on bike)  Fit the button headed bolt through frame insert so head sits into the counter-bore.  Place the special nut on exposed end of bolt so it sits into the tapered recess. ...
Page 3 FI0121 NOTICE DE MONTAGE FI0121BK INSERT DE CADRE KAWASAKI ZX10-R 2016- COTE GAUCHE INFERIEUR Page | 3 Le kit contient les articles exposés ci-dessous, vérifier que toutes les pièces soient présentes avant de procéder au montage. La façon dont le kit est emballé ne correspond pas forcément à la façon de monter les pièces sur la moto.
Page 4 FI0121 OUTILS REQUIS  CLE ALLEN 3mm. Coté gauche ou droit (assis sur la moto) Page | 4  Insérer le boulon dans l’insert de cadre de façon à ce que la tête se place dans le contre alésage.  Placer l’écrou sur l’extrémité...
