ICP DAS USA PM-3112-160-MTCP Quick Start Manual

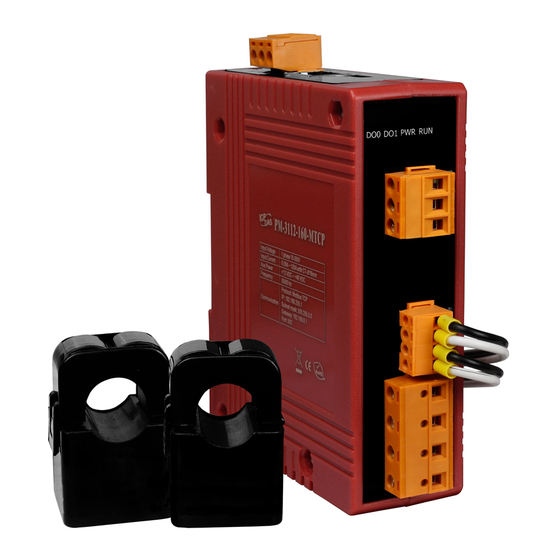

PM-3112-160-MTCP
2 Loops single-phase Smart Power Meter
Quick Start Guide
Product Website:
https://www.icpdas-usa.com/pm_3112_160_mtcp
1. Introduction
ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3 000
series that gives you access to real-time electric usage for single-phase power measurement.
With its high accuracy (<0.5% , PF=1 ), the PM-30 00 series can be applied to both low voltage
primary side and/o r medium/high volt age secondary side and enables the users to obtain
reliable and accurate energy consumption readings from the monitored equipment in real time
under operation. These compact size and cost-effective power meters are equipped with
revolutionary wired clip-on CT (various types, support input current up to 200 A). It operates
over a wide input voltages range 10 ~ 300 VAC which allow s worldwide compatibility. And with
2 channels relay output, it can be linked with sirens or lightings for alarm messages. It also
supports Modbus R TU, Modbus TCP or CAN bus protocols for easy integration.
2.1. Caution & Warning
The meter contains hazardous voltages, and should never be disassembled. Failing to follow
this practice will result in serious injury or death. Any work on or near energized meters, meter
sockets, or other metering equipment could induce a danger of electrical shock. It is strongly
recommended that all work should be performed only by qualified industrial electricians and
metering specialist. ICP DAS assumes no responsibility if your electrical installer does not follow
the appropriate national and local electrical codes.
ICP DAS assumes no liability for any damage resulting from the use of this product. ICP DAS
reserves the right to change this manual at any time without notice. The information furnished
by ICP DAS is believed to be accurate and reliable. However, no responsibility is assumed by ICP
DAS for its use, not for any infringements of patents or other rights of third parties resulting
from its use.
