Behringer ULTRA METAL UM300 Manual

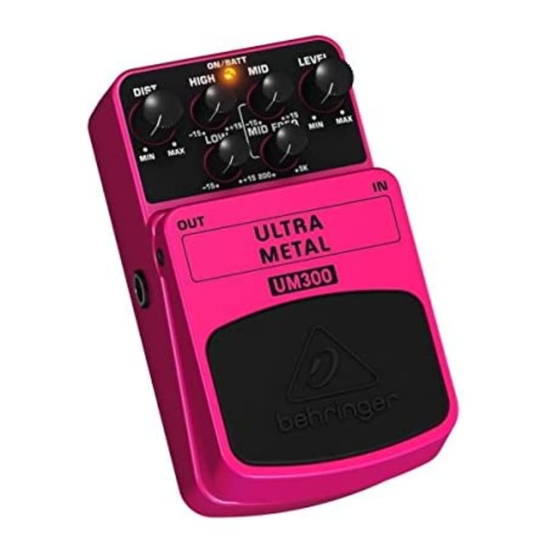

ULTRA METAL UM300
Heavy Metal Distortion Effects Pedal
Thank you for showing your confidence in us by purchasing the
Behringer ULTRA METAL UM300. This high-quality effects pedal comes
with a dual-gain circuitry that enables you to produce super thick,
tube-like distortion plus endless sustain. Thanks to its high-
performance features you will achieve the most extreme and
sought-after hard rock or heavy metal distortion sounds.
1. CONTROLS
The DIST(ortion) control adjusts the amount of distortion effect.
(1)
The HIGH control allows you to boost/cut the high-frequency range.
(2)
The LOW control allows you to boost/cut the low-frequency range.
(3)
◊ ◊
Please keep in mind that extreme distortion and EQ
settings will increase noise and may induce oscillation.
The two MID FREQ(uency) controls allow to boost/cut a defined
(4)
mid-frequency range. The upper control is used to increase
or lower the mid range, the control below adjusts the center
frequency of the mid range that is affected (200 Hz to 5 kHz).
The LEVEL control adjusts the output level.
(5)
The ON/BATT LED illuminates when the effect is activated. It also
(6)
serves as a battery level indicator.
Use the footswitch to activate/deactivate the effect.
(7)
Use this 1/4" TS IN connector to plug in the instrument cable.
(8)
The 1/4" TS OUT connector sends the signal to your amp.
(9)
Use the DC IN connection to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover.
To install or replace the 9 V battery, press the hinges with a ballpen
and remove the pedal cover. Be careful not to scratch the unit.
