Intelligent Addressable Fire Alarm Panels
Installation & User Manual
* Sub Models
TFP-2111
TFP-2112
TFP-2114
TFP-2131
TFP-2132
TFP-2134
TFP-21xx Series
Release Date: 20/12/2022
Rev. Date: 30/07/2024 – Rev. No:05
Doc. Ref.: HM.Z.KLV.7360

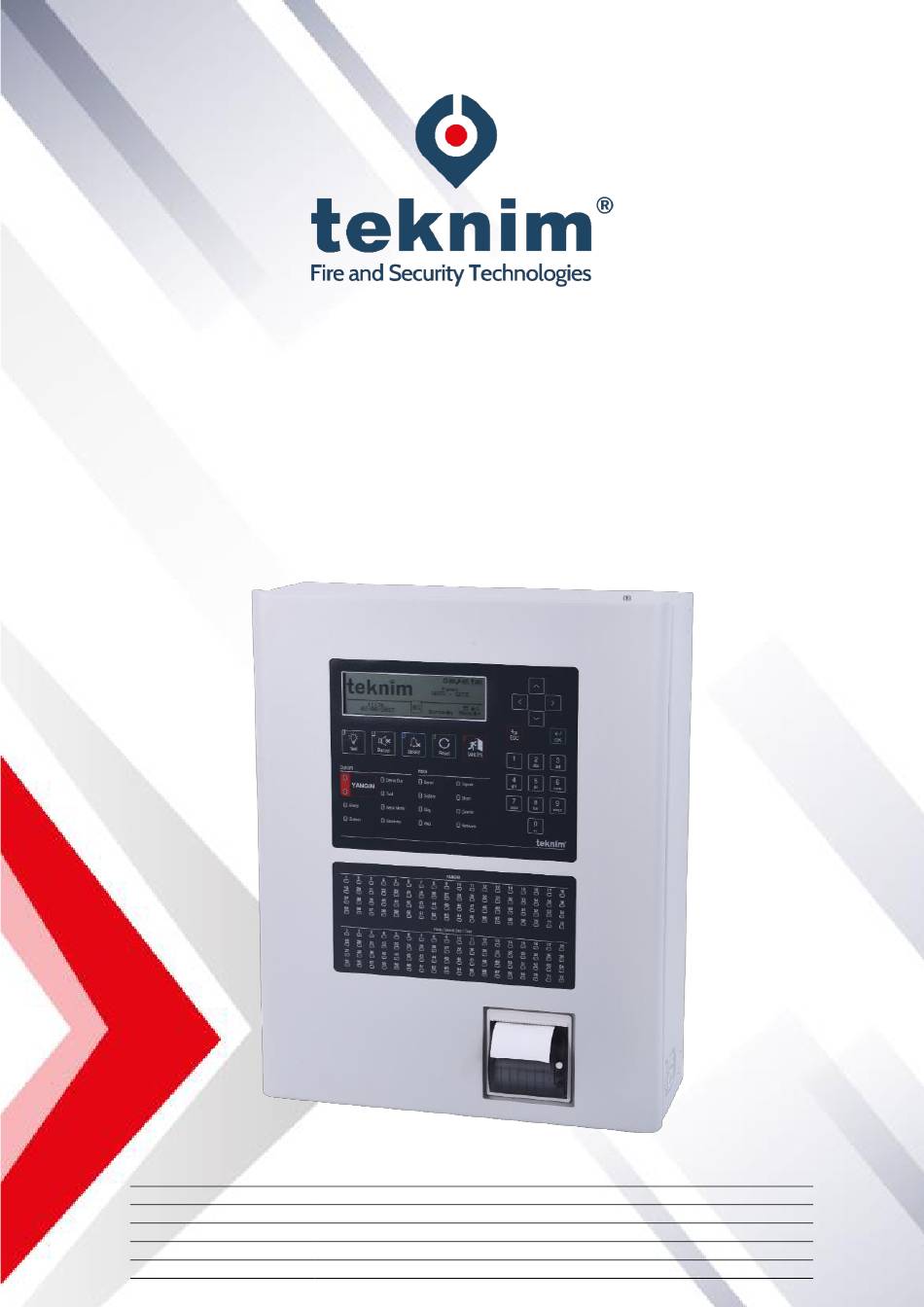

* Picture Belongs To TFP-213x Series.
Intelligent Addressable Fire Alarm Panel with Zone Indicator, 1 Loop
Intelligent Addressable Fire Alarm Panel with Zone Indicator, 2 Loop
Intelligent Addressable Fire Alarm Panel with Zone Indicator, 4 Loop
Intelligent Addressable Fire Alarm Panel with Printer and Zone Indicator, 1 Loop
Intelligent Addressable Fire Alarm Panel with Printer and Zone Indicator, 2 Loop
Intelligent Addressable Fire Alarm Panel with Printer and Zone Indicator, 4 Loop
201
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teknim TFP-21 Series
Summary of Contents for Teknim TFP-21 Series
- Page 1 TFP-21xx Series Intelligent Addressable Fire Alarm Panels Installation & User Manual Release Date: 20/12/2022 Rev. Date: 30/07/2024 – Rev. No:05 Doc. Ref.: HM.Z.KLV.7360 * Picture Belongs To TFP-213x Series. * Sub Models TFP-2111 Intelligent Addressable Fire Alarm Panel with Zone Indicator, 1 Loop TFP-2112 Intelligent Addressable Fire Alarm Panel with Zone Indicator, 2 Loop TFP-2114...
-
Page 2: Table Of Contents
TFP-21xx Series Intelligent Addressable Fire Alarm Panels Table of Contents - Introduction ..........................5 - Warnings ............................5 - Technical Specifications ......................6 - TFP-21xx Series Smart Addressable System ................7 - Panel Features ........................7 - Panel User Interface ......................8 - Installation.......................... - Page 3 TFP-21xx Series Intelligent Addressable Fire Alarm Panels 6.4.4.4 - Loop Device Status LED ..................19 6.4.4.5 - Siren Repetition in Different Zone Alarm .............. 20 6.4.4.6 - Siren Repetition in Same Zone Alarm ..............20 6.4.4.7 - Maximum Number of LEDs in Alarm State ............20 6.4.4.8 - Sound Siren in Gas Alarm State ................
- Page 4 TFP-21xx Series Intelligent Addressable Fire Alarm Panels - Device LED Test ......................... 35 - Viewing Technical Service Contact Information ............... 35 - Alarm Counter ........................35 - Panel Status ........................35 7.10 - Loop Functions ........................35 7.10.1 - Device List ........................35 7.10.2 - Loop Control ........................
- Page 5 TFP-21xx Series Intelligent Addressable Fire Alarm Panels 11.2 - Information on Faulty Usage ..................... 60 11.3 - Transportation and Shipping ..................... 60 Figure 1 - Control Panel are as listed below..................8 Figure 2 - Automatic IP Settings ......................15 Figure 3 - Manual IP Settings .......................
-
Page 6: Introduction
Teknim Smart Addressable Panels. TFP-21xx Teknim Smart Addressable panels can be examined in three optional categories as 1-loop, 2-loops or 4- loops. Up to 240 devices can be operated per loop on 1-loop and 2-loops panels while up to 127 devices can be operated per look on 4-loops panels, whereas all these devices operate with Teknim Flashlink protocol. -
Page 7: Technical Specifications
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 3 - Technical Specifications Supply Voltage 230 / 110 VAC (+%10 / -%15) Frequency 50 / 60 Hz (±%5) Mains Input Fuse Output Voltage 21 – 29 VDC ± %2 Output Fuse 6A (F1) Cable Type 3 x 1,5mm²... -
Page 8: Tfp-21Xx Series Smart Addressable System
TFP-21xx series Smart Addressable systems can be configured with menu buttons on the panel. In addition, it can be programmed through Ethernet connection by using Teknim Addressable Fire Detection System Configuration Software. Besides, the panel can be accessed through Internet and monitoring can be performed by using Teknim Addressable Fire Detection System Configuration Software. -
Page 9: Panel User Interface
TFP-21xx Series Intelligent Addressable Fire Alarm Panels - Panel User Interface The indicators and buttons on the panel are described under this title. Figure 1 - Control Panel are as listed below. The letters shown on the interface are listed below, respectively. Table 1 - User Interface Button Functionality Table Label Function... - Page 10 TFP-21xx Series Intelligent Addressable Fire Alarm Panels Table 2 - LED Indicators Label LED Name Permanent LED Blinking LED Color Indicates that the panel is in Fire alarm state (250 ms) Indicates that the system is Energy Green being supplied from any source Indicates that there is no problem in the peripheral units System On...
-
Page 11: Installation
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 5 - Installation Mechanical and electrical connection methods related to TFP-21xx series panels are described under this title. Attention: Do not start installation without reading this manual completely! - Recommended Cables It is recommended for the cables that bear the specifications listed in “Table 3” to be used for cabling and all electrical connection purposes. -
Page 12: Inputs And Outputs
Printer Support: Available only in TFP-213x series. See page 41 - Article 7.13 - Loop Expansion Card Connection TFP-21xx Teknim smart addressable panels support 2 or 4 loops. To add a new loop card to a 1-loop panel; First, make sure that the panel is not live Remove the screws on the three points marked “L1”... -
Page 13: Loop Lines
- Loop Lines TFP-21xx Teknim smart addressable panels can be examined under 3 options as 1, 2 or 4 loops. TFP-21xx series 2-loop panels are able to use 240 devices per loop while 4-loop panels are able to use 127 devices per loop, and all devices work with Teknim Flashlink protocol. -
Page 14: Configuration
TFP-21xx Series Intelligent Addressable Fire Alarm Panels - Configuration This section contains information about configuring and using the fire detection system. - Panel Activation Activation is a process that enables access to the programming menu for the initial setup of the addressable fire detection system. -
Page 15: Level 3
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 6.2.3 - Level 3 All authorizations and all functionalities of the system (except scenario management) can be performed at this level. Users of this level are the authorized persons who have been trained for the installation and maintenance of the system. -
Page 16: Computerized Configuration
Valid panel configuration files can be downloaded, edited and stored, • Advanced scenario rules can be created The information on how to use the software can be found in the document titled “Teknim Addressable Fire Detection System Configuration Software”. 6.3.1... -
Page 17: Port Settings
TFP-21xx Series Intelligent Addressable Fire Alarm Panels Figure 3 - Manual IP Settings Filling in only the “IP” information is sufficient if it will be connected directly to a computer. “Subnet mask, Gateway, DNS” information must be entered as “0”. However, the information such as "Subnet mask, Gateway, DNS"... -
Page 18: Remote Connection
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 6.3.4 - Remote Connection Remote Connection Values Remote Connection Value Active ENAB. / DIS. 195 155 129 074 Port 25000 Follow the guidelines below to change the default values: First, enter the main screen, Select “Menu »... -
Page 19: Panel Configuration Order
TFP-21xx Series Intelligent Addressable Fire Alarm Panels Table 10 - Pre-defined Cycle Parameters Loop Parameters Value [Loop xx] Active Yes (No on 1-loop panels) Disabled Cabling Class A Table 11 - Pre-defined Zone Parameters Zone Parameters Value [Zone xx] Disabled Delay General Zonal Delay Time... -
Page 20: Panel Parameters Setting
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 6.4.4 - Panel Parameters Setting The values shown in “Table 7” must be set following the time and date setting. This step can be skipped if the Pre-defined values are suitable for the operation of the system. Follow the instructions below to change the Pre- defined panel parameters. -
Page 21: Siren Repetition In Different Zone Alarm
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 6.4.4.5 - Siren Repetition in Different Zone Alarm If the sirens are silenced, the choice of whether the alarms and sirens received from a new zone that did not send an alarm before will activate or not may be changed. For this; Select “Siren Repetition”... -
Page 22: Earth Detection
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 6.4.4.13 - Earth Detection If the earth fault is required to be masked: Select “Earth Det.” form. Change the value to “PASSIVE” and press “OK”. 6.4.5 - General Delay Setting The delay time can be activated only by the detectors. The alarm information received from the alarm buttons activates the outputs directly by ignoring the delay times. -
Page 23: Adding New Devices
How to add the devices, addressed and connected to the loop line, to the system will be described under this title. Teknim TFP-21xx series panels are capable of adding devices in a simple and rapid manner. Refer to “7.10.4 - Add Device” title for adding new devices. -
Page 24: Monitoring Type
TFP-21xx Series Intelligent Addressable Fire Alarm Panels Modules can be used in scenarios regardless of the activation information. To set the activation type: Go to “Menu » Programming » Device Programming” menu Select a module with the "Login" feature and press "OK" Select “I. -
Page 25: Tone Selection
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 6.4.8.8 - Tone Selection Tone selection is a parameter that is applicable only to the siren of addressable fire alarm and addressable fire alarm w/flasher. 42 different tones can be set as tone selection, under this menu. The siren tone to be sounded at the time of the alarm is adjusted by setting these values. -
Page 26: Output Activation Type
TFP-21xx Series Intelligent Addressable Fire Alarm Panels Important note: The siren operating limits for the loop board are determined by the current consumption. Up to 8 sirens can be added to a circuit board depending on the current consumption in alarm state. If more than 8 sirens are connected, it is displayed as a new device warning on the panel screen and is not added to the panel. -
Page 27: Currents [Ma]
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 6.4.8.15 - Currents [mA] Current values are the parameters that are applicable only to the conventional zone and siren modules. The current values for "Normal circuit, Short circuit and Alarm" of the conventional zone can be set under this menu. The conventional products of other brands can be integrated into the system by setting these values. -
Page 28: Status Window
TFP-21xx Series Intelligent Addressable Fire Alarm Panels Figure 8 - Clock, UTC, DST Setting Zone selection activates the panel's daylight saving (DST) feature. Enables the automatic time change to be applied in the selected region. Correctly setting the UTC Offset ensures that the automatic time change occurs at the correct time. -
Page 29: Error Window
TFP-21xx Series Intelligent Addressable Fire Alarm Panels Figure 10 - Smoke Alarm Notification In order to get more detailed fire information, select a fire from the fire list by using “DOWN” and “UP” keys and press “OK” and thus access the loop address, zone address and location address of the fire as well as the definitions of such locations. - Page 30 TFP-21xx Series Intelligent Addressable Fire Alarm Panels Figure 13 - Error Detail Window The error types that may occur are as listed below: Battery Not Available This error indicates that the battery below 2V is not available. “No battery” warning is displayed on the error screen.
- Page 31 TFP-21xx Series Intelligent Addressable Fire Alarm Panels 14 Device [X] Open Circuit This error indicates that the input terminals are open circuit on the input modules. This error indicates that the load terminals are open circuit on the output modules. 15 Device [x] External Power Problem This error indicates that there is a problem with the external power input of the output modules.
-
Page 32: Warning Window
- Event Log Event log is the section in which the events important for Teknim addressable panel are saved and viewed. The records are divided into 10 categories in the event log and each category is evaluated with different events under itself. - Page 33 TFP-21xx Series Intelligent Addressable Fire Alarm Panels Table 17 - Event Log Categories Category Event Alarm Smoke Alarm Temperature Alarm Smoke & Temperature Alarm Button Alarm Input M. Alarm Conventional M. Alarm Gas Alarm Device Not Available Devices Device Configured Data Error Short Circuit Open Circuit...
-
Page 34: Disable Menu
TFP-21xx Series Intelligent Addressable Fire Alarm Panels Figure 16 - Case Study memory Window - Disable Menu Disable menu is used to “Disable” devices, zones, siren outputs and loop lines. 7.4.1 - Disabled Devices Disabled devices continue to communicate with the panel but do not perform the fire detection. When the disabled state is terminated on the device, the fire detection process continues. -
Page 35: Disabled Sirens
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 7.4.3 - Disabled Sirens Disabled siren outputs will not be active in fire and scenario situations. However, the siren outputs continue to be monitored for short circuit and open circuit situations. • The expression “(N)” next to the outputs refers to normal siren output. •... -
Page 36: Device Led Test
TFP-21xx Series Intelligent Addressable Fire Alarm Panels Figure 21 - Zone Test Settings Window - Device LED Test The device LED test is used in cases where the devices need to determine the address/location or for the purpose of checking whether the communication is healthy. The limit of maximum number of LEDs to be lighted can be set with “6.4.4.7 Maximum Number of LEDs in Alarm State”... -
Page 37: Loop Control
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 7.10.2 - Loop Control This function is used to locate the disconnections on the loop line. For this: Enter “Menu » Programming » Loop Functions » Loop Control” menu, Press “OK” for making loop control Loop control will scan the entire line and detect the number of devices seen from “Loop Output”... -
Page 38: Loop Parameters
TdNET is a multi-master protocol and communication technology working with Token-Passing topology that provides the network infrastructure of Teknim addressable fire detection systems. A network gets created with up to 16 devices that support the TdNET protocol. TFC-1208 TdNET Network Card must be added on the motherboard through the P2 port for TFP-21xx panels to be connected to the network line. -
Page 39: Tdnet Map
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 7.11.1 - TdNET Map TdNET Map lists the control panels that the panel needs to see on the network. If a panel that has been added to the network before can no longer be detected, this situation is displayed on the error screen as "No Panel". When the TdNET Map is entered, the TdNET list appears on the screen. -
Page 40: Outgoing Commands
TFP-21xx Series Intelligent Addressable Fire Alarm Panels Initially, the panel to be set must be added to the TdNET map for making the incoming commands settings. Then follow the instructions below: Enter “Menu » Programming » TdNET Functions » Incoming Commands” menu Select an active panel from the list and press “OK”... -
Page 41: Permissions
TFP-21xx Series Intelligent Addressable Fire Alarm Panels In order to program the users: Enter “Menu » Programming » Users” menu Select any user with "OK" button Change the "Status" form to "ACTIVE” in the user programming window that pops up PASSIVE users cannot login to the panel. -
Page 42: Printer Functions
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 7.13 - Printer Functions Printer functions are available only on TFP-213x series panels. It is used to print panel events instantaneously or afterwards. Default printer functions are “PASSIVE”. To set the printer functions: Enter “Menu »... -
Page 43: Ahm Connection Settings
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 7.14 - AHM Connection Settings TFP-21xx Smart addressable panels are capable of connecting to Alarm Information Centers (AHM) and making “Alarm, Error, Warning” notification and event recording. Fill in the AHM subscriber information you are a member of for the AHM connection to be established. Follow the instructions below to enter AHM subscriber information: Enter “Menu »... -
Page 44: Software Update
- The Situations That Require Maintenance, Repair or Service Intervention Maintenance and repair works of Teknim Smart Addressed Fire Alarm Systems must be carried out by authorized persons according to the instructions. -
Page 45: Maintenance And Controls By Users
TFP-21xx Series Intelligent Addressable Fire Alarm Panels - Maintenance and Controls by Users The users are provided with the maintenance, diagnostic and control mechanisms against some malfunction conditions. These will be explained in the sub-titles. 9.1.1 - Loop Line Open Circuit Error One of the following reasons may cause the error displayed on the screen as Loop Line Open Circuit: •... -
Page 46: Appendixes
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 10 - Appendixes The appendixes section is divided into 4 categories, being Mechanical, Electrical, Menu and Level. 10.1 - Appendix-Mechanics 10.1.1 - TFP-211X Panel Mechanic View Figure 35 - Panel Front Cover Screws TFP-21XX INSTALLATION &... -
Page 47: Mechanical View Of Tfp-213X Panel W/O Printer
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 10.1.2 - Mechanical View of TFP-213X Panel w/o Printer Figure 36 - Printer Module TFP-21XX INSTALLATION & USER MANUAL... - Page 48 TFP-21xx Series Intelligent Addressable Fire Alarm Panels Figure 37 - A2 Mounting Screw Holes • Detail A2 indicates the panel mounting screw holes. TFP-21XX INSTALLATION & USER MANUAL...
- Page 49 TFP-21xx Series Intelligent Addressable Fire Alarm Panels Figure 38 - Electric Connections • A3 detail is 195~250 VAC 50 Hz input connector. • A4 detail shows the battery connection (batt) and main card power connection socket. • A5 detail shows the battery start switch in cases where 195~250 VAC 50 Hz is not present.
- Page 50 TFP-21xx Series Intelligent Addressable Fire Alarm Panels Figure 39 - Panel Battery Connection • B1 brackets are fixed through the screw points • B3 and B5 batteries connect to each other via the jumper cable • B2 and B4 batteries connect to the battery power socket via the power cable TFP-21XX INSTALLATION &...
- Page 51 TFP-21xx Series Intelligent Addressable Fire Alarm Panels Figure 40 - Loop Card, Network Card and Repeating Panel Connection Points TFP-21XX INSTALLATION & USER MANUAL...
- Page 52 TFP-21xx Series Intelligent Addressable Fire Alarm Panels Figure 41 - TFC-1208 Network Card TFP-21XX INSTALLATION & USER MANUAL...
- Page 53 TFP-21xx Series Intelligent Addressable Fire Alarm Panels Figure 42 - TFC-1201 Loop Card TFP-21XX INSTALLATION & USER MANUAL...
-
Page 54: Appendix-Electrical
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 10.2 - Appendix-Electrical Figure 43 - Panel Button Cell Connection * Battery connection type may be different. TFP-21XX INSTALLATION & USER MANUAL... - Page 55 TFP-21xx Series Intelligent Addressable Fire Alarm Panels Figure 44 - Siren and Connector Connection Figure 45 - Loop and Connector Connection TFP-21XX INSTALLATION & USER MANUAL...
-
Page 56: Appendix-Computer Connection
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 10.3 - Appendix-Computer Connection Figure 46 - Computer Ethernet Connection TFP-21XX INSTALLATION & USER MANUAL... -
Page 57: Appendix-En 54 Standard
Alarm counter Fault signals received from points Disable status of addressable points Test status 1922 Teknim Elektronik San. ve Tic. A.Ş. Dudullu Organize Sanayi Bölgesi 1.Cadde İsmet Tarman İş Merkezi No:1 Daire:32 Ümraniye-İSTANBUL 1922-CPR-1857 EN 54-2:1997, EN 54-2:1997/AC:1999, EN 54-2:1997/A1:2006 Fire detection and fire alarm systems. -
Page 58: Appendix-Maintenance Table
TFP-21xx Series Intelligent Addressable Fire Alarm Panels 10.5 - Appendix-Maintenance Table Date Tested Device Device Location Description TFP-21XX INSTALLATION & USER MANUAL... - Page 59 TFP-21xx Series Intelligent Addressable Fire Alarm Panels Date Tested Device Device Location Description TFP-21XX INSTALLATION & USER MANUAL...
- Page 60 TFP-21xx Series Intelligent Addressable Fire Alarm Panels Date Tested Device Device Location Description TFP-21XX INSTALLATION & USER MANUAL...
-
Page 61: Issues To Be Considered
Malfunctions arising due to improper handling are outside the scope of warranty. MANUFACTURER AND SERVICE Teknim Elektronik Sanayi ve Ticaret A.Ş. Dudullu Organize Sanayi Bölgesi 1.Cadde İsmet Tarman İş Merkezi No:1 Daire:32 Ümraniye-İSTANBUL Telephone: +90 216 455 88 46 Fax: +90 216 455 99 06 www.teknim.com...
