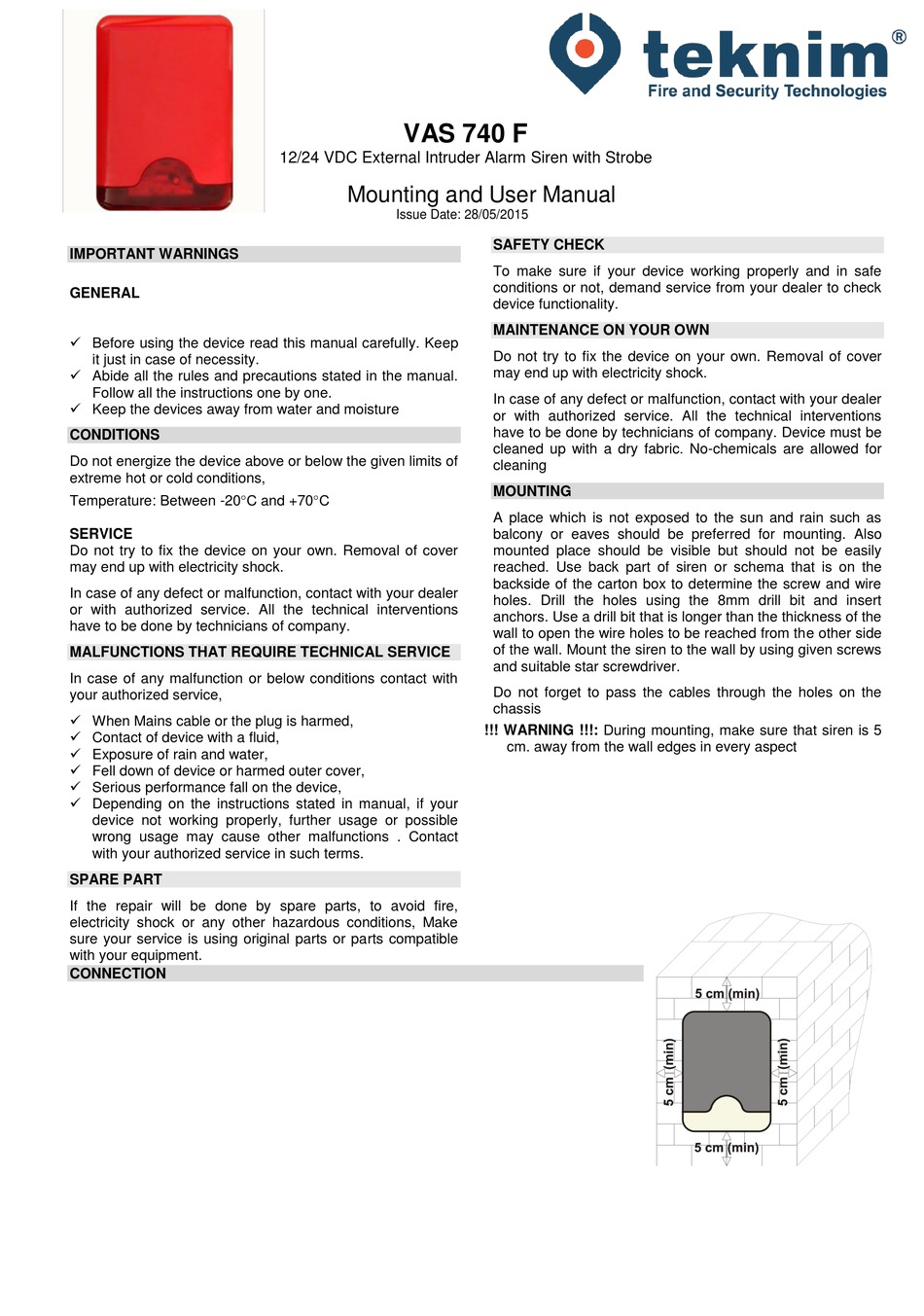

Teknim VAS 740 F Mounting And User Manual

IMPORTANT WARNINGS

GENERAL

✓ Before using the device read this manual carefully. Keep
it just in case of necessity.
✓ Abide all the rules and precautions stated in the manual.
Follow all the instructions one by one.
✓ Keep the devices away from water and moisture

CONDITIONS

Do not energize the device above or below the given limits of
extreme hot or cold conditions,
Temperature: Between -20C and +70C

SERVICE

Do not try to fix the device on your own. Removal of cover
may end up with electricity shock.
In case of any defect or malfunction, contact with your dealer
or with authorized service. All the technical interventions
have to be done by technicians of company.

MALFUNCTIONS THAT REQUIRE TECHNICAL SERVICE

In case of any malfunction or below conditions contact with
your authorized service,
✓ When Mains cable or the plug is harmed,
✓ Contact of device with a fluid,
✓ Exposure of rain and water,
✓ Fell down of device or harmed outer cover,
✓ Serious performance fall on the device,
✓ Depending on the instructions stated in manual, if your
device not working properly, further usage or possible
wrong usage may cause other malfunctions . Contact
with your authorized service in such terms.

SPARE PART

If the repair will be done by spare parts, to avoid fire,
electricity shock or any other hazardous conditions, Make
sure your service is using original parts or parts compatible
with your equipment.

CONNECTION

VAS 740 F
12/24 VDC External Intruder Alarm Siren with Strobe
Mounting and User Manual
Issue Date: 28/05/2015

SAFETY CHECK

To make sure if your device working properly and in safe
conditions or not, demand service from your dealer to check
device functionality.

MAINTENANCE ON YOUR OWN

Do not try to fix the device on your own. Removal of cover
may end up with electricity shock.
In case of any defect or malfunction, contact with your dealer
or with authorized service. All the technical interventions
have to be done by technicians of company. Device must be
cleaned up with a dry fabric. No-chemicals are allowed for
cleaning

MOUNTING

A place which is not exposed to the sun and rain such as
balcony or eaves should be preferred for mounting. Also
mounted place should be visible but should not be easily
reached. Use back part of siren or schema that is on the
backside of the carton box to determine the screw and wire
holes. Drill the holes using the 8mm drill bit and insert
anchors. Use a drill bit that is longer than the thickness of the
wall to open the wire holes to be reached from the other side
of the wall. Mount the siren to the wall by using given screws
and suitable star screwdriver.
Do not forget to pass the cables through the holes on the
chassis
!!! WARNING !!!: During mounting, make sure that siren is 5
cm. away from the wall edges in every aspect
