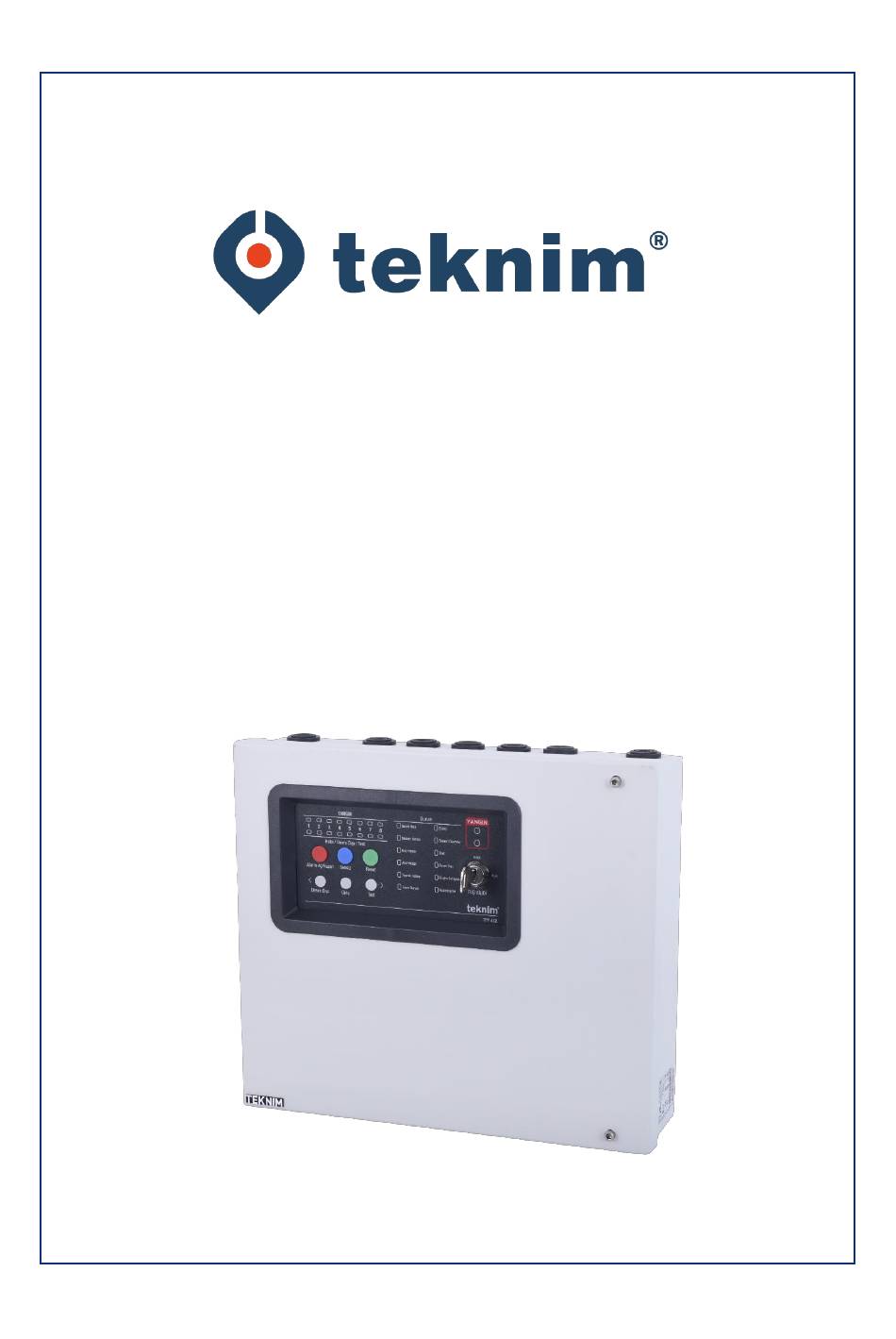

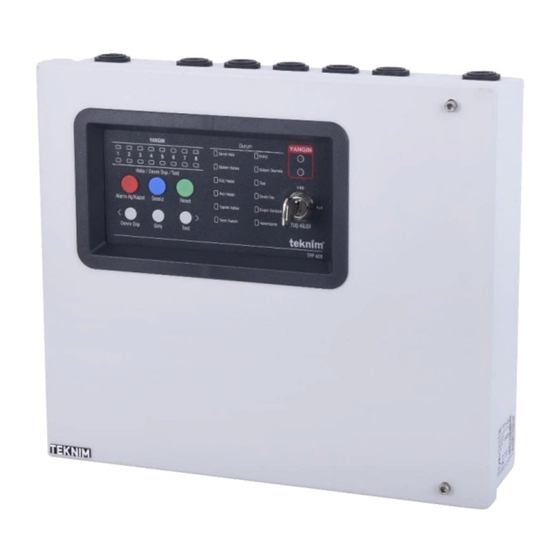

- Page 1 2016 TFP-40x Series Conventional Fire Alarm Panel Installation & Operation Manual Issue Date: 26/12/2016 Rev:02...
-
Page 2: Table Of Contents
TFP-40x Series Conventional Fire Alarm Panels Table of Contents Introduction ............................3 Warnings ............................3 Technical Specifications ........................4 TFP-40x Series Conventional System ..................... 5 Panel Properties ........................... 5 Panel User Interface ........................6 Installation ............................9 Recommended Cables ........................9 Mounting............................. - Page 3 TFP-40x Series Conventional Fire Alarm Panels Table 1 Main Button Functions ........................7 Table 2 Auxiliary Button Functions ......................... 8 Table 3 Level-2 Key............................8 Table 4 LED Indicators ..........................9 Table 5 Properties of the Recommended Cables ................... 10 Table 6 Known Errors ..........................
-
Page 4: Introduction
This manual contains the installation instructions, technical properties, and panel configuration information related to TFP-40x Series Teknim Conventional Panels. TFP-40x Teknim conventional panels may be viewed under 2 options as 4- or 8-zone devices. 32 detectors or fire alarm buttons can be connected per zone. -
Page 5: Technical Specifications
TFP-40x Series Conventional Fire Alarm Panels Technical Specifications Supply Voltage 230 / 110 VAC (+%10 / -%15) Frequency 50 / 60 Hz (±%5) Mains Input Fuse Output Voltage 21 – 29 Vdc ± %2 Output Fuse 4A (F1) Cable Type 3 x 1,5mm²... -
Page 6: Tfp-40X Series Conventional System
TFP-40x Series Conventional Fire Alarm Panels TFP-40x Series Conventional System TFP-40x series conventional systems are fire detection systems, which are designed with 4 or 8-zones and in which 32 detectors or fire alarm buttons can be connected per zone. The system also provides features like 2 supervised siren outputs, 1 dry contact fault relay, 1 dry contact alarm relay, and 1 x 24 AV AUX output. -
Page 7: Panel User Interface
TFP-40x Series Conventional Fire Alarm Panels Panel User Interface This chapter describes the indicators and buttons on the panel. Figure 1 Control Panel User Interface The buttons C, D, and E shown in Figure 1 Control Panel User Interface are main buttons and have single functions. - Page 8 TFP-40x Series Conventional Fire Alarm Panels Table 1 Auxiliary Buttons Functions Task Label Short press Long press It is used to change the processed zone It is used to turn on and off the when test or disable process is active in deactivation process in Level-2.
- Page 9 TFP-40x Series Conventional Fire Alarm Panels Table 4 LED Indicators Label LED name Fixed LED Blinking LED Color Shows that the panel is in alarm FIRE NONE status (250 ms) Shows there is a fault in the Yellow General Error Shows a system error system Yellow...
-
Page 10: Installation
TFP-40x Series Conventional Fire Alarm Panels Installation This chapter describes the mechanical and electrical connection methods for TFP-40x series panels. Caution: Do not start mounting before having read the entire manual! Recommended Cables It is recommended that cables with the properties described in "Table 5 Properties of the Recommended Cables" are used with the cabling installations and in all the electrical connections. -
Page 11: Zone Lines
Zone Lines TFP-40x Teknim conventional panels may be viewed under 2 options as 4- or 8-zone devices. Detection circuits provide power (24 VDC) to the detectors and buttons and at the same time ensures that signals like fire alarm, short circuit, and broken line are transmitted to the panel Maximum 32 detectors or alarm buttons can be connected to a zone line. -
Page 12: User Levels
TFP-40x Series Conventional Fire Alarm Panels User Levels Some features of the panel are restricted with user levels and the panel has 4 user levels. Level 1 Level 1 is defined as the predefined user level with the most basic features. When the key lock is off (key in vertical position), Level-1 is entered. -
Page 13: Using The Panel
TFP-40x Series Conventional Fire Alarm Panels Using the Panel In this chapter, information on using the panel is given. Disable Mode Disable mode is used to isolate an unused zone or siren from the system. Disable mode settings can be adjusted from access levels-2, 3 and 4. In order to deactivate a zone or a siren, "Disable"... -
Page 14: Siren Resound Option
Restore access level to 1. System Error TFP-40x Teknim conventional panels are microcontroller-based systems. As per EN54-2 Article 13.3, the microcontroller is controlled by another completely independent system. In the case that the microcontroller fails to carry out program flow for any reason, the panel automatically takes itself into secure status. In this case, the following occur: General Error and System Error LEDs light up constantly. -
Page 15: Maintenance
TFP-40x Series Conventional Fire Alarm Panels Maintenance Maintenance and repair on Teknim TFP-40x series fire systems should be carried out by authorize people in accordance with the instructions. Situations requiring Maintenance, Repair or Servicing In case of malfunction or in the following situations, contact your dealer or authorized service station. -
Page 16: Appendices
TFP-40x Series Conventional Fire Alarm Panels Appendices The Appendices are divided into 4 categories a Mechanical, Electrical, Level and Maintenance Tables. Appendix-Mechanical Figure 2 Panel Front Cover Screws TFP-40X INSTALLATION & OPERATION MANUAL... - Page 17 TFP-40x Series Conventional Fire Alarm Panels Figure 3 Mounting Screw Holes Mounting Screw Hole TFP-40X INSTALLATION & OPERATION MANUAL...
- Page 18 TFP-40x Series Conventional Fire Alarm Panels Figure 4 Electrical Connections Battery Connection Connector Main Supply Connection Connector Main Supply Voltage Adjustment Potentiometer Button for Startup from Battery Mains Fuse TFP-40X INSTALLATION & OPERATION MANUAL...
- Page 19 TFP-40x Series Conventional Fire Alarm Panels Figure 5 Battery Connection • Batteries are placed in the area shown as B6. • Battery rails shown as B1 are fixed with screws. • B4 and B5 are connected to each other with jumper cable. •...
-
Page 20: Appendeix- Electrical
TFP-40x Series Conventional Fire Alarm Panels Appendix- Electrical Figure 6 Siren Connection Figure 7 Zone Connection TFP-40X INSTALLATION & OPERATION MANUAL... - Page 21 TFP-40x Series Conventional Fire Alarm Panels Figure 8 Zone Earth Connections TFP-40X INSTALLATION & OPERATION MANUAL...
-
Page 22: Appendix-Level
TFP-40x Series Conventional Fire Alarm Panels Appendix-Level Şekil 1 Seviye-3 Computer Communication Connector Switch for Siren Resound Option Access Level-3 Activation Key Hardware Reset TFP-40X INSTALLATION & OPERATION MANUAL... - Page 23 TFP-40x Series Conventional Fire Alarm Panels Appendix-Maintenance Table Date Tested Device Device Position Remarks TFP-40X INSTALLATION & OPERATION MANUAL...
- Page 24 TFP-40x Series Conventional Fire Alarm Panels Date Tested Device Device Position Remarks TFP-40X INSTALLATION & OPERATION MANUAL...
- Page 25 TFP-40x Series Conventional Fire Alarm Panels Date Tested Device Device Position Remarks TFP-40X INSTALLATION & OPERATION MANUAL...
- Page 26 TFP-40x Series Conventional Fire Alarm Panels Date Tested Device Device Position Remarks TFP-40X INSTALLATION & OPERATION MANUAL...
-
Page 27: 10 Issues To Be Considered
MANUFACTURER Bilgi Elektronik Sanayi ve Ticaret A.Ş. Dudullu OSB 1. Cadde İsmet Tarman İş Merkezi No:1 Kat:2 No:32 Ümraniye / İstanbul / Türkiye Telephone: +90 216 455 88 46 Fax: +90 216 455 99 06 www.teknim.com www.bilgielektronik.com.tr Technical Support: support@bilgielektronik.com.tr Sales: sales@bilgielektronik.com.tr...
