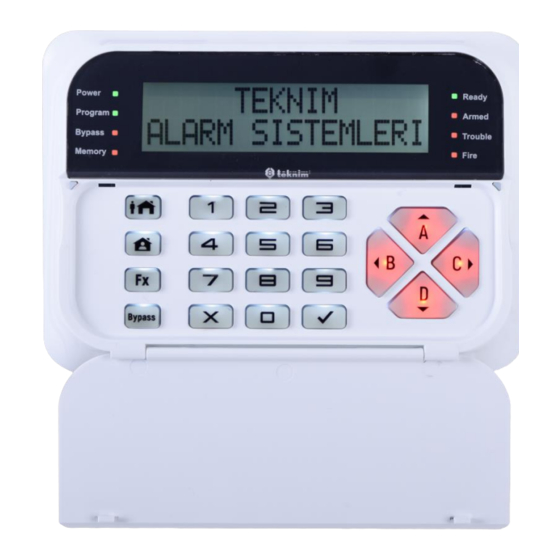

Teknim PARS Series Quick Installation Manual
Intruder alarm systems
Hide thumbs
Also See for PARS Series:
- Installation and programming manual (81 pages) ,
- User manual (17 pages)
Related Manuals for Teknim PARS Series
Summary of Contents for Teknim PARS Series

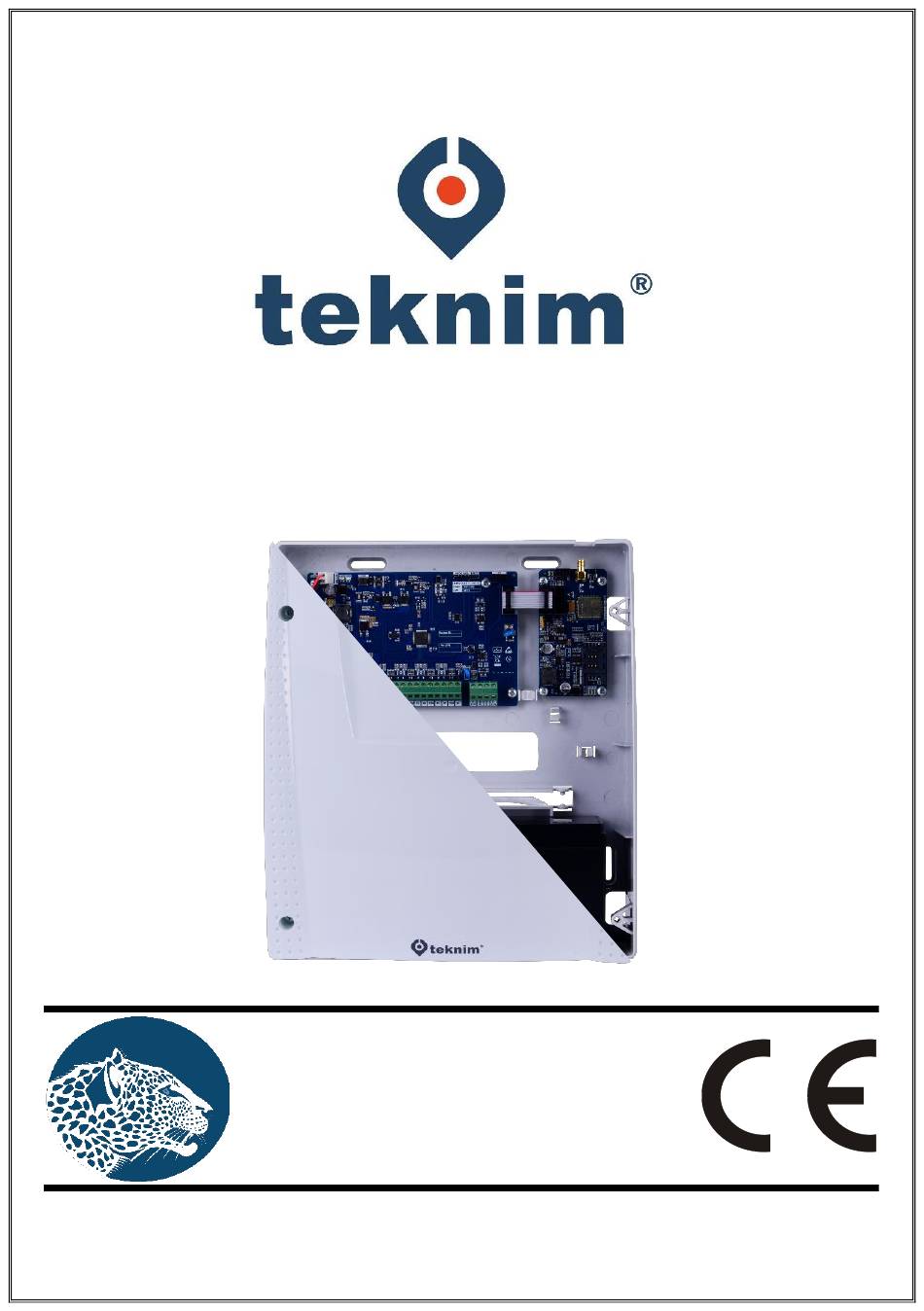

- Page 1 TEKNİM PARS SERIES INTRUDER ALARM SYSTEMS QUICK INSTALLATION GUIDE PARS SERIES Alarm Control Panels V1.1 Release Date: 26.12.2019...
-
Page 2: Table Of Contents
Setting the CMS Phone Numbers ..........................6 Setting the Backup CMS Phone Numbers ....................... 6 Setting the Private Phone Numbers ......................... 6 Password Settings ................................6 User Codes ..................................7 PROGRAMMING TABLE ......................8 TEKNİM PARS SERIES ALARM CONTROL PANELS QUICK INSTALLATION GUIDE... -
Page 3: Tsp Alarm Panels Connection Diagrams
2. TSP ALARM PANELS CONNECTION DIAGRAMS Warning: Installation and electrical connections of the panel must be done by trained personnel. Unconscious interventions may result in electrical current exposure and malfunctions of the panel board. TEKNİM PARS SERIES ALARM CONTROL PANELS QUICK INSTALLATION GUIDE... - Page 4 Warning: Installation and electrical connections of the panel must be done by trained personnel. Unconscious interventions may result in electrical current exposure and malfunctions of the panel board. TEKNİM PARS SERIES ALARM CONTROL PANELS QUICK INSTALLATION GUIDE...
- Page 5 Warning: Installation and electrical connections of the panel must be done by trained personnel. Unconscious interventions may result in electrical current exposure and malfunctions of the panel board. TEKNİM PARS SERIES ALARM CONTROL PANELS QUICK INSTALLATION GUIDE...
-
Page 6: Quick Start Guide
P.S.: If CMS Account number contains Hexadecimal Codes, (A, B, C, D, E, F) press long; [1] for A – [2] for B - [3] for C – [4] for D – [5] for E – [6] for F TEKNİM PARS SERIES ALARM CONTROL PANELS QUICK INSTALLATION GUIDE... -
Page 7: Setting The Cms Phone Numbers
P.S.: The password change process for LCD and LED Keypad is the same and it is not necessary to press the [ √ OK] key at the end of the password change process. You will be hearing double short tone when process succeed. TEKNİM PARS SERIES ALARM CONTROL PANELS QUICK INSTALLATION GUIDE... -
Page 8: User Codes
To set 2. User Code as 2222; [07] [2] [2222] [√ Ok] Important: GSM/GPRS, CMS Communication and SMS configuration can be done only by Teknim PC Configuration software. You can download the software from www.teknim.com TEKNİM PARS SERIES ALARM CONTROL PANELS... -
Page 9: Programming Table
5. Extend Exit Delay Enable / Disable 6. Double Hit Enable / Disable 1. PGM NC/NO (On: NC, Off: NO) 1. NO 10 02 Output 4. SRN NC/NO (+/- Trigger) 4. NO TEKNİM PARS SERIES ALARM CONTROL PANELS QUICK INSTALLATION GUIDE... - Page 10 4: Fire Siren 5: Fire Sensor Power 13 01 Use PGM as; 6: Siren 7: Trouble Output 8: Access Control 9: Timer Output 10: Random 11: ARM Indicator 12: Disarm Indicator TEKNİM PARS SERIES ALARM CONTROL PANELS QUICK INSTALLATION GUIDE...
- Page 11 21 06 2. Partition B 21 07 3. Partition C 21 08 4. Partition D 01-Keypad Zone 29 02-Keypad Zone 30 03-Keypad Zone 31 04-Keypad Zone 32 22 – ZONE TYPE TEKNİM PARS SERIES ALARM CONTROL PANELS QUICK INSTALLATION GUIDE...
- Page 12 2. Keypad 4. Option: Disarm Permission Enable/Disable 30 03 3. Keypad 5. Option: Programming Enable/Disable Others 30 04 4. Keypad 6. Option: Access Control Enable/Disable 2-3-4 7. Option: Keypad Tamper Enable/Disable TEKNİM PARS SERIES ALARM CONTROL PANELS QUICK INSTALLATION GUIDE...
- Page 13 7. User Authorized Days 6. Saturday 42 08 8. User Authorized Days 7. Sunday 42 09 9. User Authorized Days 42 10 10. User Authorized Days 43 – USER AUTHORIZED PARTITIONS TEKNİM PARS SERIES ALARM CONTROL PANELS QUICK INSTALLATION GUIDE...
- Page 14 3. Option: 3. User Phone All Enable 50 15 Partition C Phone 4. Option: 4. User Phone 50 16 Partition D Phone 5. Option: 5. User Phone 6. Option: 6. User Phone TEKNİM PARS SERIES ALARM CONTROL PANELS QUICK INSTALLATION GUIDE...
- Page 15 User 6 Remote Erase 61 07 User 7 Remote Erase 61 08 User 8 Remote Erase 61 09 User 9 Remote Erase 61 10 User 10 Remote Erase 61 11 Master Remote Erase TEKNİM PARS SERIES ALARM CONTROL PANELS QUICK INSTALLATION GUIDE...
- Page 16 Dudullu OSB 1. Cadde İsmet Tarman İş Merkezi No: 1 Kat: 2 No: 32 Ümraniye / İstanbul Phone: +90 216 455 88 46 Fax: +90 216 455 99 06 www.teknim.com sales@bilgielektronik.com.tr TEKNİM PARS SERIES ALARM CONTROL PANELS QUICK INSTALLATION GUIDE...
