Summary of Contents for Teknim VAP416

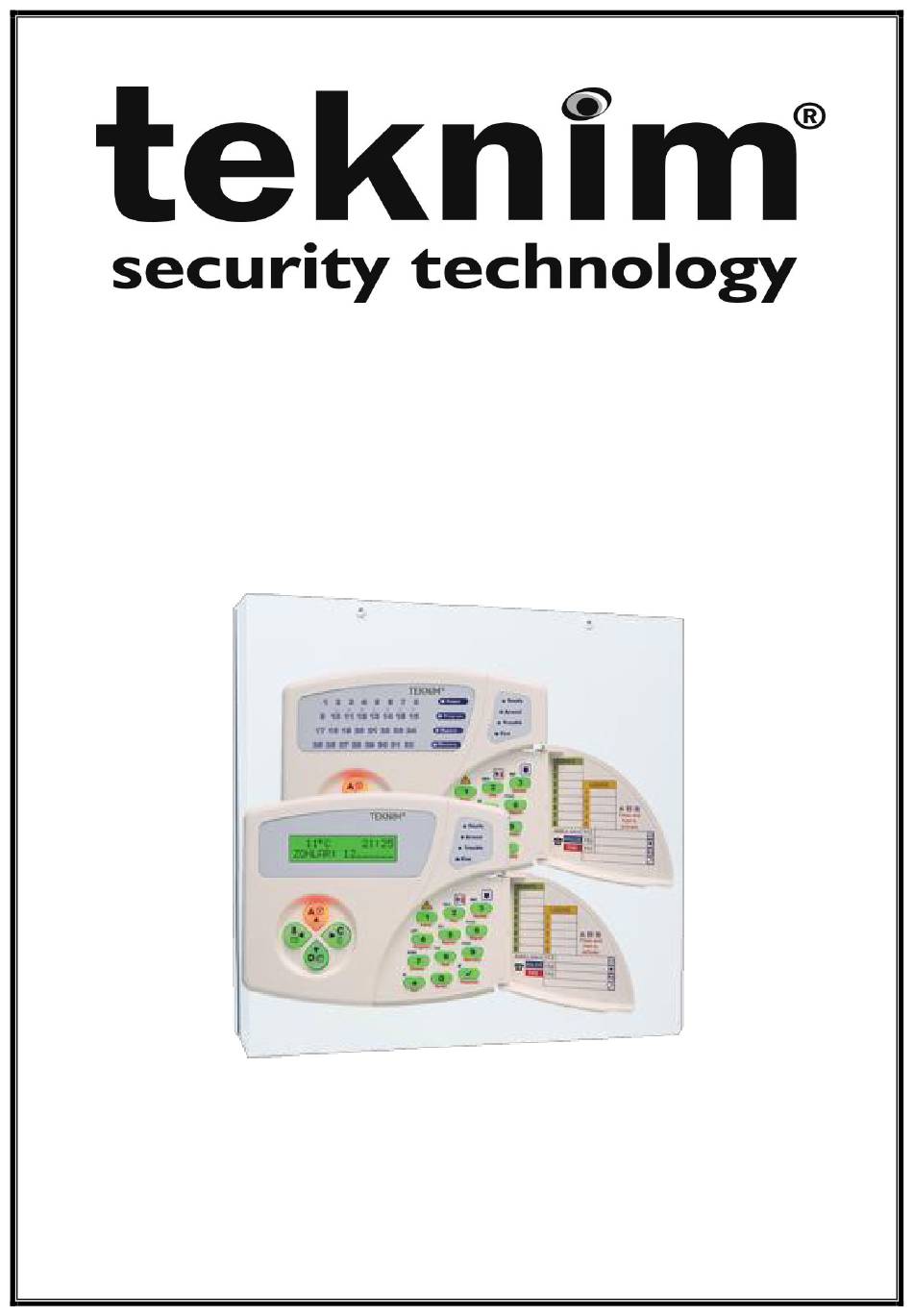

- Page 1 VAP416 INSTALLATION & OPERATION MANUAL Issue Date: 08/07/2013 TD-1/07-004...
-
Page 2: Table Of Contents
VAP416 Installation & Operation Manual TABLE OF CONTENT SAFETY PRECAUTIONS ................... 5 INTRODUCTION FOR THIS GUIDE ................6 1. INTRODUCTION ....................7 2. FEATURES ......................8 3. MOUNTING ......................9 3.1. GENERAL ......................9 3.2. SIREN CONNECTION ................... 10 3.3. DETECTOR CONNECTION ................10 3.4 SAMPLE CONNECTIONS ................ - Page 3 VAP416 Installation & Operation Manual 5.1 RUNNING OF THE PANEL AT THE SPT MODE ........... 30 6. SIMPLE/QUICK PROGRAMMING ............... 31 6.1 SIMPLE PROGRAMMING ................31 6.1.1 Entering installer program ....................31 6.1.2 Entering Master Program ..................... 33 6.1.3 Changing Assigned Codes ....................34 6.1.4 Tests ............................
- Page 4 VAP416 Installation & Operation Manual 8.5.2.2 Guest Finish Time ......................61 8.5.3. Days ............................ 61 8.5.3.1 User Days ........................62 8.5.3.2 Guest Days ........................62 8.5.4. Partitions ..........................62 8.5.4.1 User Partitions ......................62 8.5.4.2 Guest Partitions ......................63 8.5.5. Keypads ..........................63 8.5.5.1 User Keypads .......................
-
Page 5: Safety Precautions
VAP416 Installation & Operation Manual SAFETY PRECAUTIONS Read this guide carefully before operating device and keep this guide for later reference. Follow all operating and safety instructions in this guide. Keep away devices from dust and moisture. Locate to the straight place in order not to damage device. -
Page 6: Introduction For This Guide
INTRODUCTION FOR THIS GUIDE Teknim Elektronik reserves the right to change information on the manuals at any time without notice. There are the rules for installing VAP416 which the customers need, in this guide. These rules are explained as below: ... -
Page 7: Introduction
VAP416 Installation & Operation Manual 1. INTRODUCTION VAP416 is 16+16 zone alarm panel that meets desires. It has simple usage also lets technician to configure user needs simply. Simple Mounting Panel is mounted wall by three holes. Panel case has cable holes to pass cables through Panel PCB. -
Page 8: Features
VAP416 Installation & Operation Manual 2. FEATURES Inputs Programmable 16+16 zone, NC, NO, 1-EOL Resistor, 2-EOL Resistor , None-end of line resistor zones, Double zone. Different zone types(Door, Window, Tamper, Fire etc.) Additional features assigned zones(Follower zone, end zone, silent zone etc.) ... -
Page 9: Mounting
VAP416 Installation & Operation Manual Electrical & Mechanical Features 230V AC Voltage Fuse AC Voltage(200 mA) Power supply for external units with electronic fuses Fused and short-circuit protected 12V power outputs (12V 1A siren output, 1A AUX and keypad output). -
Page 10: Siren Connection
VAP416 Installation & Operation Manual 3.2. SIREN CONNECTION Siren connection is made by 12V,SRN,GND terminals. 12V and GND is supply voltage of Siren. Trigger output of Siren is SRN. Siren output can be programmed as NO ,NC. !!! WARNING !!! -
Page 11: Sample Connections
VAP416 Installation & Operation Manual Alarm Tamper Z COM Z Z COM Z Z COM Z Z COM Z When single end of line resistor is used, any break in detector cable can be noticed. When double end of line resistor is used, any break in detector cable and also short circuit can be noticed. - Page 12 VAP416 Installation & Operation Manual 2.7K? Alarm Tamper Z COM Z Z COM Z Z COM Z Z COM Z Connection with end of line resistor (with tamper) Alarm Tamper Z COM Z Z COM Z Z COM Z Z COM Z Connection with double end of line resistor 2.7 KΩ...
-
Page 13: Zone Doubling
VAP416 Installation & Operation Manual 3.4.1 Zone Doubling The zone number can be increased by using this connection. If 1kΩ and 2kΩ resistors are connected to Z1,Z2,..,Z16 zone and the zones are programmed correctly, each zone can be used like 2 zones. So, the zones (Z1,Z2,...Z16 and Z17,Z18,...Z32) will be doubled. -
Page 14: Keypad Connection
The blendaj of the cable must be connected GND of the panel and keypad. 4 keypad connections can be done for VAP416. The address of the keypads must be adjusted firstly. (See the part of learning keypad address and adjustment) Also the keypads which are connected must be active. -
Page 15: Phone Line Connection
3.7. THE CONNECTIONS OF THE PGM OUTPUTS (PGM1,2,3) There are 3 PGM outputs of VAP416. These outputs can be used for any applications. You can see the information of the programming in the part of programming adjustments.. -
Page 16: How To Use Keypad
VAP416 Installation & Operation Manual Battery !!! ATTENTION !!! The grounding must be correctly. 4. HOW TO USE KEYPAD Keypad helps users to monitor current status of alarm panel by its LEDs and LCD display (in VPC301 model), to program and control it by its silicon keys. Max. 2 keypads to VAP3XX model alarm panels and max. -

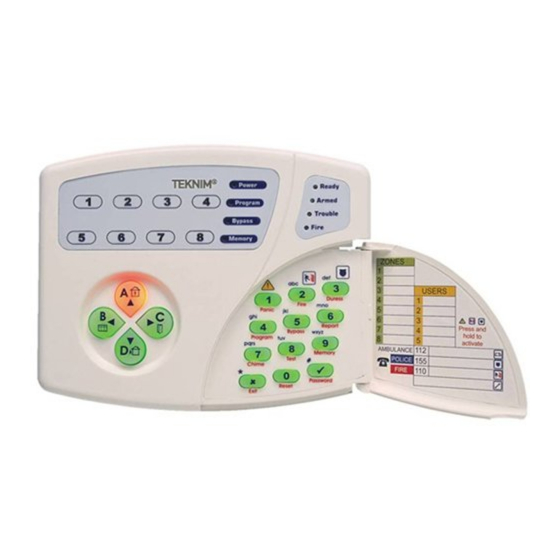

Page 17: Vpc104 Keypad
VAP416 Installation & Operation Manual Only master user (default master code: 1234) and installer (default installer code: 9999) can enter in the addresses. a) Entering in an address (1.step) press (program) button until you hear long beep sound. (2.step) press buttons in turn in order. -
Page 18: Keypad Address
VAP416 Installation & Operation Manual When you enter "Password" button long, you see "E" letter on the display and panel waits you to enter your old code. When you enter your old code, you see "Y" letter on the display and panel waits you to enter your new code. When you enter 4 digits new code, you see "Y"... -
Page 19: Monitoring Event Log
VAP416 Installation & Operation Manual 4.1.4 Monitoring Event Log "H" letter is seen on the display to show event log memory as follows; H CC-DD.MM.YY-HH.MM-A-B CC: Two digits event code, DD: Day, MM: Month, YY: Year, HH: Hour, MM: Minute, A,B: A and B parameters... -
Page 20: Trouble Codes
VAP416 Installation & Operation Manual Zone 8 open-circuit Zone 8 short-circuit There is no communication between keypad and panel 4.1.7 Trouble Codes Code Type of Trouble Description Invalid address Invalid address has been entered Invalid data Entered data is invalid... -
Page 21: Vpc108/Vpc016/Vpc116/Vpc132 Keypad
VAP416 Installation & Operation Manual 4.2. VPC108/VPC016/VPC116/VPC132 KEYPAD VPC108 VPC016 VPC116 VPC132 4.2.1 Usage VPC108/VPC016/VPC116/VPC132 are LED keypads. LEDs and buttons help you to monitor, control and program alarm panel. When you make any operation using buttons and enter (ok) button, if the operation is correct, you will hear two short "beep"... -
Page 22: Keypad Address
VAP416 Installation & Operation Manual 4.2.2 Keypad Address Default address of the keypad is 1. If there are more than one keypad is connected, each keypad's address must be different. Keypad address can be changed while the system is not in program mode. -
Page 23: Monitoring Event Log
VAP416 Installation & Operation Manual Main Function Second Function VPC108: 1-8 VPC016: 1-16 Zone is open Number is selected VPC116: 1-16 VPC132: 1-32 Power Power Program In program mode Bypass There is bypassed zone Number 0 (VPC108) Memory There is event in the memory... -
Page 24: Emergency Buttons
VAP416 Installation & Operation Manual Operation VPC108 VPC016,116 VPC132 99 09 (1-8 zone) 99 05 99 10 Zone illumination while a zone is (1-8 zone) (9-16 zone) 99 03 opened 99 06 99 11 (9-16 zone) (17-24 zone) 99 12 (25-32 zone) 4.2.6.3. -
Page 25: Trouble Codes
VAP416 Installation & Operation Manual Buttons Meanings (long) Armed zones (Zones and related partitions in partition LEDs) (long) Last alarm zone (Zones and related partitions in partition LEDs) (long) Active PGMs (long) Keypad address (long) Bypassed zones (Zones and related partitions in partition LEDs) -
Page 26: Vpc301 Keypad
VAP416 Installation & Operation Manual If user is trying to use keypad out • • Out of time limit his/her time limit, keypad displays this trouble Not allowed in this • • • • User is not allowed in this keypad... -
Page 27: Partition Buttons
VAP416 Installation & Operation Manual b) Press (Program) button. (keypad address number will be seen on the related LED) Changing Address a) Press (Program) button until hearing long "beep" sound. b) Enter keypad address (for example ). Then, press button. -
Page 28: Chime Settings
VAP416 Installation & Operation Manual 4.3.6.1. Chime Settings In order to hear warning sound during any zone(s) is opened or closed you have to make below settings in the related address: Operation VPC301 Keypad Setting/Customize/Chime 0 Keypad Setting/Customize/Chime 0 ... -
Page 29: Trouble Warning Sounds
VAP416 Installation & Operation Manual 4.3.6.5. Trouble Warning Sounds Warning sound of the keypad can be set according to trouble type as follows; Trouble Sound Option VPC301 Power Failure option Battery Failure option Date and/or time is not set option... -
Page 30: Error Codes
VAP416 Installation & Operation Manual 4.3.8 Error Codes If there is a long "beep" sound, it means there is an error in the operation. Under this condition, some zone leds which shows error type are lightning with "trouble" LED. Meaning... -
Page 31: Simple/Quick Programming
6. SIMPLE/QUICK PROGRAMMING This section includes quick and simple programming of VAP416 Alarm Control Panel by using default values generally. Please do the following steps respectively in order to complete the installation and programming. - Page 32 VAP416 Installation & Operation Manual If you will connect your system to the CMS (Central Monitoring Station), you should enter the CMS phone number and account number. You can describe two different account numbers for connecting to two different CMS.
-
Page 33: Entering Master Program
VAP416 Installation & Operation Manual * If you will get dial tone with "9" while entering phone numbers, please press "9" then press "0" long to get dial tone and press "05321234567" and then "√". On LCD keypad (By using up and down arrow keys) Enter BASIC SETTINGS"√"→PRIVATE PHONES"√"→01-PERSON PHONE... -
Page 34: Changing Assigned Codes
VAP416 Installation & Operation Manual On VPC 116/132 LED keypad After you pressed "0732", enter 4 digit code and then "√" button. This 4 digit code will be PC connection code. On LCD keypad (By using up and down arrow keys) Enter BASIC SETTINGS"√"→USER CODES"√"→32-USER CODE, enter 4 digit... -
Page 35: The Programming
VAP416 Installation & Operation Manual 7. THE PROGRAMMING There are two programming sections of the VAP416 alarm panel. These are "Installer Program" <IP> that can be entered by the installer password and "Master Program" <MP> that can be entered by master code. By using the installer program, the running type and the properties can be programmed according to the panel connection. -
Page 36: Entering/Exitting From The Programs
VAP416 Installation & Operation Manual 7.1 ENTERING/EXITTING FROM THE PROGRAMS Entering to The Installer Program Press 4(Program) key until hearing long "beep" sound Enter 4 digit Installer code. (Factory default : 9999) If you entered to the program, Program light turns on the LED keypad. Ready light flickers. -
Page 37: Main Configurations
VAP416 Installation & Operation Manual and the types of pressing is indicated. The indication with LCD explains the menu array, pressing keys and the pressing type. 8.1. MAIN CONFIGURATIONS 8.1.1. Time/Date Settings Time Settings Address 01 01.< IP, MP >... -
Page 38: Exit Delays
VAP416 Installation & Operation Manual Address 02 01.< IP > Display for settings: LED 02 01 (wait) LCD BASIC SETTINGS→ENTERY DELAYS→01-PART ENT DLY, (wait) Change for settings: LED 02 01 <Delay> "√" LCD BASIC SETTINGS→ENTERY DELAYS→01-PART ENT DLY <Delay> SECOND "√"... -
Page 39: Central Monitoring Station Account Numbers
VAP416 Installation & Operation Manual 8.1.4. Central Monitoring Station Account Numbers If Panel will be connected to Central Station, Account number which given by CMS is entered here in the following address. 2 different CMS account can be defined. 1 Account ID Address 04 01.<... -
Page 40: User Telephone Numbers
VAP416 Installation & Operation Manual Shown/Entered value: <Phone>, Maximum 15 digit phone number (including dialing tone if the number will be dialed from extension number) Factory default: Empty Example: To set CMS1 phone number to 02161234567. 05 01 0 2 1 6 1 2 3 4 5 6 7 √... -
Page 41: To Set / Make User Codes
VAP416 Installation & Operation Manual Factory default: Empty 8.1.7. To Set / Make User Codes It is only possible to reach the code addresses by the master program. By defining the code on the relevant address, that person is also defined. When writing "0000" on any code address, that user is deleted. -
Page 42: To Set/Make Duress Code
VAP416 Installation & Operation Manual 8.1.7.2. To Set/Make Duress Code Address 07 31.< MP > Change for settings: LED 07 31 <Code> "√" LCD BASIC SETTINGS→USER CODES→31-USER CODE <Code> "√" Entered Value: <code>, 4 digit numbers. If entering "0000", the user will be cancelled. -
Page 43: Output Types
VAP416 Installation & Operation Manual Quick arm Quick Arm enables arming without user code (User press partition button long that he/she wants to arm). Automatic siren test If Automatic siren test is enabled, siren alarms for 2 seconds. -
Page 44: Automatic Bypassed Partitions
VAP416 Installation & Operation Manual 8.2.1.3. Automatic Bypassed Partitions If any zone/zones in selected partition are active while arming, that zone/zones is bypassed automatically (Look at Zone Extra Settings page 57). Bypass is cancelled when zone returns normal position. Meaning of options is in following;... -
Page 45: Ac Fail Call Delay
VAP416 Installation & Operation Manual Factory default: All selected Example: To set reset permission as default value do 10 06 1 (turn on) 2 (turn on) √ 8.2.1.6. AC Fail Call Delay Panel doesn’t dial Central Monitoring Station or User during time entered this address when AC voltage of panel is off. -
Page 46: Siren Cut Off Time
VAP416 Installation & Operation Manual If it is used with SPT, only 1=Interior is recommended setting. Page 30 for the details. Address 11 01. < IP > Display for settings: LED 11 01 (wait) LCD PANEL SETTINGS→SIREN SETTINGS→SIREN (wait) Change for settings: LED 11 01 <Value>... -
Page 47: Automatic Disarm Partitions
VAP416 Installation & Operation Manual Shown/Entered value: <Value>, 1,2,3,4 multi selection from above list Factory default: Nothing selected Example: To select all partitions for automatic arm do 12 01 1 (turn on) 2 (turn on) 3 (turn on) 4 (turn on) √... -
Page 48: Automatic Arm Partitions On No Activity
VAP416 Installation & Operation Manual Change for settings: LED 12 04 <Value> "√" LCD PANEL SETTINGS→AUTO ARM/DISARM→AUTO DISARM PARTITIONS: <Value> "√" Shown/Entered value: <Value>, 1,2,3,4 multi selection from above list Factory default: Nothing selected Example: Setting all disarming partitions 12 04 1 (turn on) 2 (turn on) 3 (turn on) 4 (turn on) √... -
Page 49: Pgm
(PGM1,PGM2,...,PGMn), there is a "Type" that indicates it's purpose and there is a "Parameter" related to this type. There are 3 PGM output for VAP416 The PGM number can be increased to 8 PGMs by using TRM904 module. Look at TRM904 user guide for details. -
Page 50: Pgm Settings
VAP416 Installation & Operation Manual Def. Type Description Parameter Value Part. Value The table values of the selected partition(s) are added to each other and entered. PGM becomes active while selected partitions are active Exp: For B and C partitions, 2+4=6 is entered Part. -
Page 51: Timer Settings
VAP416 Installation & Operation Manual LED 13 01 (wait) LCD PANEL SETTINGS→PGM SETTINGS→USE PGM 1 AS (wait) Change for settings: LED 13 01 <Value> "√" LCD PANEL SETTINGS→PGM SETTINGS→USE PGM 1 AS Select using B(left) and <PGM Tipi> "√" C(right) buttons). -
Page 52: Remote Controlling
VAP416 Installation & Operation Manual Display for settings: LED 14 01 (wait) LCD PANEL SETTINGS→TIMERS→TMR 1 SETTINGS (wait) Change for settings: LED 14 01 <Value> "√" LCD PANEL SETTINGS→TIMERS→TMR 1 SETTINGS <Value> "√" Shown/Entered value: <Value>, 1...8 multi selection from the table. - Page 53 VAP416 Installation & Operation Manual You can open and close permission of PC access and Phone. If you wrongly enter code 5 times, the panel automatically closes. The meaning o these selections in these addresses are below; 1.option=Phone Remote Control Enable/Disable 2.option=PC Remote Control Enable/Disable...
-
Page 54: Key Arm/Disarm Settings
VAP416 Installation & Operation Manual <Value=0> "√" Shown/Entered value: <Value=0> Factory default: 5 Example: Enable Double Call feature. 15 02 0 √ 8.2.6. KEY Arm/Disarm Settings Alarm can be armed by using which was connected to the zone. Look at zone... -
Page 55: Zone Settings
VAP416 Installation & Operation Manual 8.3 ZONE SETTINGS 8.3.1. Zone Wiring The zone must be set according to the type and connection type of detector. The setting can be done form the detector connections. The type of contact can be selected as NC or NO. -
Page 56: Zone Type
VAP416 Installation & Operation Manual Display for settings: LED 21 01 (wait) LCD ZONE SETTINGS→PARTITION→ZONE (wait) PARTITION: Change for settings: LED 21 01 <Value> "√" LCD ZONE SETTINGS→PARTITION→ZONE PARTITION: <Ayar> Shown/Entered value: <Value>, 1,2,3,4 single selection from the list Factory default: 1 selected Example: To assign Zone 1 to C partition 21 01 3 √... -
Page 57: Zone Extra Settings
VAP416 Installation & Operation Manual Zon Type Code Description This zone alarms if panel armed or disarmed when Tamper/Sabotage zone is active and communicator sends Tamper alarm code to Central monitor station. This zone alarms if panel armed or disarmed when... -
Page 58: Zone Trigger Delay
VAP416 Installation & Operation Manual Meaning Option End door Follower* Entry/Exit Zone* Silent Zone Manual Bypass Can't bypass Can bypass Automatic Bypass Can't bypass Can bypass Cross Zone** Normal Zone A zone can not be done at the are time both of entry/exit and follower. -
Page 59: Keypad Settings
VAP416 Installation & Operation Manual Factory default: 15 (value=15x30=>450 msec) Example: To set zone 1 trigger to 1.5 second do 24 01 5 0 √ Zone Trigger Delay from 2 to 16 Addresses 24 02 ... 24 16. < IP >... -
Page 60: User Settings
VAP416 Installation & Operation Manual ABCD: 1.option=A, 2.option=B, 3.option=C, 4. option=D SPT: 1.option=Interior, 2.option=Window, 3.option=Door, 4.option=Exterior If it is used with SPT, only 1=Interior is recommended setting. Page 30 for the details. Keypad 1 Partition Address 31 01. < IP >... -
Page 61: Guest Start Time
VAP416 Installation & Operation Manual 8.5.1.2 Guest Start Time Address 40 30. < MP > Display for settings: LED 40 30 (wait) LCD USER SETTINGS→START TIME→30-START (wait) HOUR: Change for settings: LED 40 30 <HHMM> "√" LCD USER SETTINGS→START TIME→30-START HOUR:<HHMM>... -
Page 62: User Days
VAP416 Installation & Operation Manual 1.option=Monday, 2.option=Tuesday, 3.option=Wednesday, 4.option=Thursday, 5.option=Friday, 6.option=Saturday, 7.option=Sunday. 8.5.3.1 User Days User 1 Days Address 42 01. < MP > Display for settings: LED 42 01 (wait) LCD USER SETTINGS→DAYS→01-AUTHORISED (wait) DAYS: Change for settings: LED 42 01 <Value> "√"... -
Page 63: Guest Partitions
VAP416 Installation & Operation Manual LED 43 01 <Value> "√" LCD USER SETTINGS→PARTITIONS→01-AUTHORISED PARTITION:<Value> Shown/Entered value: <Value>, 1...4 multi selection from above list Factory default: All selected Example: To select A partition for User 1. 43 01 1 (turn on) 2 (turn off) 3 (turn off) 4 (turn off) √... -
Page 64: Limitations
VAP416 Installation & Operation Manual Display for settings: LED 44 30 (wait) LCD USER SETTINGS→KEYPADLERİ→30-AUTHORISED (wait) KEYPADS: Change for settings: LED 44 30 <Value> "√" LCD USER SETTINGS→KEYPADLERİ→30-AUTHORISED KEYPADS:<Value> Shown/Entered value: <Value>, 1...4 multi selection from above list Factory default: All selected 8.5.6. -
Page 65: Comminicator & Dialer Settings
VAP416 Installation & Operation Manual 8.6. COMMINICATOR & DIALER SETTINGS 8.6.1. General Features Installer address of 50 01 includes main settings of dialing. Meaning of options in the following table; Meaning Option CMS Dialing Enable Disable User Phone Dialer Enable... -
Page 66: Dial Attempt
VAP416 Installation & Operation Manual 8.6.2. Dial Attempt Address 50 02. < IP > Display for settings: LED 50 02 (wait) LCD COMMUNICATOR→GENERAL SETTINGS→DIAL ATTEMPTS (wait) Change for settings: LED 50 02 <Value> "√" LCD COMMUNICATOR→GENERAL SETTINGS→DIAL ATTEMPTS <Value> Shown/Entered value: <Value>, Value between 1...15 as number. -
Page 67: Interval Between Calls
VAP416 Installation & Operation Manual Change for settings: LED 50 05 <HHMM> "√" LCD COMMUNICATOR→GENERAL SETTINGS→FIRST TEST AT HOUR: <HHMM> Shown/Entered value: HH=hour, MM=minute, number Factory default: 00:00 Example: To set Periodic Test First Time to 19:50 do. 50 05 1 9 5 0 √... -
Page 68: Events
VAP416 Installation & Operation Manual Factory default: 0 (ContactID) Example: To set CMS 2 contact as SIA do. 50 08 2 √ 8.7. EVENTS 8.7.1. Directing of events The events can be sent to any user phone or any central monitor station phone number. -
Page 69: Sending Events
VAP416 Installation & Operation Manual LED 50 16 (wait) LCD COMMUNICATOR→GENERAL SETTINGS→PARTITION A CMS (wait) Change for settings: LED 50 16 <Value> "√" LCD COMMUNICATOR→GENERAL SETTINGS→PARTITION A CMS <Value> Shown/Entered value: <Value>, 1...6 multi selection from the table Factory default: All selected Example: To select all phones do. -
Page 70: Event Codes
VAP416 Installation & Operation Manual Event Address LCD Menu Cross Zone Fault 51 12 12-CROSS FAULT Battery Low 51 13 13-LOW BATTERY Line Fail 51 14 14-LINE FAIL Battery Fail 51 15 15-BATTERY FAIL Communication Fail 51 16 16-COM FAIL... -
Page 71: Reading Events
VAP416 Installation & Operation Manual Factory default: 1130 Example: To set code as default value do. 52 01 1 1 3 0 √ Event Address LCD Menu CID Code Intruder Alarm 52 01 01-INTRUDER ALM 1130 Panic Alarm 52 02... - Page 72 VAP416 Installation & Operation Manual Event Parameters Intruder Alarm [AB]:Zone Panic Alarm [AB]:Zone Fire Alarm [AB]:Zone Duress Alarm [AB]:Zone Sabotage [AB]:Zone Alarm [AB]:Zone Medical Alarm [AB]:User Disarm by Duress [AB]:Zone Cancel on Disarm Zone Trouble AC Fail Intrusion Verified Cross Zone Fault...
-
Page 73: Optional Modules
VAP416 Installation & Operation Manual Event Parameters Intruder Alarm Restored [AB]:Zone Panic Alarm Restored [AB]:Zone Fire Alarm Restored [AB]:Zone Duress Alarm Restored Sabotage Alarm Restored Medical Alarm Restored Zone Trouble Restored A:4(Quick Arm), B:Part. A:5(No Activity), B:- AC Restored A:6(Automatic), B:- A:7(Key) , B:- A:8(Remote Ctrl.), B:-... -
Page 74: Zone Expansion Module
VAP416 Installation & Operation Manual Address 60 02. < IP > Display for settings: LED 60 02 (wait) LCD MODULES→WIRELESS MODULE→SUPERVISORY INT. (wait) Change for settings: LED 60 02 <Value> "√" LCD MODULES→WIRELESS MODULE→SUPERVISORY INT. <Value> HOUR Shown/Entered value: <Value>, Value between 1...255 as hour Factory default: 6 Example: To set supervisory interval 24 do. - Page 75 VAP416 Installation & Operation Manual DEFAULT INST. ADR. FUNCTION VALUE DETAILS VALUE VALUE CMS Phone Maximum 15 digit phone number (including dialing tone if 05 01 CMS 1 the number will be dialed from extension number). Press 0 long and √ to delete the number.
- Page 76 PGM8 Usage Type(*) 13=Control with remote control button 14=Alarm type indicator * VAP416 has 3 onboard PGM outputs. The PGM number can be increased to 8 PGMs by using TRM904 module. ** This option is valid for the first 4 PGM's.
- Page 77 VAP416 Installation & Operation Manual DEFAULT INST. ADR. FUNCTION VALUE DETAILS VALUE VALUE Zone Type 0=Free 7=Panic 1=Door 8=Duress 22 01 Z1=1 2=Window 9=Tamper(Sabotage) 22 02 Z2=3 3=Interior 10=Medical Page:56 4=Exterior 11=Custom 22 16 For SPT:30 5=24 Hour 12=Key(*) Z32=3...
- Page 78 VAP416 Installation & Operation Manual DEFAULT INST. ADR. FUNCTION VALUE DETAILS VALUE VALUE User Limitations 45 01 User 1 1.option=User can not Arm Nothing 45 02 User 2 2.option=User can not Disarm Selected Page:64 5.option=User can not make Bypass 45 29 User 29 1.option=User can not Arm...
- Page 79 VAP416 Installation & Operation Manual DEFAULT INST. ADR. FUNCTION VALUE DETAILS VALUE VALUE Event Log and Settings 1: 1,2,3,5 51 01 1.Intruder Alarm 2: 1,2,3,5 51 02 2.Panic Alarm 3: 1,2,3,5 51 03 3.Fire Alarm 4: 1,2,3,5 51 04 4.Duress Alarm...
-
Page 80: Loading Factory Defaults
VAP416 Installation & Operation Manual 9. LOADING FACTORY DEFAULTS You change the system codes and program settings to the factory settings. If you apply this process, all codes and settings are cleared. You can change the codes by using master program, you can change the codes and adjustments by using the engineer program to the factory settings. -
Page 81: Restoring Panel Settings To Factory Defaults
VAP416 Installation & Operation Manual 9.2. Restoring Panel Settings To Factory Defaults Jumper Jumper settings must be made properly to restore panel settings to factory defaults.(place jumper as picture above). !!! WARNING !!! 1. If siren is connected to the panel, take necessary measures to prevent siren alarming before resetting panel settings.
