Primes FPM 60 Original Operating Manual

Focus parameter monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Original Operating Manual

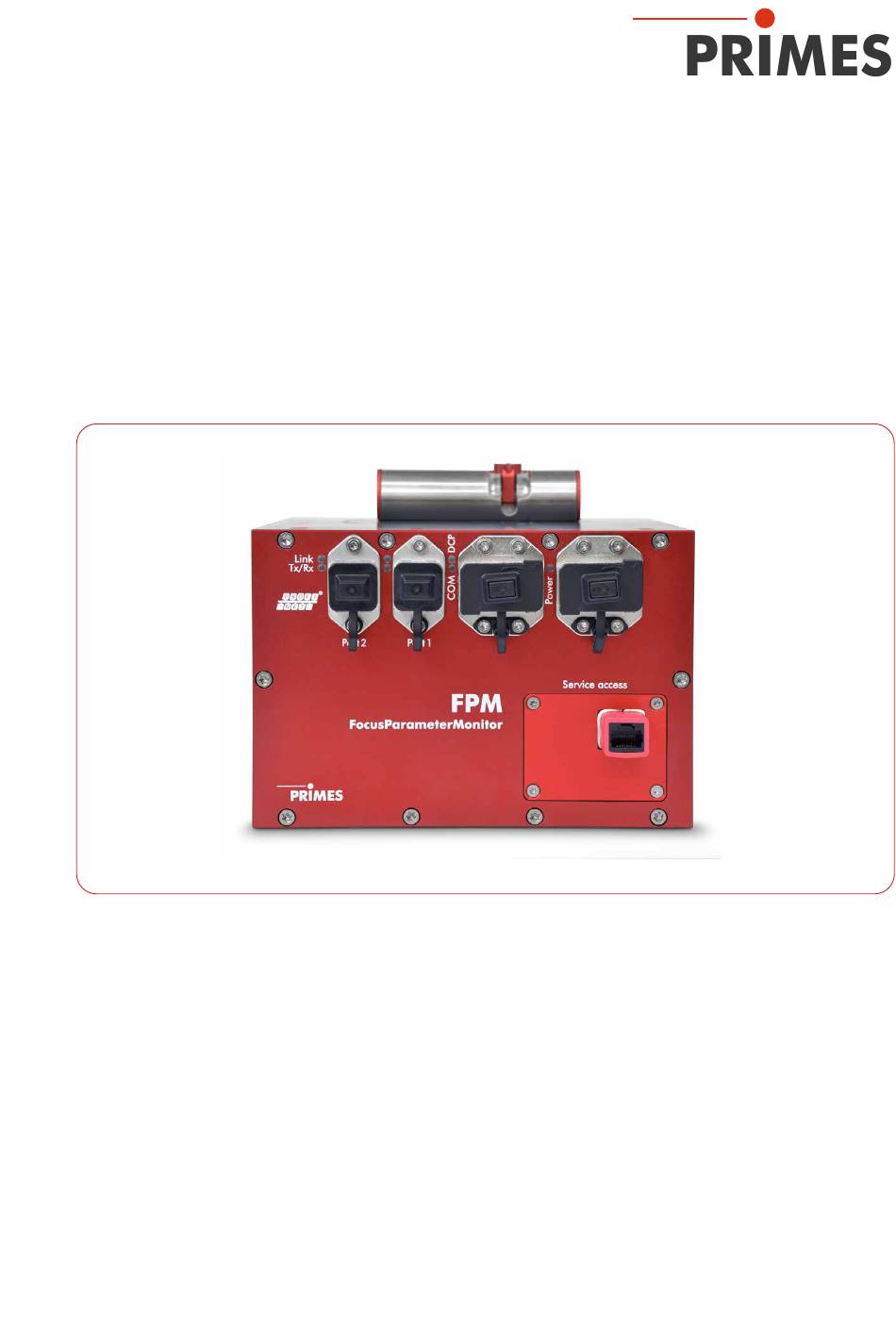

FocusParameterMonitor FPM PROFINET
FocusParameterMonitor FPM
FPM 60, FPM 100, FPM 120, FPM 160
Hardware- und Softwareinterface PROFINET/PROFIBUS
Revision 08 EN - 10/2024
