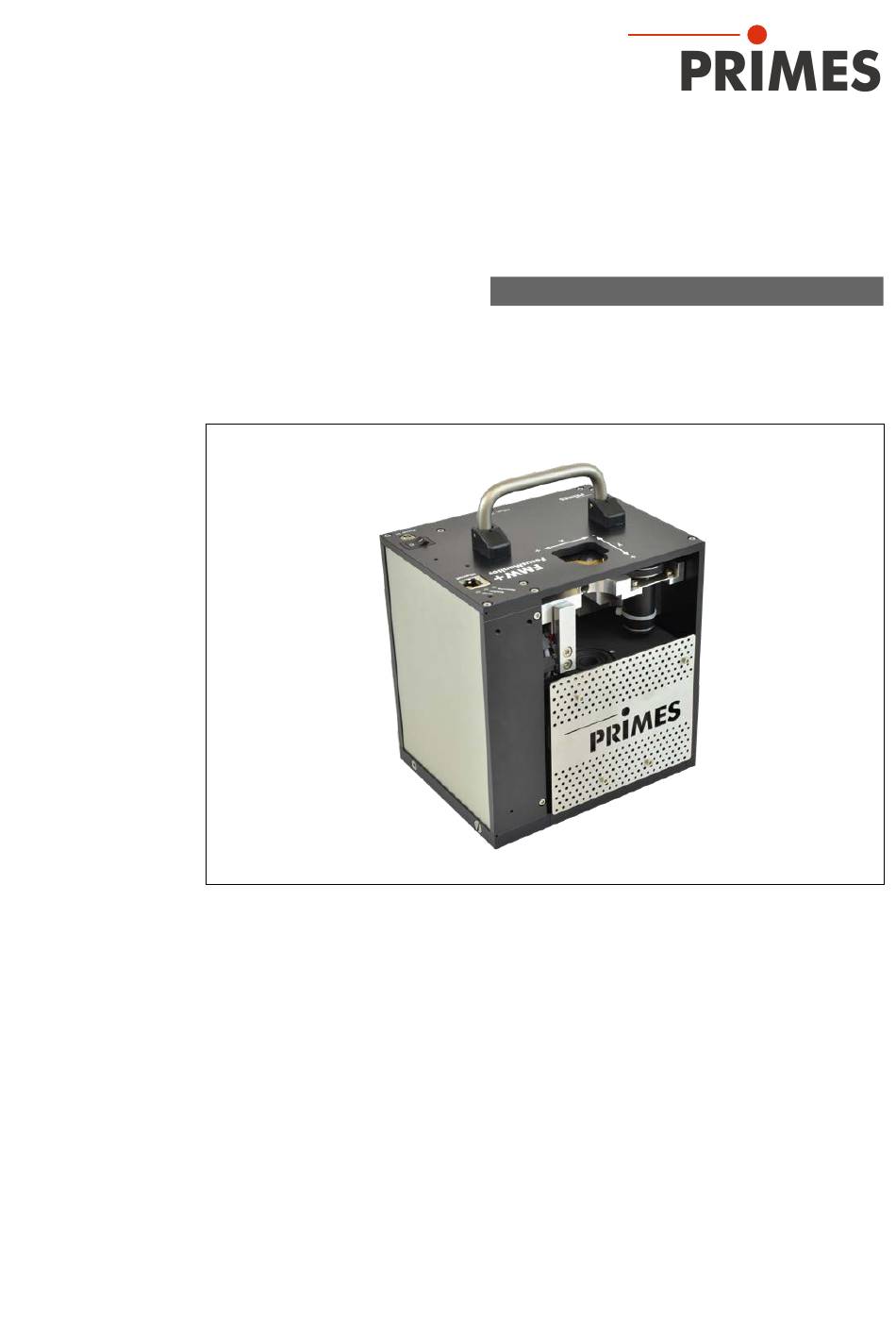

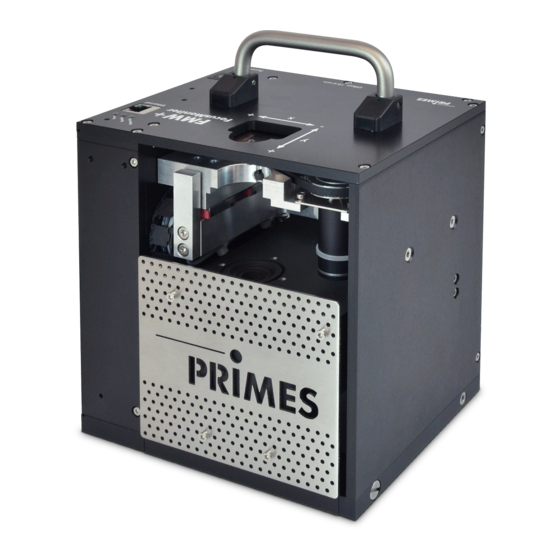

- Page 1 Short Start Guide Translation of the Original Instructions FocusMonitor FMW+ Additional Documentation to the Operating Manual FocusMonitor FM+ Revision 01/2018 EN...
- Page 3 FocusMonitor FMW+ IMPORTANT! READ CAREFULLY BEFORE USE. KEEP FOR FUTURE USE. Revision 01/2018 EN...
-
Page 4: Table Of Contents
FocusMonitor FMW+ Contents About this documentation Distinguishing features in comparison with the standard device Connections Status display Adapt device Inserting the measuring tip ......................7 Hinweise zum Absorber Mounting/Dismounting Installation position ........................9 Alignment ..........................9 Electrical connection Connection to the PC/LAN and establishing the power supply ..........10 Measuring with the LaserDiagnosticsSoftware LDS Single plane measurement ......................11 Caustic measurement ......................15... -
Page 5: About This Documentation
FocusMonitor FMW+ About this documentation This documentation describes the special version „FocusMonitor FMW+“ of the PRIMES measuring device “FocusMonitor FM+” and presents the differences. It supplements the standard operating manual of the FocusMonitor FM+. IMPORTANT! Please pay special attention to the safety instructions given in the standard operating manual of the FocusMonitor FM+. -
Page 6: Status Display
FocusMonitor FMW+ Status display The different operating modes are indicated by three LEDs. Designation Color Meaning Measuring Measurement is running Rotation Orange Motor is running Power White Voltage is applied (24 V) Adapt device Depending on the laser type the corresponding measuring tip and a suitable detector have to be used. The DFIG-PS+ detector is included ex works;... -
Page 7: Inserting The Measuring Tip
FocusMonitor FMW+ Inserting the measuring tip To prevent transport damage, the measuring tip is disassembled when delivered. It is to be installed with the curved part facing towards the beam source. There are different measurement tips available for different wavelengths (see Tab. 5.2 on page 6). NOTICE Danger of damaging the measuring tip The small drill hole in the measuring tip can be blocked easily by dirt particles or by... - Page 8 FocusMonitor FMW+ Entrance aperture Fig. 5.2: Entrance aperture (pinhole) in the measuring tip Fig. 5.3: Inserting the measuring tip 6. Insert the retaining plate in the disc with the guidance groove pointing upwards and an angle of 45 de- grees and press it downwards into the opening (see Fig. 5.4). Fig.
-
Page 9: Hinweise Zum Absorber
FocusMonitor FMW+ Notes on the absorber The high-power absorber can absorb an energy application of 90 kJ (1000 W · 90 s). NOTICE Risk of damage caused by overheating The absorber is equipped with an alarm siren that warns of overheating. It activates when the absorber casing reaches a temperature of 60 °C. -
Page 10: Electrical Connection
Data is transmitted between the FocusMonitor FMW+ and PC/LAN via the Ethernet connection. Connection to the PC/LAN and establishing the power supply Ethernet crossover cable FMW+ FMW + Ethernet FocusMonitor Ethernet PRIMES power supply Offset: 10.6 mm Power In Fig. 8.1: Connection of FMW+ Index Änderung Name... -
Page 11: Measuring With The Laserdiagnosticssoftware Lds
FocusMonitor FMW+ Measuring with the LaserDiagnosticsSoftware LDS With the FocusMonitor FMW+, you can measure one or more planes. Since the FocusMonitor FMW+ does not have its own mobile z-axis, the system must move the focusing lens or the device in this direction when measuring multiple planes. - Page 12 FocusMonitor FMW+ 9.1.2 Selecting the measuring mode Single planes In the Device control click on the Measuring mode drop-down list. Click on the entry Single planes. Dropdown list Measuring mode Measuring mode Single planes The corresponding Device control opens. The Single planes toolbench opens wit the tools Caustic analysis and Plane analysis.
- Page 13 FocusMonitor FMW+ 9.1.4 Configuring advanced settings (Device control > Advanced) Click on the Advanced tab. Enter the number of pixels in the x/y-direction in order to configure the resolution. Select the rotation speed of the mea- suring tip 1875, 3750 or 7500 rpm. Enter the used wave length in nm.
- Page 14 FocusMonitor FMW+ 9.1.5 Starting measurement Follow the safety instructions in the Operating Manual „FocusMonitor FM+“. Turn on the laser. Click on the Start button. The progress of the measurement is indicated in the status window below the start/stop control panel. 9.1.6 Terminating measurement In the status window below the Start/...
-
Page 15: Caustic Measurement
FocusMonitor FMW+ Caustic measurement Since the FocusMonitor FMW+ does not have its own z-axis to move along, the system must move either the device or focusing lens in this direction in order to measure the caustic. You can enter each new z-position manually and start it manually or specify a z-increment with equidistant offsets. - Page 16 FocusMonitor FMW+ 9.2.2 Selecting the measuring mode Single planes In the Device control click on the Measuring mode drop-down list. Click on the entry Single planes. Dropdown list Measuring mode Measuring mode Single planes The corresponding Device control opens. The Single planes toolbench opens wit the tools Caustic analysis and Plane analysis.
- Page 17 FocusMonitor FMW+ 9.2.4 Configuring advanced settings (Device control > Advanced) Click on the Advanced tab. Enter the number of pixels in the x/y-direction in order to configure the resolution. Select the rotation speed of the mea- suring tip 1875, 3750 or 7500 rpm. Enter the used wave length in nm.
- Page 18 FocusMonitor FMW+ 9.2.5 Starting caustic measurement Follow the safety instructions in the Operating Manual „FocusMonitor FM+“. Turn on the laser. Click on the Start button. The progress of the measurement is indicated in the status window below the start/stop control panel. 9.2.6 Measuring next plane As soon as the Measurement com-...
- Page 19 FocusMonitor FMW+ 9.2.7 Terminating caustic measurement X Click on the Stop button. X Turn off the laser. In the status window below the Start/ Stop operating panel, Measuring completed is displayed. 9.2.8 Measuring results display The measuring results are displayed in the opened tools once the measurement has been completed. Fig.
-
Page 20: Measuring Mode Monitor
FocusMonitor FMW+ Measuring mode Monitor Monitor measuring mode was meant to be used to make adjustments. Data is not determined in this mea- suring mode, but rather only the desired plane is shown in false-colors. 9.3.1 Checking the Alignment with the LaserDiagnosticsSoftware LDS Switch on the FocusMonitor FMW+. - Page 21 FocusMonitor FMW+ 9.3.2 Selecting the measuring mode Monitor In the Device control click on the Measuring mode drop-down list. Click on the entry Monitor. Drop down list Measuring mode Measuring mode Monitor The corresponding Device control opens. The Monitor toolbench opens wit the tool False color image.
- Page 22 FocusMonitor FMW+ 9.3.4 Configuring advanced settings (Device control > Advanced) Click on the Advanced tab. Select the rotation speed of the mea- suring tip 1875, 3750 or 7500 rpm. Enter the number of pixels in the x/y-direction in order to configure the resolution.
- Page 23 FocusMonitor FMW+ 9.3.5 Starting measuring mode Monitor Follow the safety instructions in the Operating Manual „FocusMonitor FM+“. Turn on the laser. Click on the Start button. The selected planes are continu- ally scanned in the x-y direction and shown in the False color view tool. 9.3.6 Terminating measuring mode Monitor Click on the Stop button.
-
Page 24: Declaration Of Conformity
FocusMonitor FMW+ Declaration of conformity Revision 01/2018 EN... -
Page 25: Technical Data
FocusMonitor FMW+ Technical data Measurement parameters Power range up to 1000 W Max. energy per measurement 90 kJ Wavelength range 0.4 – 12 µm Beam dimensions, typ. 150 – 3000 µm (optionally up to 5000 µm) Function of the measuring system Measurement window sizes 0.08 x 0.08 up to 8 x 8 mm Optionally... -
Page 26: Dimensions
FocusMonitor FMW+ Dimensions All dimensions in mm (general tolerance ISO 2768-v) Revision 01/2018 EN... -
Page 27: Appendix
FocusMonitor FMW+ Appendix 13.1 Exchanging the measuring tip There are different measurement tips available for different wavelengths (see „Tab. 5.2: Variety of measure- ment tips and detectors“ on page 6). NOTICE Danger of damaging the measuring tip The small drill hole in the measuring tip can be blocked easily by dirt particles or by touch- ing it with bare hands. - Page 28 FocusMonitor FMW+ Entrance aperture Fig. 13.2: Entrance aperture (pinhole) in the measuring tip. Fig. 13.3: Inserting the measuring tip 6. Insert the retaining plate in the disc with the guidance groove pointing upwards and an angle of 45 de- grees and press it downwards into the opening (see Fig. 13.4). Fig.
-
Page 29: Exchanging The Detector
FocusMonitor FMW+ 13.2 Exchanging the detector The NIR detector is the standard detector of the FMW+. For measurements with a CO laser the detector has to be replaced by a CO detector. NOTICE Danger of damage for the detector sensor The detector sensor must not be damaged and has to be protected from pollution. - Page 30 FocusMonitor FMW+ Remove the fastening screws on both sides of the bottom plate (please mind that the screws have different lengths). Tilt the housing backwards. Revision 01/2018 EN...
- Page 31 FocusMonitor FMW+ Opened FMW+. Detektor Remove the plastic retaining screws of the detec- tor with the short screw driver (included in the scope of delivery) and carefully take the detector out of the housing. Revision 01/2018 EN...
- Page 32 FocusMonitor FMW+ Build in the new detector in reversed order. Make sure you do not forget the foam rubber spacer! Attention! If the screws are tightened too firmly, they might block the rotary disc! Only tighten the screws hand-tight. The foam rubber spacer may not be compressed by more than 50 % of its original thickness! Before...
