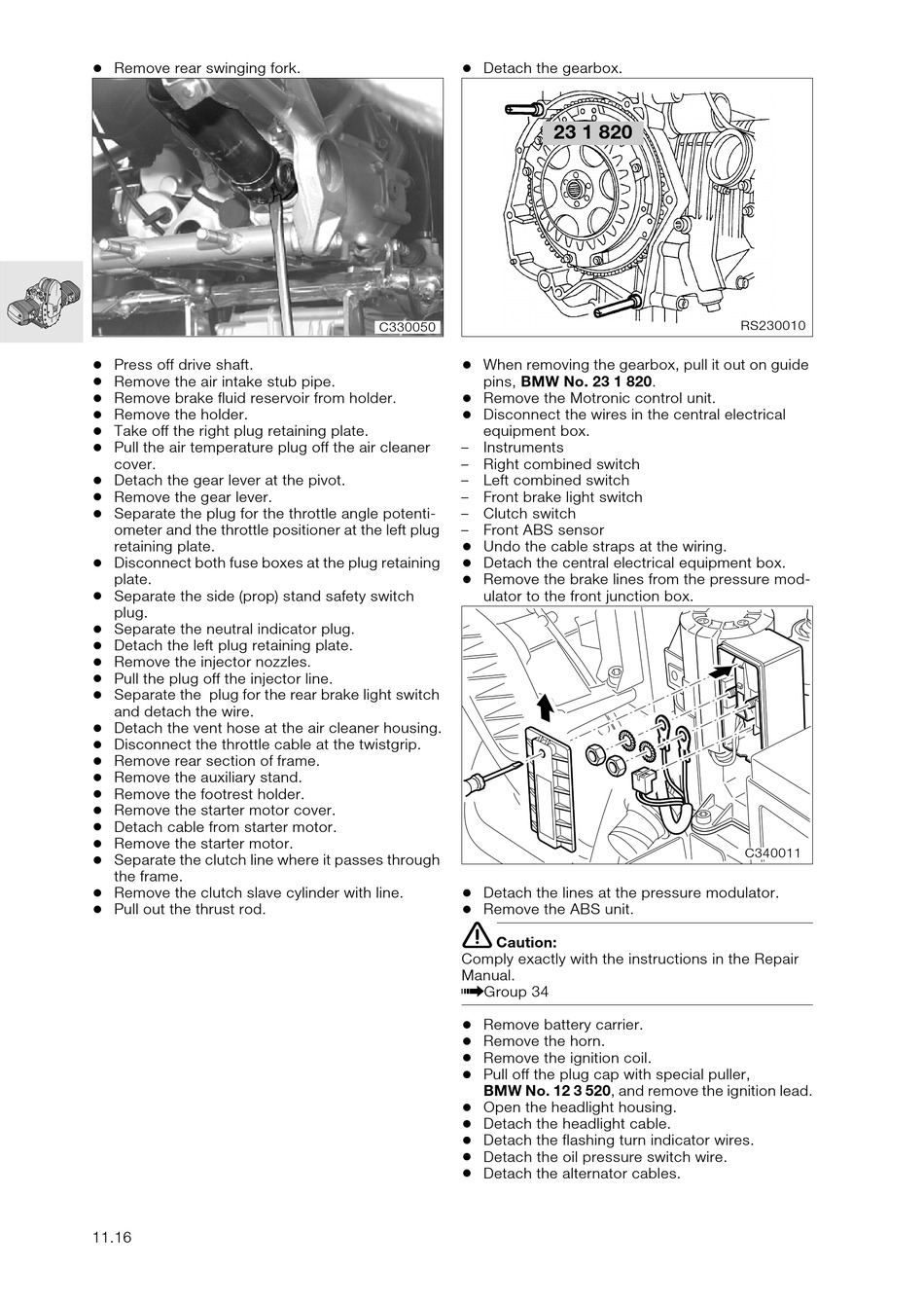

BMW R 1200 C Repair Manual page 52

•
Remove rear swinging fork.
•
Press off drive shaft.
•
Remove the air intake stub pipe.
•
Remove brake fluid reservoir from holder.
•
Remove the holder.
•
Take off the right plug retaining plate.
•
Pull the air temperature plug off the air cleaner
cover.
•
Detach the gear lever at the pivot.
•
Remove the gear lever.
•
Separate the plug for the throttle angle potenti-
ometer and the throttle positioner at the left plug
retaining plate.
•
Disconnect both fuse boxes at the plug retaining
plate.
•
Separate the side (prop) stand safety switch
plug.
•
Separate the neutral indicator plug.
•
Detach the left plug retaining plate.
•
Remove the injector nozzles.
•
Pull the plug off the injector line.
•
Separate the plug for the rear brake light switch
and detach the wire.
•
Detach the vent hose at the air cleaner housing.
•
Disconnect the throttle cable at the twistgrip.
•
Remove rear section of frame.
•
Remove the auxiliary stand.
•
Remove the footrest holder.
•
Remove the starter motor cover.
•
Detach cable from starter motor.
•
Remove the starter motor.
•
Separate the clutch line where it passes through
the frame.
•
Remove the clutch slave cylinder with line.
•
Pull out the thrust rod.
11.16
•
Detach the gearbox.
C330050
•
When removing the gearbox, pull it out on guide
pins, BMW No. 23 1 820.
•
Remove the Motronic control unit.
•
Disconnect the wires in the central electrical
equipment box.
– Instruments
– Right combined switch
– Left combined switch
– Front brake light switch
– Clutch switch
– Front ABS sensor
•
Undo the cable straps at the wiring.
•
Detach the central electrical equipment box.
•
Remove the brake lines from the pressure mod-
ulator to the front junction box.
•
Detach the lines at the pressure modulator.
•
Remove the ABS unit.
e
Caution:
Comply exactly with the instructions in the Repair
Manual.
aGroup 34
•
Remove battery carrier.
•
Remove the horn.
•
Remove the ignition coil.
•
Pull off the plug cap with special puller,
BMW No. 12 3 520, and remove the ignition lead.
•
Open the headlight housing.
•
Detach the headlight cable.
•
Detach the flashing turn indicator wires.
•
Detach the oil pressure switch wire.
•
Detach the alternator cables.
23 1 820
RS230010
C340011
