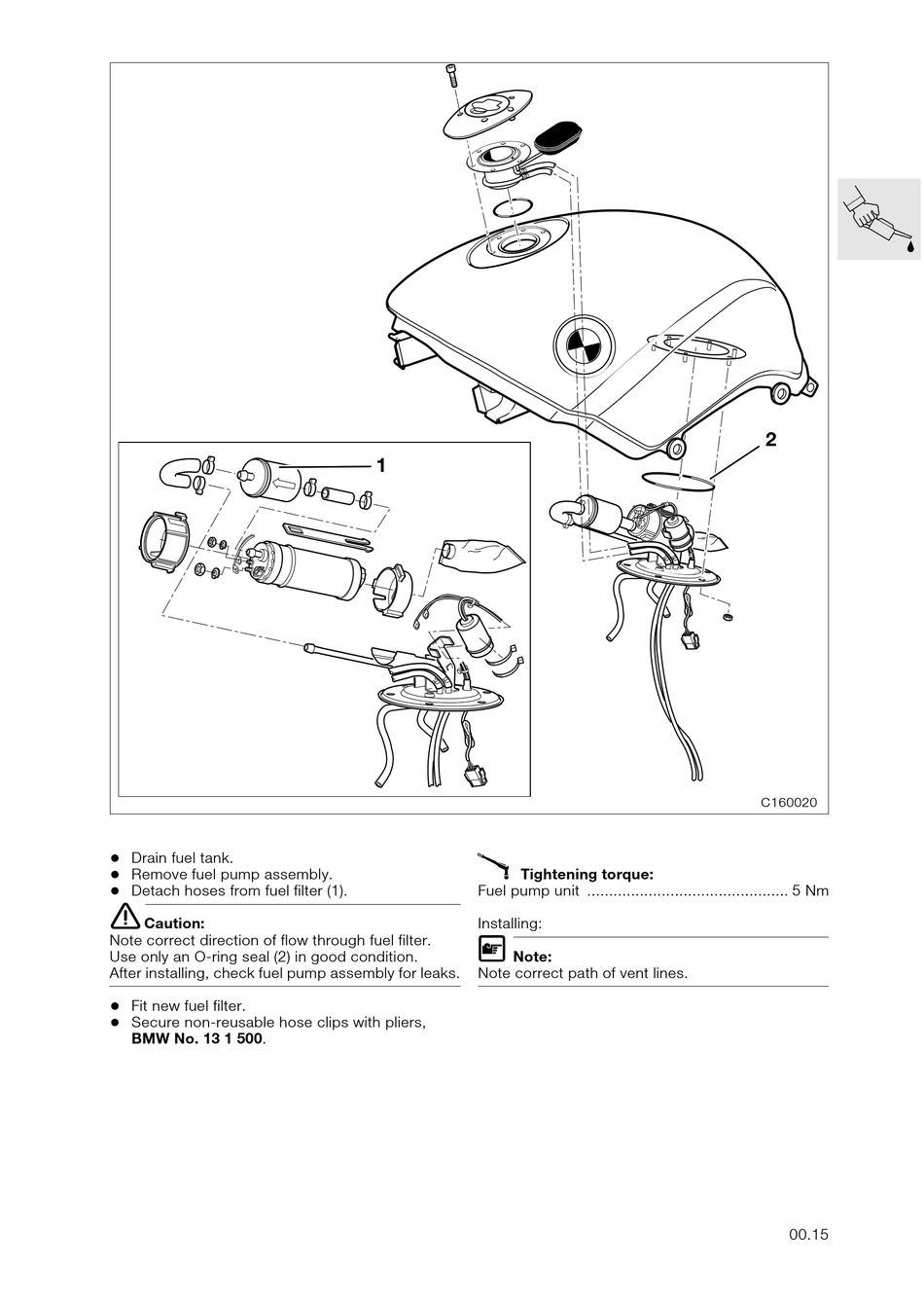

BMW R 1200 C Repair Manual page 23

•
Drain fuel tank.
•
Remove fuel pump assembly.
•
Detach hoses from fuel filter (1).
e
Caution:
Note correct direction of flow through fuel filter.
Use only an O-ring seal (2) in good condition.
After installing, check fuel pump assembly for leaks.
•
Fit new fuel filter.
•
Secure non-reusable hose clips with pliers,
BMW No. 13 1 500.
1
X
Tightening torque:
Fuel pump unit .............................................. 5 Nm
Installing:
L
Note:
Note correct path of vent lines.
2
C160020
00.15
