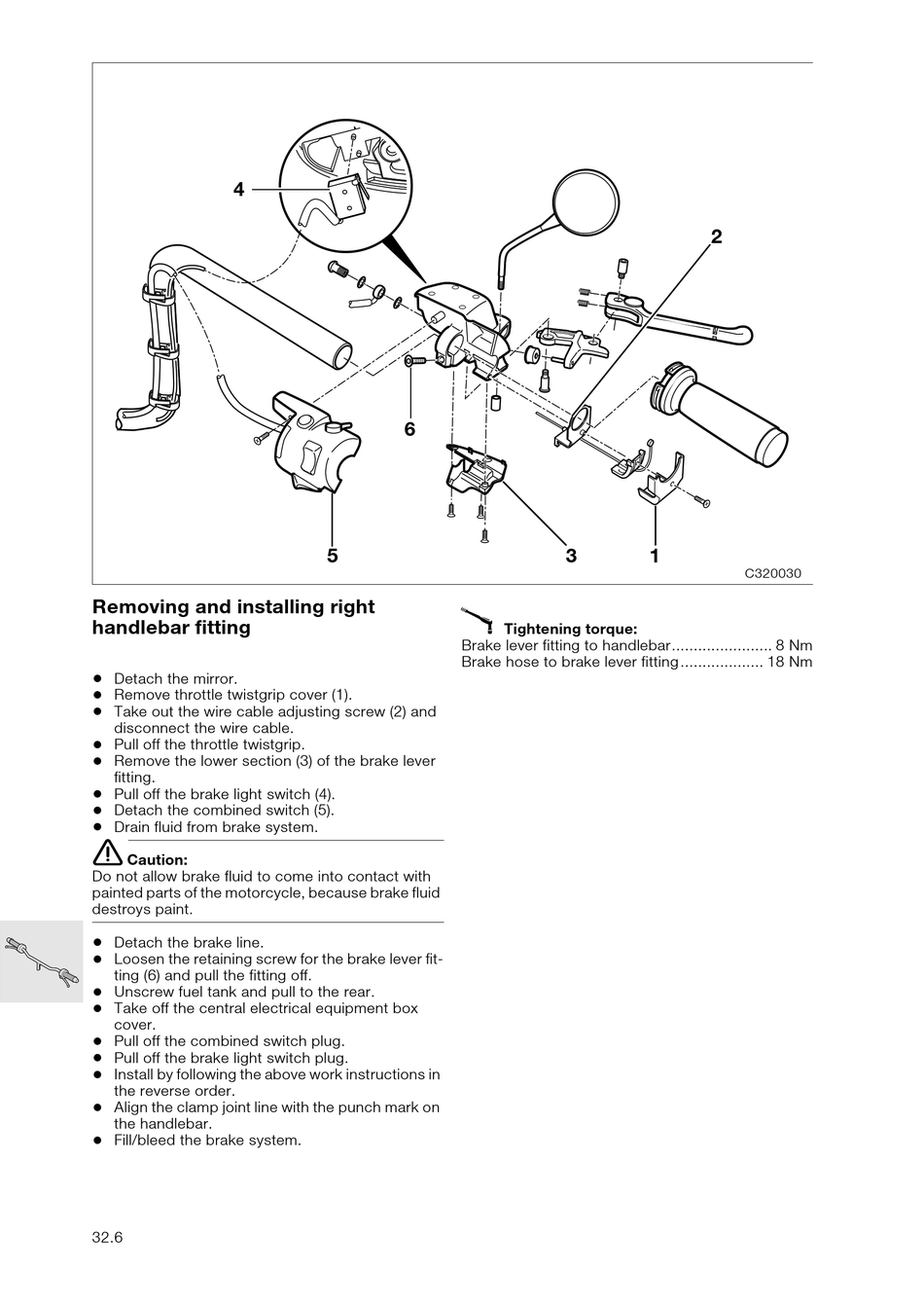

Removing and installing right
handlebar fitting
•
Detach the mirror.
•
Remove throttle twistgrip cover (1).
•
Take out the wire cable adjusting screw (2) and
disconnect the wire cable.
•
Pull off the throttle twistgrip.
•
Remove the lower section (3) of the brake lever
fitting.
•
Pull off the brake light switch (4).
•
Detach the combined switch (5).
•
Drain fluid from brake system.
e
Caution:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle, because brake fluid
destroys paint.
•
Detach the brake line.
•
Loosen the retaining screw for the brake lever fit-
ting (6) and pull the fitting off.
•
Unscrew fuel tank and pull to the rear.
•
Take off the central electrical equipment box
cover.
•
Pull off the combined switch plug.
•
Pull off the brake light switch plug.
•
Install by following the above work instructions in
the reverse order.
•
Align the clamp joint line with the punch mark on
the handlebar.
•
Fill/bleed the brake system.
32.6
6
5
X
Brake lever fitting to handlebar....................... 8 Nm
Brake hose to brake lever fitting ................... 18 Nm
3 1
Tightening torque:
2
C320030
