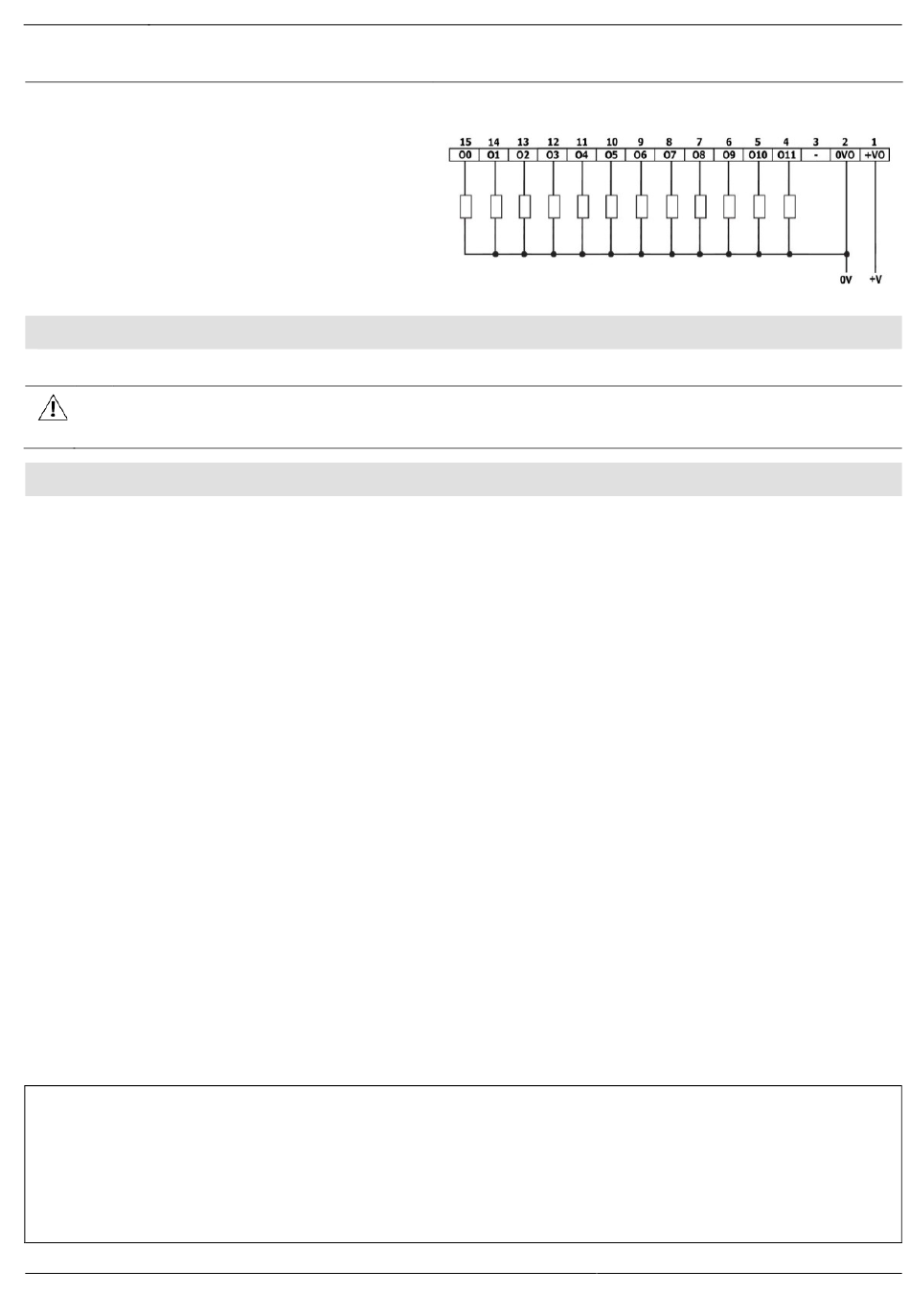

Wiring the Source Transistor Outputs (USC-Bx-T24)
Output's power supply
The use of any of the outputs requires
an external 24VDC power supply as
shown in the accompanying figure.
Outputs
Connect the +VO and 0VO terminals as
shown in the accompanying figure.
O0-O11 share common return 0VO.
Installing Uni-I/O™ & Uni-COM™ Modules
Refer to the Installation Guides provided with these modules.
 Turn off system power before connecting or disconnecting any modules or devices.
 Use proper precautions to prevent Electro-Static Discharge (ESD).
Uninstalling the Controller
1. Disconnect the power supply.
2. Remove all wiring and disconnect any installed devices according to the device's
installation guide.
3. Unscrew and remove the mounting brackets, taking care to support the device to
prevent it from falling during this procedure.
