LABORIE RenovaRP Quick Start Manual

RenovaRP
Quick Start Guide
POWER CONNECTION
1. Position the pump control knob
in the far left position (Standby
plug power cord into grounded
electrical outlet.
FIGURE 1
Flip - top track
Large diameter tubing section
®

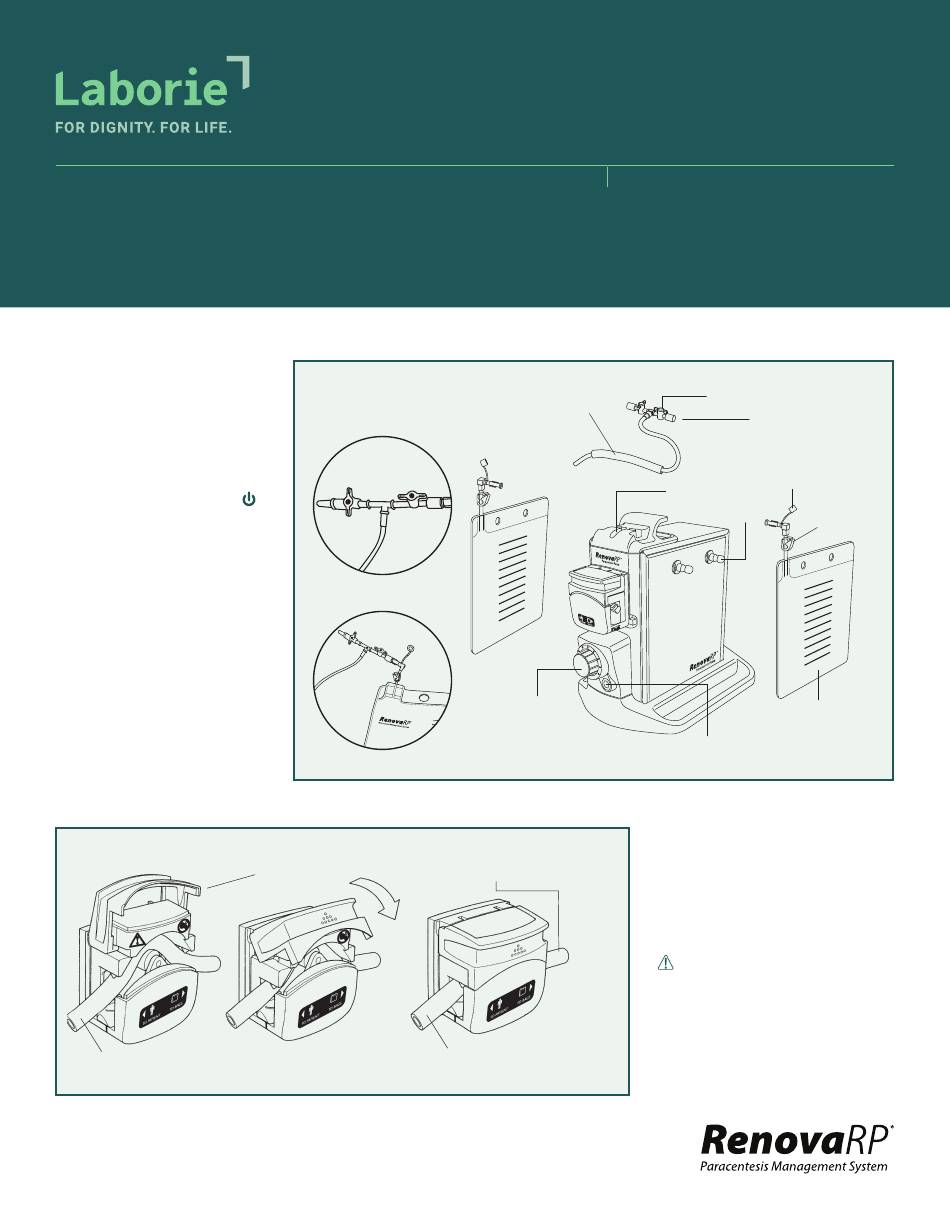

SYSTEM COMPONENTS
Close Open
),
To T-shaped stopcock
assembly and drainage bags
Improve the paracentesis experience for
you and your patients.
Large diameter
tubing section
Standby/Pump
speed control
To Patient
Open/Close valve
T-shaped
stopcock
assembly
Luer-Lock Cap
Recessed area
of handle
Posts
Pinch Clamp
Drainage bag
LED indicator light
LOAD TUBING
2. Lift the beige flip-top on the pump
head and fit the large diameter tubing
section across the exposed rotor.
CAUTION: Ensure tubing is loaded in
proper direction using the label on the
front of the pump head for reference
(See Figure 1).
