Place base box ................... 11 Install safety module and earth wires ............12 Position power supplies ................15 Set-up pole and cables ................19 Install printer ....................26 Install laptop and software ................ 27 Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 4

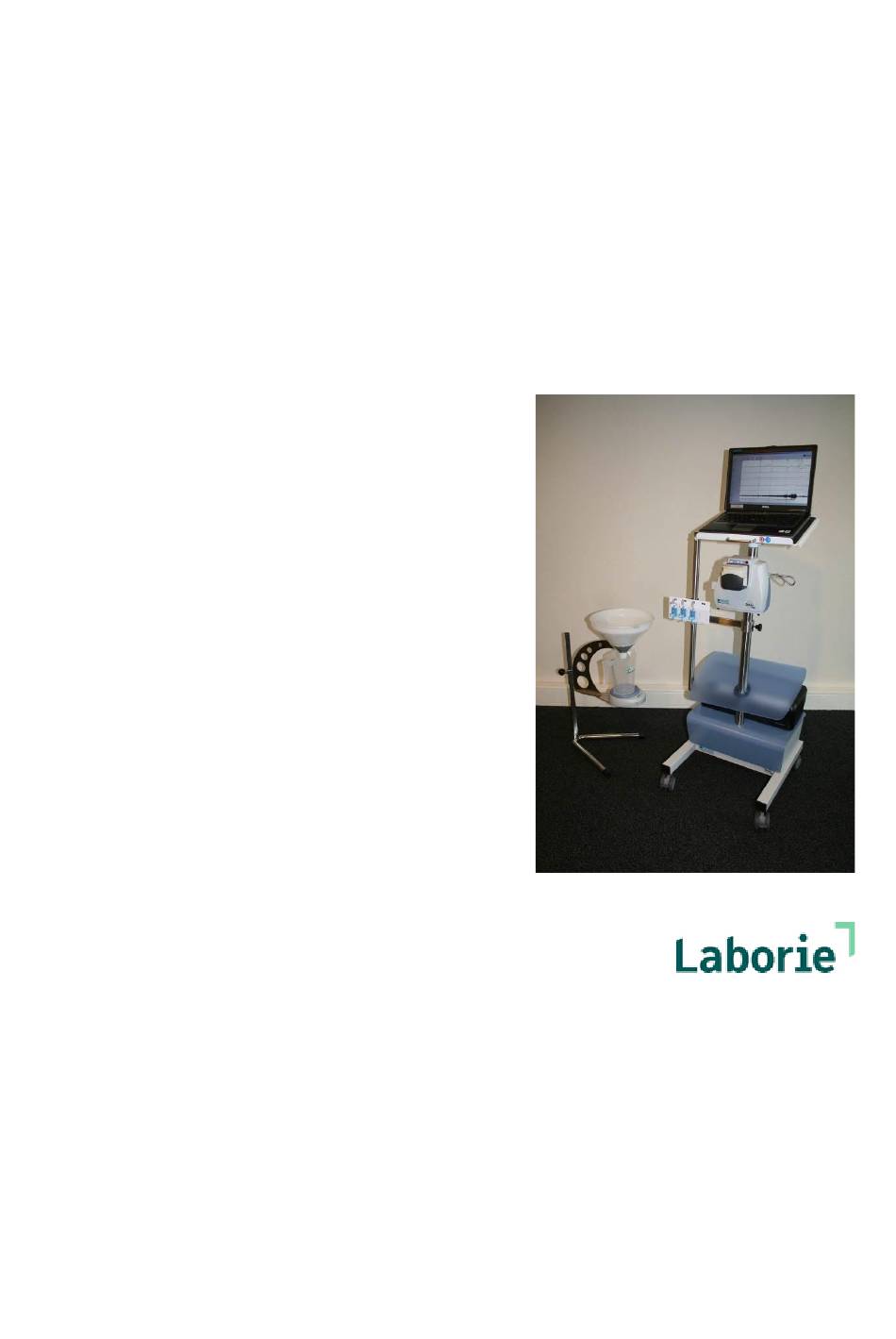

The instructions in this manual describe how to assemble the Solar Blue module, the water transducer holder pole (if applicable) the laptop and the printer on a Solar pole, including all cables. In the Solar Blue Service & Installation Manual (document code LBL-001019) you can find the instructions to install the pump head, the flowmeter, the Luna module, and the puller (if applicable).
Page 5
• Washers Needed, but not included tools are: • #2 Philips screwdriver (needed to mount the holder to the laptop shelf, to mount the laptop shelf and optional battery pack) Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 6
Mount the pole clamp SSC- 24 on the Solar Blue module (see also in the picture below). Make sure the hook for the water bag is positioned as in the drawing beside. Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 7
Several clamps are available: • SSC-24 clamp (including hook for water bag and holder for pump tube). • SSC-22, a universal clamp. • Rail clamp. The mounting instructions are below. Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 8
Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 9
Small pin Position the pole on the small pin and the wheelbase. The pole fits exactly onto the small pin. The holes of the pole 4 Holes automatically point towards you. Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 10
For demo systems without base box and separate safety module earthing may not be necessary. In that case use one washer and the spring washer only. Pole with earth wire attached. Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 11
Check that both the front of the middle beam of the wheelbase, and the front of the base box are aligned. Front view. Alignment of the base box and wheel base Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 12
Feed the earth wire from the pole through the slightly larger hole in the bottom of the base box. Feed the ty-wraps though the holes as shown in the picture Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 13
Check if the stated voltage on the safety module meets the local requirements. Place the safety module in the base box as shown in the picture. Tighten the ty-wraps as shown in the pictures. Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 14
M6 locking nut. Do not tighten it because the (third) earth wire of the blue cover of the base box needs to be attached as well (later). Earth wires attached to safety module. Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 15
Power supply of printer c. Power supply of laptop d. Mains power cable Make sure the on/off switch on the safety module is off (‘o’). e. Mains power cable on/off switch ‘o’ Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 16
Position the power supplies and cables in the base box. Tighten with hook and loop fastener straps. printer laptop Solar Blue Example Bundle the cables as much as possible. Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 17
Indication of the position of the strain relieve Pull all cables through the back entry of the base box. Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 18
Connect the (third) earth wire from the cover of the base box to the safety module and place the spring washer and nut Tighten the M6 locking nut (with a 10 mm spanner). Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 19
In this instruction the numbering of the holes is as follows: Follow the order of the assembly of the pole and the position of the cables as described on the next pages. Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 20
Lead the printer power cable from hole 4 (base box) up to hole 3. Mount the splash screen. Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 21
CAUTION When mounting the Solar Blue module on the pole with the clamp, make sure not to tighten the plastic clamp with too much force. Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 22
Lead the USB cable from laptop to printer from hole 1 to hole 3. The flat connector is at hole The square connector is at hole 3. Hole 1 Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 23
2 of the pole. Lead the flat connector through hole 1. Lead the square connector through hole 2. From hole 1 to hole 2 Front view of the system Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 24
Blue (from laptop) The pole can be used to store surplus cable. Hole 3: 1. connector to printer (power cable from safety module) 2. square USB connector to printer (from laptop) Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 25
Coil the cables back into the base box and try to bundle them using the provided hook and loop fastener straps. Make sure that only one mains power cable leaves the base box. Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 26
(with 2 persons!). Please note the weight! Be careful! Place printer on top of the base box. Connect both the printer USB cable and the power cable to the printer. Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 27
Attach the handle to the laptop shelf. Adhere the black foam parts on the shelf as described in the included laptop shelf installation guide. Place the plastic washer on top of the pole. Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 28
CAUTION Connect all USB devices directly to the laptop to prevent any USB/Windows related problem. Connect the Solar Blue module USB cable directly to the laptop. Do not connect the Solar Blue module via the USB-Hub! Observe the USB receptacle position on the laptop and the required space for the USB keys/dongles and determine the best spot for the USB-Hub.
Page 29
Connect USB-Hub to the laptop. Connect the power cable to the laptop. Connect the system mains plug to a mains outlet and switch on '1' the safety module. Assembly Instructions Solar Blue Integrated Laptop Set-Up | LBL-02569 [A]...
Page 30
Service & Installation Manual (document code: LBL-001019). CAUTION First install the Solar Blue software and then plug-in the MMS Bluetooth dongle and the MMS USB key. Connect all dongles to the USB-Hub or directly to the laptop: BT dongle, MMS USB software key.
