en Installation instructions
Identify the phase and neutral conductors in the
1.
socket.
The appliance may be damaged if it is not connec-
ted correctly.
Connect the hob in accordance with the connection
2.
diagram.
See the rating plate for the voltage.
Connect the wires of the mains power cable accord-
3.
ing to the colour coding:
Green/yellow = Protective conductor
‒
Blue = Neutral conductor
‒
Brown = Phase (external conductor)
‒

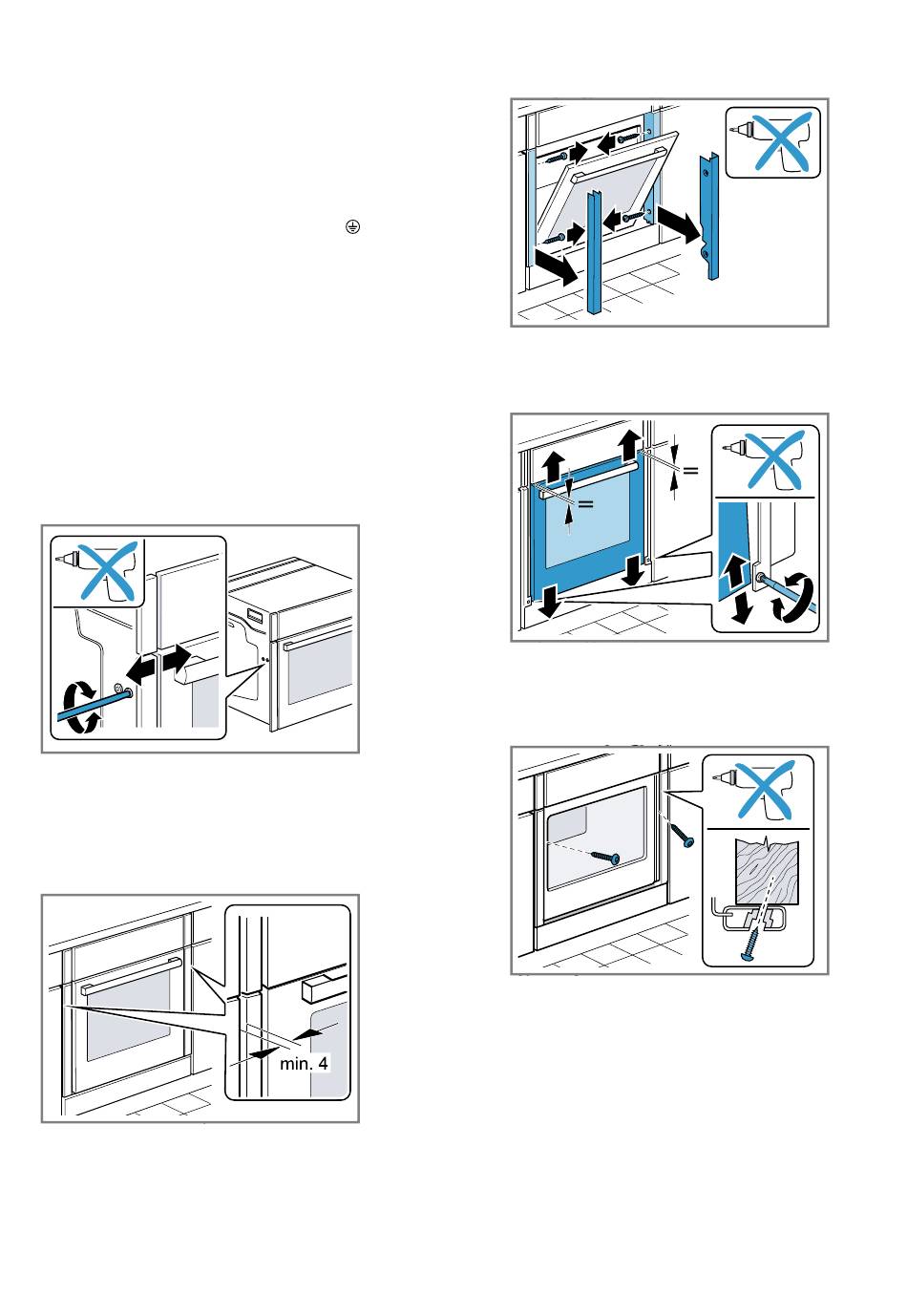

25.9 Installing the appliance
Notes
¡ Do not use a cordless screwdriver to secure the
panels. This may damage the panels.
¡ The transit bolts must be kept in case the appliance
is transported at a later time.
Open the appliance door slightly and pull the red tri-
1.
angular transport locks to the outside.
If required, you can adjust the gap between the ap-
2.
pliance door and the panels using the adjustment
screws on the left and right.
Turning the screws clockwise makes the gap larger
Turning the screws anti-clockwise makes the gap
smaller
Push the appliance in fully.
3.
Do not kink or trap the connection cable, or route it
over sharp edges.
Centre the appliance.
4.
There must be an air gap of at least 4 mm between
the appliance and adjacent unit fronts.
40
Open the appliance door slightly and unscrew pan-
5.
els on the left and right.
Close the appliance door.
6.
7. If required, you can adjust the height of the appli-
ance door using the adjustment screws on the left
and right.
Turning the screws clockwise makes the gap smal-
ler
Turning the screws anti-clockwise makes the gap
larger
Screw the appliance into place.
8.
