Graco 18E154 Instructions

Instructions
Air Manifold Kit
For supplying air to feed pumps, agitator, and gun used with Reactor proportioning
systems.
Kit 18E154
Important Safety Instructions
Read all warnings and instructions in this
manual before using the equipment. Save
these instructions.

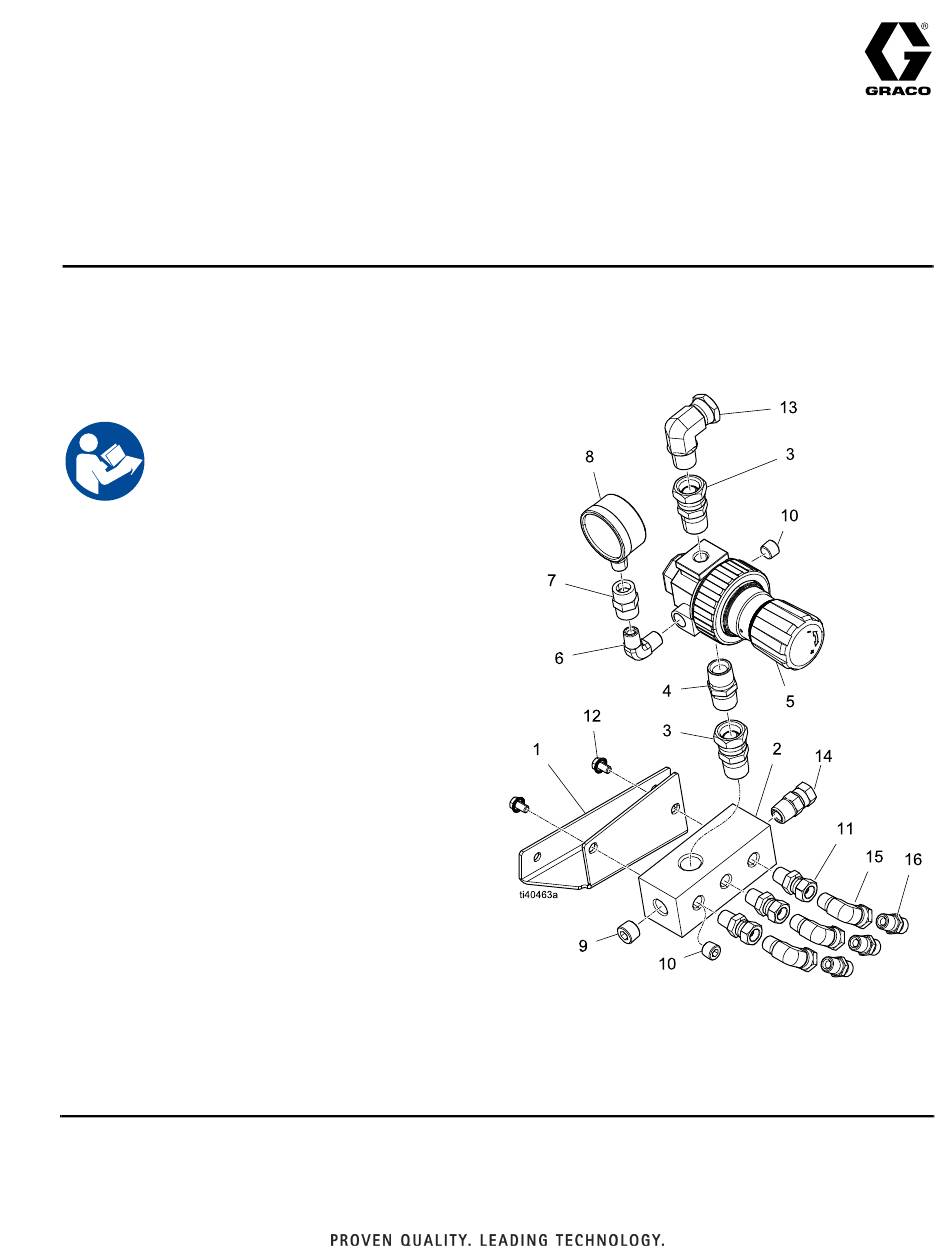

Parts
Ref. Part Description
1 18D473 BRACKET, manifold, air, R3
2 16W953 MANIFOLD, air
3 156684 FITTING, union adapter, 1/2 in.
4 158491 FITTING, nipple, 1/2 npt, cs
5 104266 REGULATOR, air with psi
6 110249 ADAPTER, male elbow, 90
degrees
7 121089 FITTING, nipple, f-f, 1/4 in. npt
8 100960 GAUGE, pressure, air
9 101754 PLUG, pipe, 3/8 in. nptf
10 100721 PLUG, pipe
11 156823 FITTING, swivel, 90 degree
12 119865 SCREW, machine, hex serrated
13 125466 FITTING, swivel, elbow,1/2 in.
nptf
14 110476 ADAPTER, union, 45 degree
15 126960 FITTING, swivel, 90 degree
16 162453 FITTING, 1/4 npsm x 1/4 npt
17 109124 HOSE, coupled, 48 in.
Qty.
1
1
2
1
1
1
1
1
1
2
3
2
1
1
3
3
1
3A8659A
