Operator's manual
For online reference and to download the manuals for your
machines HAULOTTE®, go to :
https://www.e.technical-information.com
or, scan the QR Code below :

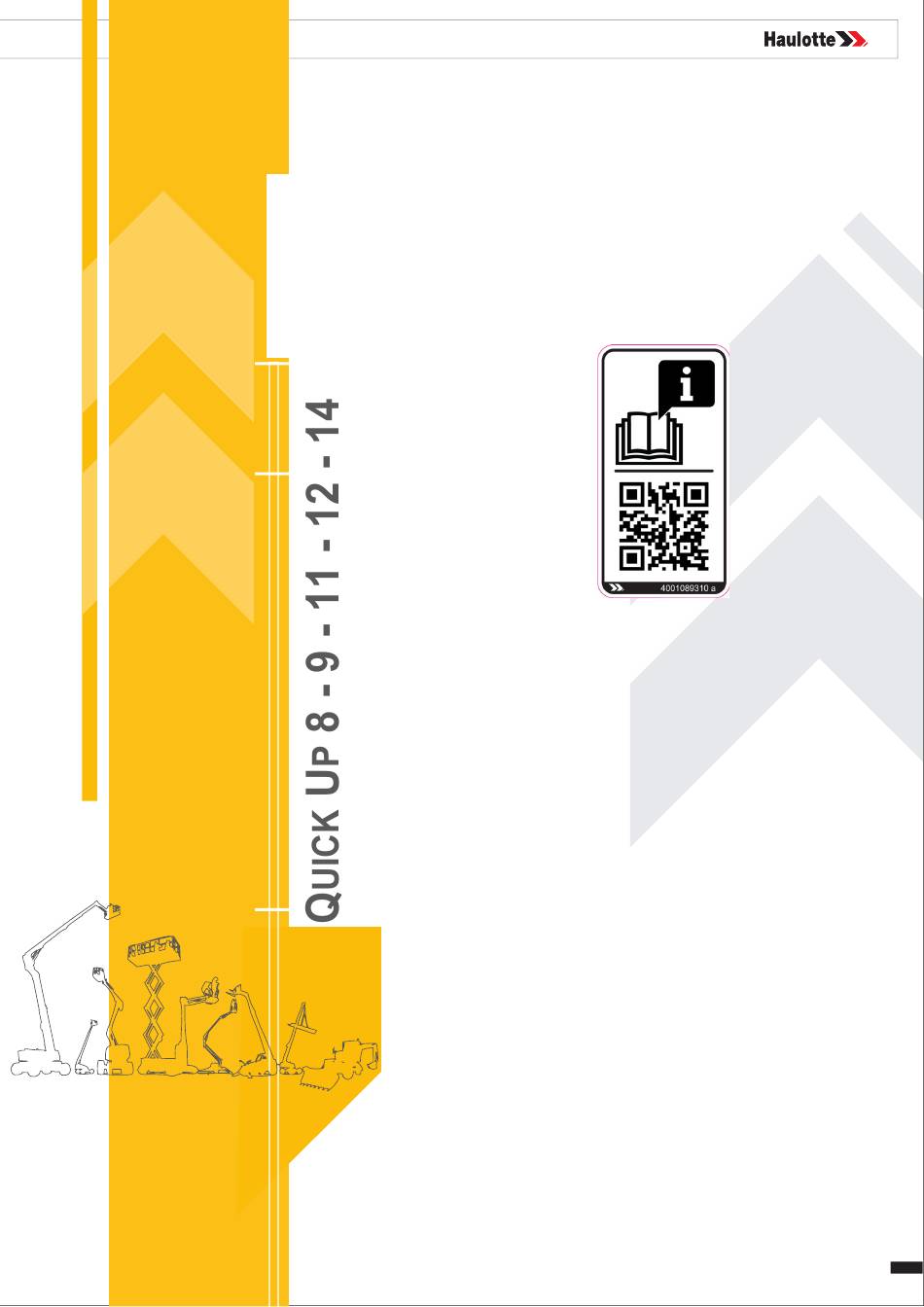

Operator's manual
Quick Up 8 - 9 - 11 - 12 - 14
24203 0
X
USA
4001168820
E 04. 21
USA / GB
