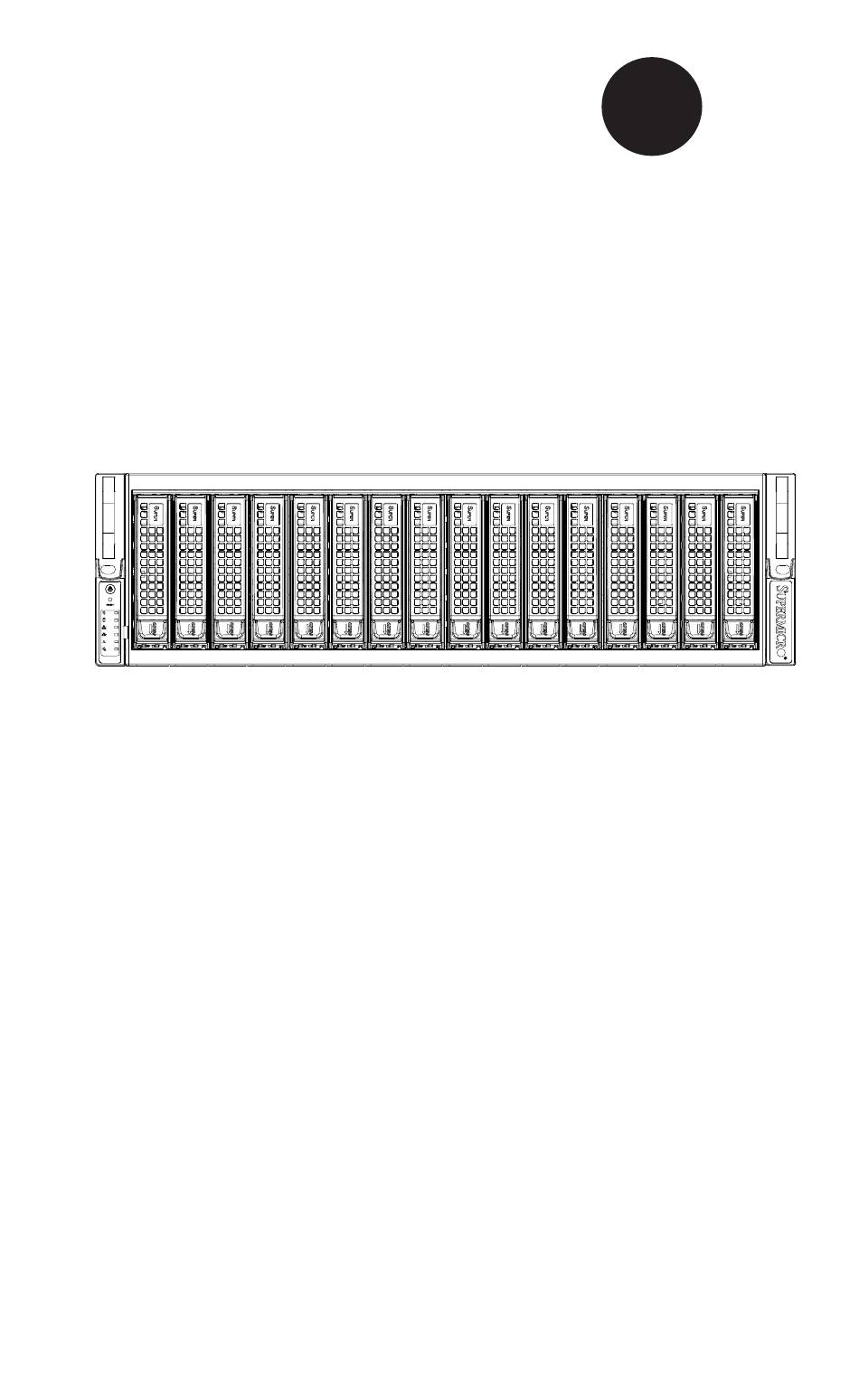

SC936 CHASSIS SERIES

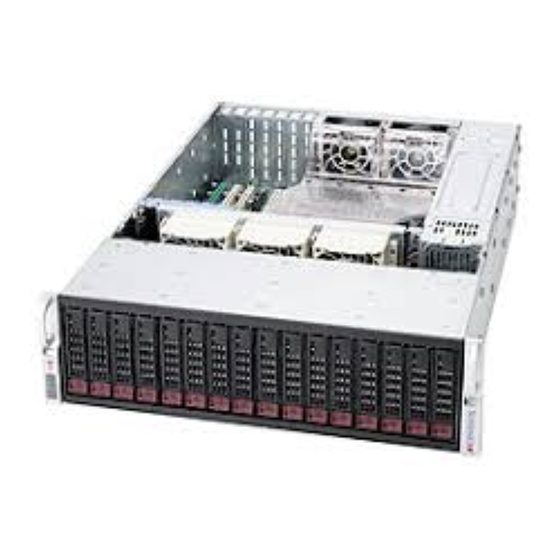

SC936E16-R1200B

SC936E26-R1200B

SC936E1-R900B

SC936A-R1200B

SC936A-R900B

SC936E1-R710B

USER'S MANUAL

1.0d

Table of Contents

Need help?

Do you have a question about the SC936E16-R1200B and is the answer not in the manual?

Questions and answers

Summary of Contents for Supero SC936E16-R1200B

Page 1 UPER ® SC936 CHASSIS SERIES SC936E16-R1200B SC936E26-R1200B SC936E1-R900B SC936A-R1200B SC936A-R900B SC936E1-R710B USER’S MANUAL 1.0d...
Page 2 SC936 Chassis Manual The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.
Page 3: About This Manual
Preface Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SC936 chassis. Installation and maintenance should be performed by experienced technicians only. Supermicro's SC936 provides high storage capacity in a 3U form factor. Designed for housing sixteen hot-swappable 3.5"...
Page 4 SC936 Chassis Manual Manual Organization Chapter 1 Introduction The first chapter provides a checklist of the main components included with this chassis and describes the main features of the SC936 chassis. This chapter also includes contact information. Chapter 2 Standardized Warning Statements for AC Systems This chapter lists warnings, precautions, and system safety.
Page 5: Table Of Contents
Preface Table of Contents Chapter 1 Introduction Overview ......................1-1 Shipping List ....................1-1 Where to get Replacement Components ............1-2 Contacting Supermicro ..................1-3 Returning Merchandise for Service..............1-4 Chapter 2 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............2-1 Warning Definition ...................
Page 6 SC936 Chassis Manual System Fans ....................4-9 Power Supply ....................4-11 Chapter 5 Rack Installation Overview ......................5-1 Unpacking the System ..................5-1 Preparing for Setup ..................5-1 Choosing a Setup Location ................5-1 Rack Precautions .................... 5-2 Server Precautions ..................5-2 Rack Mounting Considerations ...............
Page 7: Chapter 1 Introduction
SC936E1-R900B 16x SAS/SATA Drive Bays 7 FF (Redundant) SC936E1-R710B 16x SAS Drive Bays 7 FF 710W DC SC936E16/E26 Chassis Power Model I/O Slots Supply SC936E16-R1200B 1200W 16x SAS/SATA Drive Bays 7x FF SC936E26-R1200B (Gold Level) Legend: FF = Full-height, full-length,...
Page 8: Where To Get Replacement Components
SC936 Chassis Manual Where to get Replacement Components Although not frequently, you may need replacement parts for your system. To ensure the highest level of professional service and technical support, we strongly recommend purchasing exclusively from our Supermicro Authorized Distributors/ System Integrators/Resellers.
Page 9: Contacting Supermicro
Chapter 1: Introduction Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...
Page 10: Returning Merchandise For Service
SC936 Chassis Manual Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required be- fore any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried.
Page 11: Chapter 2 Standardized Warning Statements For Ac Systems
Chapter 2: Warning Statements for AC Systems Chapter 2 Standardized Warning Statements for AC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance.
Page 12 SC936 Chassis User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
Page 13 Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬ ‫ل‬ ‫الىقائٍة‬...
Page 14: Installation Instructions
SC936 Chassis User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書システムを電源に接続する前に、設置手順書をお読み下さい。警告将此系统连接电源前,请先阅读安装说明。警告將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.
Page 15: Circuit Breaker
Chapter 2: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキット・ブレーカーこの製品は、短絡（過電流）保護装置がある建物での設置を前提としています。保護装置の定格が250 V、...
Page 16: Power Disconnection Warning
SC936 Chassis User's Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
Page 17 Chapter 2: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...
Page 18: Equipment Installation
SC936 Chassis User's Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置トレーニングを受け認定された人だけがこの装置の設置、交換、またはサービスを許可されています。警告只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。警告只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.
Page 19: Restricted Area
Chapter 2: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.
Page 20: Battery Handling
SC936 Chassis User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬ ‫فقط‬...
Page 21 Chapter 2: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.
Page 22: Redundant Power Supplies
SC936 Chassis User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置このユニットは複数の電源装置が接続されている場合があります。ユニットの電源を切るためには、すべての接続を取り外さなければなりません。警告此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。警告此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.
Page 23: Backplane Voltage
Chapter 2: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...
Page 24: Comply With Local And National Electrical Codes
SC936 Chassis User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬ 경고! 시스템이...
Page 25: Product Disposal
Chapter 2: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...
Page 26: Hot Swap Fan Warning
SC936 Chassis User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
Page 27 Chapter 2: Warning Statements for AC Systems 警告當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.
Page 28: Power Cable And Ac Adapter
SC936 Chassis User's Manual Power Cable and AC Adapter Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.
Page 29 Chapter 2: Warning Statements for AC Systems Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué...
Page 30 SC936 Chassis User's Manual Notes 2-20...
Page 31: Chapter 3 System Interface
Chapter 3 System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.
Page 32: Control Panel Buttons
SC936 Chassis Manual Control Panel Buttons There are two push-buttons located on the front of the chassis. These are (in order from top to bottom) a reset button and a power on/off button. Power: The main power switch is used to apply or remove power from the power supply to the server system.
Page 33 Chapter 3 System Interface NIC1: Indicates network activity on GLAN1 when flashing. NIC2: Indicates network activity on GLAN2 when flashing. Overheat/Fan Fail: When this LED flashes it indicates a fan failure. When continu- ously on (not flashing) it indicates an overheat condition, which may be caused by cables obstructing the airflow in the system or the ambient room temperature being too warm.
Page 34 SC936 Chassis Manual Notes...
Page 35: Chapter 4 Chassis Setup And Maintenance
Chapter 4: Chassis Setup and Maintenance Chapter 4 Chassis Setup and Maintenance Overview This chapter covers the steps required to install components and perform mainte- nance on the chassis. The only tool you will need to install components and perform maintenance is a Phillips screwdriver.
Page 36: Removing The Chassis Cover
SC936 Chassis Manual Removing the Chassis Cover Release Tab Figure 4-1: Removing the Chassis Cover Removing the Chassis Cover 1. Power down the system and remove the power cord from the rear of the power supply. 2. Press the release tabs to remove the cover from the locked position. Press both tabs at the same time.
Page 37: Removing Hard Drives From The Chassis
Chapter 4: Chassis Setup and Maintenance Removing Hard Drives From the Chassis Release Button Figure 4-2: Removing Drive Carriers The SC936 chassis features hot-swappable hard drives which can be removed from the chassis without powering down the system. Removing Hard Drive Carriers from the Chassis 1.
Page 38: Installing Hard Drives
SC936 Chassis Manual Installing Hard Drives Installing a Hard Drive to the Hard Drive Carrier 1. Remove the screws securing the dummy drive to the drive carrier. 2. Remove the dummy drive. Place the hard drive carrier on a flat surface such as a desk, table or work bench.
Page 39: Installing The Motherboard
Chapter 4: Chassis Setup and Maintenance Installing the Motherboard I/O Shield The I/O shield holds the motherboard ports in place. Install the I/O shield before you install the motherboard. Installing the I/O Shield 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, and precautions.
Page 40: Pci Slot Setup For Expansion Cards
SC936 Chassis Manual Installing the Motherboard 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, precautions, and cable connec- tions. 2. Power down the system, remove the power cord from the rear of the power supply and remove the chassis cover as described in Section 4-1.
Page 41: Installing The Air Shroud
Chapter 4: Chassis Setup and Maintenance Installing the Air Shroud Air Shroud Extension Air Shroud Rear Fans Figure 4-6: Air Shroud for SC936 Chassis Air shrouds concentrate airflow to maximize fan efficiency. The SC936 chassis air shroud is designed to fit within the chassis, and does not require tools for setup. Installing the Air Shroud 1.
Page 42: Checking The Airflow
SC936 Chassis Manual Checking the Airflow Checking the Server's Airflow 1. Power down the system, remove the power cord from the rear of the power supply and remove the chassis cover as described in Section 4-1. 2. Make sure there are no objects to obstruct airflow in and out of the server. In addition, if you are using a front bezel, make sure the bezel's filter is replaced periodically.
Page 43: System Fans
Chapter 4: Chassis Setup and Maintenance System Fans Five heavy-duty fans provide cooling for the chassis. These fans circulate air through the chassis as a means of lowering the chassis internal temperature. Release Tab Figure 4-7: System Fan Replacing a System Fan 1.
Page 44 SC936 Chassis Manual 5. Place the new fan into the vacant space in the housing while making sure the arrows on the top of the fan (indicating air direction) point in the same direction as the arrows on the other fans. 6.
Page 45: Power Supply
Chapter 4: Chassis Setup and Maintenance Power Supply The SC936 chassis has an auto-switching power supply. This enables it to automati- cally sense and operate at a 100v to 240v input voltage. An amber light illuminates on the power supply when the power is off. An illuminated green light indicates that the power supply is operating.
Page 46 SC936 Chassis Manual Figure 4-10: Changing the Power Distributor Server chassis that are 2U or higher require a power distributor. The power distribu- tor provides failover and power supply redundancy. In the unlikely event you must change the power distributor, do following: Changing the Power Distributor 1.
Page 47: Chapter 5 Rack Installation
Chapter 5: Rack Installation Chapter 5 Rack Installation Overview This chapter provides a quick setup checklist to get your chassis up and running. Following these steps in the order given should enable you to have the system operational within a minimal amount of time. Unpacking the System You should inspect the box which the chassis was shipped in and note if it was damaged in any way.
Page 48: Rack Precautions
SC936 Chassis Manual Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them. • In single rack installation, stabilizers should be attached to the rack. In multiple rack installations, the racks should be coupled together.
Page 49: Rack Mounting Considerations
Chapter 5: Rack Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient room temperature. There- fore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).
Page 50: Rack Mounting Instructions
SC936 Chassis Manual Rack Mounting Instructions This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly from the instructions provided. You should also refer to the installation instructions that came with the rack unit you are using.
Page 51: Locking Tabs
Chapter 5: Rack Installation Locking Tabs Each inner rail has a locking tab. This tab locks the chassis into place when installed and pushed fully into the rack. These tabs also lock the chassis in place when fully extended from the rack. This prevents the server from coming completely out of the rack when when the chassis is pulled out for servicing.
Page 52: Installing The Inner Rails On The Chassis
SC936 Chassis Manual Inner Rails Figure 5-3: Installing the Inner Rails Figure 5-4: Inner Rails Installed on the Chassis (The chassis above are an example only. Actual chassis may differ slightly) Installing The Inner Rails on the Chassis Installing the Inner Rails 1.
Page 53: Installing The Outer Rails On The Rack
Chapter 5: Rack Installation L-min=676.00(26.61")(outer rail) 21D01 Figure 5-5: Extending and Releasing the Outer Rails Installing the Outer Rails on the Rack Installing the Outer Rails 1. Press upward on the locking tab at the rear end of the middle rail. 2.
Page 54: Standard Chassis Installation
SC936 Chassis Manual Ball-Bearing Shuttle Figure 5-6: Installing into a Rack Standard Chassis Installation Installing the Chassis into a Rack 1. Confirm that the inner rails are properly installed on the chassis. 2. Confirm that the outer rails are correctly installed on the rack. 3.
Page 55: Optional Quick Installation Method
Chapter 5: Rack Installation Optional Quick Installation Method The following quick installation method may be used to install the chassis onto a rack. Installing the Chassis into a Rack 1. Install the whole rail assembly onto the rack as described on page 5-7. 2.
Page 56 SC936 Chassis Manual Notes 5-10...
Page 57: Appendix A Cables, Screws, And Other Accessories
Appendix A: Cables, Screws and Other Accessories Appendix A Cables, Screws, and Other Accessories A-1 Overview This appendix lists supported cables for your chassis system. It only includes the most commonly used components and configurations. For more compatible cables, refer to the manufacturer of the motherboard you are using and our Web site at: www.supermicro.com.
Page 58: Compatible Cables
SC936 Chassis Manual A-3 Compatible Cables These cables are compatible with the SC936 Chassis. Alternate SAS Cables Some compatible motherboards have different connectors. If your motherboard has only one SAS connector that the SAS cables must share, use one of the following cables.
Page 59: Front Panel To The Motherboard
Appendix A: Cables, Screws and Other Accessories Front Panel to the Motherboard The SC936 chassis includes a cable to connect the chassis front panel to the motherboard. If your motherboard uses a different connector, use the following list to find a compatible cable. Front Panel to Motherboard Cable (Ribbon Cable) Number of Pins Number of Pins...
Page 60: Chassis Screws
SC936 Chassis Manual A-4 Chassis Screws The accessory box includes all the screws needed to setup your chassis. This section lists and describes the most common screws used. Your chassis may not require all the parts listed. HARD DRIVE Flat head Pan head 6-32 x 5 mm 6-32 x 5 mm...
Page 61: Appendix B Power Supply Specifications
13 - 4 Amp +5V 30 Amp +5V standby 4 Amp +12V 75 Amp -12V 0.6 Amp +3.3V 24 Amp SC936A-R1200B, SC936E1-R1200B, SC936E16-R1200B, SC936E26-R1200B Redundant 1200W MFR Part # PWS-1K21P-1R 100 - 140V, 50 - 60Hz, 8 - 11.5 Amp AC Input 180 - 240V, 50 - 60Hz, 5.5 - 8 Amp...
Page 62 SC936 Chassis Manual Notes...
Page 63: Appendix C Bpn-Sas-936A Backplane Specifications
Appendix C: BPN-SAS-936A Backplane Specifications Appendix C BPN-SAS-936A Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. C-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
Page 64: A Note To Users
SC936 Chassis Manual C-3 A Note to Users All images and layouts shown in this user's guide are based upon the latest revision available at the time of publishing. The backplane you have received may or may not look exactly the same as the graphics shown in this manual. C-4 Introduction to the SAS-936A Backplane The SAS-9836A backplane has been designed to utilize the most up-to-date technol- ogy available, providing your system with reliable, high-quality performance.
Page 65: Front Connector And Pin Definitions
Appendix C: BPN-SAS-936A Backplane Specifications C-6 Front Connector and Pin Definitions 1. MG9072 Chip The MG9072 is an enclosure management chip that supports the SES-2 controller and SES-2 protocols. 2. Upgrade Connectors The upgrade connectors are designated JP69, and JP78 are used for manufacturer's diagnos- tic purposes only.
Page 66 SC936 Chassis Manual 6. Backplane Main Power Connectors Backplane Main Power The 4-pin connectors, designated JP10, 4-Pin Connector) JP13, JP46 and JP48, provide power to the Pin# Definition backplane. See the table on the right for pin +12V definitions. 2 and 3 Ground 7., 8.
Page 67: Front Jumper Locations And Pin Definitions
Appendix C: BPN-SAS-936A Backplane Specifications C-7 Front Jumper Locations and Pin Definitions Explanation of Jumpers Connector Pins To modify the operation of the backplane, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function Jumper of the connector.
Page 68: Fan Jumper Settings
SC936 Chassis Manual SAS936A REV: SEC_I2C JP99 JP97 JP99 JP62 +12V +12V +12V +12V FAN1 FAN3 FAN2 PWR3 PWR2 PWR1 PWR0 JP63 JP61 Figure C-3: Fan Jumper Locations Fan Jumper Settings This backplane can use up to four fans. To utilize each fan, you must configure both jumpers as instructed below.
Page 69: I 2 C And Sgpio Modes And Jumper Settings
Appendix C: BPN-SAS-936A Backplane Specifications C and SGPIO Modes and Jumper Settings This backplane can utilize I C or SGPIO. SGPIO is the default mode and can be used without making changes to your jumper. The following information details which jumper must be configured to use SGPIO mode or restore your backplane to I C mode.
Page 70: Front Led Indicators
SC936 Chassis Manual Front LED Indicators SAS936A REV: SEC_I2C +12V +12V +12V +12V FAN1 FAN3 FAN2 PWR3 PWR2 PWR1 PWR0 Figure C-4: Front LED Indicators Front Panel LEDs State Specification Fan #1 failure Fan #2 failure Fan #3 failure. Alarm #1: Overheat/drive failure/fan failure in channels 0-7.
Page 71: Rear Connectors And Led Indicators
Appendix C: BPN-SAS-936A Backplane Specifications C-8 Rear Connectors and LED Indicators FAIL0 ACT0 FAIL1 ACT1 FAIL2 ACT2 FAIL3 ACT3 FAIL4 ACT4 FAIL5 ACT5 FAIL6 ACT6 FAIL7 ACT7 FAIL8 ACT8 FAIL9 ACT9 FAIL10 ACT10 FAIL11 ACT11 FAIL12 ACT12 FAIL13 ACT13 FAIL14 ACT14 FAIL15 ACT15 Figure C-5: Rear Connectors and LED Indicators Rear SAS/SATA Connectors...
Page 72 SC936 Chassis Manual Rear LED Indicators Rear LED Hard Drive Activity Failure LED SAS #0 SAS #1 SAS #2 SAS #3 SAS #4 SAS #5 SAS #6 SAS #7 SAS #8 SAS #9 SAS #10 SAS #11 SAS #12 SAS #13 SAS #14 SAS #15 C-10...
Page 73: Appendix D Bpn-Sas-936El Backplane Specifications
Appendix D: BPN-SAS-936EL Backplane Specifications Appendix D BPN-SAS-936EL Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. D-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
Page 74: An Important Note To Users
SC936 Chassis Manual D-3 An Important Note to Users All images and layouts shown in this user's guide are based upon the latest revision available at the time of publishing. The backplane you have received may or may not look exactly the same as the graphics shown in this manual. D-4 Introduction to the SAS-936EL Backplane The BPN-SAS-9836EL backplane has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance.
Page 75: Front Connectors And Jumpers
Appendix D: BPN-SAS-936EL Backplane Specifications D-5 Front Connectors and Jumpers J 15 SEC_FLASH PRI _FLASH 5V_LED 12V_LED REM OTE_FAN_FAI L_SCOKET BUZZER1 M H7 R658 R659 SEC_EXP PRI _EXP W W N OVERHEATFAI L1 FANFAI L1 PRI _M ODE4 SAS936EL2 SEC_I 2C REV: 1.
Page 76 SC936 Chassis Manual D-6 Front Connector and Pin Definitions 1. Primary and Secondary I C Connectors C Connector Pin Definitions The I C connectors are used to monitor hard Pin# Definition drive activity and status through LED. See the Data table on the right for pin definitions.
Page 77 Appendix D: BPN-SAS-936EL Backplane Specifications 6. Fan Connectors Fan Connectors The 3-pin connectors, designated Fan1, Fan2, Pin# Definition Fan3, and Fan4, provide power to the system Ground fans. +12V Tachometer See the table on the right for pin definitions. 7 - 11. SAS Ports Note that the primary and secondary sets of SAS ports are in different order.
Page 78 SC936 Chassis Manual J 15 5V_LED 12V_LED SEC_FLASH PRI _FLASH REM OTE_FAN_FAI L_SCOKET BUZZER1 M H7 R658 R659 SEC_EXP PRI _EXP W W N OVERHEATFAI L1 FANFAI L1 PRI _M ODE4 SAS936EL2 SEC_I 2C REV: 1. 00 SEC_M ODE4 SEC_I PM I J 16 BAR CODE +12V...
Page 79 Appendix D: BPN-SAS-936EL Backplane Specifications D-7 Front Jumper Locations and Pin Definitions Explanation of Jumpers Connector To modify the operation of the backplane, Pins jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function Jumper of the connector.
Page 80 SC936 Chassis Manual Front LED Indicators J 15 SEC_FLASH PRI _FLASH 5V_LED 12V_LED REM OTE_FAN_FAI L_SCOKET BUZZER1 M H7 SEC_EXP R658 R659 PRI _EXP W W N OVERHEATFAI L1 FANFAI L1 PRI _M ODE4 SAS936EL2 SEC_I 2C REV: 1. 00 SEC_M ODE4 SEC_I PM I J 16...
Page 81 Appendix D: BPN-SAS-936EL Backplane Specifications D-8 Rear Connectors and LED Indicators FAIL#0 ACT#0 FAIL#1 ACT#1 FAIL#2 ACT#2 FAIL#3 ACT#3 FAIL#4 ACT#4 FAIL#5 ACT#5 FAIL#6 ACT#6 FAIL#7 ACT#7 FAIL#8 ACT#8 FAIL#9 ACT#9 FAIL#10 J 10 ACT#10 FAIL#11 J 11 ACT#11 FAIL#12 J 12 ACT#12 FAIL#13...
Page 82 SC936 Chassis Manual Rear LED Indicators Rear LED Hard Drive Activity Failure LED SAS #0 ACT #0 FAIL #0 SAS #1 ACT #1 FAIL #1 SAS #2 ACT #2 FAIL #2 SAS #3 ACT #3 FAIL #3 SAS #4 ACT #4 FAIL #4 SAS #5 ACT #5...
Page 83: Dual Port And Cascading Configurations
Appendix D: BPN-SAS-936EL Backplane Specifications Dual Port and Cascading Configurations D-9 Single and Dual Port Expanders Single Ports BPN-SAS-936EL1 backplanes have a single-port expander that access all 16 drives and supports cascading. Dual Ports BPN-SAS-936EL2 backplanes have dual-port expanders that access all sixteen drives.
Page 84: Single Host Bus Adapter Failover
SC936 Chassis Manual D-10 Failover The BPN-SAS-936EL2 backplane has two expanders which allow effective failover and recovery. Single Host Bus Adapter SAS HBA In a single host bus configuration, the backplane connects to one Host Bus Adapter (HBA). SEC_J2 SEC_J0 SEC_J1 PRI_J2 PRI_J1...
Page 85: Cables And Chassis Power Card
Appendix D: BPN-SAS-936EL Backplane Specifications D-11 Cables and Chassis Power Card Chassis Power Card In a cascaded configuration, the first chassis includes a motherboard and, at least one, Host Bus Adapter (HBA). Other servers in this enclosed system, include a power card.
Page 86 SC936 Chassis Manual Connecting an Internal Host Bus Adapter to the Backplane The following section lists the most common cables used to connect the HBA to the backplane. SEC_J2 SEC_J0 SEC_J1 PRI_J2 PRI_J1 PRI_J2 PRI_J1 Single Internal Host Bus Adapter SEC_J2 SEC_J0 SEC_J1...
Page 87 Appendix D: BPN-SAS-936EL Backplane Specifications Supported Internal HBA to Backplane Cables Use the following listed cables to create connections between the internal HBA and backplane. The cables required depend on the HBA connector. Figure D-6: iPass to 4-lane Cable (CBL-0117) Cable Name: iPass to 4-Lane Part #: CBL-0117 Length: 46 cm (18 inches)
Page 88 SC936 Chassis Manual Figure D-7: iPass (Mini SAS) to iPass (Mini-SAS) (CBL-0110L-2) Cable Name: iPass (Mini-SAS) TO iPass (Mini-SAS) Part #: CBL-0108L-02 Length: 39 cm (15 inches) Part #: CBL-0109L-02 Length: 22 cm (9 inches) Part #: CBL-0110L-02 Length: 18 cm (7 inches) Description: This cable has an iPass (SFF-8087/Mini-SAS) connector (thirty-six pins) at each end.
Page 89: Connecting An External Host Bus Adapter To The Backplane
Appendix D: BPN-SAS-936EL Backplane Specifications Connecting an External Host Bus Adapter to the Backplane This backplane supports external host bus adapters. In this configuration, the HBA and the backplane are in different physical chassis. This allows a JBOD (Just a Bunch Of Drives) configuration from an existing system.
Page 90: Supported External Hba To Backplane Cable
SC936 Chassis Manual Supported External HBA to Backplane Cable Use the following cable if your external HBA has an Infiniband connector. Figure D-8: SAS InfiniBand to Mini SAS (CBL-0200L) Cable Name: SAS InfiniBand to Mini-SAS X4 1M cable, PBF Part #: CBL-0200L Length: 1 meter Description: This cable has an Infiniband connector (SFF-8470) on one end and an SFF-8088-1X (26-pins) at the other end.
Page 91: Connecting Multiple Backplanes In A Single Channel Environment
Appendix D: BPN-SAS-936EL Backplane Specifications Connecting Multiple Backplanes in a Single Channel Environment This section describes the cables used when cascading from a single HBA. These connections use CBL-0167L internal cables and CBL-0166L external cables. Single HBA Conguration CBL-0167L with Single Port Assembly (Internal Cable) SEC_J2 SEC_J0...
Page 92: Single Hba Configuration Cables
SC936 Chassis Manual Single HBA Configuration Cables Single Port Cable Assembly Figure D-9: SAS Internal Backplane Cable (CBL-0167L) Cable Name: SAS EL2/EL1 Backplane Cable (Internal) w/ 2-port Cascading Cable, 68 cm Part #: CBL-0167L (SFF-8087 to SFF-8088 x1) Ports: Single Placement: Internal cable Description: Internal cable.
Page 93: Connecting Multiple Backplanes In A Dual Channel Environment
Appendix D: BPN-SAS-936EL Backplane Specifications Connecting Multiple Backplanes in a Dual Channel Environment This section describes the cables used when cascading from a single HBA. These connections use CBL-0168L internal cables and CBL-0166L external cables. SEC_J2 SEC_J0 SEC_J1 PRI_J2 PRI_J1 Cable 0168L Port B Expander 2 Port A Expander 1...
Page 94 SC936 Chassis Manual Dual HBA Conguration Cables Dual Port Cable Assembly Figure D-11: SAS Cascading Cable Internal (CBL-0168L) Cable Name: SAS Dual-port Cable Assembly, 68/76 cm Part #: CBL-0168L Placement: Internal cable Ports: Dual Description: Internal cascading cable. Connects the backplane to the host bus adapter or external port.
Page 95: Supported Cascading Configurations
Appendix D: BPN-SAS-936EL Backplane Specifications Supported Cascading Configurations Cascading allows the system to access data at a faster rate by allowing several backplanes to share resources to reduce latency time. The first backplane in a cascaded system requires a motherboard and HBA. Other servers require a power control card, not a motherboard and HBA.
Page 96: Server System With Single Sas Hba
SC936 Chassis Manual Server System with Single SAS HBA The exanders allow horizontal branching. This configuration also applies to dual ports. SEC_J2 SEC_J2 SEC_J0 SEC_J0 SEC_J1 PRI_J2 PRI_J1 SEC_J1 PRI_J2 PRI_J1 Port A Expander 1 Port A Expander 1 Power Card PRI_J2 PRI_J1 PRI_J2...
Page 97 Appendix D: BPN-SAS-936EL Backplane Specifications Server System with Dual SAS HBA and Cascading Configuration SEC_J2 SEC_J0 SEC_J1 PRI_J2 PRI_J1 Port B Expander 2 Port A Expander 1 PRI_J1 PRI_J2 Dual Port Cable Assembly Cable 0168L (internal cable) Cable 0166L (External cables) SEC_J2 SEC_J0 SEC_J1...
Page 98 SC936 Chassis Manual Server System with Dual SAS HBA SEC_J2 SEC_J0 SEC_J1 PRI_J2 PRI_J1 Port B Ex. 2 Port A Ex. 1 SEC_J2 SEC_J0 SEC_J1 PRI_J2 PRI_J1 Port B Ex. 2 Port A Ex. 1 PRI_J2 PRI_J1 Power PRI_J2 PRI_J1 Card SEC_J2 SEC_J0...
Page 99: External Cables
Appendix D: BPN-SAS-936EL Backplane Specifications Dual Cable Routing External Cables In the previous diagrams external ca- bles are represented with two different lines. These cables are both CBL-0166L CBL-0166L external cables. Different lines help the (External Cable) user determine cable routing. D-27...
Page 100 SC936 Chassis Manual Notes D-28...
Page 101: Appendix E Bpn-Sas2-936El1/El2 Backplane Specifications
Appendix E: BPN-SAS2-936EL Backplane Specifications Appendix E BPN-SAS2-936EL1/EL2 Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
Page 102 SC936 Chassis Manual An Important Note to Users All images and layouts shown in this user's guide are based upon the latest back- plane revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual. Introduction to the BPN-SAS2-936EL Backplane The BPN-SAS2-936EL backplane has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance.
Page 103 Appendix E: BPN-SAS2-936EL Backplane Specifications Front Connectors and Jumpers ACT18 SEC_MODE2 C365 C133 SEC_MODE1 C120 MDIO1 EXPDBG2 C128 C363 EC26 C366 C362 MDIO2 EC27 PRI_I2C1 ACT17 UART_S1 FANFAIL_LED_DISABLE PRI_MODE1 PRI_MODE2 SAS2-936EL2 UART_P1 OVERHEATFAIL1 FANFAIL1 REV: 1.01 5V_LED1 12V_LED1 BCA84 EXPDBG1 BAR CODE C367 C361...
Page 104 SC936 Chassis Manual Front Connector and Pin Definitions 1. EPP Ports The EPP ports are used for manufacturer's diagnostic purposes only. 2. Primary and Secondary Expander Chips This primary and secondary expander chips allow the backplane to support dual port, cas- cading, and failover configurations.
Page 105: Explanation Of Jumpers
Appendix E: BPN-SAS2-936EL Backplane Specifications Front Jumper Locations and Pin Definitions SEC_MODE2 BUZZER_ SEC_MODE1 ENB1 ACT18 SEC_MODE2 C365 C133 SEC_MODE1 EXPDBG2 C120 MDIO1 C128 PRI_MODE1 C363 EC26 C366 C362 MDIO2 PRI_MODE2 EC27 PRI_I2C1 ACT17 FAN_LED_DISABLE UART_S1 FANFAIL_LED_DISABLE PRI_MODE1 PRI_MODE2 SAS2-936EL2 UART_P1 ACTLED1 OVERHEATFAIL1...
Page 106 SC936 Chassis Manual General Jumper Settings Jumper Jumper Settings Note Factory setting PRI_MODE1 Pins 2-3 do not change Factory setting PRI_MODE2 Pins 2-3 do not change Factory setting SEC_MODE1 Pins 2-3 do not change Factory setting SEC_MODE2 Pins 2-3 do not change FAN_MONITOR_DIS- Open: Enabled (Default) Fan monitor reports...
Page 107 Appendix E: BPN-SAS2-936EL Backplane Specifications Front LED Indicators ACT18 SEC_MODE2 ACT18 C365 C133 SEC_MODE1 C120 MDIO1 EXPDBG2 C128 C363 C366 EC26 ACT17 C362 MDIO2 EC27 FANFAIL1 PRI_I2C1 ACT17 OVERHEATFAIL1 UART_S1 FANFAIL_LED_DISABLE PRI_MODE1 5V_LED1 PRI_MODE2 SAS2-936EL2 UART_P1 OVERHEATFAIL1 FANFAIL1 REV: 1.01 12V_LED1 5V_LED1 12V_LED1...
Page 108 SC936 Chassis Manual Rear Connectors and LED Indicators SAS #10 SAS #12 SAS #15 SAS #1 SAS #2 SAS #3 SAS #4 SAS #5 SAS #6 SAS #7 SAS #8 SAS #9 SAS #11 SAS #13 SAS #14 SAS #0 FAIL0 ACT0 FAIL1...
Page 109 Appendix E: BPN-SAS2-936EL Backplane Specifications Single and Dual Port Expanders Single Ports BPN-SAS2-936EL1 backplanes have a single-port expander that accesses all drives and supports cascading. Dual Ports BPN-SAS2-936EL2 backplanes have dual-port expanders that access all drives. These dual-port expanders support cascading, failover, and recovery. BPN-SAS2-936EL1 Single-Port Backplane To lower From HBA or higher...
Page 110 SC936 Chassis Manual E-10 Failover The BPN-SAS2-936EL2 backplane has two expanders which allow effective failover and recovery. Single Host Bus Adapter SAS HBA In a single host bus configuration, the backplane connects to one host bus adapter. ACT18 SEC_MODE2 C365 C133 SEC_MODE1 EXPDBG2...
Page 111: Failover With Raid Cards And Multiple Hbas
Appendix E: BPN-SAS2-936EL Backplane Specifications E-11 Failover with RAID Cards and Multiple HBAs The BPN-SAS-936EL backplane may be configured for failover with multiple HBAs using either RAID controllers or HBAs to acheive failover protection. RAID Controllers: If RAID controllers are used, then the failover is accomplished through port failover on the same RAID card.
Page 112 SC936 Chassis Manual E-12 Cables and Chassis Power Card Chassis Power Card In a cascaded configuration, the first chassis includes a motherboard and at least one host bus adapter. Other servers in this enclosed system include a power card. This section describes the supported power card for the BPN-SAS2-936EL backplane system.
Page 113 Appendix E: BPN-SAS2-936EL Backplane Specifications Connecting an Internal Host Bus Adapter to the Backplane The following section lists the most common cables used to connect the HBA to the backplane. Single Internal Host Bus Adapter ACT18 SEC_MODE2 C365 SEC_MODE1 EXPDBG2 C120 C128 MDIO1...
Page 114 SC936 Chassis Manual Supported Internal HBA to Backplane Cables Use the following listed cables to create connections between the internal HBA and backplane. The cables required depend on the HBA connector. Cable Name: iPass TO 4-Lane Part #: CBL-0117 Length: 46 cm (18 inches) Description: This cable has one SFF-8484 (32-pin) connector on one end and an iPass (SFF-8087/Mini-SAS) connector (36-pin) at the other.
Page 115: Single External Host Bus Adapter
Appendix E: BPN-SAS2-936EL Backplane Specifications Connecting an External Host Bus Adapter to the Backplane This backplane supports external HBAs. In this configuration, the HBA and the backplane are in different physical chassis. This allows a JBOD (Just a Bunch Of Drives) configuration from an existing system.
Page 116 SC936 Chassis Manual Supported External HBA to Backplane Cable Use the following cable if your external HBA has an InfiniBand connector. Figure E-9: The CBL-0200L Cable Cable Name: SAS InfiniBand to Mini-SAS X4 1M cable, PBF. Part #: CBL-0200L Length: 1 meter Description: This cable has an InfiniBand connector (SFF-8470) on one end and an SFF-8088-1X (26-pin) at the other end.
Page 117 Appendix E: BPN-SAS2-936EL Backplane Specifications Connecting Multiple Backplanes in a Single Channel Environment This section describes the cables used when cascading from a single HBA. These connections use CBL-0167L internal cables and CBL-0166L external cables. Single HBA Configuration CBL-0167L ACT18 SEC_MODE2 C365 SEC_MODE1...
Page 118 SC936 Chassis Manual Single HBA Configuration Cables Single Port Cable Assembly Figure E-11: The CBL-0167L Cable Cable Name: SAS EL2/EL1 Backplane Cable (Internal) w/ 2-port Cascading Cable, 68 cm Part #: CBL-0167L (SFF-8087 to SFF-8088 x1) Ports: Single Placement: Internal cable Description: Internal cable.
Page 119 Appendix E: BPN-SAS2-936EL Backplane Specifications Connecting Multiple Backplanes in a Dual Channel Environment This section describes the cables used when cascading from a single HBA. These connections use CBL-0168L internal cables and CBL-0166L external cables. ACT18 SEC_MODE1 SEC_MODE2 C365 C120 MDIO1 C133 EXPDBG2...
Page 120: Dual Hba Configuration Cables
SC936 Chassis Manual Dual HBA Configuration Cables Dual Port Cable Assembly Figure E-14: The CBL-0168L Cable Cable Name: SAS Dual-port Cable Assembly, 68 cm/76 cm Part #: CBL-0168L (SFF-8087 to SFF-8088 x2) Ports: Dual Placement: Internal cable Description: Internal cascading cable. Connects the backplane to the host bus adapter or external port.
Page 121 Appendix E: BPN-SAS2-936EL Backplane Specifications E-13 Supported Cascading Configuration Cascading allows the system to access data at a faster rate by allowing several backplanes to share resources to reduce latency time. The first backplane in a cascaded system requires a HBA hosted with a mother- board.
Page 122 SC936 Chassis Manual Server System with Dual SAS HBA and Cascading Configuration ACT18 SEC_MODE2 C365 C133 SEC_MODE1 EXPDBG2 C120 C128 MDIO1 C363 EC26 C366 C362 MDIO2 EC27 PRI_I2C1 SEC_J2 SEC_J0 ACT17 PRI_J1 UART_S1 FANFAIL_LED_DISABLE PRI_MODE1 PRI_MODE2 SAS2-936EL2 UART_P1 CBL-0168L OVERHEATFAIL1 FANFAIL1 REV: 1.01 5V_LED1...
Page 123 Appendix E: BPN-SAS2-936EL Backplane Specifications Notes E-23...
Page 124 SC936 Chassis Manual Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.

This manual is also suitable for:

Sc936 series Sc936e26-r1200b Sc936e1-r900b Sc936a-r1200b Sc936a-r900b Sc936e1-r710b
