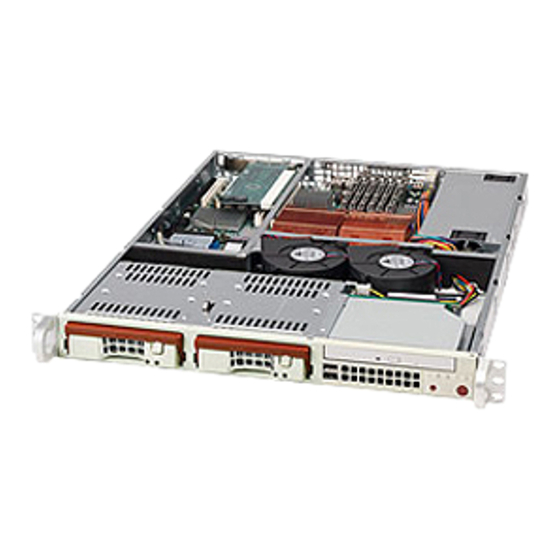

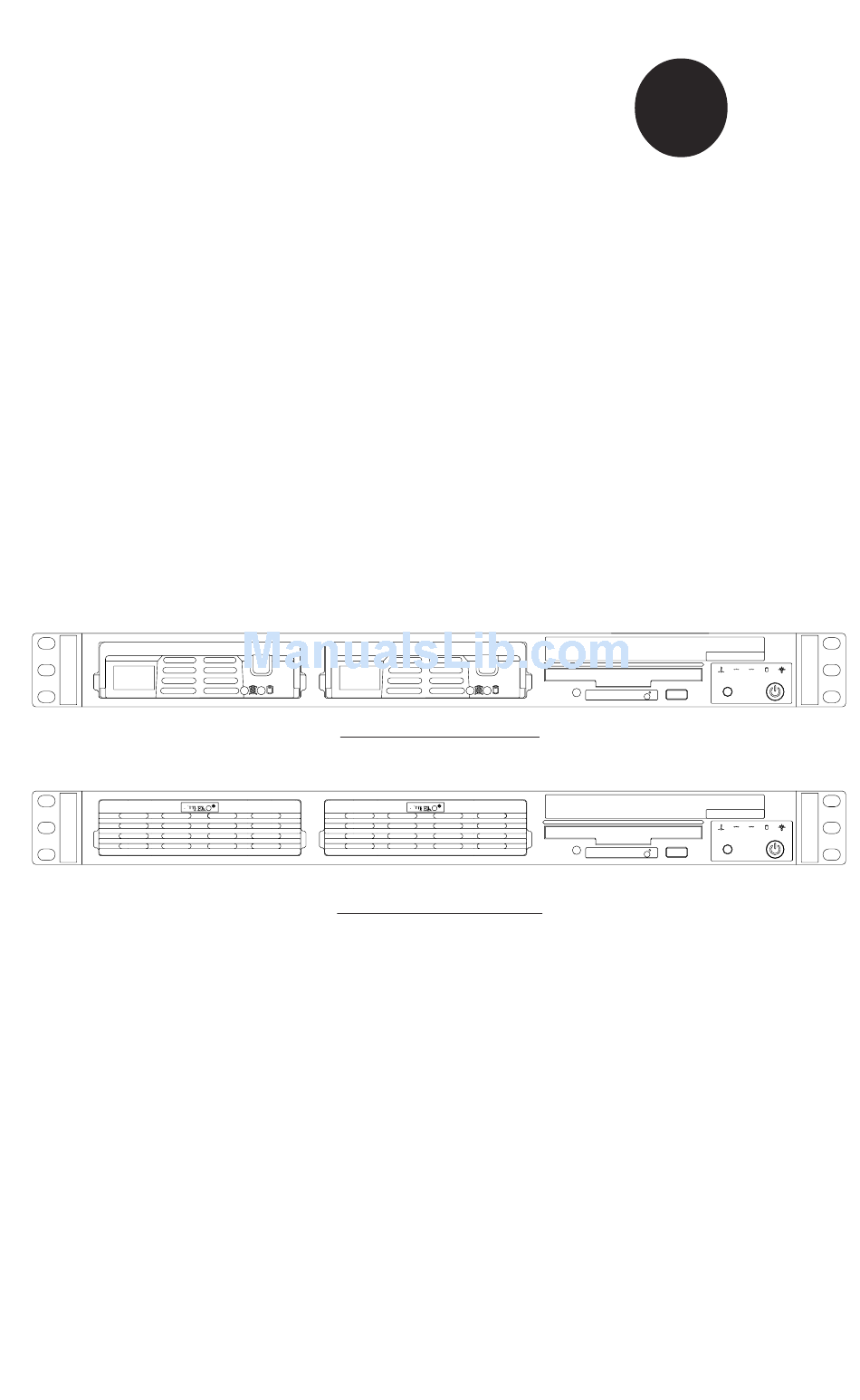

- Page 1 ® UPER UPER UPER uper erver 5011H NIC 2 NIC 1 UPERMICR RESET The SC811 Series uper erver 5011E NIC 2 NIC 1 UPERMICR RESET The SC811i Series SC811 CHASSIS USER'S GUIDE...
- Page 2 SC811 Chassis User’s Guide The information in this User’s Guide has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the Please information in this manual, or to notify any person or organization of the updates.
-
Page 3: Table Of Contents
Chapter 1: Safety Information and Technical Specifications Table of Contents Chapter I: Safety Information and Technical Specifications ..1-4 1-1. Electrical Safety Guidelines ............. 1-4 1-2. General Safety Guidelines ............... 1-5 1-3. ESD Safety Guidelines ............... 1-6 1-4. Operation Safety Guidelines ............1-6 1-5. -
Page 4: Chapter I: Safety Information And Technical Specifications
SC811 Chassis User’s Guide Chapter 1-Safety Information and Technical Specifications 1-1 Electrical Safety Guidelines Warning: To avoid electrical shock, check the power cords as follows: Checking the Power Cords !Use the exact type of power cords as required. !Be sure to use power cord(s) that came with safety certifications. !The power cord(s) must be compliant with the AC voltage requirements in your region. -
Page 5: General Safety Guidelines
Chapter 1: Safety Information and Technical Specifications Use rubber mats specifically designed as electrical insulators when working with computer systems. The power supply or power cord must include a grounding plug and must be plugged into grounded outlets. Motherboard Battery: CAUTION -Make sure not to install the onboard battery upside down to avoid possible explosion. -
Page 6: Esd Safety Guidelines
SC811 Chassis User’s Guide 1-3 ESD Safety Guidelines Electric Static Discharge (ESD) can damage electronic com- ponents. To prevent damage to your system board, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Use a grounded wrist strap designed to prevent static discharge. - Page 7 Chapter 1: Safety Information and Technical Specifications To avoid personal injury and property damage, please carefully follow all the safety steps listed below: Before accessing the chassis: 1. Turn off all peripheral devices connected to the SC811. 2. Press the power button to power off the system. 3.
-
Page 8: Product Compliance Information
SC811 Chassis User’s Guide Before installing the chassis into a rack: 1. Make sure that the rack is securely anchored onto a unmovable surface or structure before installing the chassis into the rack. 2. Unplug the power cord(s) of the rack before installing the chassis into the rack. -
Page 9: Packing List And The Sc811 Specifications
Chapter 1: Safety Information and Technical Specifications 1-6 Packing List and the SC811 Specifications A. The SC811 chassis contains the following: The SC 811i (811-IDE) Series: 6&L :::: 1RWHV &RPSRQHQW 3DUW 1XPEHU The SC 811T (811-Serial ATA) Series: 1RWHV 6&7 :::: &RPSRQHQW 3DUW 1XPEHU The SC 811S (811-SCSI) Series:... - Page 10 SC811 Chassis User’s Guide B. The Accessory Kit contains the following: &RPSRQHQW 4XDQWLW\ C. The Power Supply Specifications of the SC811 Power supply spec 250W 260W 350W 420W 1-10...
- Page 11 Chapter 1: Safety Information and Technical Specifications D. The Serial ATA Back Panel (*SC811T Only) D-1 Jumper Settings and Pin Definitions D-2 Jumper Setting Locations JP25 JP18 OH/DRIVE FAIL OH/DRIVE FAIL GEM424 RST GEM424 RST IPMB IPMB +12V +12V JP27:COM_ACT1 JP27:COM_ACT1 JP29: JP29: COM_ACT2...
- Page 12 SC811 Chassis User’s Guide Notes 1-12...
-
Page 13: Chapter 2: Chassis Description And Installation Procedures
Chapter 2: Chassis Description and Installation Instructions Chapter 2: Chassis Description and Installation Instructions 2-1 Chassis Description A. Contents of the Accessory Kit: The following items are included in the Accessory Kit: B. Flat head 6-32 x 5 mm [0.197] A. -
Page 14: Chassis Front View And The Front Control Panel
SC811 Chassis User’s Guide C. Chassis Front View and the Front Control Panel Chassis Front View The 811S/SC811T Series UPER UPER uper erver 5011H NIC 2 NIC 1 UPERMICR RESET The 811i Series uper erver 5011E NIC 2 NIC 1 UPERMICR RESET Front Panel I/O Device Definitions... - Page 15 Chapter 2: Chassis Description and Installation Instructions Front Panel LED Indicators LED Button Definitions H. LAN1 D. Power Button I. LAN2 E. Reset Button J. Overheat F. Power Indicator G. HDD Activity (*Note: After the Alarm goes off, please press the Reset Button to reactivate the function.) Front Control Panel LED Button Descriptions /(' %XWWRQ...
-
Page 16: Chassis Rear View And The Back Panel
SC811 Chassis User’s Guide D. Chassis Rear View and the Back Panel SC811 Chassis Rear View Back Panel Devices A. Power Supply Module B. Back Panel I/O Ports C. Full size PCI Expansion Slot (1) *I/O Back Panel Back Panel I/O Port Definitions D. -
Page 17: Chassis Installation
Chapter 2: Chassis Description and Installation Instructions 2-2 Chassis Installation A. Important Safety Guidelines This product shall only be accessed, assembled and serviced Stop by technically qualified personnel or technicians. To avoid personal injury and property damage, please read all the information provided in Chapter 1, and carefully follow all the Safety Guidelines listed before accessing or servicing the SC811 or its components. - Page 18 SC811 Chassis User’s Guide C-1. Accessing the SCA Drive Tray and Installing a SCSI To install a SCA drive into the chassis, you need to first remove the SCA drive tray from the chassis. Procedures 1. Press the release tab located on the side of the drive tray door to unlock the drive tray.
- Page 19 Chapter 2: Chassis Description and Installation Instructions C-2. Accessing the IDE Drive Tray and Installing an IDE HDD To install an IDE HDD into the chassis, you need to first remove the IDE HDD drive tray from the chassis. Procedures 1.
- Page 20 SC811 Chassis User’s Guide D. Removing the Top Cover of the SC811 Chassis Before installing any components, replacing chassis fans or accessing the motherboard, you will first need to remove the top cover. Procedures 1. Press the release tabs to release the cover from its locking position. 2.
-
Page 21: Accessing The Power Supply
Chapter 2: Chassis Description and Installation Instructions E. Accessing the Power Supply (*Caution: Unplug the Power Cord before removing the Power Supply!!) Procedures 1. Remove the two screws from the power supply panel. 2 . Once the power supply module is released from its locking position, re- move it from the chassis as shown below: Warning: Do not open the casing of a power supply. -
Page 22: Installing The Motherboard
SC811 Chassis User’s Guide F. Installing the Motherboard Be sue to disconnect the power supply before accessing or installing the mother- board into the chassis. However, you will need to, first, identify the CPU locations, and then, install the correct type of standoffs under the CPUs before installing the motherboard into the chassis. - Page 23 Chapter 2: Chassis Description and Installation Instructions 3. Lay the Mylar sheet that came with the chassis package between the motherboard and the chassis for insulation. Secure the motherboard and the Mylar sheet to the chassis with Type A screws as shown above. (*Please refer to Page 2-1 MB kit for the Type A screw.) 4.
-
Page 24: Installing Chassis Rails
SC811 Chassis User’s Guide G. Installing Chassis Rail (-Inner Rails) Please make sure that the chassis covers and chassis rails are installed on the chassis before you install the chassis into the rack. To avoid personal injury and property damage, please carefully follow all the safety steps listed below: Before installing the Chassis rails: 1. - Page 25 Chapter 2: Chassis Description and Installation Instructions 3. Locate the five holes on each side of the chassis and locate the five corre- sponding holes on each of the inner rail. 4. Attach an inner rail to each side of the chassis and secure the inner rail to the chassis by inserting five Type G screws through the holes on the chassis and the inner rail.
-
Page 26: Rack Installation
SC811 Chassis User’s Guide H-1 Rack Installation for the Traditional IU Design After you have installed the inner rails on the chassis, you are ready to install the outer rails of rail assemblies to the rack. (* The rails are designed to fit in the racks with the depth of 28" to 33".) Procedures 1. - Page 27 Chapter 2: Chassis Description and Installation Instructions 7. Slide the SC811 chassis into the rack as shown below: (The SC811 may not slide into the rack smoothly or easily when installed the first time. However, some adjustment to the slide assemblies might be needed for easy installation.) 8.
- Page 28 SC811 Chassis User’s Guide H-2 Rack Installation for the Open-Rack Design After you have installed the inner rails on the chassis, you are ready to install the outer rails of rail assemblies to the rack. (* The rails are designed to fit in the racks with the depth of 28" to 33".) Procedures 1.
- Page 29 Chapter 2: Chassis Description and Installation Instructions 3. Attach the front (-short) bracket to the front end of the rack, and secure it to the rack with two Type H screws and Type I washers as shown below. 4. Attach the rear (-long) bracket to the rear end of the rack, and secure it to the rack with two Type H screws and Type I washers as shown below.
- Page 30 SC811 Chassis User’s Guide 5. Measure the depth of your rack and adjust the length of the rails accordingly. Then, secure the rails to the chassis with Type G screws. 6. Slide the inner rails which are attached to the chassis to into the outer rails on the rack.
