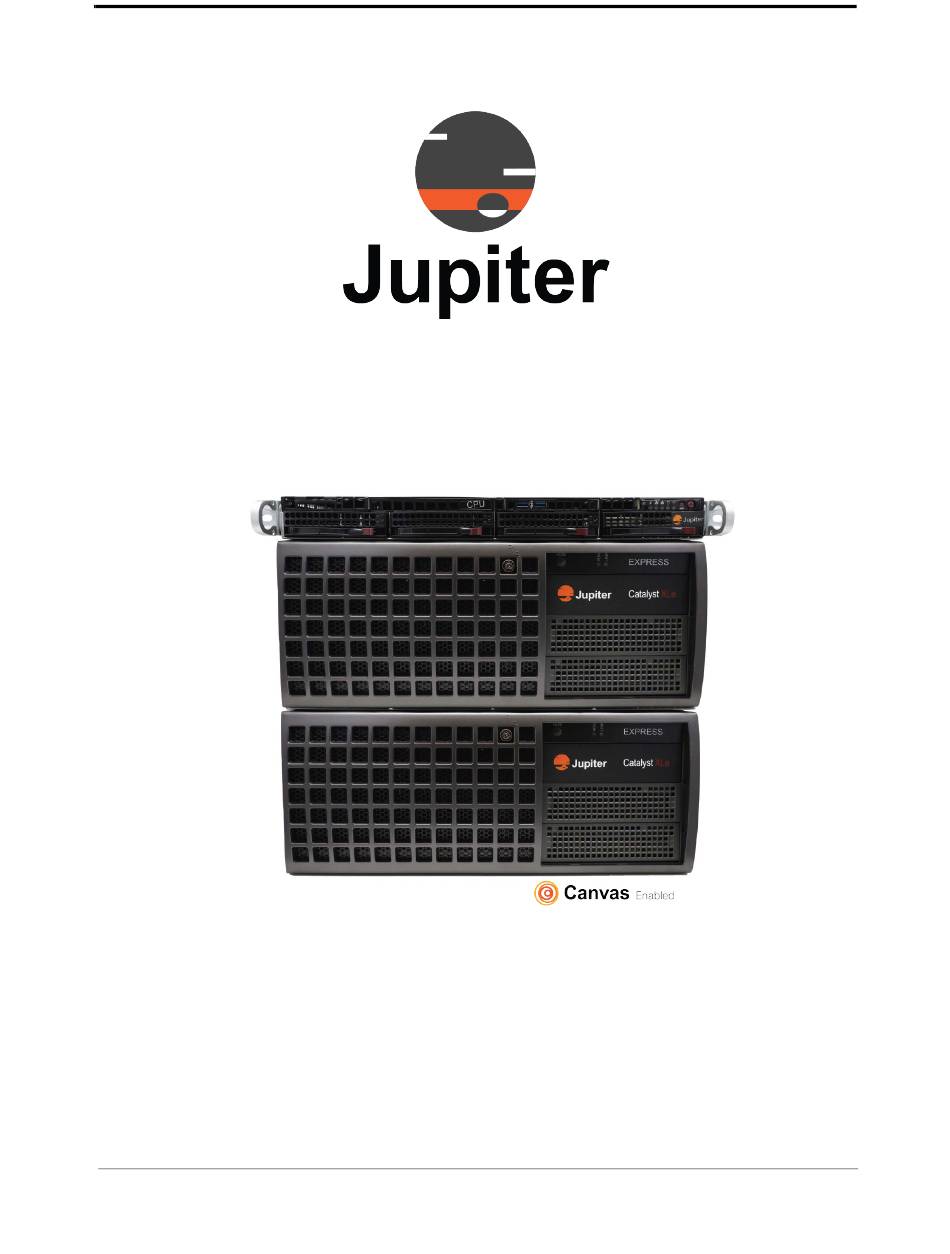

Catalyst XL
Hardware Manual
September 29, 2022
A-CXL-000-01, Rev. I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Catalyst XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Juniper Catalyst XL

Summary of Contents for Juniper Catalyst XL

  • Page 1 Catalyst XL Hardware Manual September 29, 2022 A-CXL-000-01, Rev. I...
  • Page 2 Jupiter Systems® and Jupiter logo® are registered trademarks of Jupiter Systems. New Jupiter logo, Canvas™, Catalyst™, Fusion Catalyst™, Catalyst XL™, Catalyst V™, Catalyst 4K™, CRS-5K™, CRS-4K™, J4™, J100™, J400™, J600™, Zavus™, and Pana™ are trademarks of Jupiter Systems. Microsoft, Windows is a registered trademark of Microsoft Corporation.

  • Page 3: Table Of Contents

    4.4.1 PCIe Bridge Board (3-540-302-00) ................22 4.4.2 PCI Express Sound (3-540-225-00) ................23 4.5 Chassis, Drives and Accessories ....................24 4.5.1 Catalyst XL CPU Solid State Drives ................24 4.5.2 CPU Chassis Power Supplies (5-612-056-00) ...............24 4.5.3 Express Fabric Chassis Power Supplies (5-612-061-00) ..........25...

  • Page 4: Chapter 5. Hardware Installation

    Catalyst XL Hardware Manual Table of Contents 4.5.4 CPU Chassis Fan (4-615-043-00) ................. 25 4.5.5 Express Fabric Mid-Chassis Fan (4-615-049-00) ............25 4.5.6 Express Fabric Rear-Chassis Fan (4-615-042-00) ............26 Chapter 5. Hardware Installation 5.1 Indicators and Buttons ......................27 5.2 Rackmount Installation ......................29 5.2.1 Rack Mount Parts Kit .....................29...
  • Page 5 C.2Software Warranty and Special Provisions ................58 C.2.1Limited Warranty ......................58 C.2.2Customer Remedies ....................... 58 C.2.3No Other Warranties ....................... 58 C.2.4No Liability for Consequential Damages ................58 Appendix D. Software License Agreement List of Figures List of Tables Index Catalyst XL Hardware Manual...
  • Page 6 This page has been intentionally left blank Catalyst XL Hardware Manual...

  • Page 7: Chapter 1. Introduction

    Chapter 1 NTRODUCTION Catalyst XL is the workhorse of the Catalyst line, ideal for medium to large sized video wall installations such as control rooms, government command centers, surveillance rooms, and utility centers. The Catalyst XL delivers the best in class solution for essential and critical control rooms as it can display any amount or type of data required to enhance operations.

  • Page 8: Catalyst Xl

    Chapter 1: Introduction 1.2 Catalyst XL The Catalyst XL is comprised of two main components — the CPU Chassis and the Express Fabric Chassis (EFC). The Express Fabric Chassis houses input and output boards. The CPU Chassis controls the EFC and runs Canvas Client.

  • Page 9: Chapter 2. Catalyst Xl Hardware Specifications

    RAID & redundant power supplies 2.1 CPU Chassis The Catalyst XL CPU Chassis is a1RU, 19" XL system control chassis with capacity to control up to four Express Fabric chassis (Catalyst XLe) Figure 2.1: Catalyst XL CPU Chassis Front Panel...

  • Page 10: Chapter 2.Catalyst Xl Hardware Specifications

    Chapter 2: Catalyst XL Hardware Specifications Table 2.1: CPU Chassis Specifications Feature Description CPU Processor Xeon: 1.9 GHz (6 Core), 2.4 GHz (10 Core), 2.9 GHz (16 Core) 64 – 192 GB RAM Operating System Windows 10 Enterprise Network Interface: Ethernet...

  • Page 11: Express Fabric Chassis (Catalyst Xle)

    The Catalyst XL Express Fabric Chassis is a resilient 4RU, 19" XL input/output expansion chassis with 10 PCIe slots and the ability to add 10 boards per XLe to the Catalyst XL system. At least one Catalyst XLe chassis is required for input/output.
  • Page 12 Chapter 2: Catalyst XL Hardware Specifications Table 2.2: Calalyst XL Express Fabric Chassis Specifications Feature Description Power supplies Physical and Environmental Form factor Dimensions 7.00" H x 19" W x 26.25" D (177.8mm H x 482.6mm W x 666.7mm D) Operating temperature 32°...

  • Page 13: Chapter 3. System Configurations

    This chapter describes how to connect Catalyst XLe chassis to the Catalyst XL CPU Chassis. 3.1 CPU Chassis Configuration The Catalyst XL CPU Chassis function is to control the flow of data between input and output channels in the Express Fabric Chassis. The CPU chassis has no slots for input and output boards.

  • Page 14: Express Fabric Chassis Configuration

    Output boards. Input Boards can be located in any slot in the Express Fabric Chassis. Figure 3.2: Catalyst XL Express Fabric Chassis Rear Panel The Express Fabric Chassis shown above includes the following boards: •...

  • Page 15: Configurations With Multiple Express Fabric Chassis

    3.3 Configurations with Multiple Express Fabric Chassis Catalyst XL systems may be extended to multiple Express Fabric Chassis which will appear as a single, unified system with no software configuration and no other hardware configuration than the cabling examples shown in this section.

  • Page 16: Configuration With Two Express Fabric Chassis

    Chapter 3: System Configurations 3.3.2 Configuration with Two Express Fabric Chassis Figure 3.4: Catalyst XL with two Express Fabric Chassis Catalyst XL Hardware Manual...

  • Page 17: Configuration With Three Express Fabric Chassis

    Configurations with Multiple Express Fabric Chassis 3.3.3 Configuration with Three Express Fabric Chassis Figure 3.5: Catalyst XL with three Express Fabric Chassis Catalyst XL Hardware Manual...

  • Page 18: Configuration With Four Express Fabric Chassis

    Chapter 3: System Configurations 3.3.4 Configuration with Four Express Fabric Chassis Figure 3.6: Catalyst XL with four Express Fabric Chassis Catalyst XL Hardware Manual...

  • Page 19: Chapter 4. Boards And Accessories

    Chapter 4 OARDS AND CCESSORIES Catalyst display processors capture, distribute, display, and control digital and analog video streams. Catalyst input boards capture a wide variety of source signals and output boards display them on a single display or display wall array. The Catalyst scaling and communications engine allows a single source to be replicated into 1,2 or 4 independently scaled windows, depending on the resolution and frame rate.

  • Page 20: Quad Displayport Graphics (3-540-337-00)

    Table 4.1: Quad DisplayPort Graphics Output Specifications Bus Type PCIe 3.0 x16 Video Output Connectors 4x DisplayPort 1.4 Maximum Resolution 4x 5120x3200 @ 60Hz Memory 4 GB GDDR5 HDCP Compliance Cooling Active Power Consumption 50 W Catalyst XL Hardware Manual...

  • Page 21: Quad Hdmi Output (3-540-338-00)

    Figure 4.2: Quad HDMI Output Board Table 4.2: Quad HDMI Output Specifications Bus Type PCIe 3.0 x16 Video Output Connectors 4x HDMI Maximum Resolution 4x 4096x2160 @ 60Hz Memory 4 GB GDDR5 HDCP Compliance Cooling Active Power Consumption 50 W Catalyst XL Hardware Manual...

  • Page 22: Input Boards

    PCIe x16 Gen 2 mechanical (x8 electrical) Video Input Connectors 2 x DisplayPort 1.2 Memory 8 GB (34 GB/sec) HDCP Compliance Capture, display, and scale HDCP sources Typical Power Consumption 24.6W (12V), 6.105W (3.3V) [Total: 30.705W] Catalyst XL Hardware Manual...

  • Page 23: Quad Mini-Hdmi Video Capture (3-540-334-01)

    * Captures signals up to 4096x2160 @ 60Hz resolution In YUV 4:2:0, 12 bits per pixel (8 bits per component). Video Modes RGB 24, YUV 4:2:2, YUV 4:2:0 Future Memory 8 GB (34 GB/sec) Backplane Connection PCIe x16 Gen 2 mechanical (x8 electrical) Figure 4.5: Female HDMI to Male Mini-HDMI Adapter (4-750-163-00) Catalyst XL Hardware Manual...

  • Page 24: Ip Decoder (3-450-304-02)

    Table 4.5: IP Decoder Specifications Connections 1 x RJ-45 Memory 8 GB (34 GB/sec) Bus Type PCIe x16 Gen 2 mechanical (x8 electrical) Resolution Number of Streams per Board 3840x2160x60 3840x2160x30 Decoding Capability 1920x1080x60 1920x1080x30 1280x720x60 704x480 Catalyst XL Hardware Manual...

  • Page 25: Quad Bnc Sdi Video Capture (3-540-312-01)

    Table 4.6: Quad BNC SDI Video Capture Specifications Connections 2 x 12G SDI, 2x 3G SDI • SD-SDI Customer Resolutions • HD-SDI • 3G-SDI Memory 8 GB (34 GB/sec) Bus Type PCIe x16 Gen 2 mechanical (x8 electrical) Catalyst XL Hardware Manual...

  • Page 26: J4 Multi-Monitor Control Boards

    Rotation, Multi-unit support, Bezel management, Clone mode, and HDCP support Multi-channel Video Scaling, Video Cropping, AAC, PCM, Stereo, and Mono Video & Audio Processing Audio format. Audio sampling rate 44.1 KHz and 48 KHz, 16-bit stereo Catalyst XL Hardware Manual...

  • Page 27: J4Hdmie Board (4-540-372-00)

    Rotation, Multi-unit support, Bezel management, Clone mode, and HDCP support Multi-channel Video Scaling, Video Cropping, AAC, PCM, Stereo, and Mono Video & Audio Processing Audio format. Audio sampling rate 44.1 KHz and 48 KHz, 16-bit stereo Catalyst XL Hardware Manual...

  • Page 28: Other Boards

    4.4 Other Boards 4.4.1 PCIe Bridge Board (3-540-302-00) Figure 4.10: PCIe Bridge Board The CPU Bridge cable (4-750-115-01) connects the Bridge Board in the Catalyst XL CPU Chassis to the Express Fabric Chassis. Figure 4.11: CPU Bridge Cable (4-750-115-01) Catalyst XL Hardware Manual...

  • Page 29: Pci Express Sound (3-540-225-00)

    Connections • Rear Left & Right Speaker Output • Optical Digital Output/Input • Internal Intel HD Audio Compatible Front Panel Header (2x5pin) Stereo/Surround up to 24bit/96kHz; SPDIF: up to 24-bit/96kHz Compliance UAA (Universal Audio Architecture) Compliant Catalyst XL Hardware Manual...

  • Page 30: Chassis, Drives And Accessories

    4-619-067-03 500 GB SSD in Carrier • 4-619-070-01 1 TB SSD in Carrier Figure 4.13: Catalyst XL CPU SSD in Carrier 4.5.2 CPU Chassis Power Supplies (5-612-056-00) The CPU Chassis is powered by a 700W supply. Figure 4.14: CPU Chassis Power Supplies...

  • Page 31: Express Fabric Chassis Power Supplies (5-612-061-00)

    The mid-chassis fans in the CPU Chassis are 40mm x 40mm x 56mm. Figure 4.16: CPU Chassis Fan 4.5.5 Express Fabric Mid-Chassis Fan (4-615-049-00) The mid-chassis fans in the Express Fabric Chassis are 90mm x 90mm x 25mm. Figure 4.17: Express Fabric Mid-Chassis Fan Catalyst XL Hardware Manual...

  • Page 32: Express Fabric Rear-Chassis Fan (4-615-042-00)

    Chapter 4: Boards and Accessories 4.5.6 Express Fabric Rear-Chassis Fan (4-615-042-00) The rear-chassis fans in the Express Fabric Chassis are 90mm x 90mm x 25mm. Figure 4.18: Express Fabric Rear-Chassis Fan Catalyst XL Hardware Manual...

  • Page 33: Chapter 5. Hardware Installation

    ARDWARE NSTALLATION The front panels of the Catalyst XL CPU Chassis and Express Fabric Chassis are shown in the figures below. The front panel power switch is a soft power switch, which leaves some standby power applied to the system.

  • Page 34: Figure 5.3 Catalyst Xl Express Fabric Chassis (Xle) Front Leds

    Chapter 5: Hardware Installation Table 5.1: Catalyst XL CPU Chassis Front Buttons and LEDs Indicator or Button Description Pressing the Reset switch will cause the system to do a hard system reset. System reset Any data not saved will be lost. It is recommended that you not reset the system unless there is no other way to restart it.

  • Page 35: Rackmount Installation

    Provide sufficient clearance behind the chassis to remove the 13 5/8” long power supplies. The Catalyst XL rack mounting kit is designed for a standard 19-inch rack with RapidRack rails with square 3/ 8” holes for the rack slides. Adapters for tapped rails are provided. Rear rack rails are required for supporting the rear of the chassis.

  • Page 36: Required Tools

    Chapter 5: Hardware Installation 5.2.2 Required Tools To install the Catalyst XL in the rack, you need the following tool: • Phillips head screwdriver CAUTION: For safety and protection of the equipment, it is recommended that two people lift and install the Catalyst chassis into the rack.

  • Page 37: Chapter 6. Removing & Replacing Components

    Chapter 6 & R EMOVING EPLACING OMPONENTS This Chapter describes how to remove and replace the components listed below in the Catalyst XL: • Memory Modules (DIMMs) • PCI Express Boards • Power Supplies • Battery • Hard Drive •...

  • Page 38: Catalyst Xl Cpu Chassis

    Chapter 6: Removing & Replacing Components 6.2 Catalyst XL CPU Chassis Figure 6.1: Catalyst CPU chassis internal components The Catalyst XL CPU Chassis has the following replaceable components: • Battery • Memory module (DIMMs) • PCI Express boards • Solid State Drives (SSDs) •...

  • Page 39: Cpu Chassis Top Cover Removal

    Catalyst XL CPU Chassis 6.2.1 CPU Chassis Top Cover Removal You will need to remove the top cover from the CPU to have access to the components. Figure 6.2: Removing CPU top cover Perform the steps in Section 6.1, First Things First on page 31...

  • Page 40: Cpu Chassis Battery

    To replace the battery put the far edge in first, up under the metal spring clip/contact, then press the battery down into the latch CAUTION! Be sure to observe the battery polarity when inserting into the holder. The positive (+) pole should be up. Note plus sign (+) on the battery. Catalyst XL Hardware Manual...

  • Page 41: Cpu Chassis Memory

    Figure 6.5: Memory location 6.2.4.1 Memory Support The Catalyst XL CPU Chassis supports up to 192 GB using 2666MHz ECC DDR4 SDRAM 72-bit, 288-pin / 1.2V DIMMs. Memory is provided in 16, 32, or 64 GB increments consisting of two 8, 16, or 32 GB DIMMs. The figure has the four 16 GB DIMMs which is the 64 GB base configuration.
  • Page 42 Use two thumbs together to press the notches on both ends of the module straight down into the slot until the module snaps into place Press the release tabs to the lock positions to secure the DIMM module into the slot Catalyst XL Hardware Manual...

  • Page 43: Cpu Pcie Boards

    Catalyst XL CPU Chassis 6.2.5 CPU PCIe Boards The PCIe slots are near the rear of the chassis Figure 6.6: PCIe slots 6.2.5.1 CPU PCIe Boards Removal Perform the steps in Section 6.1, First Things First on page 31 Perform the steps in Section 6.2.1, CPU Chassis Top Cover Removal on page 33...

  • Page 44: Ssd Replacement

    Chapter 6: Removing & Replacing Components 6.2.6 SSD Replacement The Catalyst XL must go through an orderly shutdown before removing the drive carrier from the receiver bay. Figure 6.7: CPU Chassis SSD Carrier The first SSD is in the leftmost carrier. SSDs are added moving to the next carrier to the right. Only the three leftmost carriers may be used.

  • Page 45: Catalyst 4Ru Express Fabric Chassis (Efc)

    6.3 Catalyst 4RU Express Fabric Chassis (EFC) Figure 6.9: Express Fabric Chassis internal layout The Express Fabric Chassis has several replaceable components: • PCI Express boards • Mid-chassis fans • Rear chassis fans • Power supplies Catalyst XL Hardware Manual...

  • Page 46: Catalyst Xle Top Cover Removal

    Rock the board out of its socket and gently remove the board from the chassis It is sometimes helpful to use the connector on the outside of the board bracket to help lift it out of the socket. Catalyst XL Hardware Manual...

  • Page 47: Efc Power Supplies (5-612-061-00)

    Align the power supply with its frame Gently push the power supply in When the power supply is nearly in press the red latch down and gently push the power supply the rest of the way in Catalyst XL Hardware Manual...

  • Page 48: Efc Rear Fans (4-615-042-00)

    Put the fan with its frame with the bottom part touching the chassis and the alignment nibs aligned with the alignment holes Tilt the fan toward the chassis Gently push the fan in until you hear the retention latch click Catalyst XL Hardware Manual...

  • Page 49: Efc Mid-Chassis Fan (4-615-049-00)

    6.3.6.2 EFC Mid-Chassis Fan Replacement Align the fan with the chassis frame with your thumb on the retention latch and the retention latch toward the rear of the chassis. Gently press the fan down until it is seated Catalyst XL Hardware Manual...
  • Page 50 This page has been intentionally left blank Catalyst XL Hardware Manual...

  • Page 51: Chapter 7. Raid Configuration

    Chapter 7 RAID C ONFIGURATION A Catalyst XL processor will not boot with a failed RAID array. Follow the procedure below if it is necessary to rebuild the array: Installing wipes the information on the drives. Before installing RAID: •...

  • Page 52: Figure 7.2 Ssata Raid Boot Select Sata Controller

    Arrow down to SATA/sSATA RAID Boot Select, press enter and select [SATA Controller] Figure 7.2: sSATA RAID Boot Select SATA CONTROLLER Typical settings for RAID 1 mode Figure 7.3: Typical settings for RAID 1 Save changes and exit BIOS Setup Catalyst XL Hardware Manual...

  • Page 53: Setup The Raid Array

    Once both drive’s show status as Non-RAID Disk, use arrow keys to select menu item: 1.Create RAID Volume then press <enter> Figure 7.4: Create RAID Volume Create Volume Menu In Name enter Jupiter, then click <enter> In RAID Level arrow through the RAID level selections and select RAID 1 (Mirror) Catalyst XL Hardware Manual...

  • Page 54: Figure 7.5 Select Raid1 (Mirror)

    When prompted “Are you sure you want to create this volume?”, enter Y for Yes to create volume the status of the RAID drives should appear as shown in Move the arrow to menu item 6. Exit This action will exit you out of the Intel RAID setup. The System will reboot. Catalyst XL Hardware Manual...

  • Page 55: Chapter 8. Technical Support

    8.2 Contact Information • Website www.jupiter.com /support • Phone 1-510-675-1000, option 1 • Email support@jupiter.com • Mail (physical) ATTN: Technical Support Jupiter Systems 31015 Huntwood Avenue Hayward, CA 94544-7007 Catalyst XL Hardware Manual...
  • Page 56 This page has been intentionally left blank Catalyst XL Hardware Manual...

  • Page 57: Appendix A. Return Merchandise Authorizations

    Appendix A ETURN ERCHANDISE UTHORIZATIONS This appendix details RMA policies and procedures. A.1 Return Merchandise Authorization (RMA) Policy To return any product for repair or replacement you MUST get an RMA number from Jupiter Systems BEFORE returning the product to us. In order to get an RMA number, you MUST speak to (or e-mail) a Tech Support person.

  • Page 58: A.2Shipping Policy

    All returns should be shipped freight prepaid. Any customs charges incurred by Jupiter on in-bound non-warranty shipments will be added to the repair charges. All systems are shipped back to the customer freight collect. Customer pays all customs charges incurred by using their own Customs Broker. Catalyst XL Hardware Manual...

  • Page 59: A.3Return Merchandise Authorization (Rma) Instructions

    Receiving will refuse any packages without RMA numbers visible on the outside of the package. Note: Note Please print the next page, cut out and use the mailing label with the RMA num- ber in the space provided. Catalyst XL Hardware Manual...
  • Page 60 Return Merchandise Authorizations Jupiter Systems 31015 Huntwood Avenue Hayward, CA 94544-7007 RMA # ______________ Catalyst XL Hardware Manual...

  • Page 61: Appendix B. Supported Adapters

    Appendix B UPPORTED DAPTERS Table B.1: Jupiter Adapters Description Jupiter Part Number For Use With... Photo DP to HDMI Active Adapter 4-750-158-00 4-540-337-00, Quad DisplayPort Output Board. Adapter pur- chased separately Mini-HDMI to HDMI Adapter 4-750-163-00 2-540-334-01, Video Capture Board, HDMI. Four Adapters come with board Mini-DisplayPort 1.2 to HDMI...

  • Page 62: Table B.2 Supported Adapters, 4-750-159-00

    Table B.2: Supported Adapters, 4-750-159-00 Description Adapter Information Photo HDMI Adapter-Active Mini- Accell Model# B086B-012B DisplayPort 1.2 to HDMI 2.0 Resolutions: 4K3840 x 2160 @ 60 Hz 4096 x 2160 @ 24 Hz Plugable MDP-HDMI (UPC: 819927010692) Catalyst XL Hardware Manual...

  • Page 63: Appendix C. Warranty

    Appendix C ARRANTY C.1 Statement of Limited Warranty FOR CATALYST DISPLAY WALL CONTROLLERS Jupiter Systems, (Jupiter) warrants that the Catalyst Display Wall Controllers sold by Jupiter are free from defects in material and workmanship and will perform in accordance with the product specification for a period of 24 months from the date of shipment from Jupiter.

  • Page 64: C.2Software Warranty And Special Provisions

    Jupiter has been advised of the possibility of such damages. In any case, Jupiter’s entire liability under any provision of this agreement shall be limited to the amount actually paid by you for the SOFTWARE. Catalyst XL Hardware Manual...

  • Page 65: Appendix D. Software License Agreement
