Summary of Contents for Brink Ease 200 Enthalpy

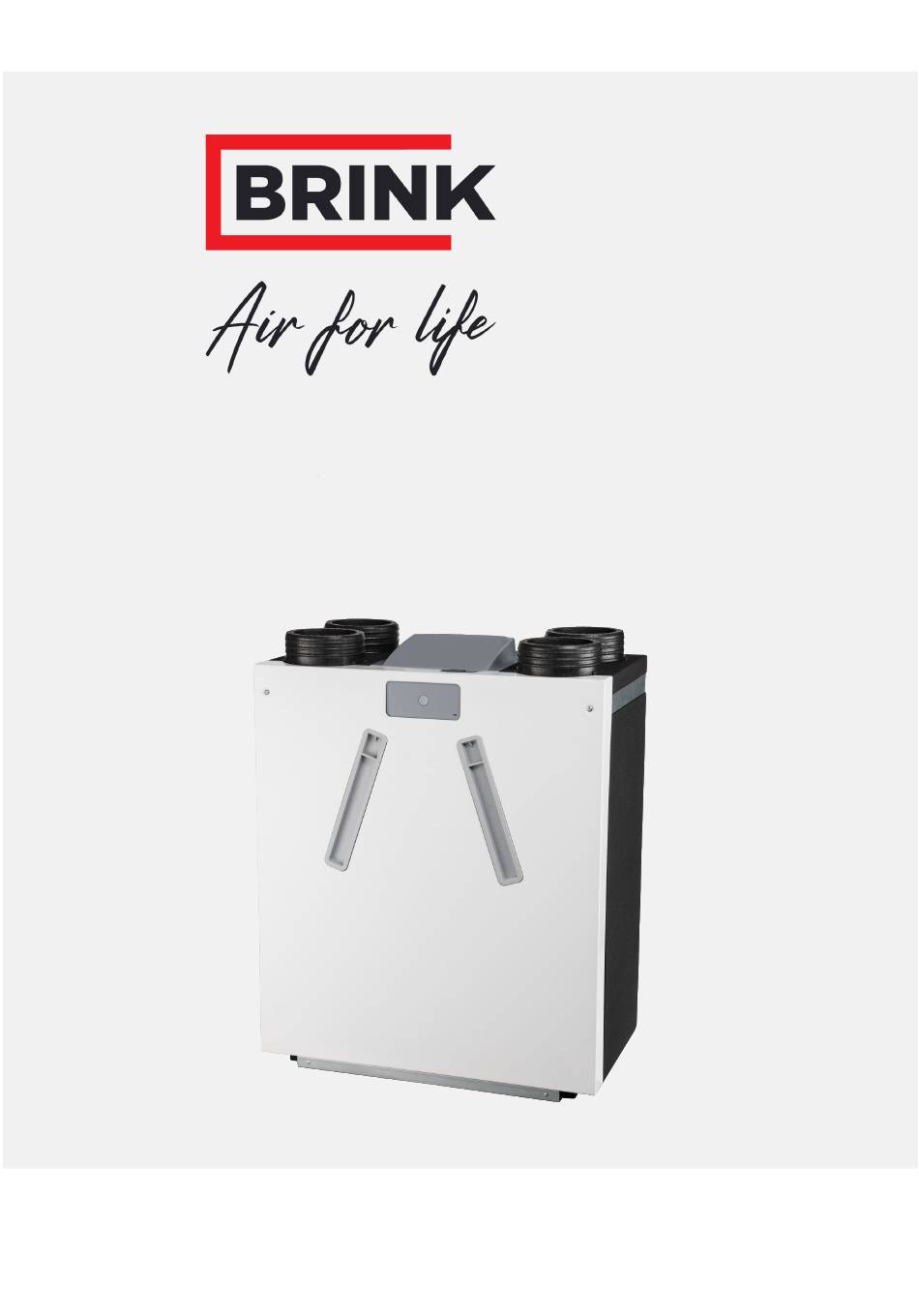

- Page 1 Installation regulations Ease 200 Enthalpy English...
-
Page 3: Installation Regulations
Children may not play with the appliance. If you need a new power cable, always order the replacement from Brink Climate Systems B.V. To prevent dangerous situations, a damaged mains connection must only... -
Page 4: Table Of Contents
4 Appliance features ......10 13.3 Connecting Brink Air Control ... 46 5 Technical specifications . -
Page 5: About This Document
Contractors trained and or authorized by Brink Climate Systems B.V. must also have the following qualifications: ▪ Product training for this appliance provided by Brink Climate Systems B.V.. ▪ The user is defined as somebody who has been trained to use the Ease 200 Enthalpy by a specialist. Ease 200 Enthalpy 617975-A Brink / 5... -
Page 6: Warnings
Situations that may result in potential equipment or property damage accidents. The warnings are laid out as follows: Warning Possibilities : Danger / Warning / Caution / Note Type and source of risk. Explanation of risk 1. Action to prevent the risk Brink / 6 Ease 200 Enthalpy 617975-A... -
Page 7: Safety
▪ Only qualified electricians are permitted to work on electrical components. ▪ ▪ The appliance may only be serviced or repaired by the Brink Climate Systems B.V. customer service team or a ▪ specialist authorized by Brink Climate Systems B.V.. -
Page 8: General Safety Information
▪ Brink Climate Systems B.V. recommends concluding an inspection and maintenance contract with a ▪ contractor trained by Brink Climate Systems B.V.. ▪ The appliance may only be serviced or repaired by the Brink Climate Systems B.V. customer service team ▪ or a specialist authorised by Brink Climate Systems B.V.. -
Page 9: Scope Of Delivery
Before starting the installation of the heat recovery appliance, check that it has been supplied in complete and undamaged condition. The delivery size of the heat recovery appliance type Ease 200 Enthalpy consists of the following components: 1. Heat recovery appliance. -
Page 10: Appliance Features
▪ Constant flow control. ▪ ▪ Humidity recovery. ▪ The Ease 200 Enthalpy is available in a Left-hand and Right-hand version. It is not possible to convert the left and right-hand models into one another. See → Connections -> page 13 for all the appliance connections. -
Page 11: Technical Specifications
*) Duct sound level including end correction In practice the value may differ by 1dB(A) through measurement tolerances. The stated value in the circle is the capacity (in Watt) per fan Resistance of duct system [Pa] Flow rate [m³/h] Ease 200 Enthalpy 617975-A Brink / 11... -
Page 12: Dimensions
5.2 Dimensions All indicated dimensions are in mm. Brink / 12 Ease 200 Enthalpy 617975-A... -
Page 13: Connections
5.3 Connections The Ease 200 Enthalpy appliance is available in a left-hand and right-hand version. Left-hand version: ▪ The “warm” connections supply air (1) and extract air (3) are on the left-hand side of the appliance. ▪ Right-hand version: ▪ The “warm” connections supply air (1) and extract air (3) are on the right-hand side of the appliance. -
Page 14: Overview Internal Parts
Outdoor air temperature sensor (NTC1) ModBus connection (X15/red) Supply air filter 24V connection (X16/black) Exhaust fan eBus connection (X17/green) Supply fan 24V connection (X18/black) Heat exchanger Relay output (X19/blue) Exhaust air filter 230V power supply cable Brink / 14 Ease 200 Enthalpy 617975-A... -
Page 15: Operation
Filter cleaning/replacement -> page 35 ). ▪ To change any settings of the appliance an external (optional) controller needs to be connected: ▪ Brink Air Control ( → Connecting Brink Air Control -> page 46 ). ▪ ▪ Service Tool (temporary connection only for installers). -
Page 16: Frost Protection
(ground) can then be done by just one switch. When X14 is used by a multi-position switch, the ''fire automation'' function can be activated with the use of a Brink / 16 Ease 200 Enthalpy 617975-A... - Page 17 Brink RJ12 splitter (article number 510472). Install the splitter between X14 on the appliance and the multi-position switch to maintain the use of the multi- position switch. The not used connection on the splitter can then be used for ''fire automation''.
-
Page 18: Installation
▪ Safety provisions for low-voltage installations. ▪ ▪ Any additional regulations of the local utilities. ▪ ▪ The installation regulations for the Ease 200 Enthalpy appliance. ▪ ▪ In addition to the above design and installation requirements and recommendations, the national building and ▪... - Page 19 ▪ Cut out the top of the cupboard with a jigsaw. ▪ ▪ Protect the cupboard and surroundings to prevent damages. ▪ ▪ Cut the drilling and mounting template to size. ▪ ▪ Determine the location of the appliance. ▪ Ease 200 Enthalpy 617975-A Brink / 19...
- Page 20 ▪ install the wall bracket with suitable screws and plugs. ▪ ▪ Install the 2 rubber strips in the back of the appliance. ▪ ▪ Hang the appliance on the wall bracket. ▪ Brink / 20 Ease 200 Enthalpy 617975-A...
-
Page 21: Connecting Air Ducts
▪ The location of the air valves must be chosen in such a way to prevent fouling and drafts. We recommend ▪ using Brink Climate Systems B.V. supply valves. ▪ Installed flexible silencers need to be accessible. ▪... -
Page 22: Electrical Connections
1 = Ease 200 Enthalpy right-hand version (place level). 2 = Preferred ventilation outdoor air inlet. 3 = Sewer release. 4 = Preferred location of exhaust air outlet; Use Brink Climate Systems B.V. insulated ventilation roof terminal. 5 = Thermally insulated ducts. 6 = Sound silencers. -
Page 23: Ebus Connection
From factory the Service Tool cable is connected onto connector X17, more accessories can be added; multiple connections on X17 are possible. The eBus connector can be used to connect the following accessories: ▪ Brink Air Control ( ® Connecting Brink Air Control -> page 46 ). -
Page 24: External Bus Connections
Note Use twisted pair cables for X15 connections. ▪ All coupled Ease 200 Enthalpy appliances operate on the ventilation mode that is set on the master appliance. ▪ ▪ The fault messages of all connected appliances are shown on the master appliance (red blinking LED). - Page 25 A = Multi-position switch B = 3-pole connector red C = Modular cable D = 3-core low voltage cable M = Master appliance S1 / S2 = Slave appliances; connect maximum of 10 appliances via InternalBus. Ease 200 Enthalpy 617975-A Brink / 25...
-
Page 26: Setting To Work
If the required installation conditions are not complied with, the air flow rate of the higher ventilation mode will automatically be adjusted. The air flow rates at each ventilation mode of the appliance have been factory set as follows: 0. 50m 2. 100 m 1. 75m 3. 150 m Brink / 26 Ease 200 Enthalpy 617975-A... -
Page 27: Changing Settings
Please note: The highest demanded ventilation mode has priority. If a multi-position switch, Brink Air Control or Brink Touch Control is connected and set to mode 3, the ventilation mode cannot be adjusted to a lower mode with the push button on the appliance. -
Page 28: Factory Reset
With this, all settings of the appliance will be reset back to factory settings and all message and fault codes will be deleted from the service menu. Returning to factory settings can be done with the optional Brink Air Control or with the Service Tool, please consult the relevant manual on Brink Climate Systems B.V. website. -
Page 29: Appliance Led Status Overview
The ventilation mode cannot be changed with the push button on the appliance when the red LED is on. Note The LED on the appliance will only illuminate blue when a USB stick with a newer software version is connected to the appliance. Ease 200 Enthalpy 617975-A Brink / 29... -
Page 30: Fault
▪ When connected/installed: ▪ ▪ 4 position switch with filter indication: LED flashes. ▪ ▪ Brink Air Control: Spanner symbol and error code on display. ▪ ▪ Brink Touch Control: Flashing triangle on display. ▪ The type of fault can be be read out with the Service tool (temporary connection only for installer). -
Page 31: Fault List
▪ Replace wiring harness or temperature ▪ sensor. E107* E1310 Extract air temperature Standby mode. ▪ Check Extract air temperature sensor ▪ sensor (NTC2) defect (NTC2) wiring. ▪ Replace wiring harness or temperature ▪ sensor. Ease 200 Enthalpy 617975-A Brink / 31... - Page 32 ▪ Appliance keeps running. ▪ Check thermal fuses ▪ ▪ ▪ Preheater is off ▪ Check preheater wiring. ▪ ▪ ▪ Frost protection without ▪ Repair wiring harness or replace ▪ ▪ preheater. preheater. Brink / 32 Ease 200 Enthalpy 617975-A...
- Page 33 E2803 Postheater element error ▪ Appliance keeps running. ▪ Check thermal fuses ▪ ▪ ▪ Postheater is off. ▪ Check postheater signal wiring. ▪ ▪ ▪ Repair wiring harness or replace ▪ postheater. Ease 200 Enthalpy 617975-A Brink / 33...
-
Page 34: Maintenance
To ensure correct functioning of the appliance it is important to regularly perform maintenance. A well maintained appliance has a positive influence on air quality, efficiency, noise level and life span. Brink Climate Systems B.V. recommends concluding a maintenance contract for the appliance with your installer. 11.2 Maintenance interval Required maintenance items of the appliance are indicated below. -
Page 35: User Maintenance
▪ 4-position switch with filter indication: LED illuminated red on 4-position switch. ▪ ▪ Brink Air Control: ''Filter'' on display. ▪ ▪ Brink Touch Control : Flashing triangle on display and the letters ''FIL'' appear. ▪ Cleaning or replacing filters: 1. Switch off the power supply. -
Page 36: Installer Maintenance
▪ Test the functioning of the bypass with the Service Tool . ▪ ▪ Test the functioning of the preheater (if installed) with the Service Tool . ▪ ▪ Test the functioning of the postheater (if installed) with the Service Tool . ▪ Brink / 36 Ease 200 Enthalpy 617975-A... - Page 37 1 = Torx T20 Warning Do not cut strapping tape. Disconnect the (4) fan connectors. Ease 200 Enthalpy 617975-A Brink / 37...
- Page 38 Disconnect the by-pass motor connectors. Brink / 38 Ease 200 Enthalpy 617975-A...
-
Page 39: Appliance Internal Maintenance
4. Moderate contamination can be dealt with by rinsing the exchanger carefully with warm tap water (max. 60°C). If necessary a mild detergent could be added - we recommend commercially available mild textile membrane detergents. Ease 200 Enthalpy 617975-A Brink / 39... -
Page 40: Bypass Maintenance
1. Remove all internal parts of the appliance ( → Removing components -> page 36 ). 2. Clean the bypass with a soft brush and a vacuum cleaner to remove all dust and pollution. 3. Check for damages or other anomalies. Brink / 40 Ease 200 Enthalpy 617975-A... -
Page 41: Electrical Diagram
12 Electrical diagram Ease 200 Enthalpy 617975-A Brink / 41... - Page 42 ModBussystem) With ModBus application remove the jumpers X121 & X122 Connection on ModBus system (option) Note * Left-hand version: 12 = Supply fan and 13 = Exhaust fan. Brink / 42 Ease 200 Enthalpy 617975-A...
-
Page 43: Electrical Connections Accessories
Connect a 4-position switch with filter indication as described below. The connected switch will work immediately when connected, no parameter changes are required. A = Ease 200 Enthalpy appliance. B = 4-position switch with filter indication. C = Modular cable: Note: For the modular cable that is used, the “tab” of both modular connectors must be mounted facing the mark on the modular cable. -
Page 44: Connecting Extra Multi-Position Switch With Filter Indication
Connect multiple 4-position switches with filter indication as described below. Connected switches will work immediately when connected, no parameter changes are required. A = Ease 200 Enthalpy appliance. B1 = Multiple switch with filter indication. B2 = Extra multi-position switch with filter indication. -
Page 45: Connecting Wireless Controls And Sensors
13.2 Connecting wireless controls and sensors Brink offers a series of remote controls/sensors that can be connected to a heat recovery system (G) by means of a USB transmitter/receiver(F). This series consists of 5 types of wireless remote controls/sensors (A-E) An optional signal amplifier (H) is available as well. -
Page 46: Connecting Brink Air Control
The wire from Air Control connector pin 1 goes into connector pin 2 on X17 and the wire from Air Control connector pin2 goes into connector pin 1 on X17. Connect a Brink Air Control as described below. Consult the Air Control manual as well. The Air Control will work immediately when connected, no parameter changes are required. -
Page 47: Connecting Humidity Sensor
Settings -> page 57 A = Front cover E = RH sensor cable (supplied in RH sensor set) B = Ease 200 Enthalpy appliance F = RH (humidity) sensor C = PCB G = Extract air duct. D = PCB Cover... -
Page 48: Connecting Co2-Sensor
▪ If necessary, set the minimum and maximum PPM value of each individual CO sensor(s) following ▪ parameters 6.2 to 6.9. A = Ease 200 Enthalpy appliance B = 2-pole control cable for 24V power supply (black connectors) C = 2-core control cable for eBus connection (green connectors) D = CO... -
Page 49: Connecting Demand-Driven Ventilation
2 = Power 24 VDC 3 = Brink Air Control 4 = Valve motor zone valve 5 = EBus connection X17 on Ease 200 Enthalpy appliance 6 = CO -sensors (only applicable when demand-driven based on CO 7 = Pcb demand-driven... -
Page 50: Connecting Preheater
▪ ▪ Set parameter 5.1 correctly. ▪ ▪ Connect the power plug to 230V after installation is complete. ▪ A = Ease 200 Enthalpy appliance. B = PCB UVP1. C = Heating element. D = Temperature sensor. Brink / 50... - Page 51 E = Airflow direction. F = Heat limiter (2pcs). G = Dipswitch setting Ease 200 Enthalpy preheater. Ease 200 Enthalpy 617975-A Brink / 51...
-
Page 52: Connecting Postheater
▪ Set parameter 5.1 and 5.3 correctly in the appliance. ▪ ▪ Connect the power plug to 230V after installation is complete. ▪ A = Ease 200 Enthalpy appliance. B = PCB UVP1. C = Heating element. D = Temperature sensor. - Page 53 E = Airflow direction. F = Heat limiter (2pcs). G = Dipswitch setting Ease 200 Enthalpy postheater. Ease 200 Enthalpy 617975-A Brink / 53...
-
Page 54: Service Parts
0 should not be entered). The serial number can be found on the type plate as well. The type plate is located on top of the appliance on the PCB cover. Brink / 54 Ease 200 Enthalpy 617975-A... -
Page 55: Service Parts List
To prevent dangerous situations, a damaged mains connection can only be replaced by a qualified expert. **** Brink Climate Systems B.V. supplies fans from different suppliers under the same service article number. All ordered Ease 200 Enthalpy fans are compatible for the appliance. Ease 200 Enthalpy 617975-A... -
Page 56: Exploded View Service Articles
14.3 Exploded view service articles Brink / 56 Ease 200 Enthalpy 617975-A... -
Page 57: Settings
Note Make sure the correct parameter is adjusted Check the description of the parameter from the parameter list with the description shown on the display/ screen of the Brink Air Control or Service Tool. Ease 200 Enthalpy appliance settings: Para-... - Page 58 (0=Master; 1 t/m 9 = Slave 1 t/m Slave 9) Central heating + heat recovery 12.1 Status ON/OFF Communication 14.1 Type of Bus connection ModBus OFF/ InternalBus/ ModBus 14.2 Slave address 1 - 247 For Modbus Brink / 58 Ease 200 Enthalpy 617975-A...
- Page 59 14.3 Baudrate 19k2 For Modbus 38k4/56k/115k2 14.4 Parity Even No/ Even/ Odd For Modbus Signal output OFF/ Only filter/ Only fault / Filter and 16.1 Signal output Connector X19 fault / External contact Ease 200 Enthalpy 617975-A Brink / 59...
-
Page 60: Declaration Of Conformity
2003 + A11:2004 + A12:2005 +AC:2006 + A1:2006 + ¨ EN 60335-2-40: A2:2009 + AC:2010 + A13:2012 ¨ EN 62233: 2008 + AC:2008 Staphorst, 18-11-2024 R.J.F. Maassen Country Manager Heating and Ventilation etherlands Brink / 60 Ease 200 Enthalpy 617975-A... -
Page 61: Erp Values
17 ERP values Technical information sheet Ease 200 Enthalpy in accordance with Ecodesign (ErP), no. 1254/2014 (Annex IV) Manufacturer: Brink Climate Systems B.V. Model: Ease 200 Enthalpy Annual Annual heating Climate SEC Value in electricity Type of control saved (AHS) in zone kWh/m²/a... - Page 62 A+ (Most efficient) SEC < -42 -42 ≤ SEC < -34 -34 ≤ SEC < -26 -26 ≤ SEC < -23 -23 ≤ SEC < -20 G (Least efficient) -20 ≤ SEC < -10 Brink / 62 Ease 200 Enthalpy 617975-A...
-
Page 63: Recycling And Disposal
1. Dispose of packaging made of cardboard, recyclable plastics and synthetic filler materials in an environmentally compatible manner through appropriate recycling systems or a recycling center. 2. Please observe the applicable national and local regulations. Ease 200 Enthalpy 617975-A Brink / 63... - Page 64 Brink Climate Systems B.V. Wethouder Wassebaliestraat 8, NL-7951SN Staphorst T: +31 (0) 522 46 99 44 E. info@brinkclimatesystems.nl www.brinkclimatesystems.nl...
