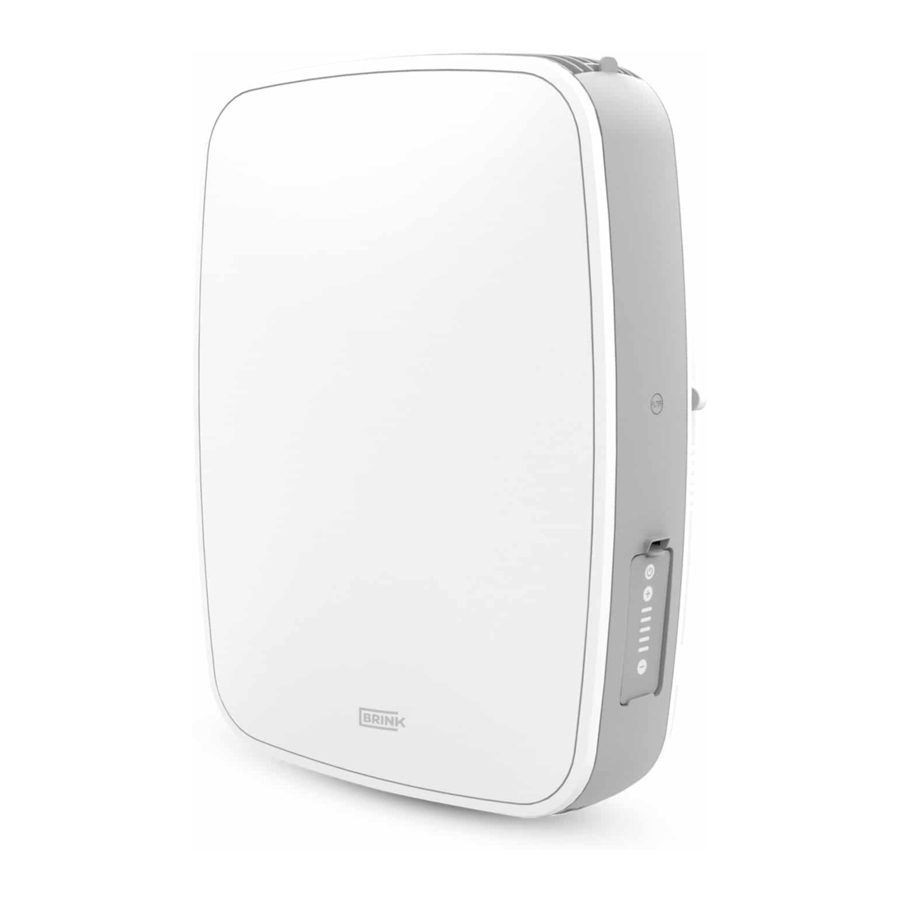

Summary of Contents for Brink Sonair

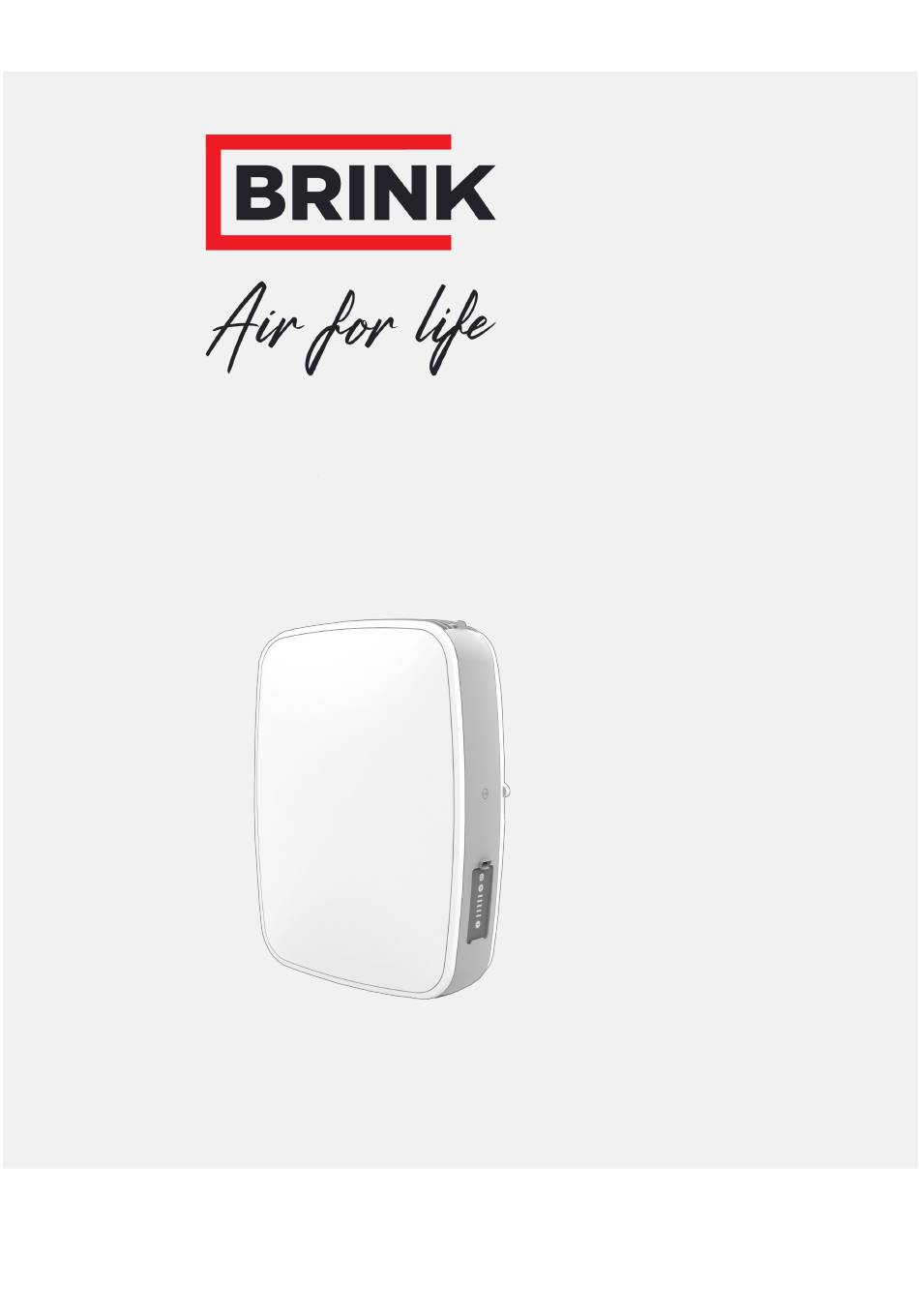

- Page 1 Installation regulations Sonair English...
- Page 3 Children may not play with the appliance. If you need a new power cable, always order the replacement from Brink Climate Systems B.V. To prevent dangerous situations, a damaged mains connection must only...
-
Page 4: Table Of Contents
3 Operation........8 3.1 How the Sonair works......8 3.2 Emergency mode. -
Page 5: Delivery
1 Delivery 1.1 Delivery size Before installation of the Sonair is started, check that it has been supplied in complete and undamaged condition. The delivery size of the appliance type Sonair consists of the following components: 1. Appliance Sonair 2. Mounting set 3. -
Page 6: General
Congratulations with the purchase of the Sonair ventilation system. Your Sonair will provide you with a constant supply of fresh and clean air to create a healthy and comfortable indoor climate. Your Sonair filters dust particles from the air and prevents noise from entering your home. Using your Sonair also prevents unnecessary energy loss through uncontrolled ventilation. -
Page 7: Technical Infomation
50 °C with a relative humidity of 0 to 90%. Fan speed Flow [m Rated power [W] 10.1 14.8 22.9 Rated current [A] 0.02 0.04 0.05 0.05 0.06 0.07 0.09 0.11 0.15 0.21 0.29 Sound power [dB(A)] <18 <22.5 28.5 53.5 58.5 Sonair 616595-B Brink / 7... -
Page 8: Operation
With a recirculation valve it is possible to mix the outside air with the recirculation air from the room. In this way the temperature of the air which comes out of the Sonair can be raised and the indoor air will be filtered as well. -
Page 9: Product Overview
16 how to replace the filter. Your Sonair can be fitted with different types of filter. The print on the filter shows what type of filter is installed in your Sonair. We recommend that you replace the filter in your Sonair every 6 months or when the filter message indicator appears. -
Page 10: Inlet Valve
3.3.4 Inlet valve The supply of outdoor air can be controlled by the air inlet valve. On the side of your Sonair you can see the position of the inlet valve handle. When the handle is at the bottom, the air inlet is open. When the handle is at the top, the air inlet is closed. -
Page 11: Filter Replacement Indicator
® filter and also how to reset the filter replacement indicator. 3.3.7 CO₂ sensor (option) When a Sonair is equipped with a CO sensor (1), it is mounted at the rear. To let the Sonair ventilate automatically according to the CO sensor, use the remote control to position 5 (2). -
Page 12: Installation
A qualified installer must install your Sonair. The Sonair ventilation unit supplies fresh, clean air to rooms in homes and buildings. To do this, the Sonair must be installed on the inside of an outside wall, and nearby a power socket/ supply. Before this is done, a hole must be drilled in the outside wall, a duct must be placed in the hole, and a grille must be placed on the outside wall. -
Page 13: Electrical Connection
4.2 Electrical connection Important Prevent water or other fluids from entering the Sonair. The appliance is not waterproof! Warning! At all times disconnect the power cable from the power socket for a filter change or troubleshooting. Your Sonair is fitted with a separate power cable. -
Page 14: Starting Appliance
Flow setting 5 60 m Flow setting 10 automatic ventilation 150 m according the optional fitted -sensor * The flow settings stated in this table have been measured with a Brink supply pipe Ø100mm and standard Brink grille. Sonair 616595-B... -
Page 15: Fault
6.1 Solving problems Warning Do not attempt to repair the Sonair yourself under any circumstances, as this will make the guarantee void. If the system problem persists, please contact your dealer. At all times disconnect the power cable from the power socket for a filter change or troubleshooting. -
Page 16: Maintenance
7 Maintenance 7.1 Replace filter We recommend that you replace the filter in your Sonair every 6 months or when the filter replacement indicator appears. Important Warning! It is not permitted to use the Sonair Remove the power cable from the power without filter! socket before replacing the filter. -
Page 17: Maintenance - Instructions
During the first months of running, it is also recommended to periodically control the conditions of the machine so that to establish a proper slot time according to the environmental conditions in which the product is installed. Sonair 616595-B Brink / 17... -
Page 18: Service Articles
Part : Remote control Article code : 535110 Quantity Appliance type, serial number and year of production are stated on the identification plate on the Sonair. Article description Article code S. Sonair – remote control 535110 S. Sonair – filter... -
Page 19: Conformity Declaration
P.O. Box 11 NL-7950 AA, Staphorst, The Netherlands Product: Appliance type: Sonair Sonair with CO₂ sensor The product described above complies with the following directives: - 2014/35/EU (low voltage directive) - 2014/30/EU (EMC directive) - RoHS 2011/65/EU (substances directive) - 2012/19/EU (WEEE directive) -
Page 20: Erp Values
10 ERP values Technical information sheet in accordance with Ecodesign (ErP), no. 1254/2014 (Annex IV) Manufacturer: Brink Climate Systems B.V. Model: Sonair Annual heating Climate SEC Value Annual electricity Type of control saved (AHS) in zone: in kWh/m²/a Class consumption (AEC) in kWh Manual - 10.52... -
Page 21: Recycling
11 Recycling Recycling Sustainable materials are used in the manufacture of this appliance. The packaging should be disposed of in a responsible manner and in accordance with governmental regulations. Sonair 616595-B Brink / 21... - Page 22 Brink Climate Systems B.V. P.O. Box 11, NL-7950AA Staphorst T: +31 (0) 522 46 99 44 E: info@brinkclimatesystems.com www.brinkclimatesystems.com...
