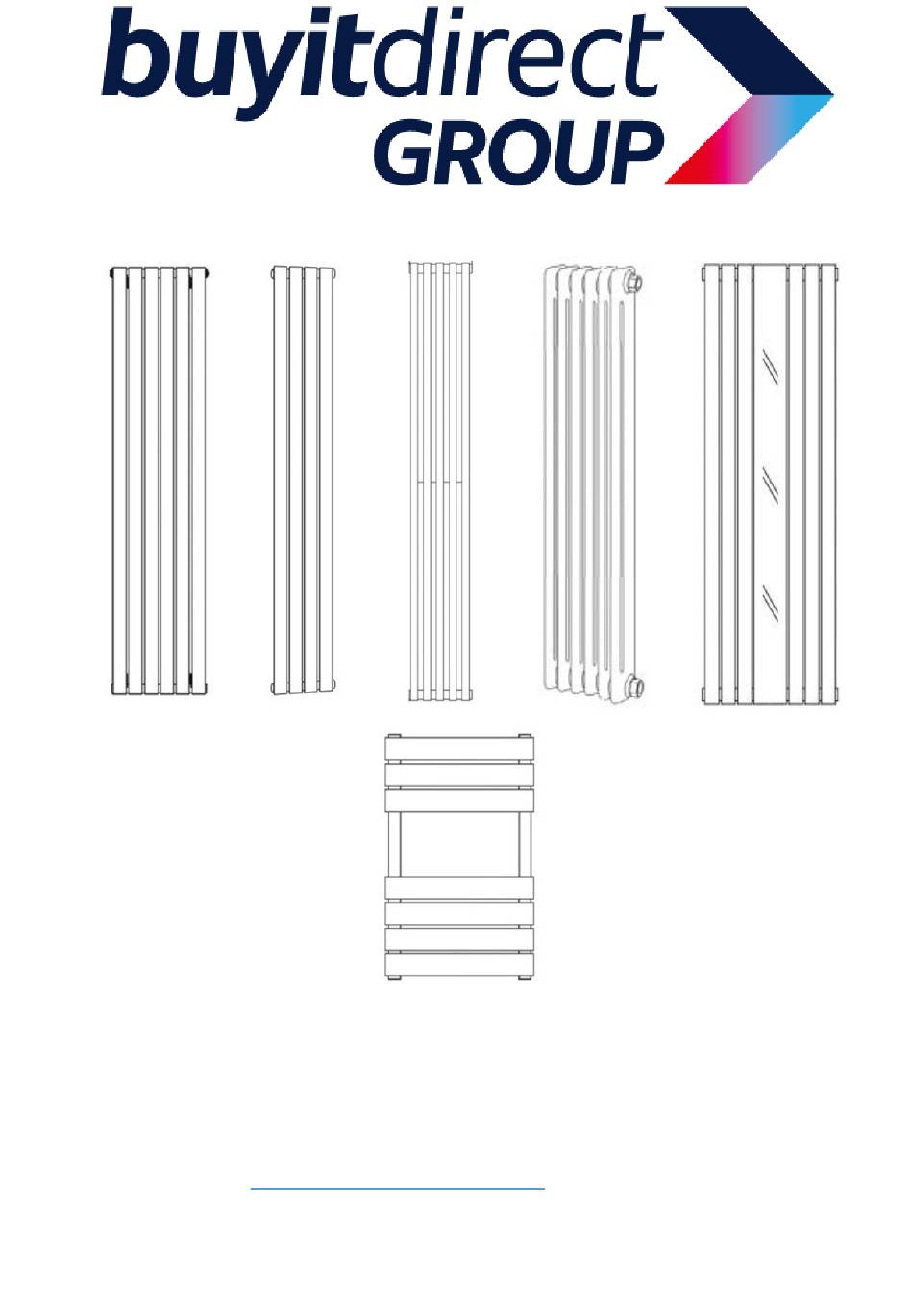

- Page 1 USER MANUAL DESIGNER RADIATORS Thank you for choosing buy it direct. Please read this user manual before using this heater and keep it safe for future reference. Visit our page, https://www.appliancesdirect.co.uk/ for our entire range of products.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS TOOLS REQUIRED INSTALLATION METHOD FOR ALL FOR HS/VS/HD/VD/VSM/VD/VSW STYLE INSTALLATION FOR COLUMN STYLE – HC / VC INSTALLATION FOR TOWEL RAIL - VSTR INSTALLATION CLEANING AND MAINTENANCE TROUBLESHOOTING SUPPORT Page 2 of 12... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT: Carefully read the instructions before operating the unit. • This radiator has been manufactured in line with BS EN 442-1. • Install the radiator indoors only. • Check the product and its parts for damage and missing parts prior to starting your installation. -
Page 4: Models Explained
MODELS EXPLAINED Model Style Image Reference Horizontal - Single-panel Vertical - Single panel Horizontal - Double panel Vertical - Double panel Vertical - Single panel - Mirror Vertical - Double panel - Mirror Vertical - Single panel - Wavy Horizontal - Column Vertical - Column Vertical - Single panel - Towel Rail VSTR... -
Page 5: For Hs/Vs/Hd/Vd/Vsm/Vd/Vsw Style Installation
FOR HS/VS/HD/VD/VSM/VDM/VSW STYLE IMPORTANT: All diagrams are solely for illustration purposes; the radiator you have purchased may not match the diagrams. PARTS Page 5 of 12... - Page 6 INSTALLATION 1. Place the radiator in your desired position, use the spirit level to ensure this is level, and then mark the four points for the brackets. 2. Drill the holes for the brackets and insert the wall plugs. Page 6 of 12...
- Page 7 3. Fix the brackets to the wall using the screws. Then, insert the silicon gaskets into the hook on the brackets. 4. Wrap PTFE tape around the blanking plug and bleeder valve. Then screw the blanking plug and air vent into the top of the radiator and tighten with a spanner.
-
Page 8: For Column Style - Hc / Vc Installation
FOR COLUMN STYLE – HC / VC PARTS INSTALLATION 1. Place the radiator in your desired position, use the spirit level to ensure this is level, and then mark the four points for the brackets. Leave room for the valves at the bottom Page 8 of 12... -
Page 9: For Towel Rail - Vstr Installation
2. Drill the 8 holes for the brackets and insert the wall plugs. Then, fix the brackets to the wall. 3. Wrap PTFE tape around the blanking plug and bleeder valve. Then screw the blanking plug and air vent into the top of the radiator and tighten with a spanner. - Page 10 INSTALLATION 1. Place the radiator in your desired position, use the spirit level to ensure this is level, and then mark the four points for the brackets. 2. Drill the 4 holes for the brackets and insert the wall plugs. 3.
-
Page 11: Cleaning And Maintenance
5. Wrap PTFE tape around the blanking plug and bleeder valve. Then screw the blanking plug and air vent into the top of the radiator and tighten with a spanner. Apply PTFE to the bottom valves, as explained earlier. 6. Fix the radiator by aligning the brackets and tightening the small screw. -
Page 12: Support
Buy It Direct UK SUPPORT Call 0330 390 3061 or complete the online form for any issues that are unrelated to your central heating system. Office hours: 9 AM - 5 PM, Monday to Friday https://www.appliancesdirect.co.uk/ Unit 2A, Trident Business Park, Neptune Way, Leeds Road, Huddersfield, HD2 1UA V20240829S Page 12 of 12...
