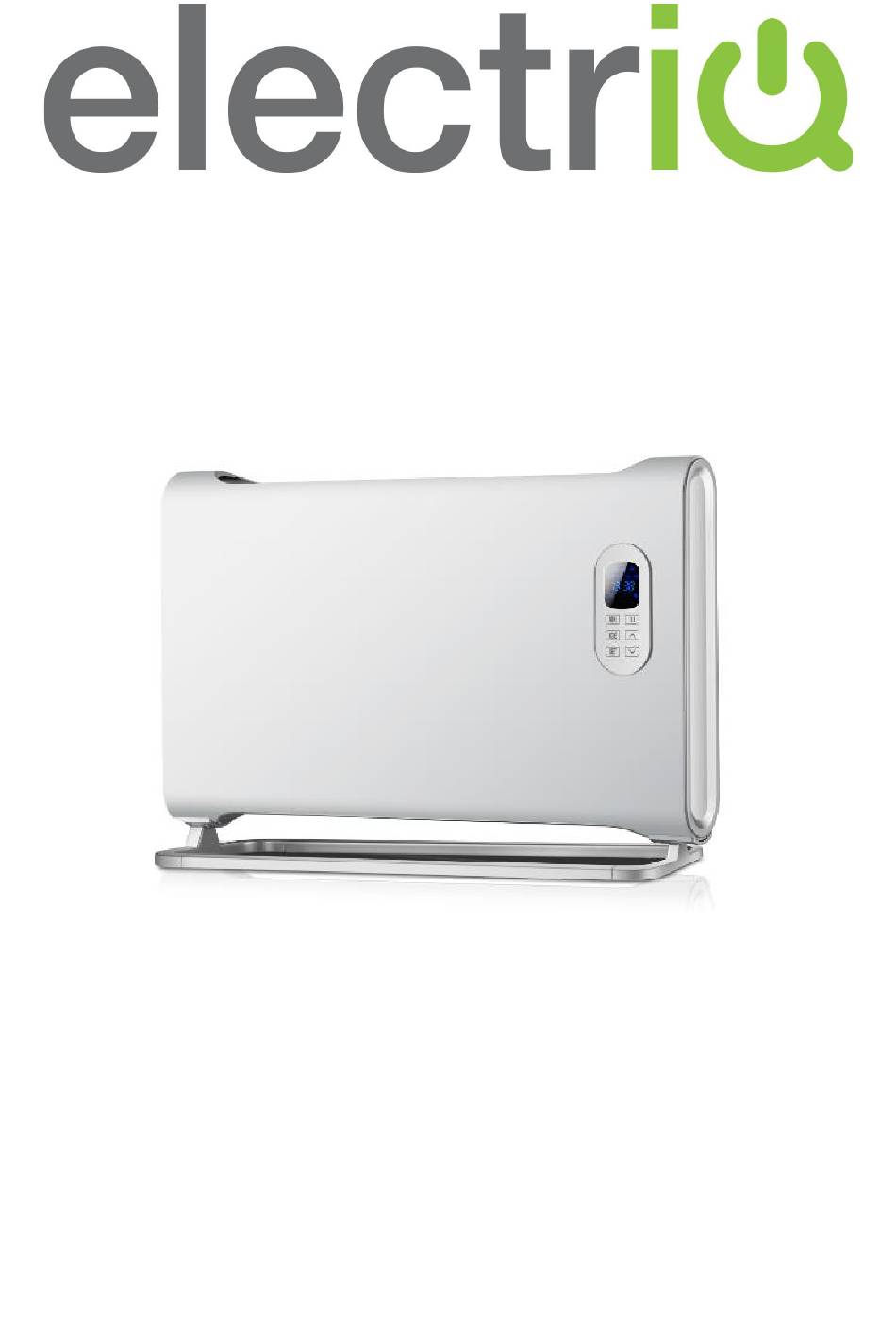

- Page 1 USER MANUAL DESIGNER PANEL HEATER DPHW1500W Thank you for choosing electriQ Please read the manual before using this heater and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire product range...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS PRODUCT OVERVIEW INSTALLATION OPERATION SETTING UP THE APP USING THE APP CLEANING AND MAINTENANCE TROUBLESHOOTING TECHNICAL SPECIFICATIONS SUPPORT PRODUCT FICHE... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT • Carefully read the instructions before operating the unit • This appliance is for indoor use only. • Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. • Installation must be in accordance with the regulations of the country where the unit is used. - Page 4 • Always ensure the unit is secure before operation. Do not use on unstable or uneven surfaces and if wall-mounted, it must be securely attached to a suitable wall. • Do not move or tilt the unit. • Avoid keeping the unit in direct sunlight for a long period of time. •...
-
Page 5: Installation
INSTALLATION WALL MOUNTING Ensure that there are no internal pipes or wiring where drilling will be taking place. Mark the 4 mounting holes with a width 280mm and height of 280mm and 158mm apart as shown in the diagram. Check that the holes you have marked align with the mounting bracket and use a spirit level to ensure that the holes are level. -
Page 6: Product Overview

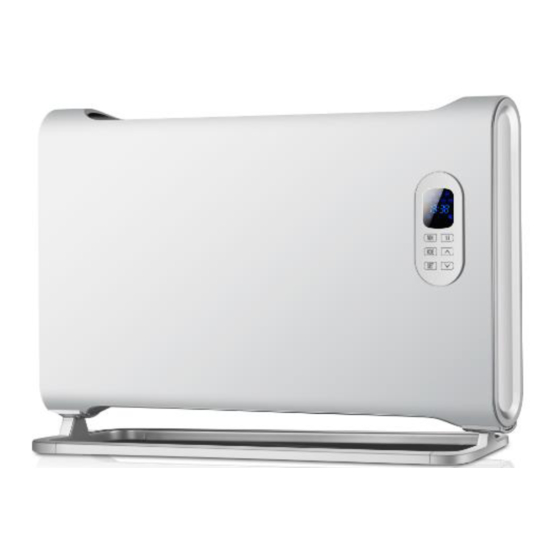

PRODUCT OVERVIEW Stand CONTROL PANEL Display Screen Heat Level Selection Child Lock Timer Temperature Up Temperature Down Standby... -
Page 7: Operation
OPERATION Standby The Standby button is used to turn the unit on and off When turned on the LCD will be illuminated and the room temperature displayed Heat Level The Heat Level button changes between Eco Mode (750W), and Rapid Heat (1500W). -
Page 8: Setting Up The App
CONNECTING THE APPLIANCE TO WIFI DOWNLOAD THE APP TO YOUR PHONE Download the” TUYA SMART” app, from your chosen app store, using the QR codes below, or by searching for the app in your chosen store. Android MODES AVAILABLE FOR SETUP The heater has two different setup modes, Quick Connection and AP (Access Point). - Page 9 REGISTER THE APP 1. Press on the register button Read the Privacy policy and 3. Enter your email address or at the bottom of the screen. press the Agree Button. phone number and press continue to register. 4. A verification code will be 5.
- Page 10 SETTING UP YOUR HOME WITHIN THE APP TUYA is designed so it can work with a large number of compatible smart devices within your home. It can also be set up to work with multiple devices within different houses as such during the setup process, the app requires that different areas are created and named to allow easy management of all your devices.
- Page 11 CONNECTING USING THE QUICK CONNECTION METHOD Before initiating the connection, make sure the WiFi indicator is flashing twice per second. If not follow the instructions for changing the connection mode. Also ensure your phone is connected to the WiFi network. (We advise turning mobile data off during setup) 1.
- Page 12 CONNECTING USING AP MODE (ALTERNATIVE METHOD) Before initiating the connection, make sure the unit is in standby mode, with the WiFi Indicator flashing once per second. If not follow the instructions for changing the WiFi connection mode. Also ensure your phone is connected to the WiFi network. (We advise turning mobile data off during setup) 1.
-
Page 13: Using The App
CONTROLLING YOUR APPLIANCE THROUGH THE APP THE HOME SCREEN Each device has its own entry on the home screen to allow the user to either quickly turn the unit on or off, or to enter the device screen to make other changes. Voice Control: Press to Add Device: Add a device give verbal instructions for... - Page 14 DEVICE SCREEN The device screen is the main control screen for the heater, providing access to the controls to amend the functions and settings. Device Name Edit Name: Use to Back: Returns to the change the name of the Home Screen heater Desired Temperature:...
- Page 15 SMART SCENES Smart Scenes is a powerful tool providing the option to customize the operation of the air heater based both on conditions within the room and outside influences. This gives the user the option of specifying much more intelligent actions. These are split into two categories Scene and Automation.
- Page 16 AUTOMATION Automation allows an automatic action to be set up for the device. This can be triggered by the Time, and a range of other influences, depending what other TUYA enabled devices you have on the network. 3. Press on the + at the top of 2.
- Page 17 PROFILE TAB The profile tab gives you the option to edit both your detail, and use the added features of the unit. HOME MANAGEMENT Home Management proves options for managing your TUYA account, giving options such as adding a home, adding and removing rooms, and sharing devices with family.
-
Page 18: Cleaning And Maintenance
2. If the heater is damaged discontinue use and contact the service centre. If the above solutions do not resolve the problem please contact the service centre. TECHNICAL DATA Model no. DPHW1500W Voltage 220V-240V 1.5kW Frequency 50 / 60 Hz Max power... -
Page 19: Technical Specifications
Lowfields Way, Elland West Yorkshire, HX5 9DA DECLARATION OF CONFORMITY Hereby, electriQ declares that this heater follows Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.electriQ.co.uk/content/declaration-of-conformity Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled separately as special treatment is necessary. -
Page 20: Product Fiche
Contact electriQ, Unit J6, Lowfields Business Park, Lowfields Way, Elland, Details West Yorkshire, HX5 9DA...
