USER MANUAL

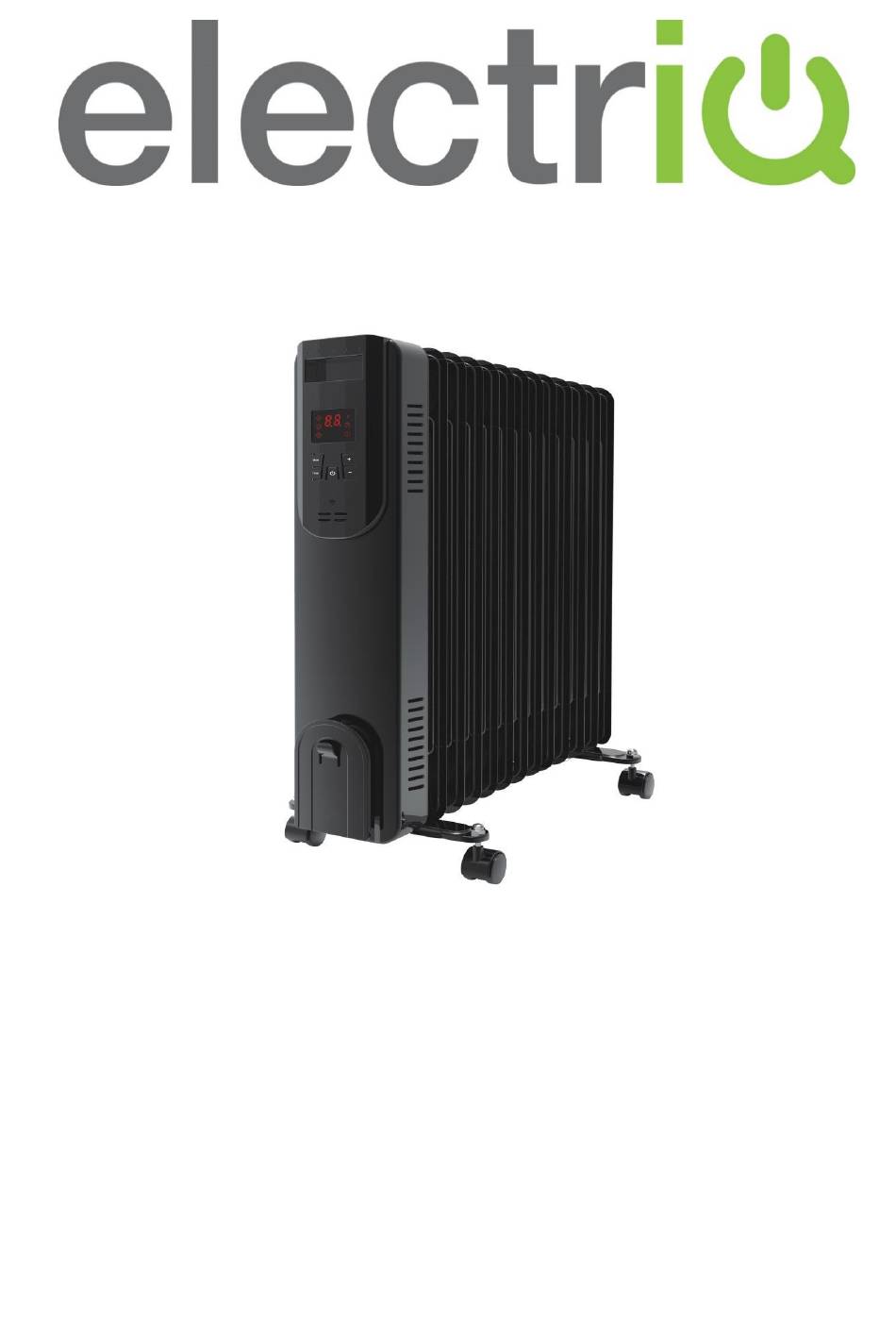

OIL FILLED RADIATOR
DragonPlus7-1.5W
DragonPlus9-2.0W
DragonPlus11-2.5W
Please read the manual before using this heater
and keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire product range
THIS PRODUCT IS ONLY SUITABLE FOR WELL INSULATED SPACES OR
Thank you for choosing electriQ
OCCASIONAL USE.
DragonPlus7-1.5WB
DragonPlus9-2.0WB
DragonPlus11-2.5WB
Advertisement
Table of Contents
Related Manuals for ElectrIQ DragonPlus7-1.5W
Summary of Contents for ElectrIQ DragonPlus7-1.5W
- Page 1 Thank you for choosing electriQ Please read the manual before using this heater and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire product range THIS PRODUCT IS ONLY SUITABLE FOR WELL INSULATED SPACES OR OCCASIONAL USE.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS PRODUCT OVERVIEW DISPLAY CONTROL PANEL REMOTE CONTROL OPERATION CONNECTING THE APPLIANCE TO WIFI CONTROLLING YOUR APPLIANCE THROUGH THE APP MAINTENANCE TROUBLESHOOTING TECHNICAL DATA SUPPORT PRODUCT FICHE... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT Carefully read the instructions before operating the unit This appliance is for indoor use only. Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet. Installation must be in accordance with regulations of the country where the unit is used. - Page 4 Do not use an external timer. Do not cover the appliance, or place items close to the unit which may restrict airflow, as this may present a fire risk. The heater must not be located immediately below a socket outlet. ...
-
Page 5: Product Overview
PRODUCT OVERVIEW 1. Handle 2. Digital display screen 3. Control panel 4. Power switch 5. Cord storage with hook 6. 2 x mounting plates ACCESSORIES Remote Control Mounting Plates Castors U-Shaped Bolts Butterfly Screws... -
Page 6: Display
ASSEMBLY INSTRUCTIONS • The castors must be attached before the heater is operated. • Castors are supplied with the device. You must mount them on the supplied mounting plates and then attach these to the unit before use. WARNING: Do not operate without the castors. Only operate the heater in an upright position. -
Page 7: Control Panel
CONTROL PANEL The unit can be operated using the remote control or the control panel on the side of the unit. Increase Change the heat desired level between Low, Temperature Medium and High Set the Standby / Decrease desired Start Timer Temperature On / Off Button Please note the unit must be turned on using the power switch before use... -
Page 8: Operation
OPERATION Turning ON/OFF • Press the power switch on the side of the unit to the "ON" position to power the unit. The power symbol will illuminate on the display. • Press the "ON/OFF" button on the control panel or remote control. The unit will start to operate at the High heat setting. - Page 9 MODES AVAILABLE FOR SETUP The heater has two different setup modes, Quick Connection and AP (Access Point). The quick connection is a quick and simple way to set the unit up. The AP connection uses a direct local Wi-Fi connection between your phone and the heater to upload the network details.
-
Page 10: Connecting The Appliance To Wifi
CONNECTING THE APPLIANCE TO WIFI DOWNLOAD THE APP TO YOUR PHONE Download the” TUYA SMART” app, from your chosen app store, using the QR codes below, or by searching for the app in your chosen store. Android... - Page 11 REGISTER THE APP 1. Press on the register button Read the Privacy policy and 3. Enter your email address or at the bottom of the screen. press the Agree Button. phone number and press continue to register. 4. A verification code will be 5.
- Page 12 SETTING UP YOUR HOME WITHIN THE APP TUYA is designed so it can work with a large number of compatible smart devices within your home. It can also be set up to work with multiple devices within different houses as such during the setup process, the app requires that different areas are created and named to allow easy management of all your devices.
- Page 13 CONNECTING USING THE QUICK CONNECTION METHOD Before initiating the connection, make sure the unit is in standby mode (Power switch ON, but unit turned off), with the power indicator flashing twice per second. If not follow the instructions for changing the connection mode. Also ensure your phone is connected to the Wi-Fi network.
- Page 14 CONNECTING USING APP MODE ALTERNATIVE METHOD Before initiating the connection, make sure the unit is in standby mode, with the power Indicator flashing once per second. If not follow the instructions for changing the Wi- Fi connection mode. Also ensure your phone is connected to the Wi-Fi network. (We advise turning mobile data off during setup) 1.
-
Page 15: Controlling Your Appliance Through The App
CONTROLLING YOUR APPLIANCE THROUGH THE APP THE HOME SCREEN Each device has its own entry on the home screen to allow the user to either quickly turn the unit on or off, or to enter the device screen to make other changes. Voice Control: Press to Add Device: Add a give verbal instructions for... - Page 16 DEVICE SCREEN The device screen is the main control screen for the heater, providing access to the controls to amend the functions and settings. Edit Name: Use to Device Name Back: Returns to the change the name of the Home Screen heater Current Mode: Shows the mode the heater is...
- Page 17 SMART SCENES Smart Scenes is a powerful tool providing the option to customize the operation of the air heater based both on conditions within the room and outside influences. This gives the user the option of specifying much more intelligent actions. These are split into two categories Scene and Automation. SCENE Scene allows for a one touch button to be added to the Home Screen.
- Page 18 AUTOMATION Automation allows an automatic action to be set up for the device. This can be triggered by the Time, and a range of other influences, depending what other TUYA enabled devices you have on the network. 3. Press on the + at the top of 2.
- Page 19 PROFILE TAB The profile tab gives you the option to edit both your detail, and use the added features of the unit. HOME MANAGEMENT Home Management proves options for managing your TUYA account, giving options such as adding a home, adding and removing rooms, and sharing devices with family.
-
Page 20: Maintenance
MAINTENANCE CLEANING AND STORAGE ATTENTION: Please shut off the unit and unplug from the mains before cleaning or performing any maintenance. CLEANING THE SURFACE Clean the heater with a duster or a soft wet cloth. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage. -
Page 21: Technical Data
2.5kW Maximum continuous thermal power DECLARATION OF CONFORMITY Hereby, electriQ declares that this heater is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.electriQ.co.uk/content/declaration-of-conformity electriQ UK SUPPORT www.electriQ.co.uk/support... -
Page 22: Product Fiche
Contact electriQ, Unit J6, Lowfields Business Park, Lowfields Way, Elland, Details West Yorkshire, HX5 9DA... - Page 23 Contact electriQ, Unit J6, Lowfields Business Park, Lowfields Way, Elland, Details West Yorkshire, HX5 9DA...
- Page 24 Contact electriQ, Unit J6, Lowfields Business Park, Lowfields Way, Elland, Details West Yorkshire, HX5 9DA...
