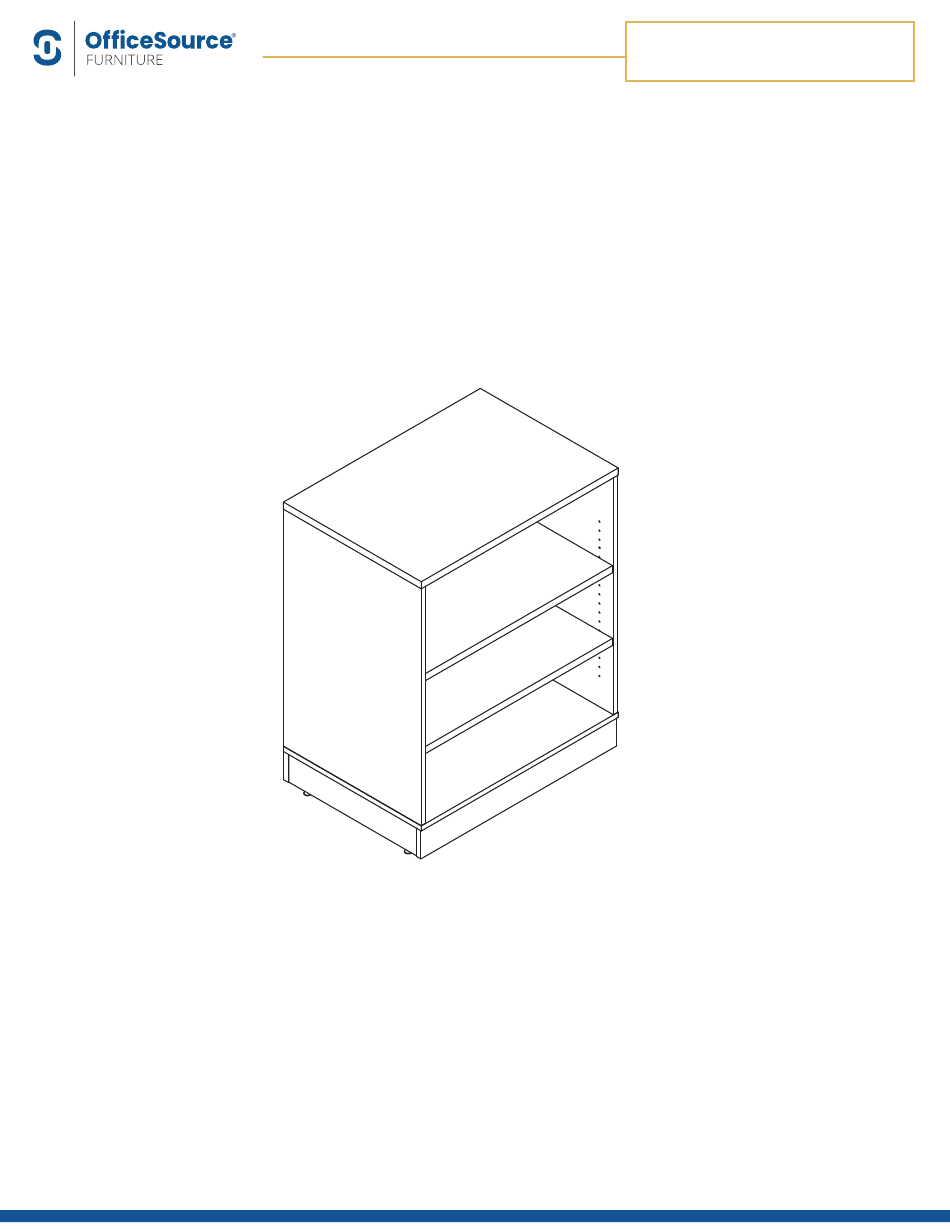

- Page 1 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222BC RCN3222BC OFFICESOURCE.COM Last Updated: 03/2023...
- Page 2 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222BC Part 1 of 4 INSTALL THE "E" LEVELERS ON THE BOTTOM OF BASE SUPPORT 6 . E(4x) Tighten INSTALL "A" CAM SCREWS AND "D" DOWELS INTO SIDE PANEL 3 AND "B" KLIX CAMS INTO BACK PANEL 5 . CONNECT PANEL 3 TO 5 . TIGHTEN.
- Page 3 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222BC Part 2 of 4 INSTALL "A" CAM SCREWS AND "D" DOWELS ON UNDERSIDE OF TOP 1 & BOTTOM PANEL 4 . A(12x) D(8X) INSTALL "B" KLIX CAMS INTO SIDE PANELS 2 3 & 5 . THEN CONNECT BOTTOM PANEL 4 TO 2 3 &...
- Page 4 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222BC Part 3 of 4 INSERT "F" SHELF PEGS INTO SIDE PANELS 2 AND 3 . SET SHELVES 7 ON TOP OF PEGS. F(8X) USE "C" CAM COVER STICKERS TO COVER ALL EXPOSED KLIX CAMS.
- Page 5 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222BC Part 4 of 4 7.COMPLETED RCN3222BC OFFICESOURCE.COM Last Updated: 03/2023...
- Page 6 ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222BC OFFICESOURCE.COM Last Updated: 03/2023...
