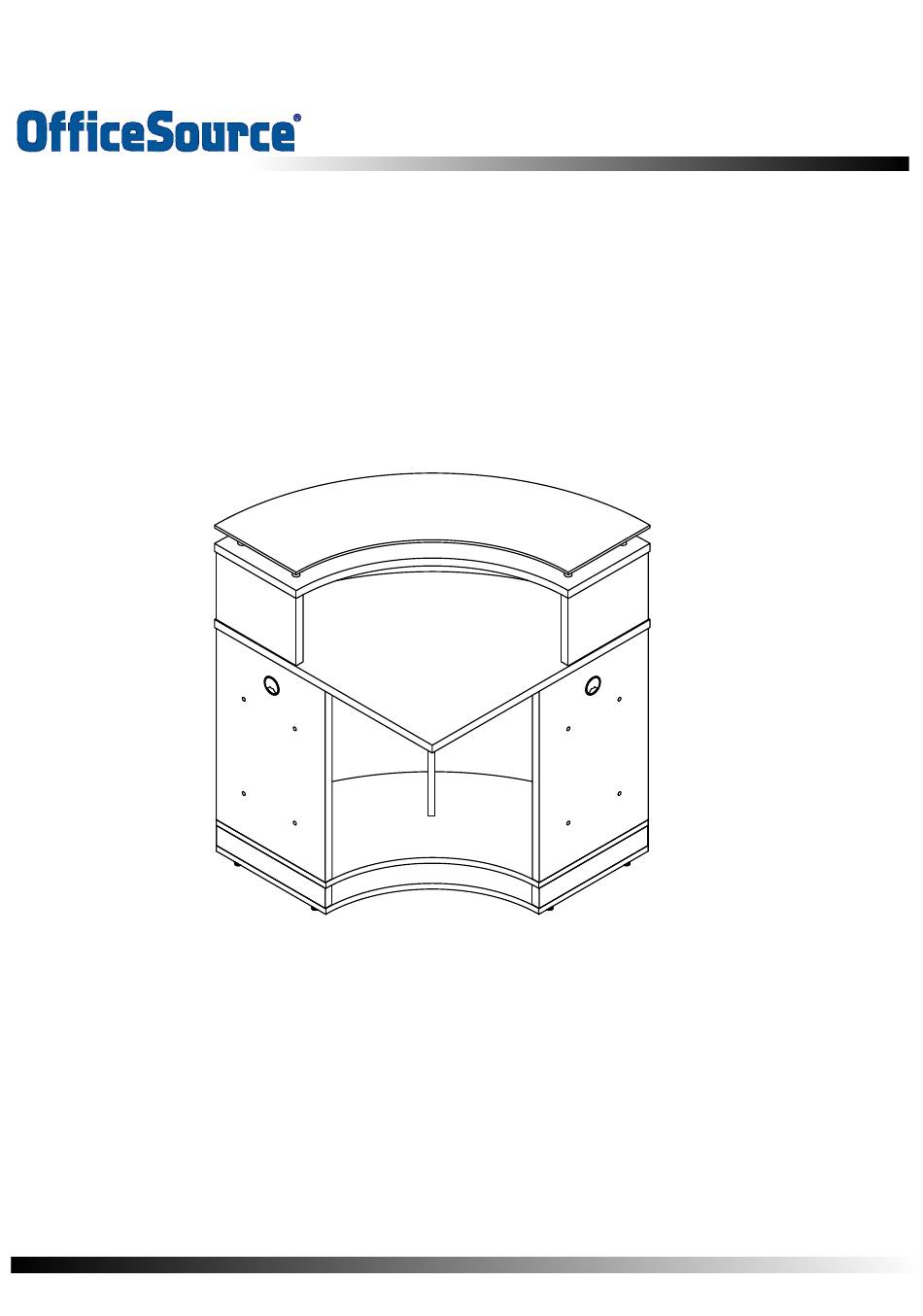

- Page 1 ASSEMBLY INSTRUCTIONS RCN3131C...
- Page 2 PICTURE NAME TOTAL QTY REMARK CAM SCREW 20PCS 20PCS KLIX CAM use cam covers CAM COVER STICKER 28PCS to cover any klix GLASS SPACERS 5PCS SCREWS Use to connect to CONNECTOR SCREW 4PCS another desk 2PCS GROMMET LEVELER 5PCS RCN3131C...
- Page 3 DESK BOTTOM Base BASE BOTTOM Double CENTER SUPPORT PANEL CURVED GLASS COUNTER TOP Note: Additional Parts 15, 19, and 20 Included Bottom Parts 21, 22, 23, 24, and 25 come Pre-Assembled. INSTALL "I" LEVELERS ON THE BOTTOM OF I(5x) RCN3131C...
- Page 4 <1> INSTALL "A" CAM SCREWS IN 21 AND "B" KLIX CAMS IN 17 18 AND 20 .CONNECT 17 18 AND 20 TO 21 ,TIGHTEN. A(6x) B(6x) IMPORTANT: FUNCTION OF KLIX CAX 1/4 RIGHT TURN FOR LOCKING MAKE SURE THE ARROW IS POINTING TO THE OPEN HOLE BEFORE INSERTING INTO THE PANELS HOLE RCN3131C...
- Page 5 INSTALL "A" CAM SCREWS ON UNDERSIDE OF TOP 16. INSTALL "B" KLIX CAMS ON PANELS 17 , 18 AND 20 . CONNECT 16 TO 17 , 18 AND 20 USING INSTALLED CAM SCREWS AND KLIX CAMS. TIGHTEN. A(6x) B(6x) RCN3131C...
- Page 6 B(4X) INSTALL "A" CAM SCREWS ON THE UNDERSIDE OF COUNTER TOP 12 . INSTALL "B" KLIX CAMS ON SUPPORTS 13 AND 14 . CONNECT 12 TO 13 AND 14 USING INSTALLED CAM SCREWS AND KLIX CAMS. TIGHTEN. A(4X) B(4X) RCN3131C...
- Page 7 "F1" GLASS SPACERS AND "F2" SCREWS WITH CARE. F1(5x) F2(5x) USE "C" CAM COVER STICKERS TO COVER ALL EXPOSED KLIX CAMS ON ALL COMPONENTS. C(28X) Note: If using on an end, Use "C" cam cover stickers to cover additonal holes on 17 and/or 18 . RCN3131C...
