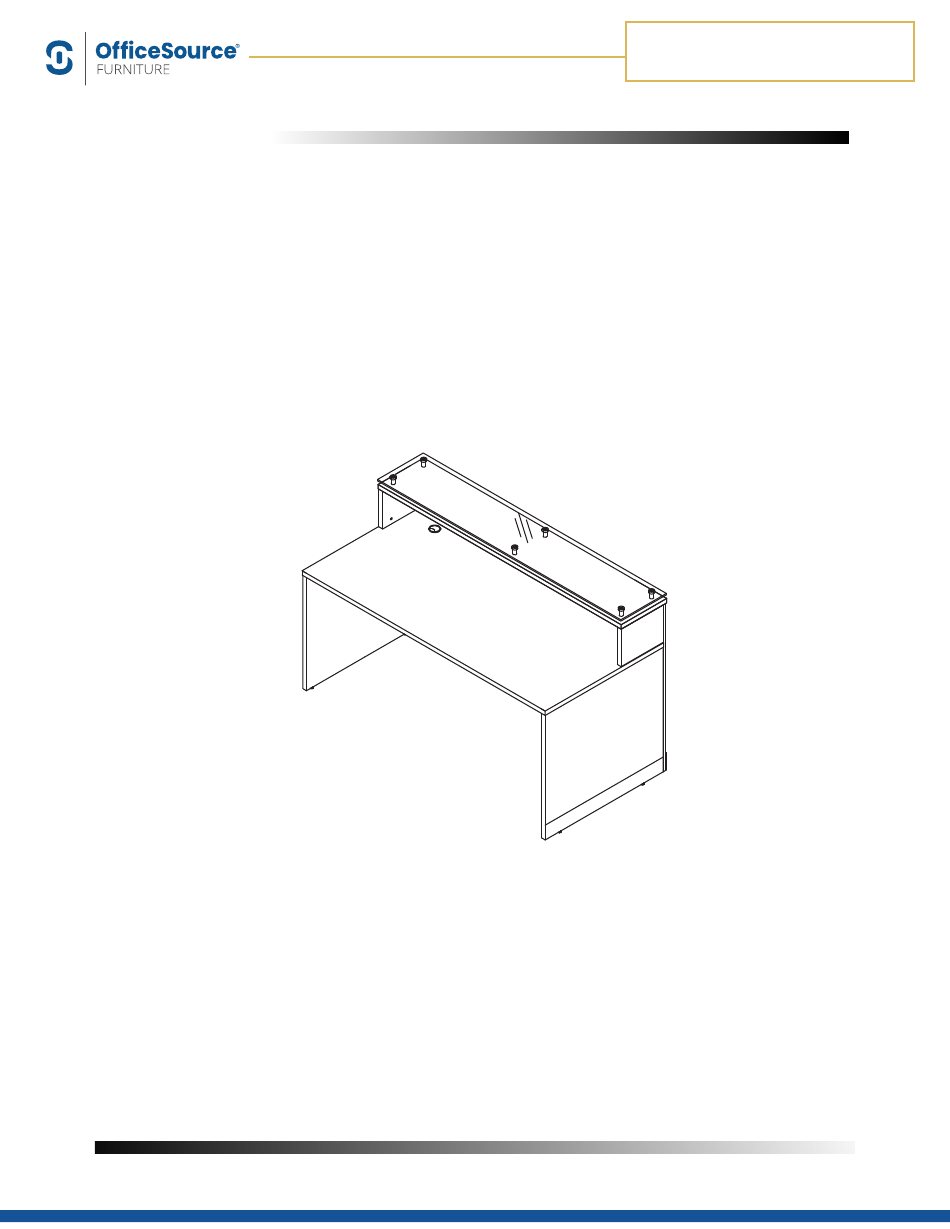

- Page 1 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS RCN4731 OFFICESOURCE.COM Last Updated: 11/2022...
- Page 2 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS Assembly HARDWARE PICTURE NAME TOTAL QTY REMARK 24+1(SPARE) Cam Screw 24+1(SPARE) Klix Cam 25+1(SPARE) Cam Cover Sticker Use to cover any klix cam or desk top hole. 20+1(SPARE) Dowel Grommet 4PCS 2x metal silver and 2x black plastic...
- Page 3 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS OPTION 1 WHEN ATTACHING BETWEEN TWO DESKS. SEE STEPS 1 THROUGH 15. OPTION 2 WHEN CREATING A STAND ALONE DESK WITH SHORT DESK SIDE PANELS: SEE STEPS 16 THROUGH 30. OPTION 3 WHEN ATTACHING TO OTHER DESKS, SEE STEPS 31 THROUGH 45.
-
Page 4: Part List
ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS Option 1: Steps 1 through 15 to create a desk to go between two desks. Use short side panels 11 and 12 and short desk side panels 9 and 10 . PART LIST... - Page 5 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS 1. INSTALL "I" LEVELERS ON THE BOTTOM OF 11 & 12 . I(4X) INSTALL "A" CAM SCREWS, "B" KLIX CAMS AND "D" DOWELS ON UNDERSIDE OF TOP 1 . A(4X) B(2X) D(4X) IMPORTANT:...
- Page 6 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS CONNECT TOP 1 TO SIDE PANELS 11 & 12 USING ALREADY INSTALLED "B" KLIX CAMS , "A" CAM SCREWS AND "D" DOWELS. TIGHTEN. Tighten 5. INSERT "E" GROMMETS ON DESK TOP 1 . INSTALL "A" CAM SCREWS AND "D" DOWELS ON TOP 1 .
- Page 7 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS 6. INSERT "B" KLIX CAMS TO SHORT DESKTOP SIDE PANELS 9 & 10 . B(8X) CONNECT SHORT SIDE PANELS 9 & 10 TO DESK TOP 1 USING ALREADY INSTALLED "B" KLIX CAMS , "A" CAM SCREWS AND "D" DOWELS. TIGHTEN.
- Page 8 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS INSTALL "A" CAM SCREWS, "D" DOWELS AND "B" KLIX CAMS TO FRONT PANEL 2 . A(8X) B(2X) D(5X) CONNECT FRONT PANEL 2 TO 1 9 10 11 12 USING ALREADY INSTALLED "B" KLIX CAMS , "A" CAM SCREWS AND "D" DOWELS . TIGHTEN.
- Page 9 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS INSTALL "A" CAM SCREWS AND "D" DOWELS TO THE UNDER SIDE OF COUNTER TOP 7 . A(6X) D(7X) CONNECT COUNTER TOP 7 TO PANELS 2 9 & 10 USING ALREADY INSTALLED "B" KLIX CAMS , "A" CAM SCREWS AND "D" DOWELS . TIGHTEN.
- Page 10 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS 12. INSTALL "J" L BRACKET UNDER THE DESK TOP 1 USING "K" SCREWS. J(3X) K(18X) CONNECT GLASS TRANSACTION TOP 8 TO COUNTER TOP 7 USING "F" SCREWS, "G" CUSHIONS AND "H" SCREWS .
- Page 11 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS INSTALL "L" BRACKET ON THE UNDERSIDE OF TOP PANEL 1 . THEN USE "C" CAM COVER STICKERS TO COVER ALL EXPOSED KLIX CAMS AND DESK TOP HOLES. C(36X) L1(4X) L2(8X ） Note:Press cam cover stickers to fit.
- Page 12 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS Option 2: Steps 16 through 30 for stand alone desk with short desk side panels. Use large side panels 3 & 4 . PART LIST DESK TOP FRONT PANEL 3 4 LARGE SIDE PANELS...
- Page 13 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS INSTALL "A" CAM SCREWS,"B" KLIX CAMS AND "D" DOWELS ON UNDERSIDE OF TOP 1 . A(6X) D(4X) B(2X) Note: As the desktop needs to able to attach to both panels 3 & 4 and 11 & 12 , there will be some empty holes.
- Page 14 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS CONNECT TOP 1 TO SIDE PANELS 3 & 4 USING ALREADY INSTALLED "B" KLIX CAMS , "A" CAM SCREWS AND "D" DOWELS. TIGHTEN. Tighten 20. INSERT "E" GROMMETS ON DESK TOP 1 . INSTALL "A" CAM SCREWS AND "D" DOWELS ON TOP 1 .
- Page 15 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS 21. INSERT "B" KLIX CAMS TO SHORT DESKTOP SIDE PANELS 9 & 10 . B(8X) CONNECT SIDE PANELS 5 & 6 TO DESK TOP 1 USING ALREADY INSTALLED "B" KLIX CAMS , "A" CAM SCREWS AND "D" DOWELS. TIGHTEN.
- Page 16 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS INSTALL "A" CAM SCREWS, "D" DOWELS AND "B" KLIX CAMS TO FRONT PANEL 2 . A(8X) B(2X) D(5X) CONNECT FRONT PANEL 2 TO 1 3 4 9 10 USING ALREADY INSTALLED "B" KLIX CAMS , "A"...
- Page 17 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS INSTALL "A" CAM SCREWS AND "D" DOWELS TO THE UNDER SIDE OF COUNTER TOP 7 . A(6X) D(6X) CONNECT COUNTER TOP 7 TO PANELS 2 9 & 10 USING ALREADY INSTALLED "B" KLIX CAMS , "A" CAM SCREWS AND "D" DOWELS . TIGHTEN.
- Page 18 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS 27. INSTALL "J" L BRACKET UNDER THE DESK TOP 1 USING "K" SCREWS. J(5X) K(30X) CONNECT GLASS TRANSACTION TOP 8 TO COUNTER TOP 7 USING "F" SCREWS, "G" CUSHIONS AND "H" SCREWS .
- Page 19 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS USE "C" CAM COVER STICKERS TO COVER ALL EXPOSED KLIX CAMS. C(36X) Note:Press in to fit. 30. COMPLETE(STAND ALONE DESK) RCN4731 OFFICESOURCE.COM Last Updated: 11/2022...
- Page 20 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS Option 3: Steps 41 through 45 for creating a desk to connect to the end of another desk . Use large side panel 3 & short side panel 12 . PART LIST DESK TOP...
- Page 21 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS INSTALL "A" CAM SCREWS,"B" KLIX CAMS AND "D" DOWELS ON UNDERSIDE OF TOP 1 . A(6X) D(4X) B(2X) IMPORTANT: FUNCTION OF KLIX CAX 1/4 RIGHT TURN FOR LOCKING MAKE SURE THE ARROW IS...
- Page 22 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS CONNECT TOP 1 TO SIDE PANELS 3 & 12 USING ALREADY INSTALLED "B" KLIX CAMS , "A" CAM SCREWS AND "D" DOWELS. TIGHTEN. Tighten 35. INSERT "E" GROMMETS ON DESK TOP 1 . INSTALL "A" CAM SCREWS AND "D" DOWELS ON TOP 1 .
- Page 23 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS 36. INSERT "B" KLIX CAMS TO SHORT DESKTOP SIDE PANELS 9 & 10 . B(8X) CONNECT SIDE PANELS 9 & 10 TO DESK TOP 1 USING ALREADY INSTALLED "B" KLIX CAMS , "A" CAM SCREWS AND "D" DOWELS. TIGHTEN.
- Page 24 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS INSTALL "A" CAM SCREWS, "D" DOWELS AND "B" KLIX CAMS TO FRONT PANEL 2 . A(8X) B(2X) D(5X) CONNECT FRONT PANEL 2 TO 1 3 12 9 10 USING ALREADY INSTALLED "B" KLIX CAMS , "A"...
- Page 25 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS INSTALL "A" CAM SCREWS AND "D" DOWELS TO THE UNDER SIDE OF COUNTER TOP 7 . A(6X) D(7X) CONNECT COUNTER TOP 7 TO PANELS 2 9 & 10 USING ALREADY INSTALLED "B" KLIX CAMS , "A" CAM SCREWS AND "D" DOWELS . TIGHTEN.
- Page 26 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS 42. INSTALL "J" L BRACKET UNDER THE DESK TOP 1 USING "K" SCREWS. J(4X) K(24X) CONNECT GLASS TRANSACTION TOP 8 TO COUNTER TOP 7 USING "F" SCREWS, "G" CUSHIONS AND "H" SCREWS .
- Page 27 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 ASSEMBLY INSTRUCTIONS USE "C" CAM COVER STICKERS TO COVER ALL EXPOSED KLIX CAMS AND INSTALL "L" BRACEKTS UNDER DESK TOP 1 . C(32X) L1(2X) L2(4X) Note:Press in to fit. COMPLETE(READY TO ATTACH TO THE END OF ANOTHER DESK)
- Page 28 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 OFFICESOURCE.COM Last Updated: 11/2022...
- Page 29 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 OFFICESOURCE.COM Last Updated: 11/2022...
- Page 30 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 OFFICESOURCE.COM Last Updated: 11/2022...
- Page 31 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 OFFICESOURCE.COM Last Updated: 11/2022...
- Page 32 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 OFFICESOURCE.COM Last Updated:11/2022...
- Page 33 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 OFFICESOURCE.COM Last Updated: 11/2022...
- Page 34 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 OFFICESOURCE.COM Last Updated: 11/2022...
- Page 35 ASSEMBLY INSTRUCTIONS MODEL NO. RCN4731 OFFICESOURCE.COM Last Updated:11/2022...
