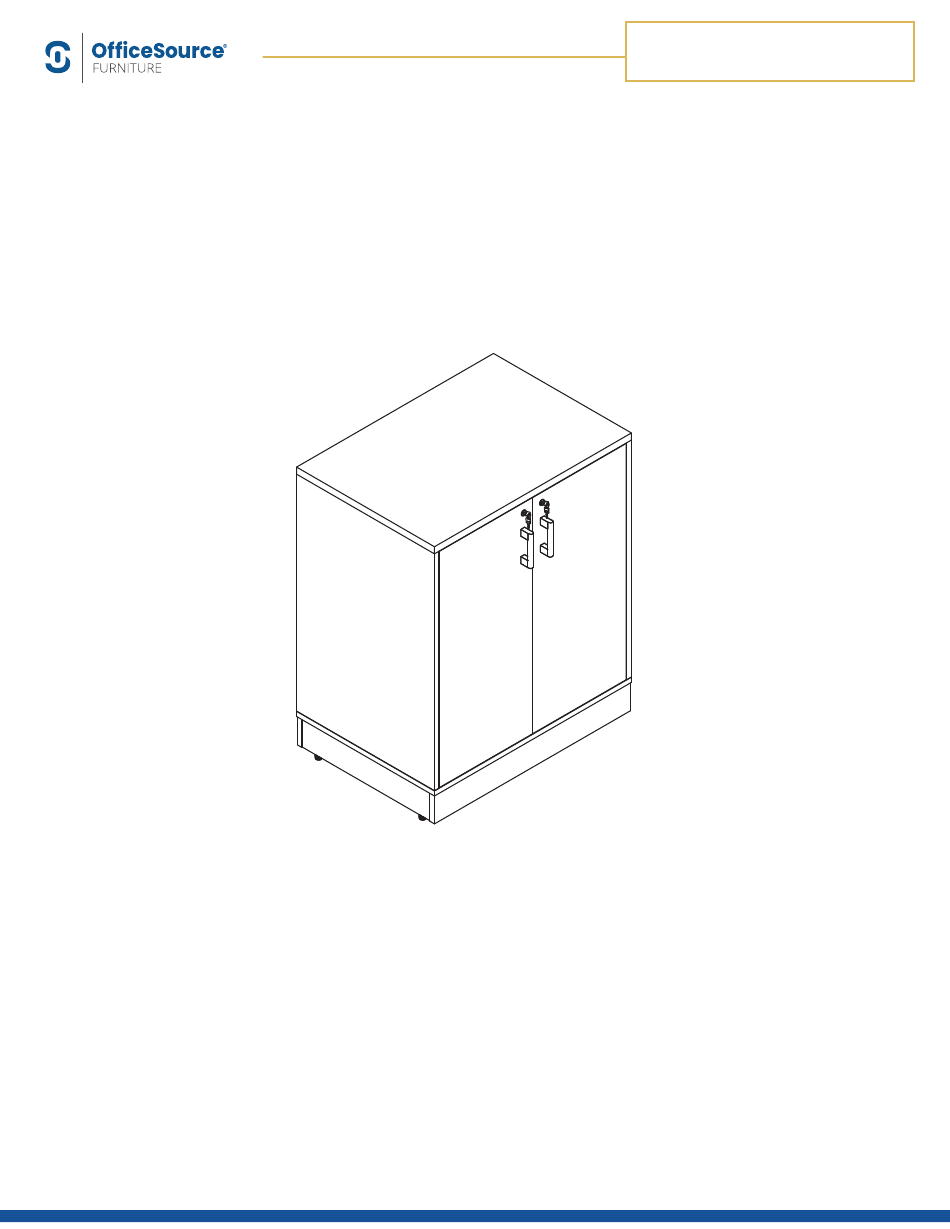

- Page 1 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222WB Congratulations on the purchase of your new Signature Series product! RCN3222WB OFFICESOURCE.COM Last Updated: 03/2023...
-
Page 2: Parts List
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222WB Part 1 of 7 Congratulations on the purchase of your new Signature Series product! Assembly HARDWARE PICTURE NAME TOTAL QTY REMARK CAM SCREW 22+1(SPARE) KLIX CAM 22+1(SPARE) use cam covers to cover 22+1(SPARE) - Page 3 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222WB Part 2 of 7 Congratulations on the purchase of your new Signature Series product! INSTALL THE "E" LEVELERS ON THE BOTTOM OF BASE SUPPORT 6 . E(4x) Tighten INSTALL "A" CAM SCREWS AND "D" DOWELS INTO BACK PANEL 5 . INSERT "B"...
- Page 4 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222WB Part 3 of 7 Congratulations on the purchase of your new Signature Series product! INSTALL "A" CAM SCREWS AND "D" DOWELS ON SIDE PANELS 2 . INSTALL "B" KLIX CAMS INTO BACK PANEL 5 . THEN CONNECT 2 TO 5 ,TIGHTEN. DO THE SAME STEP TO CONNECT 3 TO 5 .
- Page 5 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222WB Part 4 of 7 Congratulations on the purchase of your new Signature Series product! INSTALL "J" HANGING RAIL TO PANEL 2 & 7 USING "I" CONNECTORS. J(1x) I(2x) INSTALL "F" SHELF PEGS ON PANELS 3 & 7 . THEN PLACE SHELVES 9 INSIDE ON "F"...
- Page 6 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222WB Part 5 of 7 Congratulations on the purchase of your new Signature Series product! INSTALL "G" HINGES ON THE INSIDE OF DOORS 8 , 2 PER DOOR, ATTACH DOOR 8 TO PANELS 2 AND 3 , ADJUST AS NEEDED SEE BOX.
- Page 7 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222WB Part 6 of 7 Congratulations on the purchase of your new Signature Series product! INSTALL LOCKS ON DOOR 8 AND UNDERSIDE OF TOP 1 . ONE PER DOOR. H(2x) USE "C" CAM COVERS STICKERS TO COVER ALL EXPOSED KLIX CAMS.
- Page 8 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222WB Part 7 of 7 Congratulations on the purchase of your new Signature Series product! COMPLETED RCN3222WB OFFICESOURCE.COM Last Updated: 03/2023...
