Summary of Contents for OfficeSource RCN3222STG

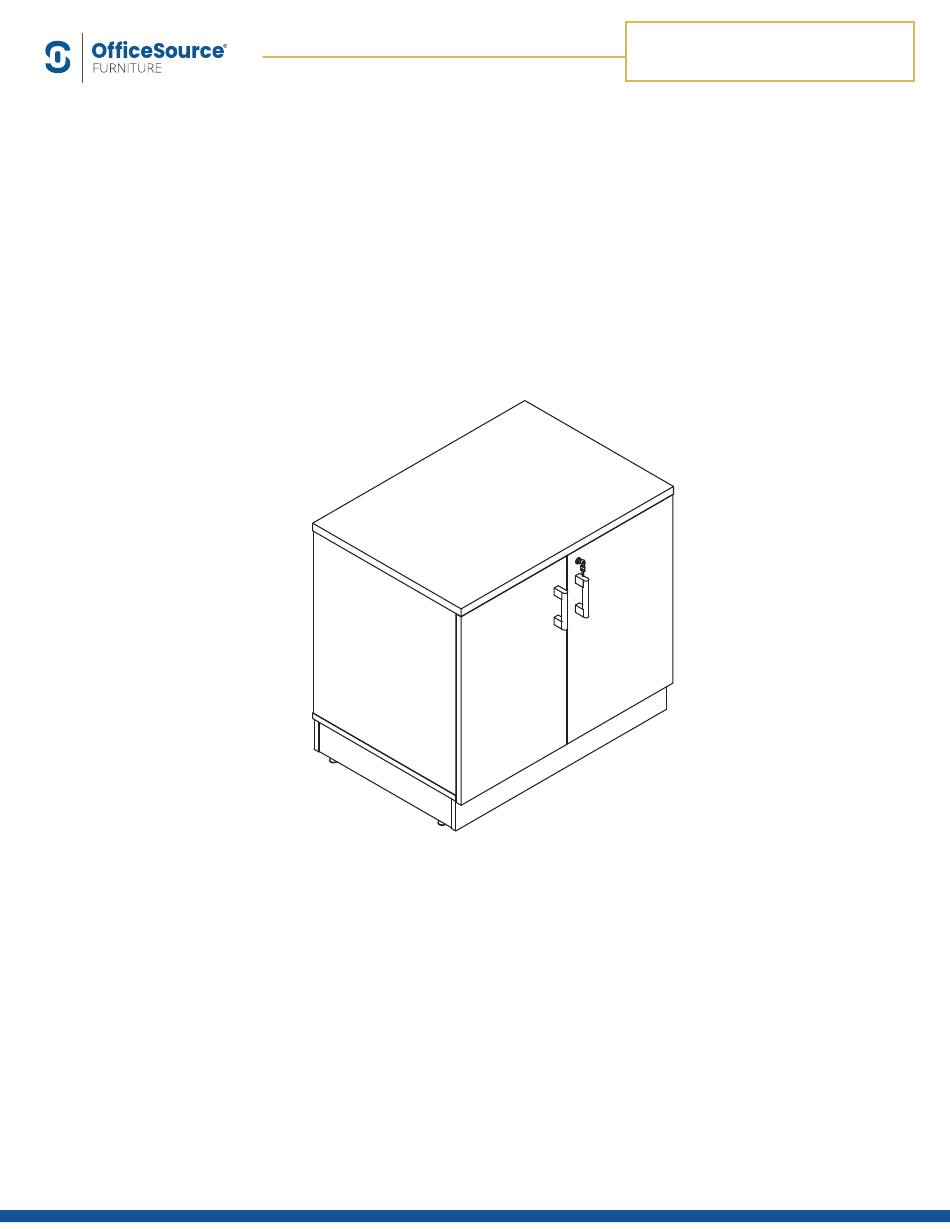

- Page 1 ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222STG ASSEMBLY INSTRUCTIONS RCN3222STG OFFICESOURCE.COM Last Updated: 03/2023...
-
Page 2: Part List
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222STG Part 1 of 7 Assembly HARDWARE PICTURE NAME TOTAL QTY REMARK 18+1(SPARE) CAM SCREW 18+1(SPARE) KLIX CAM use cam covers to cover CAM COVER STICKER 18+1(SPARE) any klix cam screws WOOD DOWEL 12+1(SPARE) - Page 3 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222STG Part 2 of 7 INSTALL THE "E" LEVELERS ON THE BOTTOM OF BASE SUPPORT 6 . E(4x) Tighten INSTALL "A" CAM SCREWS AND "D" DOWELS INTO SIDE PANEL 3 AND "B" KLIX CAMS INTO BACK PANEL 5 . CONNECT PANEL 3 TO 5 . TIGHTEN.
- Page 4 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222STG Part 3 of 7 INSTALL "A" CAM SCREWS AND "D" DOWELS ON UNDERSIDE OF TOP 1 & BOTTOM PANEL 4 . A(12x) D(8X) INSTALL "B" KLIX CAMS INTO SIDE PANELS 2 3 & 5 . THEN CONNECT BOTTOM PANEL 4 TO 2 3 &...
- Page 5 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222STG Part 4 of 7 INSERT "F" SHELF PEGS INTO SIDE PANELS 2 AND 3 . SET SHELF 7 ON TOP OF PEGS. F(4X) INSTALL "G" HINGES ON INSIDE OF DOOR 8, 2 PER DOOR. ATTACH HINGE TO INSIDE OF SIDE PANELS 2 AND 3 , ADJUST AS NEEDED.
- Page 6 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222STG Part 5 of 7 INSTALL "J" HANDLES ON DOOR 8 . ONE PER DOOR. J(2x) INSTALL "I" LATCH ON THE UNDERSIDE OF TOP 1 AND ON INSIDE OF LEFT FACING DOOR 8 .( DOOR ATTACHED TO PANEL 2 )
- Page 7 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222STG Part 6 of 7 INSTALL "H" LOCK UNDER TOP 1 & ON INSIDE OF RIGHT FACING DOOR 8 .( DOOR ATTACHED TO PANEL 3 ) H(1X) USE "C" CAM COVERS STICKERS TO COVER ALL EXPOSED KLIX CAMS.

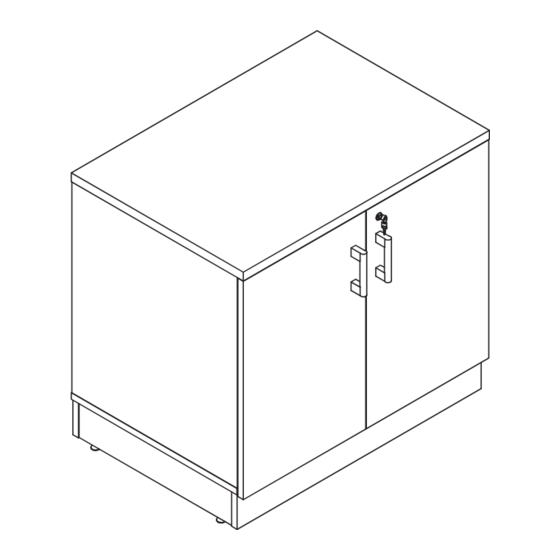

- Page 8 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MODEL NO. RCN3222STG Part 7 of 7 COMPLETED RCN3222STG OFFICESOURCE.COM Last Updated: 03/2023...
