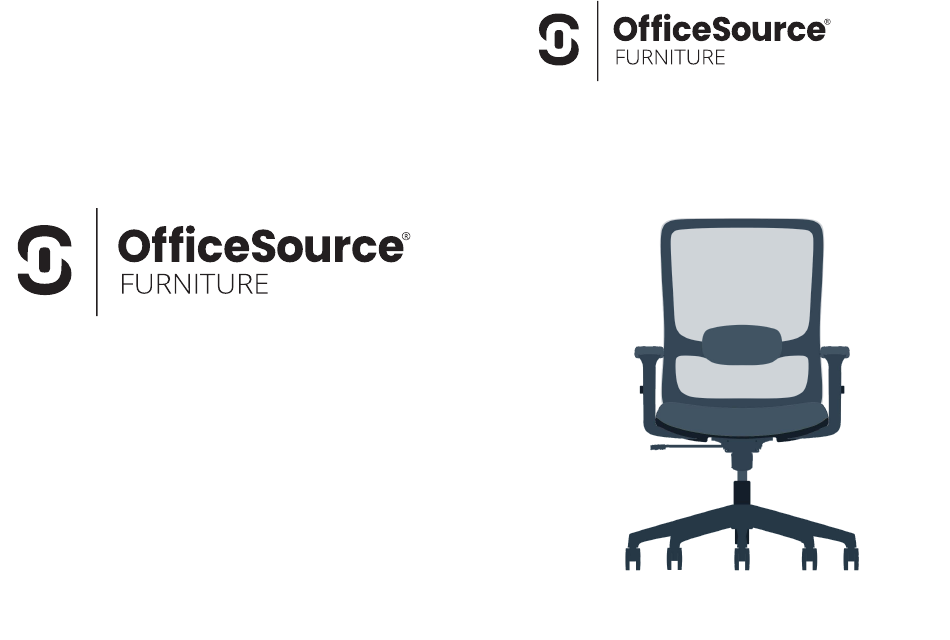

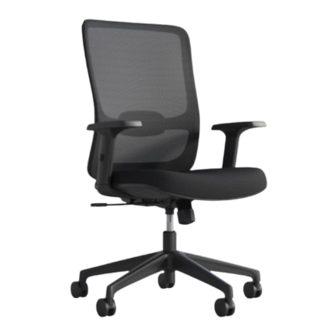

- Page 1 Model #: OSTW8001 Name: Orion Description: Mesh Task Chair Assembly & Operating Instructions officesourcefurniture.com Customer Service Tel: 800-388-8202 (Mon-Fri | 9am-5pm EST.) Please read the instruction sheet(s) completely before assembly. Maximum Weight Load: 275lbs...
- Page 2 Customer Service Tel: 800-388-8202 (Mon-Fri | 9am-5pm EST.) officesourcefurniture.com Distributed exclusively by COE Distributing! Distributed exclusively by COE Distributing!
-
Page 3: Tilt Tension Adjustment
TILT TENSION ADJUSTMENT Parts List On the knob located underneath the seat, turn clockwise to tighten or counterclockwise to loosen the tilt tension to your preferred level of resistance. Seat Cushion x1 Back x1 Mechanism x1 Note: Clear cover for L arm Red cover for R arm Armrest x1 Gas lift x1... -
Page 4: Arm Height Adjustment
Installation Steps ARM HEIGHT ADJUSTMENT STEP 1 To adjust arm height, push the button on the outside of each arm and move the arm up or down. Release the button to set the height. TILT ANGLE ADJUSTMENT STEP 2 D -L Rotate the lumbar support to a comfortable D -R angle. -
Page 5: Seat Height Adjustment
SEAT HEIGHT ADJUSTMENT Installation Steps STEP 3 While seated, pull the lever on the right side of the seat up and hold it while raising or lowering the seat to change the seat height. When the lever is released, the seat height is locked. - Page 6 Installation Steps Installation Steps STEP 4 STEP 5 Distributed exclusively by COE Distributing! Distributed exclusively by COE Distributing!
