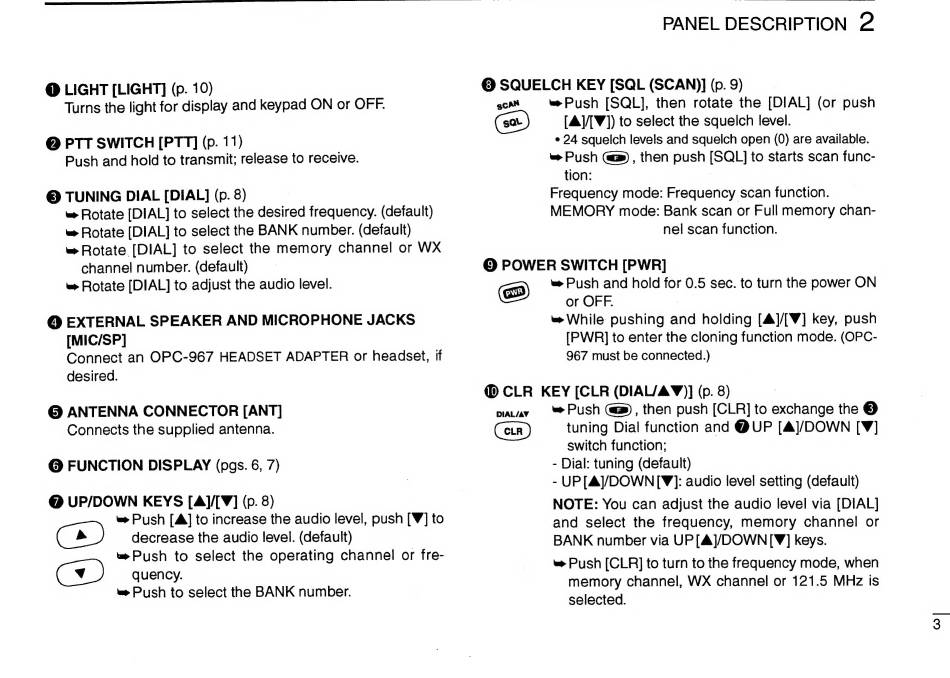

Panel Description - Icom IC-A23 Instruction Manual

@ ANTENNA CONNECTOR [ANT]
Connects the supplied antenna.
O UP/DOWN KEYS [AJ[V] (p. 8)
= Push [A] to increase the audio level, push [V] to
Ca) decrease the audio level. (default)
we Push to select the operating channel or fre-
quency.
= Push to select the BANK number.
PANEL DESCRIPTION 2
Q POWER SWITCH [PWR]
= Push and hold for 0.5 sec. to turn the power ON
or OFF.
> While pushing and holding [AT/[W] key, push
[PWR] to enter the cloning function mode. (OPC-
967 must be connected.)
@ CLR KEY [CLR (DIAL/A V)] (p. 8) |
waray "> Push («x») , then push [CLR] to exchange the €)
tuning Dial function and @ UP [A]J/DOWN [V]
switch function;
- Dial: tuning (default)
- UPIAJDOWN [V]: audio level setting (default)
NOTE: You can adjust the audio level via [DIAL]
and select the frequency, memory channel or
BANK number via UPIA]J/DOWN [V] keys.
= Push [CLR] to turn to the frequency mode, when
memory channel, WX channel or 121.5 MHz is
selected.
