2 PANEL DESCRIPTION

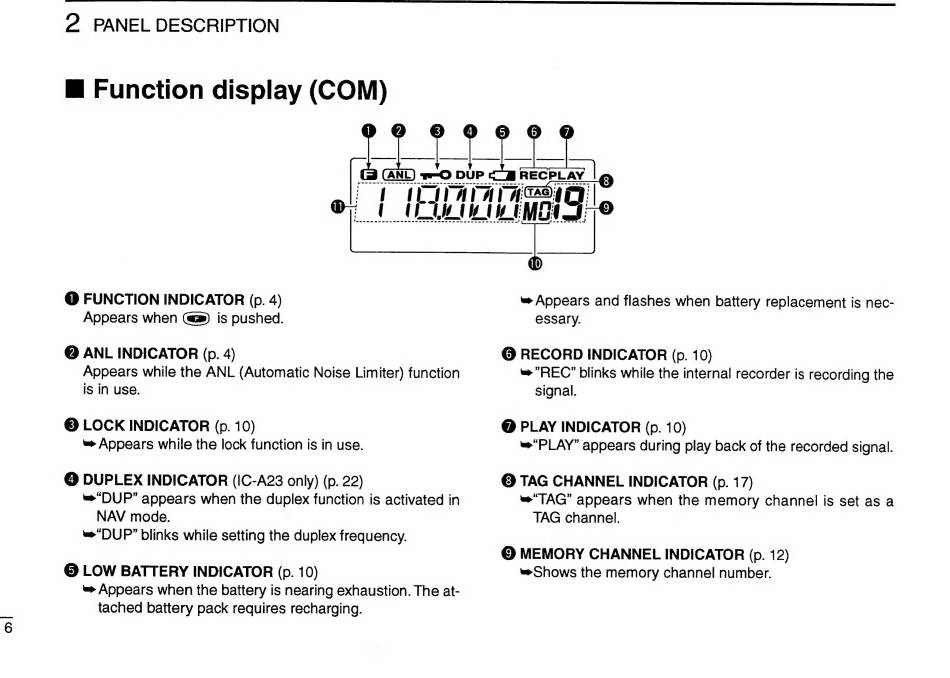

E Function display m
Q FUNCTION INDICATOR (p. 4)
Appears when (ex) is pushed.
@ ANL INDICATOR (p. 4)
Appears while the ANL (Automatic Noise Limiter) function
is in use.
© LOCK INDICATOR (p. 10)
œ Appears while the lock function is in use.
O DUPLEX INDICATOR (IC-A23 only) (p. 22)
'w"DUP" appears when the duplex function is activated in
NAV mode.
"DUP" blinks while setting the duplex frequency.
@ LOW BATTERY INDICATOR (p. 10)
= Appears when the battery is nearing exhaustion. The at-
tached battery pack requires recharging.
Q RECORD INDICATOR (p. 10)
= "REC" blinks while the internal recorder is recording the
signal.
Q PLAY INDICATOR (p. 10)
"PLAY" appears during play back of the recorded signal.
Q TAG CHANNEL INDICATOR (p. 17)
"TAG" appears when the memory channel is set as a
TAG channel.
O MEMORY CHANNEL INDICATOR (p. 12)
"Shows the memory channel number.
