FRAME IT ALL 70001041-MD250 Quick Start Manual

70001041-MD250, 71001041-MD350,
72001041-MD550, 73001041-MD750
70002041-MD250, 71002041-MD350,
72002041-MD550, 73002041-MD1000,
73002041-EC1200
1 LEVEL KIT CONTAINS (2 level kit) :
•
Composite timbers 4' Curved x 4 (8)
•
Composite timbers 2' x 13 (19)
•
Stacking Brackets x 30 (46)
•
4-way Bracing Brackets x 4 (8)
•
Finishing Sleeve x 2 (2)
•
**Stakes x 17 (26)
•
Plugs x 68 (108)
•
Caps x 9
•
Rubber Liner x 2 (Pond/Waterfall)
•
Underlayment x 2 (Pond/Waterfall)
•
Water Pump x 1
•
Pump Tubing x 1
Trim stake spike with
hacksawfor use indoor
or on hard surfaces
Customer Service: 1800-914-9835 |
support@frameitall.com
© Frame It All. All Rights Reserved.
Water Garden
Required Tools:
•
Shovel
•
Levelling tool
•
Hammer
Recommended Tools:
•
Pond Safe Foam Sealant
•
Grading Rake
IMPORTANT: READ ALL
INSTRUCTIONS BEFORE
STARTING YOUR BUILD!
**NOTE
Stacking stakes can be used on all levels
and when creating additional levels.
ONLY Stacking Stakes can stack!
FOR INDOOR & HARD SURFACE:
If you plan to assemble raised bed on a hard surface, use
hacksaw to remove the spike of each stake. Use these cut
down stakes for the base level only of your raised garden.

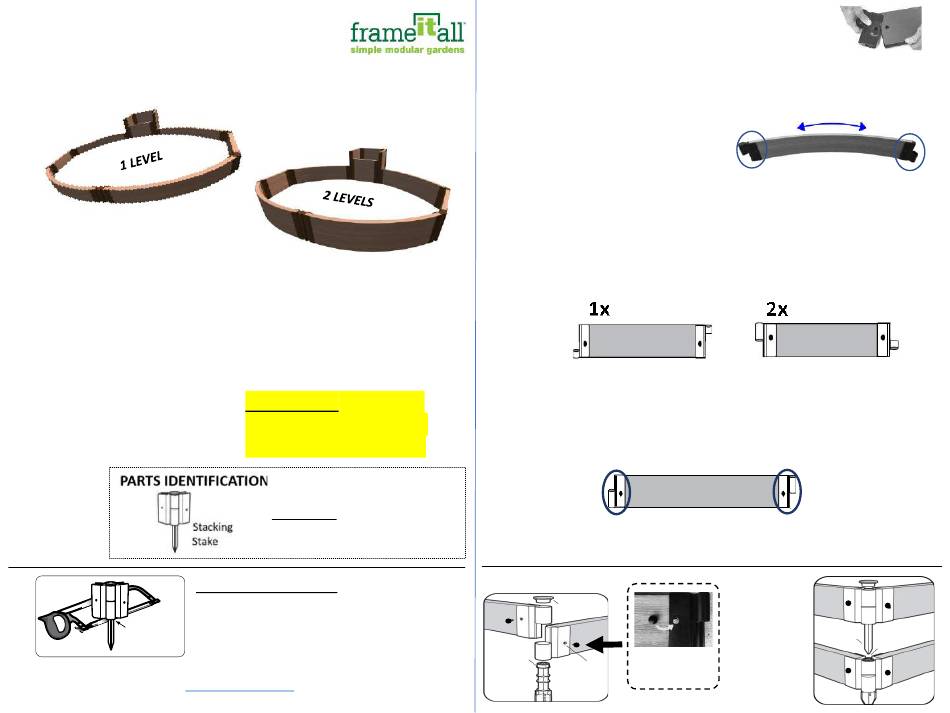

ASSEMBLY INSTRUCTIONS – Building the Frame
STEP 1a:
Assemble the curved timbers by sliding one end of the timber into the channel end of one
of the brackets. Use plugs to lock the bracket in place.
Repeat this process on the other end of the timber flipping the bracket in the opposite
direction. Make sure that all your curved timbers have brackets connected in the same
Oval Falls
way with relation to the curve.
(see example). Repeat for all curved timbers.
STEP 1b:
Connect brackets to the curved boards in the same way as the straight boards while keeping
the bracket pattern consistent with relation to the
curve of the board.
STEP 1b.
For a 1 level pond design, connect a 2ft board with 2 x 4-way brackets as shown and 2
x 2ft boards with a 4-way bracket on one end and a normal bracket on the other end as
shown. For 2 level, double these board amounts.
(See example).
STEP 1c.
Connect all other 2ft boards with brackets with each side having a bracket oriented the
opposite way.
(See example). Repeat for all remaining 2ft timbers.
How the Joints Work
Use a Cap to
complete the
top level.
Use stacking
stakes for
ground level
frames and
Use plugs to
stacking
cover the holes
additional levels.
– two plugs are
required per
bracket (1 on
each side)
Use plugs (included)
to cover the holes on
both side of timbers
Use stacking
Stacking stake fit
stake when
into the tops other
creating a
Stacking stakes
multi-level
