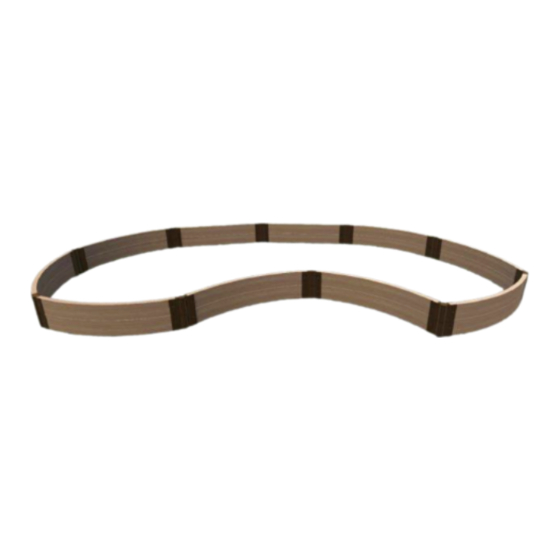

FRAME IT ALL 700001020-MD250 Manual

700001020-MD250, 70002020-MD550, 71001020-MD1000
71002020-MD1000, 71002020-EC1200, 72001020-MD1250
72001020-EC1200, 72002020-MD1250, 72002020-EC1200
73001020-MD1500, 73001020-EC1900, 73001020-EP2000
73002020-MD1500, 73002020-EC1900, 73002020-EP2000

1 LEVEL KIT CONTAINS:

•
8 x Composite Timbers 4' Curved
•
2 x Composite Timbers 4' Straight
•
20 x Stacking Brackets
•
10 x Anchor/Ground Level Serrated Stakes
•
40 x Plugs/Locking Nubs
•
10 x Caps
•
1 x Rubber Liner
•
1 x Underlayment
•
1 x Water Pump
•
1 x Pump Tubing
IMPORTANT: READ ALL
INSTRUCTIONS BEFORE
STARTING YOUR BUILD!
**NOTE
Stacking stakes should only be used
when stacking boards for water
garden application.
ONLY Stacking Stakes can stack!
Customer Service: 1800-914-9835 |
support@frameitall.com
© Frame It All. All Rights Reserved.
Water Garden
1 LEVEL

Required Tools:

•
Shovel
•
Levelling tool
•
Hammer

Recommended Tools:

•
Pond Safe Foam
Sealant
•
Grading Rake

2 LEVEL KIT CONTAINS:

•
16 x Composite Timbers 4' Curved
Kidney
•
4 x Composite Timbers 4' Straight
•
40 x Stacking Brackets
•
10 x Stacking Stakes (**See Note Below)
•
10 x Anchor/Ground Level Serrated Stakes
•
80 x Plugs/Locking Nubs
•
10 x Caps
•
1 x Rubber Liner
•
1 x Underlayment
•
1 x Water Pump
•
1 x Pump Tubing
ASSEMBLY INSTRUCTIONS – Building the Frame
Step 1a:
Assemble the curved timbers by sliding one end of the timber into the channel end of one
of the brackets. Use plugs to lock the bracket in place.
Repeat this process on the other end of the timber flipping the bracket in the opposite
direction. Make sure that all your curved timbers have brackets connected in the same
way with relation to the curve. (see example). Repeat for all curved timbers.

STEP 1b.

Connect all other 4ft straight timbers with brackets with each side having a bracket oriented
the opposite way. (See example). Repeat for all remaining 4ft straight timbers.

How the Joints Work

Use a Cap to
complete the
top level.
Use anchor
stakes for
ground level
frames and
Use plugs to
stacking stakes
cover the holes
for additional
– two plugs are
levels.
required per
bracket (1 on
each side)
2 LEVELS
Use plugs (included)
to cover the holes on
both side of timbers
Use stacking
stake when
creating a multi-
level
